Furman ELITE15 PF I Linear Filtering AC Power Conditioner

Now on demo at:

1 of 4

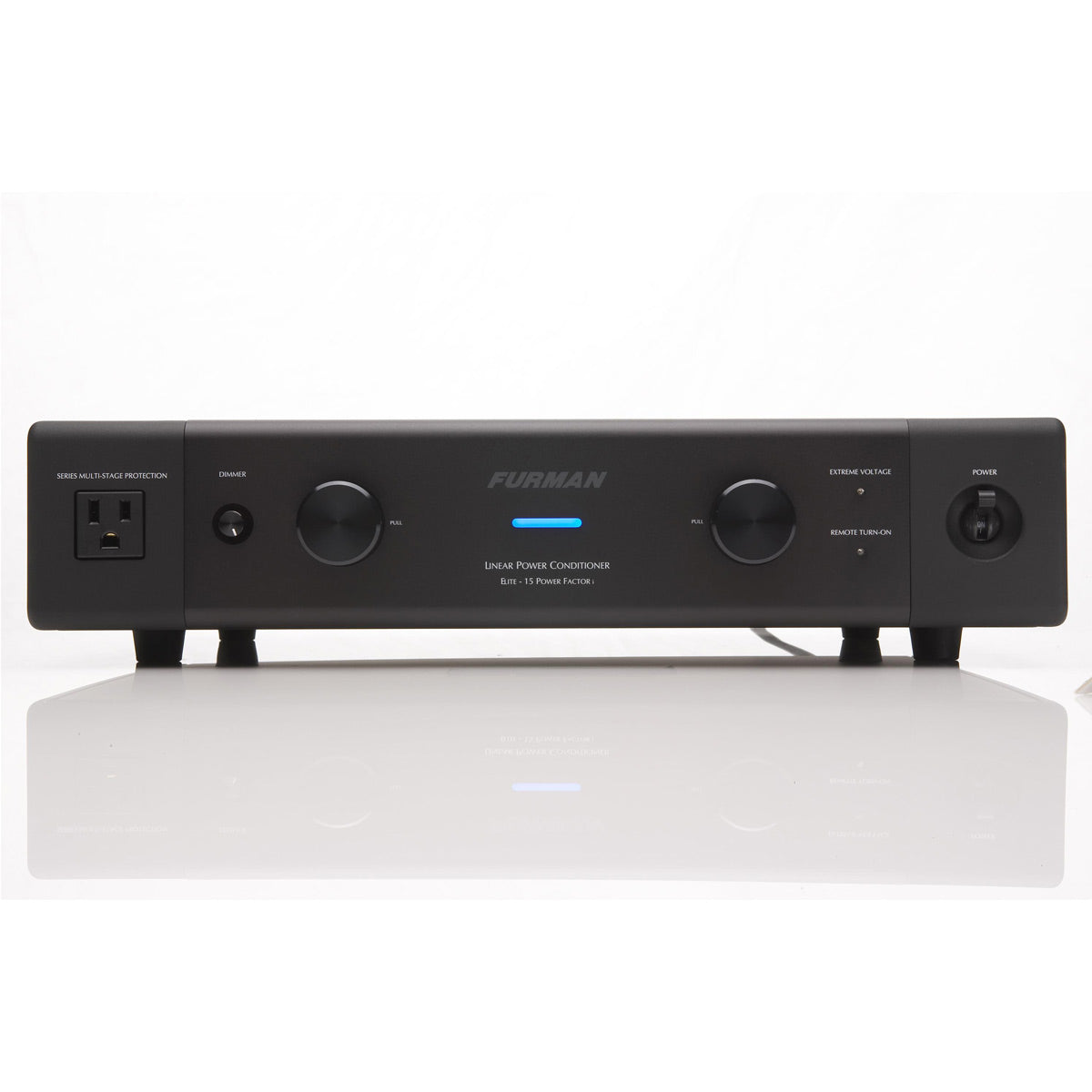

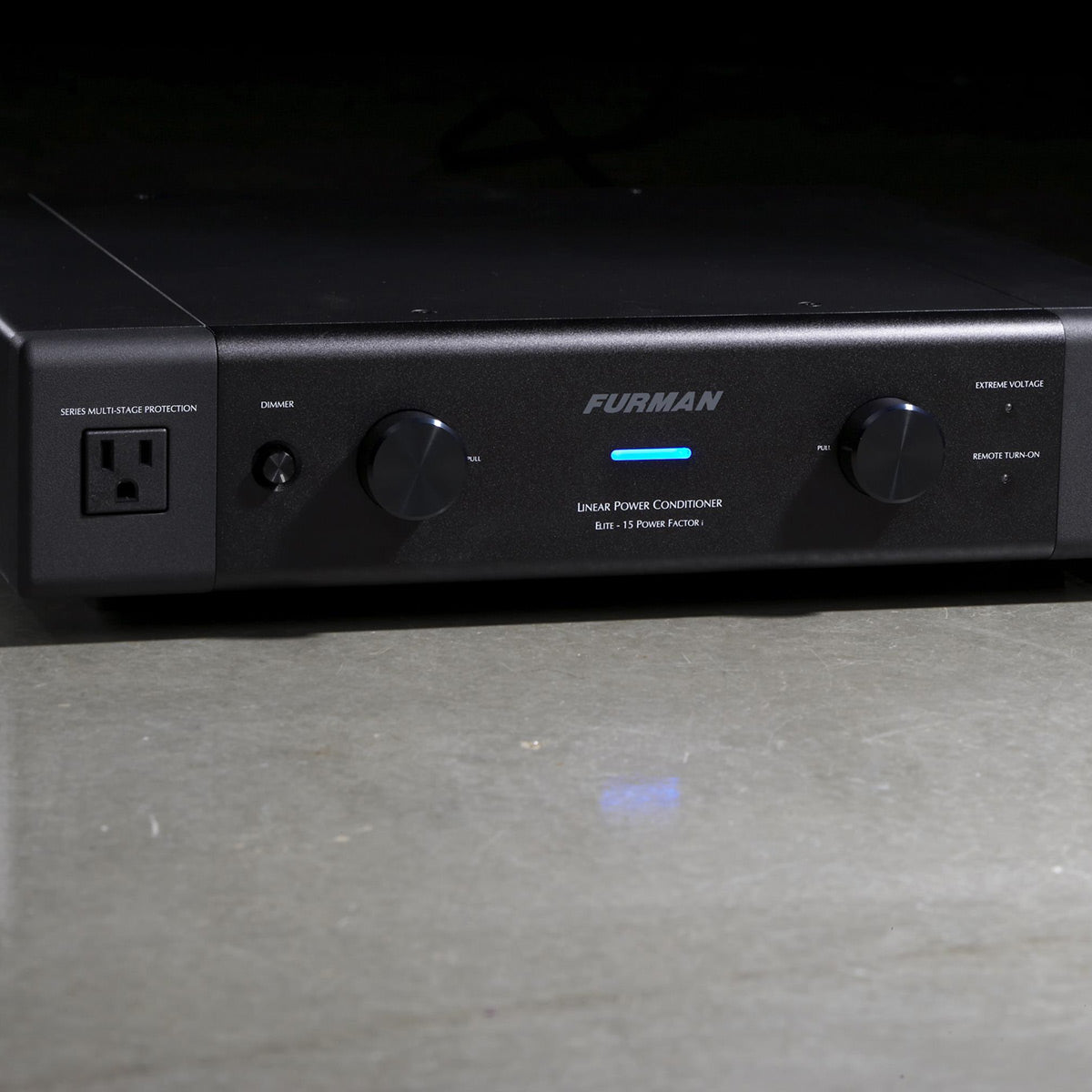

Furman ELITE15 PF I Linear Filtering AC Power Conditioner

Regular price $929.95
Sale price $929.95 Regular price
$1,039.95 Save $110.00 (11%)
OR

Man with brown hair and beard wearing glasses and a gray button-down shirt

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781
Sad face plus music note equals happy face graphic

Overview

Product Information

Model: ELITE-15 PF I | UPC: 654061027829

Specifications

What's In The Box

Product Documents

Product Information

Model: ELITE-15 PF I | UPC: 654061027829

Transform your amplifier and subwoofer performance with the Furman ELITE-15 PF I High-Current Power Conditioner. Standard conditioners can starve power-hungry amplifiers during dynamic peaks, compressing audio and muddying the soundstage. The ELITE-15 PF I solves this with our revolutionary Power Factor Technology, providing a surplus current reserve of over 45 amps (peak) that enables your amplifiers to operate at maximum efficiency. This technology, combined with wide-bandwidth Linear Filtering, delivers startlingly fast sonic transients and bass fundamentals that shake the foundation with visceral impact. No longer will your amplifier’s performance be at the mercy of incoming AC power; the ELITE-15 PF I provides the ultra-low impedance, highly filtered power needed to make it sound as if it has doubled in power and quality.

Features

  • Power Factor Technology
  • Linear Filtering Technology
  • Series Multi-Stage Protection
  • Extreme Voltage Shutdown
  • Retractable LED Rack Lights
  • 12 Volt Remote Triggering

Over 40 Years Of Power Innovation

For over 40 years, Furman has pioneered the development of AC power products for the most demanding audio, video, and broadcast professionals. Though the need for pristine AC power is nothing new, the technology in the Elite-15 Power Factor i and its unique implementation are revolutionary and without peer.

Professional-Grade Power Protection

The extreme AC demands encountered in the professional audio/video arena have required technological developments far in excess of typical home theater/audiophile power products. In studios, live sound, and broadcast facilities, breakdown is unacceptable. Equipment failure or poor performance is costly. The same is true of today’s home theater. Our solution-based technology, extensive engineering expertise, and robust build quality have answered the challenge of today’s corrupted power lines, leading to the creation of the Elite-15 PF i.

Linear Filtering Technology

Today’s power lines are plagued with RF and EMI noise. When connecting sensitive equipment to your home’s power outlet, AC noise couples into your system’s critical components, masking low-level signals and crippling performance. This low-level content is critical because it relays the crucial harmonics and ambiance in audio, as well as the depth and clarity in video. With exclusive Linear Filtering Technology, televisions, projectors, DVD players, amplifiers, and processors are fed linearly filtered AC power. This dramatically reduces noise, ensuring consistent peak operation regardless of load conditions or the time of day. For the first time, you will see and hear your theater or audio system as it should be — uncompromised.

Series Multi-Stage Protection & LED Lamps

Another critical feature is our exclusive Series Multi-Stage Protection. This virtually maintenance-free surge suppression assures the highest level of AC protection possible, without sacrificing itself when the offending surge is severe — no damaged equipment, no service calls, no downtime. Further, our famous retractable front panel LED lamps allow easy viewing of either a rack or cabinet full of equipment, even when your theater lights are off.

12V Remote Triggering

The Elite-15 PF i also features remote control capability via 12V triggering, compatible with the 12V triggering devices commonly found in power receivers and pre-amp processors. Additional products (such as a remote subwoofer) can be daisy-chained from the 12V output jack for an additional triggered unit. The 12V triggering feature may be bypassed if desired.

Power Factor Technology

At the center of the Elite-15 PF i is unique Power Factor Technology. For the first time, low-level analog, digital, and video components are not modulated or distorted by the power amplifier’s extreme AC current demands. Further, the power amplifier is fed a highly filtered, extremely low-impedance supply of AC power. The Elite-15 PF i, in fact, has in excess of 3 Amps of continuous current reserve (over 45 amps peak charge) for the most extreme peak power demands. This technology enables power amplifiers and powered subwoofers to operate at peak efficiency, reaching levels of performance previously unattainable.

Optimized Amplifier Performance

No longer will your amplifier’s performance be at the mercy of your home’s incoming AC power or inferior AC protection/filtering devices. The net effect is as if your power amplifier virtually doubled in power and improved immeasurably in quality.

Enhanced Audio & Video Performance

When employing the Elite-15 PF i, you will immediately notice far clearer, stunningly focused sound and visual images from your system. Video presentation will be crisp and colors true with greater gray and black scale definition, as well as noticeably improved depth and clarity. Sonic transients will be startlingly fast with bass fundamentals that shake foundations with their weight and visceral impact. Mid and high frequencies will bloom with sweet, non-glaring ease as imaging improves dramatically, all the while remaining true to your system’s inherent virtues.

Specifications

  • Family: Elite Series
  • Line Voltage: 120 Volts
  • Number of Outlets: 13
  • Number of Isolated Banks: 3

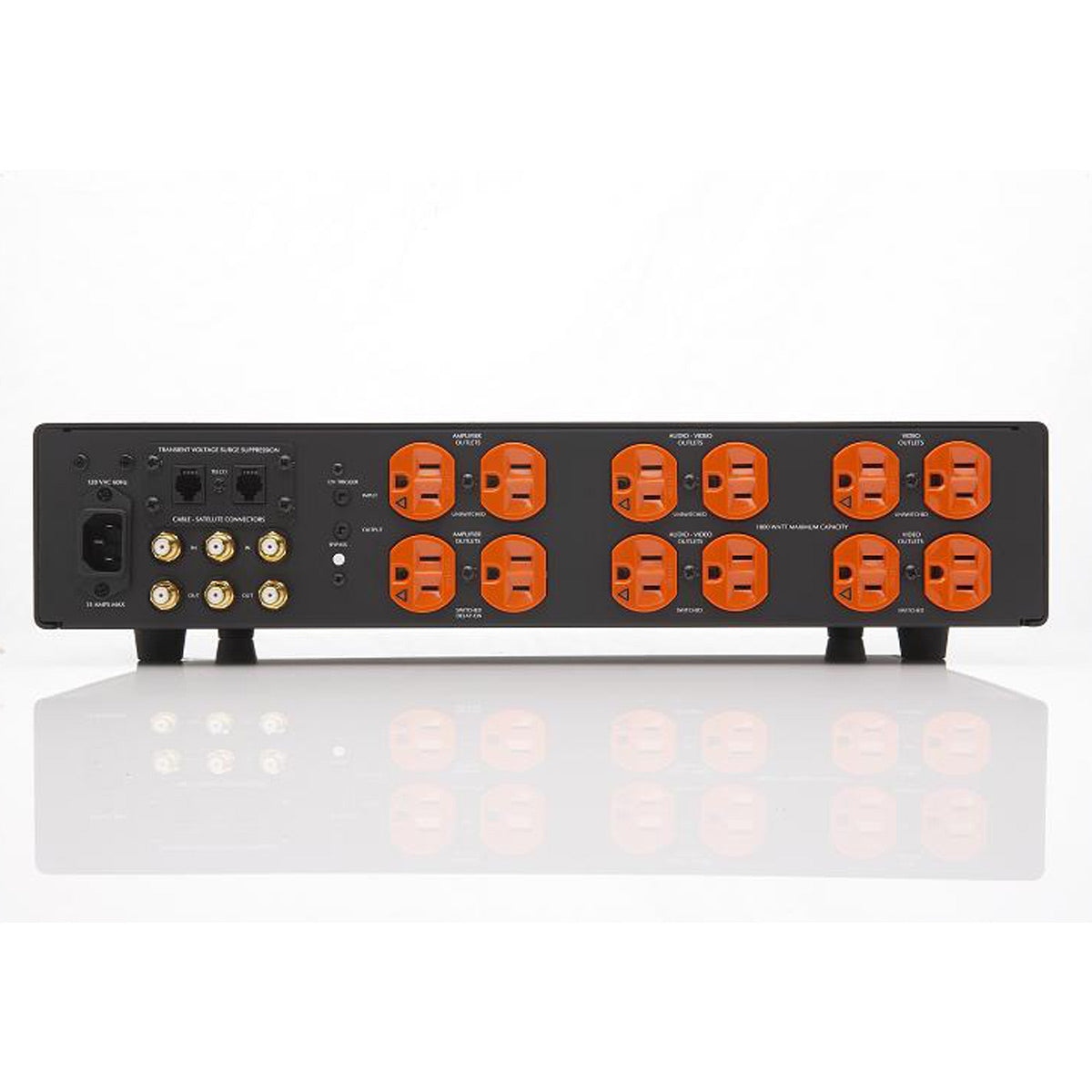

  • Outlet Description: 1 (linearly filtered outlet, front panel); 4 (linearly filtered audio-video outlets, 2 switched via 12V trigger); 4 (linearly filtered outlets with additional ultrasonic filtering for video components, 2 switched via 12V trigger); 4 (Power Factor Technology amplifier outlets, 3 amps RMS reserve, reactive load, over 45 amps peak charge, 2 switched with 5 second delay via 12V trigger)
  • Rack Mountable: Yes
  • Rack Ears Included: Yes
  • Front Panel Meter(s): No
  • Front Media Light(s): 2 Retractable LED lamps
  • Control: On/Off switch and light dimmer knob on front panel, 12 Volt triggering for remote control
  • Voltage Regulation: No
  • Compliance: NRTL-C
  • USB Charging: N/A
  • Low Voltage Trigger: 12 V, In/Out
  • Dimensions (WxHxD): 17" x 4" x 14.75" (Standard 2 RU height without feet)
  • Weight: 15 lbs
  • Power Consumption: 12 Watts for display and control circuits independent of actual load
  • AC Protection Technology: Extreme Voltage Shutdown; Series Multi-Stage Protection; Non-sacrificial protection with zero ground contamination
  • Under-Voltage Shutoff: 85V
  • Over-Voltage Shutoff: 140V ±3V
  • Maximum Current Rating: 15 Amps
  • Initial Clamping Level: 188 VAC peak @ 3,000 Amps
  • Filtration Technology: LiFT
  • Filtration Rating: >40 dB from 10 kHz to 100; >80 dB from 100 kHz to 1 GHz; (Linear attenuation curve from 0.05 to 100 ohms line impedance)
  • Signal Line Protection: 1 Tel; 3 Cable/Satellite
  • Voltage Protection Rating: UL 1449 3rd Edition, 3,000A

What's In The Box

  • ELITE15 PF I Linear Filtering AC Power Conditioner
  • Rack Ears
  • Power Cord
  • Manual
