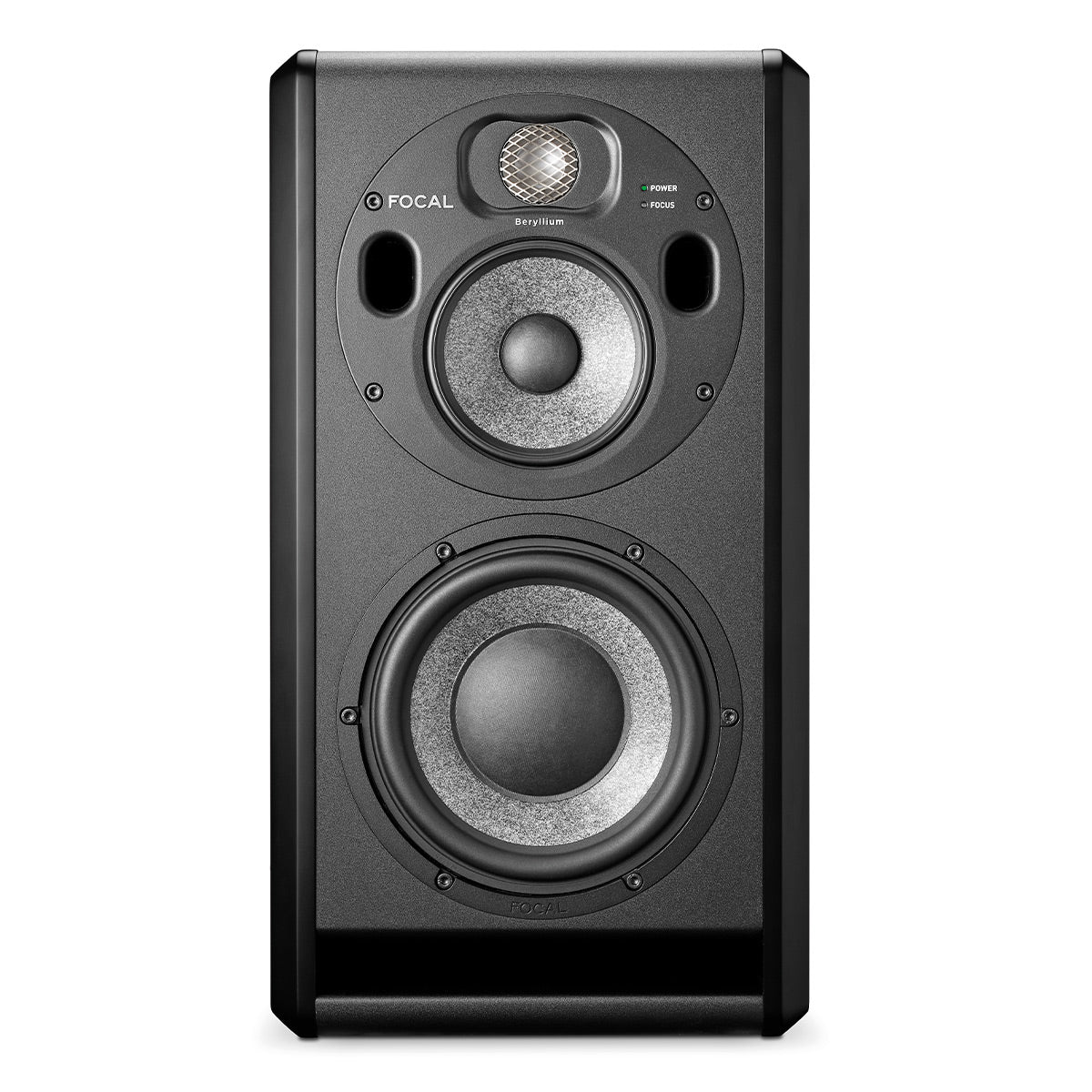

Focal TRIO6 3-Way Active Monitor

Regular price $3,499.00
Sale price $3,499.00 Regular price
Save $-3,499.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Focal TRIO6 Overview

Product Information

Model: FOASBETRI61B003 | UPC: 3544050879676

Specifications

What's In The Box

Product Information

Model: FOASBETRI61B003 | UPC: 3544050879676

Only Sound, Nothing Else.

Trio6 is a studio monitor offering flawless transparency, dynamics and sonic precision. Reliability and versatility are also its hallmarks, as evidenced by its dual Focus Mode, which enables Trio6 to form three monitors in one, for perfectly crafted, controlled mixes.

Features

  • Beryllium Tweeter
  • "W" Diaphragm Woofer and Subwoofer
  • TMD Suspension Technology
  • Variable High-Pass Crossover
  • Dual Focus Mode
  • Reinforced Cabinetry

Reference Speaker

With its high-pass filter, automatic switch-off mode and 160 Hz LMF filter for console reflections, Trio6 stands out for its adaptability and performance. It embodies Focal's best in professional work tools.

Focal Technologies

Beryllium inverted-dome tweeter, "W" diaphragm for woofer and subwoofer, TMD® suspension, large laminar air vent, IAL: Trio6 incorporates Focal's best innovations.

Reinforced Cabinetry

The ST6 cabinets are made of thick, sturdy MDF and feature internal reinforcements to provide damping and rigidity, while limiting vibration and therefore distortion.

Dual Focus Mode

A highlight is the Focus Mode, which lets you switch from a 3-way to a 2-way monitor, offering a different speaker configuration at the touch of a pedal. Trio6 features a dual Focus Mode for extreme versatility: a 3-way monitor, a 2-way monitor (midrange and tweeter) and a 1-way full-range monitor (midrange only).

Specifications

  • Type: 3-way monitor
  • Frequency response (@ -3dB): 35Hz – 40kHz
  • Focus mode 1: 100Hz – 15kHz
  • Focus mode 2: 80Hz – 40kHz
  • Maximum SPL (Average CEA2034 50–10kHz free field @ 1m): 115dB
  • Focus mode 1 (Average CEA2034 100–10kHz free field @ 1m): 112dB
  • Focus mode 2 (Average CEA2034 100–10kHz free field @ 1m): 112dB
  • Input: Balanced XLR 10kΩ
  • Bass amplifier stage: 100W RMS, G-class
  • Midrange amplifier stage: 100W RMS, G-class
  • Treble amplifier stage: 50W RMS, AB-class
  • Nominal power supply
    • 100 – 120V~ 50/60Hz
    • 220 – 240V~ 50/60Hz
  • User controls: Sensitivity, Auto standby, Focus mode, HPF, LF Shelv, LMF EQ, HF Shelv
  • Fuses
    • ~100–120V, 50/60Hz
    • T3.15AH/250V~220–240V
    • 50/60Hz, T1.6AH/250V
  • Bass: 8" 'W' cone
  • Midrange: 5" 'W' cone
  • Treble: 1.5" Beryllium
  • Construction: 7/8" (22mm) MDF
  • Dimensions (W x H x D): 11-1/2" x 21-1/8" x 14-1/2"
  • Weight: 55.12 lbs.
  • Temperature range During use: 5–35°C
  • During storage: 0–50°C

What's In The Box

  • Trio6 3-Way Studio Monitor
  • Power Cord
  • Manual
