Focal Cinema SUB Dual 13" Subwoofer

Now on demo at:

1 of 7

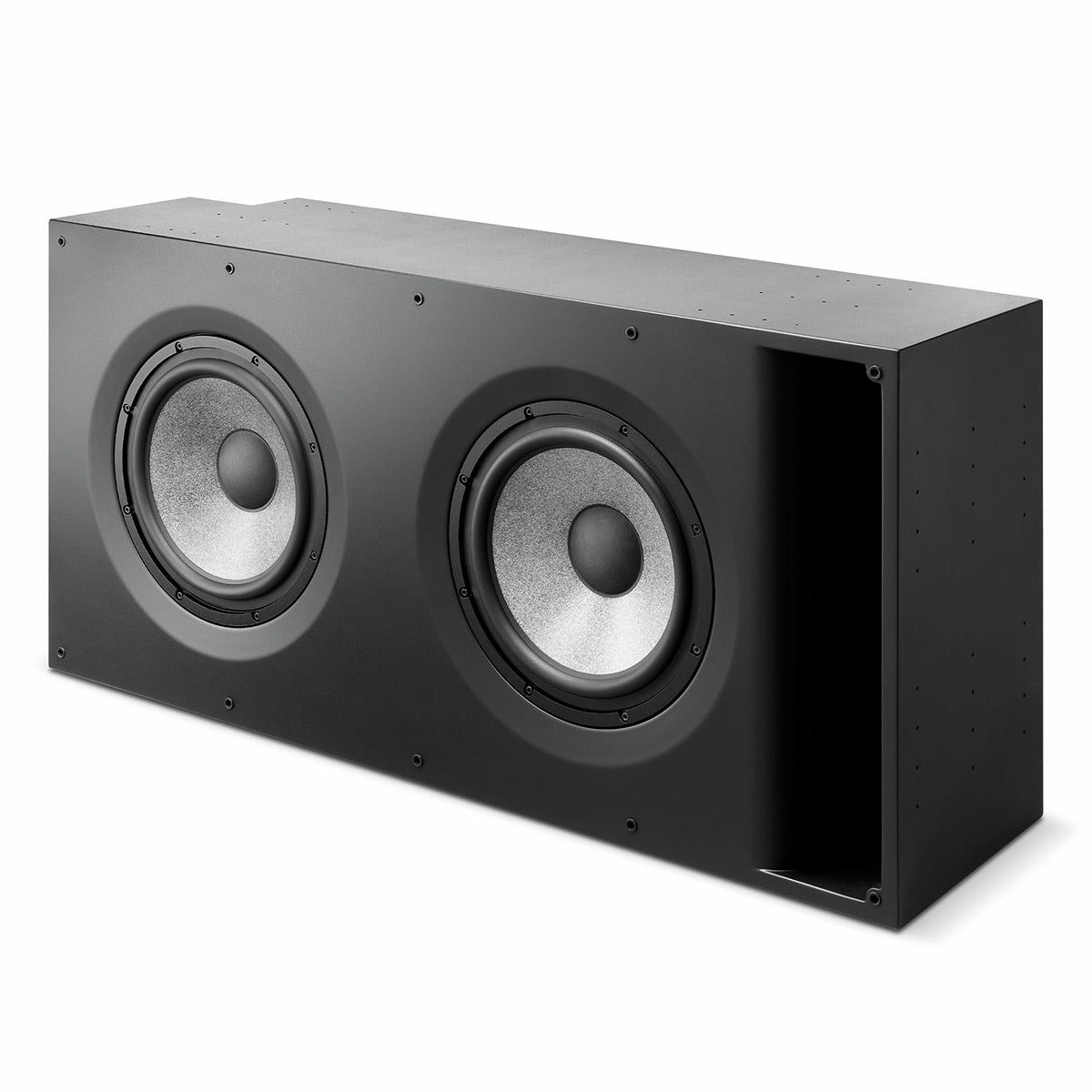

Focal Cinema SUB Dual 13" Subwoofer

Regular price $5,999.00
Sale price $5,999.00 Regular price
$0.00 Save $-5,999.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Trade In Your Gear

Get a personalized trade-in estimate within 48 hours and apply it toward your next premium upgrade.

Request Trade-In Quote
Trade In Your Gear

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Focal Cinema SUB Overview

Product Information

Model: FOAIWUCUSW0B000 | UPC: 3544054713686

Specifications

What's In The Box

Product Information

Model: FOAIWUCUSW0B000 | UPC: 3544054713686

Cinema SUB is the ultimate subwoofer for your home cinema installation. Designed to work with the Cinema LCR speaker, it delivers deep bass, enhancing every nuance of sound, even in the largest private cinema rooms up to 2153 sq ft (200m²). Advanced acoustic design, exclusive Focal technologies, customization and modularity of the installation... With Cinema SUB, transform your movies into an unforgettable immersive experience.

Features

  • Deep, Punchy Bass
  • 13” ‘W” Cone High-Excursion Woofers
  • Modular Configuration
  • Optimized Air Flow Port
  • Multi-Point Mounting System

13'' ‘W’ Cone High-Excursion Woofer

Unique combination of size, power and sound performance. optimized speaker drivers for maximum excursion and perfect sub-bass control.

Optimized Port

Improves air flow and eliminates vent noise. Designed to minimise distortion while maximising sound pressure, for precise and punchy bass registers

Modular Configuration

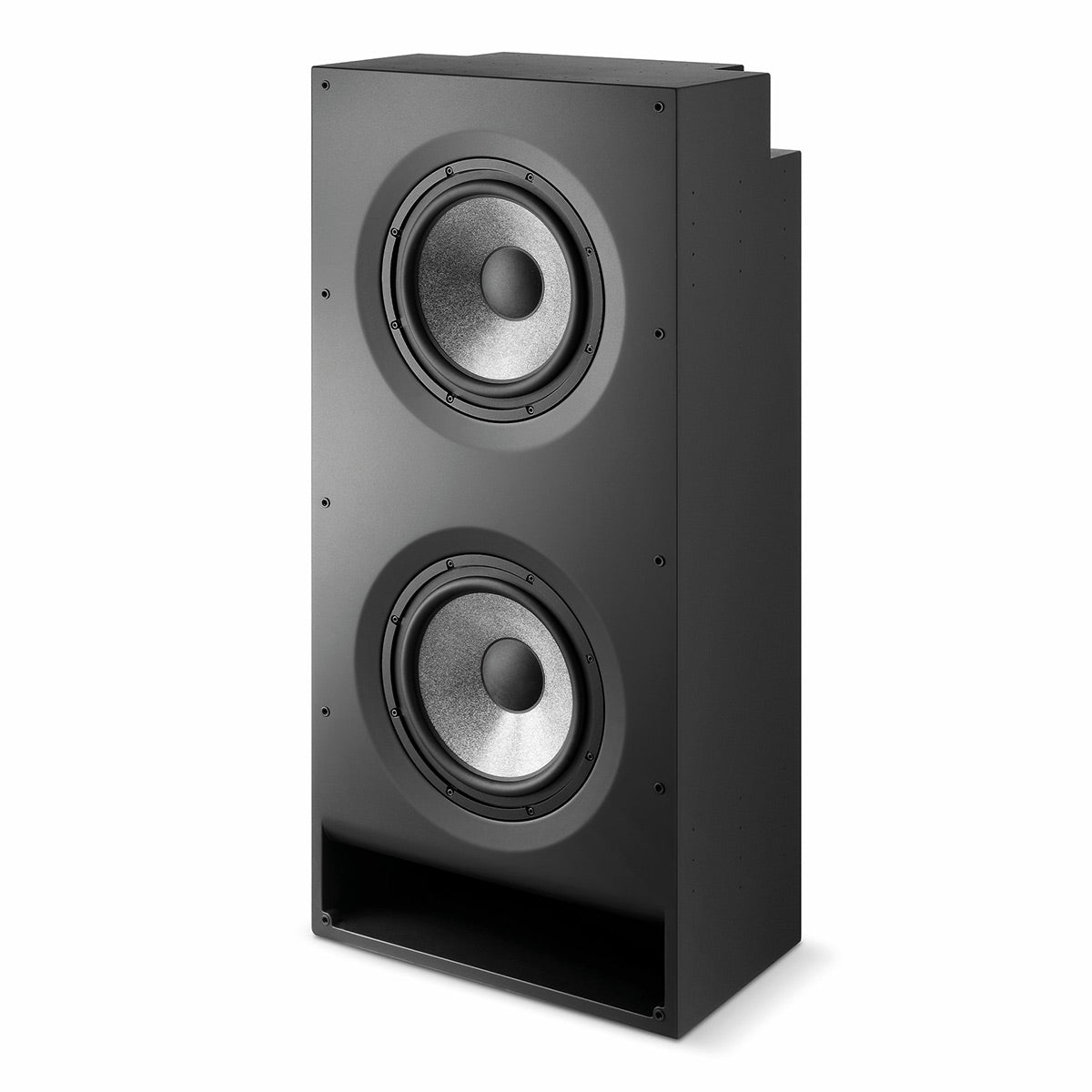

CINEMA SUB can be positioned vertically or horizontally to create customized configurations.

Quick, Reliable Mounting

Multi-point mounting system allowing the product to be fitted onto or into the walls.

Unique Extension

Tuned to 19Hz, the subwoofer delivers a deep and punchy bass, enhancing each and every sound nuance.

Specifications

  • General
    • Type: Subwoofer bass-reflex
    • Installation Options: In-wall / On-wall / Freestanding
    • Tuned Port: 19 Hz
    • Speaker Drivers: 2 × 13" “W” cone woofers
  • Performance
    • Sensitivity (2.83V/1m): 95 dB (66 Hz)
    • Bandwidth (–3 dB, 2π): 42 Hz – 2500 Hz
    • Low-Frequency Cutoff (–10 dB): 19 Hz – 2500 Hz
  • Recommended EQ
    • EQ Response: 19 Hz – 2500 Hz ±1 dB
    • Boost/Cut Filters: +12 dB @ 20 Hz (Q = 1.8), shelving –5 dB @ 50 Hz (1st order)
    • Subsonic Filter: 24 dB/oct @ 18 Hz Butterworth
  • Electrical
    • Nominal Impedance: 5 Ω
    • Minimum Impedance: 4.1 Ω @ 19 Hz
    • Crossover: None
    • Rated Power: 300 W RMS (4 Ω)
    • Recommended Amplifier Power: Max 400 W (8 Ω) / Max 800 W (4 Ω)
  • Physical
    • Dimensions (W × H × D): 21-5/8" x 45-7/8" × 12-13/16"
    • Net Weight: 160.94 lbs.

What's In The Box

  • Cinema SUB Dual 13" Subwoofer
  • Grille
  • Cut Out Template
  • Manual
