Eversolo DMP-A8 Network Streamer with Built-In DAC

Regular price $1,980.00
Sale price $1,980.00 Regular price
Save $-1,980.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Eversolo DMP-A8 Overview

Product Information

Model: DMP-A8 | UPC: 6975200360060

Specifications

What's In The Box

Product Information

Model: DMP-A8 | UPC: 6975200360060

Ultimate Perfection Accurate Representation of Sound

The Eversolo DMP-A8 is a premium audio device capable of almost everything, combining music streamer, DAP, DAC, and Preamp all in one device. It is powered by a quad-core ARM Cortex-A55 processor, ensuring smooth performance and features a 6" large LCD color touchscreen. It supports high-quality audio formats including DSD512 Native, PCM768KHz@32Bit, and MQA full decoding. With various connectivity options such as DLNA, UPnP protocols, and Bluetooth 5.0, it offers versatility for all your audio needs.

Features

  • Master Recording Playback and Decoding (FLAC WAV, APE, DSD512, MQA)
  • Large 6” LCD Color Touchscreen
  • Support for Amazon Music, TIDAL, Qobuz, HIRESAUDIO, Roon Ready, & more
  • Eversolo Music Library
  • Customizable VU Meters
  • Audio Inputs: Coaxial, Optical, Type-C, & HD Bluetooth
  • Supports USB, Optical, Coaxial, & HDMI bit-perfect output

Unique Appearance

The DMP-A8 is made from aviation aluminum and features a CNC machined body for a solid construction. The brushed panel and frosted anodized body are a great combination of classic and modern elements to suit the preferences of experts.

Large LCD Touchscreen with Exclusive User Interface

Equipped with a large 6" LCD high-definition touchscreen, the DMP-A8 features a professionally tailored streamer system, simple but exquisite user interface, as well as on-screen intuitive touch controls for system settings, local music library, and third party apps. It provides a seamless interactive experience.

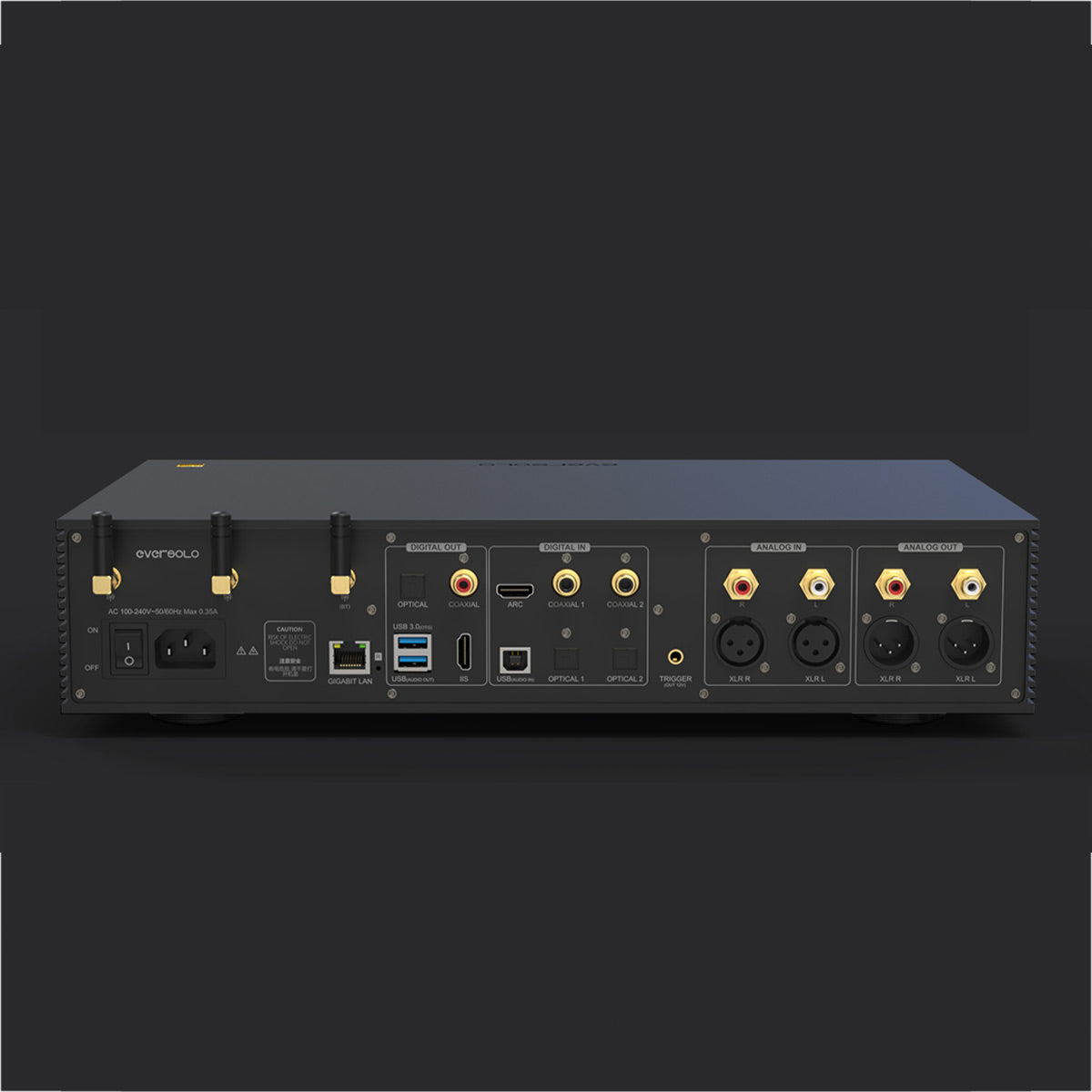

Rich Inputs and Outputs

DMP-A8 can be used as a digital turntable to connect with various high-end DAC by HDMI IIS, USB, optical, and coaxial outputs. As a DAC, it supports a wide range of digital inputs: 2 coaxial, 2 optical, USB B input to connect PCs and mobile devices. As a high-performance preamplifier, it supports analog inputs XLR and RCA. It also supports APTX HD Bluetooth audio input, making it easy to connect with various digital audio sources. The DMP-A8 can be directly paired with active speakers or power amplifier via analog preamp outputs RCA and XLR. The Trigger out port can achieve the linkage with power amplifier systems.

Flexible Storage Expansion

An M.2 NVMe SSD slot is built in at the bottom of the DMP-A8, allowing for convenient SSD installation without disassembling the device. The DMP-A8 supports SSD up to 4 TB, with faster speed and less noise, providing stable storage for high-quality local music. Additionally, storage devices can be connected externally through the USB OTG port of DMP-A8.

Roon Ready Device

Roon Ready network devices have Roon’s streaming technology built in, and are certified by Roon Labs to provide the highest level of quality and performance in network streaming.

Roon Tested Device

Roon Tested devices work over USB, HDMI, AirPlay, Google Cast, and other protocols. They have been profiled by the Roon team to ensure simple setup and effortless daily use.

Specifications

  • Model: EVERSOLO DMP-A8
  • Display: 6" LCD touchscreen
  • Internal Memory: 4GDDR4 +64GeMMC
  • DAC: AK4191EQ+AK4499EX
  • Audio Processor: XMOS XU316
  • Op-amp Chip: OPA1612
  • Power Supply: High-quality, low-noise linear + digital dual power supply
  • SSD: Support M.2 NVME 3.0 2280 protocol, up to 4TB (SSD isn't included).
  • USB-A Port: (2) USB3.0
  • Ethernet: RJ-45 (10/100/1000Mbps)
  • WiFi: WiFi 2.4G+5G dual band
  • Playback and DAC Decoding: Support up to stereo DSD512, PCM 768KHz 32Bit
  • Music Service: Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP
  • Streaming: Roon Ready, Air Play, DLNA, Tidal Connect etc.
  • Bluetooth Audio Input: Bluetooth BT5.0, support SBC/AAC
  • USB-B Audio Input: Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit.
  • Optical/Coaxial Audio Input: Support up to stereo PCM 192KHz 24Bit, Dop64
  • HDMI ARC: Support up to stereo PCM 192KHz 24Bit
  • Analog preamp audio input: XLR(Balanced)*1+RCA(Unbalanced), Maximum Gain +10dB
  • USB Audio Output: Support up to stereo DSD512,PCM 768KHz 32Bit
  • IIS Output: Support up to stereo DSD512, PCM 768KHz 32Bit
  • Optical/Coaxial Audio Output: Support up to stereo PCM 192KHz 24Bit, Dop64
  • Preamp Audio Output: XLR(Balanced)+RCA(UnBalanced)
  • XLR Output Audio Characteristics
    • Output level: 4.2V
    • Frequency response: 20Hz~20KHz(±0. 25dB)
    • Dynamic range: > 128dB
    • SNR: >128dB
    • THD+N: <0.00009%(-120dB) @No-wt
    • Crosstalk: >-121dB
  • RCA Output Audio Characteristics
    • Output level: 2.1V
    • Frequency response: 20Hz~20KHz (±0. 25dB)
    • Dynamic range: > 125dB
    • SNR: >125dB
    • THD+N: <0.00010%(-119dB)@A-WT
    • Crosstalk: >-121dB
  • Control Method: Mobile App, Touch screen control, IR+Bluetooth remote control
  • PSU: AC 110~240V 50/60Hz
  • Rated Power: 16W
  • Dimensions (W x H x D): 15.27”  x 3.54” x  9.76”

What's In The Box

  • DMP-A8 Network Streamer with Built-In DAC
  • Remote Control
  • Power Cable
  • Screwdriver
  • Manual
