Epson QS100 Overview

Product Information

Model: V11HB49120 | UPC: 010343992412

Specifications

What's In The Box

Product Information

Model: V11HB49120 | UPC: 010343992412

Reimagine Projection

Setting a new standard for ambient light viewing, the QS100 combines 4,500 lumens of color brightness and 4,500 lumens of white brightness with proprietary 3-chip 3LCD laser-array technology for an exceptionally bright picture—even in well-lit rooms. Redefining the entertainment experience, it produces stunning images up to 160" with cutting-edge ultra short throw technology. Remarkably flexible, the QS100 integrates with major smart home control systems for a customizable experience to match the unique needs of your project. It is also ISF Certified to calibrate the picture according to the environment. Driven by the unique Epson QZX Picture Processor, it optimizes incredible brightness and color accuracy for live sports, TV shows, movies and gaming. Dynamic tone mapping fine-tunes HDR performance to create a smooth, bright picture, reimagining the premium 4K PRO-UHD viewing experience.

Features

  • Ultra Short Throw Lens Technology
  • Epson QZX Picture Processor
  • Ultra Bright Picture
  • Quick Turn-On Laser Array Light Source
  • Epic Big Picture Gaming Performance
  • Simple and Flexible Installation
  • Smart Home Control
  • World-Class Warranty & Support

Cutting-Edge Ultra Short Throw Lens Technology

Unlike standard throw projectors, the precision glass ultra short throw lens drastically reduces the throw distance and supports screen sizes up to 160"—from just a few inches away

Ultra Bright Picture

Delivers outstanding color accuracy with 3-chip 3LCD technology and 4,500 lumens color brightness (IDMS Rated) and 4,500 lumens of white brightness (ISO Rated)2; new preset picture modes specifically calibrated for bright environments

Exceptionally Sharp 4K Experience

A new type of 4K experience, utilizing advanced pixel-shifting technology to precisely control three individual high-definition LCD chips to produce an exceptionally sharp 4K experience without sacrificing picture brightness

Impressive HDR

Full 10-bit HDR color processing accepts 100% of the HDR source information to faithfully reproduce HDR, HDR103 and HLG (Hybrid Log Gamma) content for an exceptional visual performance. Dynamic tone mapping automatically adjusts to the optimal HDR level according to the scene

Epson QZX Picture Processor

Proprietary 32-bit Epson processor delivers extraordinary contrast even in bright environments thanks to advanced dynamic tone mapping; optimizes each frame for exceptional brightness and contrast

Smart Home Control

Professional-grade IP control systems like Control4® and Crestron® control systems, as well as PJLink, are supported to create an intuitive home entertainment experience

Specifications

  • General
    • Projection System: Epson 3-chip 3LCD technology ultra short throw
    • Projection Method: Ceiling Mount Front / Ceiling Mount Rear / Table Projection Front / Table Projection Rear / Portrait Right / Portrait Left
    • Projector Color: Black or White
    • Driving Method: Poly-Silicon TFT Active Matrix
    • Maximum Resolution: 4K Enhancement (1920 x 1080 x 2)
    • Native Aspect Ratio: 16:9 widescreen (4:3 and 16:10 resize)
    • Focus Control: Precision Manual Slider
    • Refresh Rate: Up to 4K 60 Hz
    • Color Brightness (IDMS Rated): Color Light Output2: 4,500 lumens (Color Mode: Dynamic; Zoom: N/A; Dynamic Contrast: Off)
    • White Brightness (ISO Rated): White Light Output2: 4,500 lumens (Color Mode: Dynamic; Zoom: N/A; Dynamic Contrast: Off)
    • Dynamic Contrast Ratio: Over 5,000,000:1 (Color Mode: Dynamic; Consumption: Normal; Zoom: Wide)
    • Maximum Color Gamut: BT. 2020
    • Chroma Subsampling: 4:2:2 (4K PRO-UHD1 60 fps HDR103, HLG), 4:4:4 (4K 24 fps HDR103, HLG), 4:4:4 (4K 60 fps no HDR)
    • Color Reproduction: Full 10-bit (up to 1.07 billion colors)
    • Throw Ratio Range: 0.16 (Zoom: Wide), 0.40 (Zoom: Tele)
    • High Dynamic Range: HLG, HDR103
    • Light Source: Laser diode
    • Dynamic Laser Life4: Up to 20,000 hours (Power Consumption: Normal, Quiet)
  • Projection Lens
    • Type: Manual focus
    • F-Number: 1.8
    • Focal Length: 2.3 mm
    • Zoom Ratio: 1 – 1.35 (Digital Zoom)
    • Throw Ratio: 0.16 (Zoom Wide), 0.22 (Zoom Tele)
  • Other Features
    • Digital Video Compatibility: HDMI® digital signal inputs 2160p (at 24/30/50/60 Hz), 1080p (at 24/30/50/60 Hz), 1080i (at 50/60 Hz), 720p (at 50/60 Hz), 576p (at 50 Hz), 480p (at 60 Hz)
    • Operating Temperature: Low Altitude: 32° F to 104° F (0° C to 40° C); High Altitude: 32° F to 95° F (0° C to 35° C)
    • Power Supply Voltage: 100 – 240 VAC ± 10%, 50/60 Hz
    • Power Consumption: Eco Mode: 219 W, Normal Mode: 346 W; Network Standby: 2.0 W, Energy Saving: 0.4 W
    • Fan Noise: Quiet Mode: 20 dB, Normal Mode: 34 dB
    • Color Modes: Dynamic, Vivid, Cinema, Natural
    • HDR Adjustment: Dynamic Tone Mapping
    • Gaming Features: ALLM (Auto Low Latency Mode)
    • Geometry Correction: Quick Corner, Arc, Point, Geometry Correction Wizard & Memory, Epson Setting Assistant App
    • HDMI Link: Supports HDMI CEC
    • Web Control: Projector Setup and Control via Web browser
    • Smart Home Control: PJLink, Control4, Crestron Support

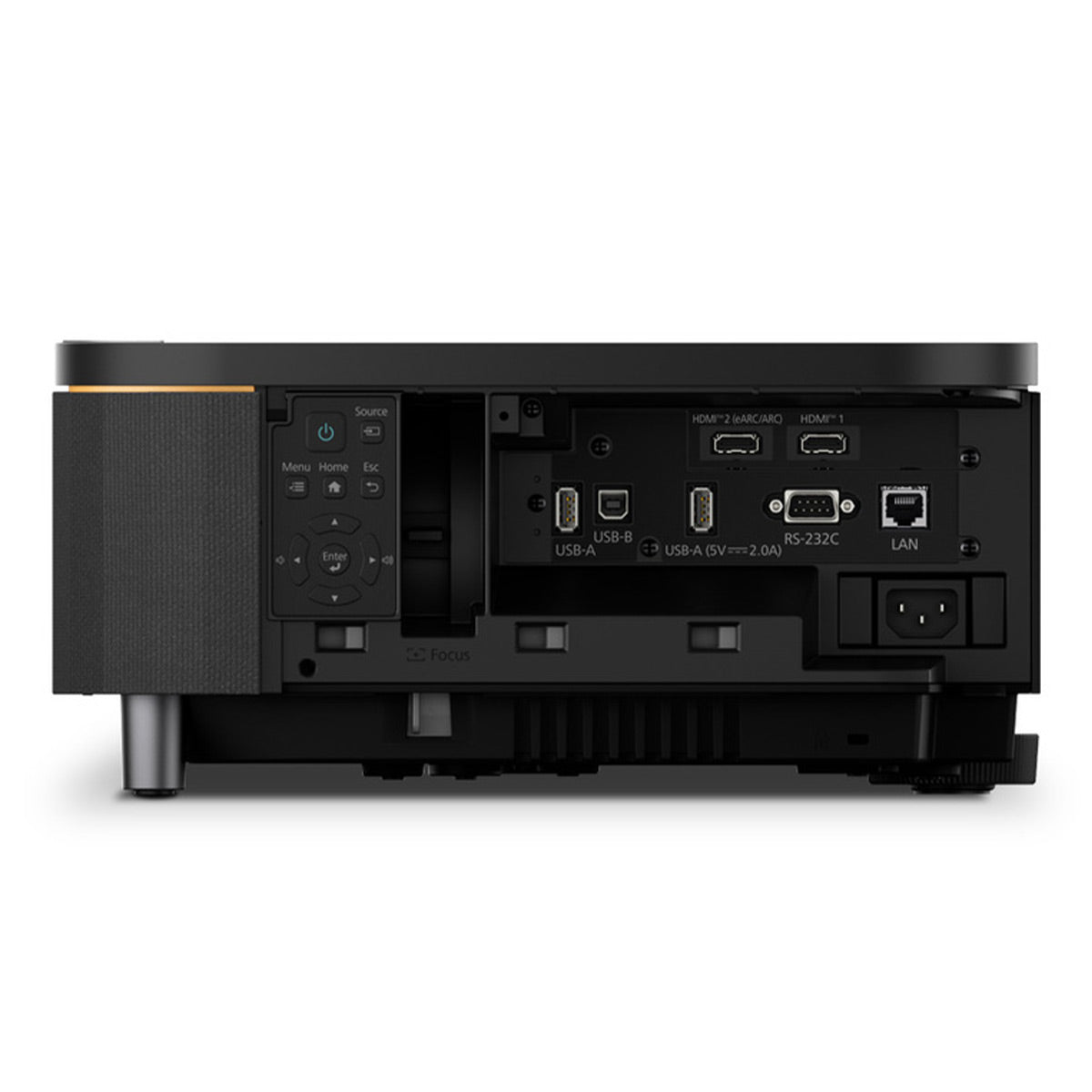

  • Interfaces
    • HDMI: 2x HDCP 2.3 (18 Gbps) ports supporting CEC; HDMI2 supports eARC/ARC
    • USB Type-A: 2x (1x PC Free, content playback, firmware updates; 1x for 5 V / 2 A power supply)
    • USB Type-B: For firmware updates
    • LAN: RJ45 (control only)
    • RS-232C: 1x RS-232C (DB-9)
  • Dimensions (W x H x D)
    • Including Feet: 27.4" x 13.4” x 6.2"
    • Weight: 26.46 lbs.

What's In The Box

  • QS100 Ultra Short Throw Projector
  • Remote
  • Power Cable
  • Manual
