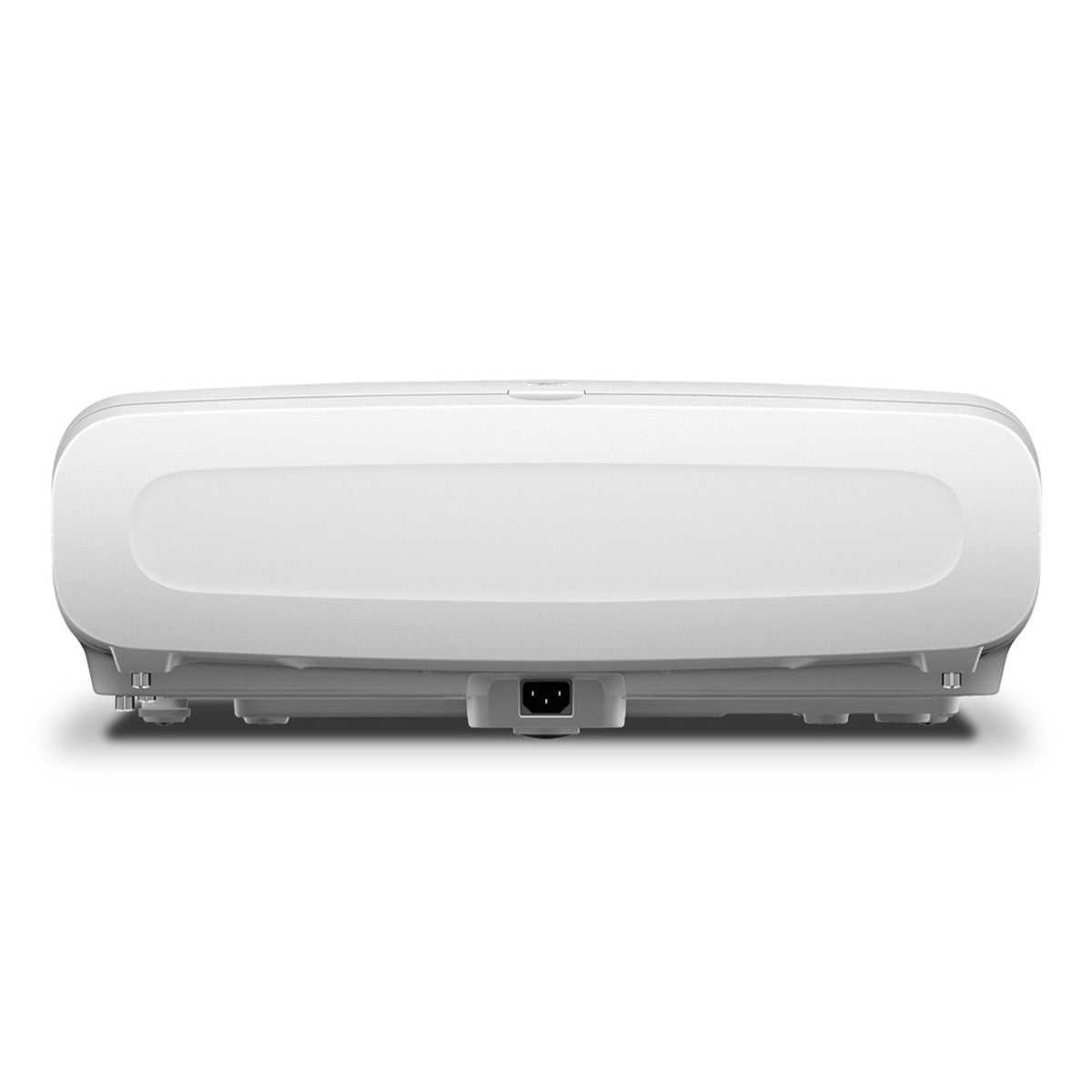

Epson QB1000 4K 3LCD Laser Projector (White)

Regular price $7,999.00
Sale price $7,999.00 Regular price
Save $-7,999.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Epson QB 1000 Overview

Product Information

Model: V11HB23020 | UPC: 010343989627

Specifications

What's In The Box

Product Information

Model: V11HB23020 | UPC: 010343989627

Introducing a new generation of high-lumen theater projection from Epson. Developed specifically for premium home theater experiences, the Epson QB1000 produces a stunning 4K HDR picture with an incredible 3,300 lumens of color brightness and white brightness, setting a new benchmark for theater picture quality.  Make no mistake, the Epson QB1000 Laser Projector reimagines the premium 4K HDR theater experience and could quite possibly be the best premium theater projector ever developed by Epson.

Features

  • Stunning 4K Display Technology
  • 3,300 Lumens of Equal Color & White Brightness
  • Unique 3-chip 3LCD Projection Technology
  • Impressive HDR10+
  • Powerful Epson QZX Picture Processor

Stunning 4K Picture Quality

Advanced 4K display technology works in parallel with three individual high-definition LCD chips to display a full 8.29 million pixels on-screen for an exceptionally sharp 4K UHD picture without sacrificing picture brightness.

High Picture Brightness

Impressive 3,300 lumens of color brightness (IDMS rated) and 3,300 lumens of white brightness (ISO rated) for an exceptional picture in virtually any theater environment – even in rooms with ambient light.

3-Chip 3LCD Projector Engine

Unique 3LCD technology uses three individual LCD chips to continuously display 100% of the RGB color signal for every frame. This allows for an outstanding color gamut while maintaining excellent brightness without any rainbowing or color brightness issues seen with other projection technologies.

Impressive HDR

Full 10-bit HDR color processing accepts 100% of the HDR source information to faithfully reproduce HDR, HDR10+ and HLG (Hybrid Log Gamma) content for an exceptional visual performance. Dynamic tone mapping automatically adjusts to the optimal HDR level according to the scene.

Epson QZX Picture Processor

Our most powerful video processing technology to date, the proprietary 32-bit Epson QZX Picture Processor handles real-time color, dynamic contrast, HDR, frame interpolation, dynamic tone mapping and resolution super-sampling to faithfully reproduce the source material the way the director intended.

Laser-Array Light Source

True multi-array laser diodes produce an ideal light source to power the unique 3-chip 3LCD projector engine for incredible picture brightness, black contrast and color accuracy.

Specifications

  • General
    • Projection System: Epson 3LCD
    • Chip Design (Architecture): 3-Chip
    • Light Source: True Laser Diode Array
    • Projection Method: Front, Front-Ceiling, Rear, Rear-Ceiling
    • Driving Method: Poly-Silicon TFT Active Matrix, 0.74"-wide panel, 12-bit
    • Output Resolution 4K Display Technology: 3840 x 2160 (dual-axis: 1920 x 1080)
    • Maximum Input Resolution: 4096 x 2160
    • Maximum Refresh Rate: 120 Hz
    • Supported Resolutions: 4K 2160p, 2K Full HD 1080p/i, HD 720p, 576p/i, 480p/i
    • Native Aspect Ratio: 16:9 widescreen
    • Resize Aspect Ratio Support: 1.9:1 (4096 x 2160), 21:9 (2560 x 1080), 4:3 (1600 x 1200), 3:2 (720 x 480), 5:4 (720 x 576); compatible with Normal, Full or Zoom Modes
    • Color Light Output: 3,300 lumens (IDMS Rated)
    • White Brightness: White Light Output: 3,300 lumens (ISO Rated)
    • Contrast Ratio: Up to and over 5,000,000:1, with Dynamic Contrast in Normal or High Speed setting
    • White Balance: 13-point temperature adjustment
    • Color Reproduction: Full-color (up to 1.07 billion colors)
    • Size (Projected Distance): 50" to 300" (at 58" to 62'4")
    • HDR Color Processing: Full 10-bit
    • Epson QZX Picture Processor: Full 12-bit
    • Light Source Life
    • Normal Mode: Up to 20,000 hours
    • Medium Mode: Up to 20,000 hours
    • Eco Mode: Up to 20,000 hours
  • Projection Lens
    • Epson VRX Lens: 15-element precision glass structure (AGS)
    • Type: Powered focus/optical zoom/lens position
    • F-Number: 2.0 – 3.0
    • Focal Length: 22.5 – 46.7 mm
    • Zoom Ratio: 1 – 2.1
    • Throw Ratio Range: 1.35 – 2.84
    • Lens Shift
    • Vertical: -96.3% to +96.3% (H center, powered)
    • Horizontal: -47.1% to +47.1% (V center, powered)
    • Keystone Correction Vertical/Horizontal: ± 30 degrees
    • Lens Cover: Powered, slide lens shutter
  • Interfaces
    • 2x HDMI® 2.1 (HDCP 2.3); one supporting eARC/ARC
    • 1x USB Type-A (for optical HDMI cable, 300 mA maximum power supply only)
    • 1x USB Type-A 5 V, 2.0 A for power and firmware
    • 1x Mini USB (service only)
    • 1x LAN RJ45 (control only)
    • 1x RS-232C (DB-9)
    • 1x Trigger Out (On, Off, Anamorphic Wide) 12 V DC, 200 mA maximum (3.5 mm mono or stereo mini-jack)
  • Other Features
    • Dynamic Range Support: HDR10, HLG
    • HDR Adjustment: 16 steps, real-time; Automatic Dynamic Tone Mapping
    • Color Modes: Dynamic, Vivid, Cinema, Natural
    • Aspect Adjustment: Yes (Auto/Full/Zoom/Anamorphic Wide/Horizontal Squeeze)
    • Anamorphic Lens Option: Compatible with third-party options; Anamorphic Lens Kit sold separately
    • Frame Interpolation: Input up to 4K at 60 Hz, output up to 4K at 120 Hz
    • eARC Audio Compatibility: LPCM, supports Dolby® Digital AC-3, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD, DTS-HD High Resolution Audio, Master Audio, DTS:X, AAC
    • ARC Audio Compatibility: LPCM, Dolby Digital (AC-3), DTS, AAC
    • Web Control: Projector setup and control via web browser
    • Operating Temperature: 41° to 95° F (5° to 35° C)
    • Smart Home Control: PJLink®, Control4® and Crestron® Support
    • Power Supply Voltage: 100 – 240 VAC ± 10%, 50/60 Hz
    • Power Consumption
    • Normal Mode: 341 W
    • Medium Mode: 301 W
    • Eco Mode: 206 W
    • Fan Noise: 22 – 32 dB
    • Security: Kensington® security lock port
    • Parental Controls: Power Button Lock hinders projector from being turned on without parental supervision
  • Dimensions (W x H x D)
    • Projector, Including Feet (Excluding Cable Cover): 20.5" x 7.6" x 17.6"
    • Weight: 28.2 lbs.

What's In The Box

  • QB1000 4K 3LCD Laser Projector
  • Cable Cover
  • Power Cord
  • Remote Control
  • Quick Setup Guide
