Epson Pro Cinema LS9000B 4K HDR Laser Projector

Now on demo at:

1 of 7

Epson Pro Cinema LS9000B 4K HDR Laser Projector

Regular price $3,999.00
Sale price $3,999.00 Regular price
$0.00 Save $-3,999.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: V11HC13120 | UPC: 198390010140

Specifications

What's In The Box

Product Information

Model: V11HC13120 | UPC: 198390010140

Engineered for excellence, the Epson Pro Cinema LS9000 with 4K Display Technology delivers an elevated home theater experience. Its advanced laser light engine ensures precise color accuracy and detail while delivering an impressive 2,200 lumens of both color (IDMS Rated) and white (ISO Rated) brightness for an unparalleled HDR experience. Powered by Epson’s proprietary ZX processors—designed for frame interpolation for smooth motion, detail enhancement, and seamless gaming performance—the Pro Cinema LS9000 processes content with exceptional precision, preserving color fidelity and image detail to display your favorites exactly as they were meant to be seen.

Features

  • 20,000-Hour Laser Light Source
  • 4K Display Technology with HDR10+
  • True 3-Chip 3LCD Technology
  • 32-bit Epson ZX Picture Processor
  • 2,200 Lumens of Equal Color & White Brightness

Virtually Maintenance-Free

20,000-hour solid-state laser light source4 with an advanced vapor-cooled thermal transfer design provides instant power-on with no bulbs to be replaced.

Stunning Picture Quality

4K Display Technology with HDR10+3 produces a full 8.29 million pixels on-screen for an exceptionally clear 4K UHD experience.

True 3-Chip 3LCD Projector Engine

Advanced 3LCD technology uses three individual LCD chips to continuously display 100% of the RGB color signal for every frame. This allows for outstanding color gamut while maintaining excellent brightness without any rainbowing or color brightness issues seen with other projection technologies.

Epson ZX Picture Processor

Our most advanced video processing technology to date, the proprietary 32-bit Epson ZX Picture Processor handles real-time color, contrast, HDR3, frame interpolation and resolution enhancement to faithfully reproduce the source material the way it was intended to be shown.

High Picture Brightness

Impressive 2,200 lumens of color brightness (IDMS Rated) and 2,200 lumens of white brightness (ISO Rated)2 for an exceptional picture in virtually any theater environment – even in rooms with ambient light.

Epic for Gaming

Gaming up to 4K at 120 frames per second, along with input lag times below 20 ms, allow for serious gamers to take full advantage of the latest generation of gaming consoles and even higher-end gaming PCs; HDMI® 2.1 along with ARC and eARC support allows for outstanding compatibility with the latest AV receivers.

3-Axis Motorized Lens Shift

Making installation simple, you can precisely shift the lens up to +/- 96% vertically and up to +/- 24% horizontally without any loss in picture distortion or clarity; You can also set the zoom and focus, then store all the settings in one of ten lens memory presets.

Smart Home Control

Integrates seamlessly with home automation and remote monitoring systems; supports IP Control via PJLink, Control4 and Crestron Control Systems.

World-Class Warranty & Support

Standard 3-year limited warranty with 2-business-day full unit replacement, including free shipping; And, all Epson Pro Cinema projectors come with free lifetime technical phone support.

Specifications

  • General
    • Projection System: Epson 3LCD
    • Chip Design (Architecture): 3-Chip
    • Light Source: True Laser Diode Array
    • Projection Method: Front, Front-Ceiling, Rear, Rear-Ceiling
    • Product Color: Black
    • Driving Method: Poly-Silicon TFT Active Matrix, 0.74"-wide panel, 12-bit
    • Output Resolution: 4K Display Technology2 3840 x 2160 (dual-axis: 1920 x 1080)
    • Maximum Input Resolution: 4096 x 2160
    • Maximum Refresh Rate: 120 Hz
    • Supported Resolutions: 4K 2160p, 2K Full HD 1080p/i, HD 720p, 576p/i, 480p/i
    • Native Aspect Ratio: 16:9 widescreen
    • Resize Aspect Ratio Support: 1.9:1 (4096 x 2160), 21:9 (2560 x 1080), 4:3 (1600 x 1200), 9:6 (720 x 480), 5:4 (720 x 576); compatible with Normal, Full or Zoom Modes
    • Color Brightness4: Color Light Output: 2,200 lumens
    • White Brightness4: White Light Output: 2,200 lumens
    • Contrast Ratio: Up to and over 2.5 million to 1, with Dynamic Contrast in Normal or High Speed setting
    • White Balance: 14-point temperature adjustment
    • Color Reproduction: Full-color (up to 1.07 billion colors)
    • Size (Projected Distance): 50" to 300" (at 58" to 62'4")
    • Keystone Correction: Vertical/Horizontal: ±30 degrees
    • HDR Color Processing: Full 10-bit
    • Epson ZX Picture Processor: Full 12-bit
    • Light Source Life:
      • Normal Mode: Up to 20,000 hours
      • Medium Mode: Up to 20,000 hours
      • Eco Mode: Up to 20,000 hours
  • Projection Lens
    • Epson VRX Lens: 15-element precision glass structure (AGS)
    • Type: Powered focus/optical zoom/lens position
    • F-Number: 2.0 – 3.0
    • Focal Length: 22.5 – 46.7 mm
    • Zoom Ratio: 1 – 2.1
    • Throw Ratio Range: 1.35 – 2.84
  • Lens Shift
    • Vertical: ±96.3% (H center, powered)
    • Horizontal: ±24% (V center, powered)
    • Lens Cover: Powered, slide lens shutter
  • Other Features
    • Dynamic Range Support: HDR103, HDR10+3, HLG
    • HDR3 Adjustment: 16 steps, real-time
    • Color Modes: Dynamic, Vivid, Bright Cinema, Cinema, Natural
    • Aspect Adjustment: Yes (Auto/Full/Zoom/Anamorphic Wide/Horizontal Squeeze)
    • Anamorphic Lens Option: Compatible with third party; Anamorphic Lens Kit sold separately
    • Frame Interpolation: Input up to 4K at 60 Hz, output up to 4K at 120 Hz
    • eARC Audio Compatibility: LPCM, supports Dolby® Digital AC-3, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD, DTS-HD High Resolution Audio, Master Audio, DTS:X, AAC
    • ARC Audio Compatibility: LPCM, Dolby Digital (AC-3), DTS, AAC
    • Computer Compatibility: PC, Mac®
    • Operating Temperature: 41° F to 95° F (5° C to 35° C)
    • Power Supply Voltage: 100 – 240 VAC ± 10%, 50/60 Hz
    • Dissipation: BTU (Maximum) at 100 − 120V with (Light Output: 100%) = 1057.4 BTU/h
    • Airflow: (Maximum) = 71.4 CFM
    • Fan Noise: 22 – 30 dB
    • Security: Kensington® security lock port
    • Parental Controls: Power Button Lock hinders projector from being turned on without parental supervision
  • Power Consumption:
    • Normal Mode: 311 W
    • Medium Mode: 243 W
    • Eco Mode: 204 W

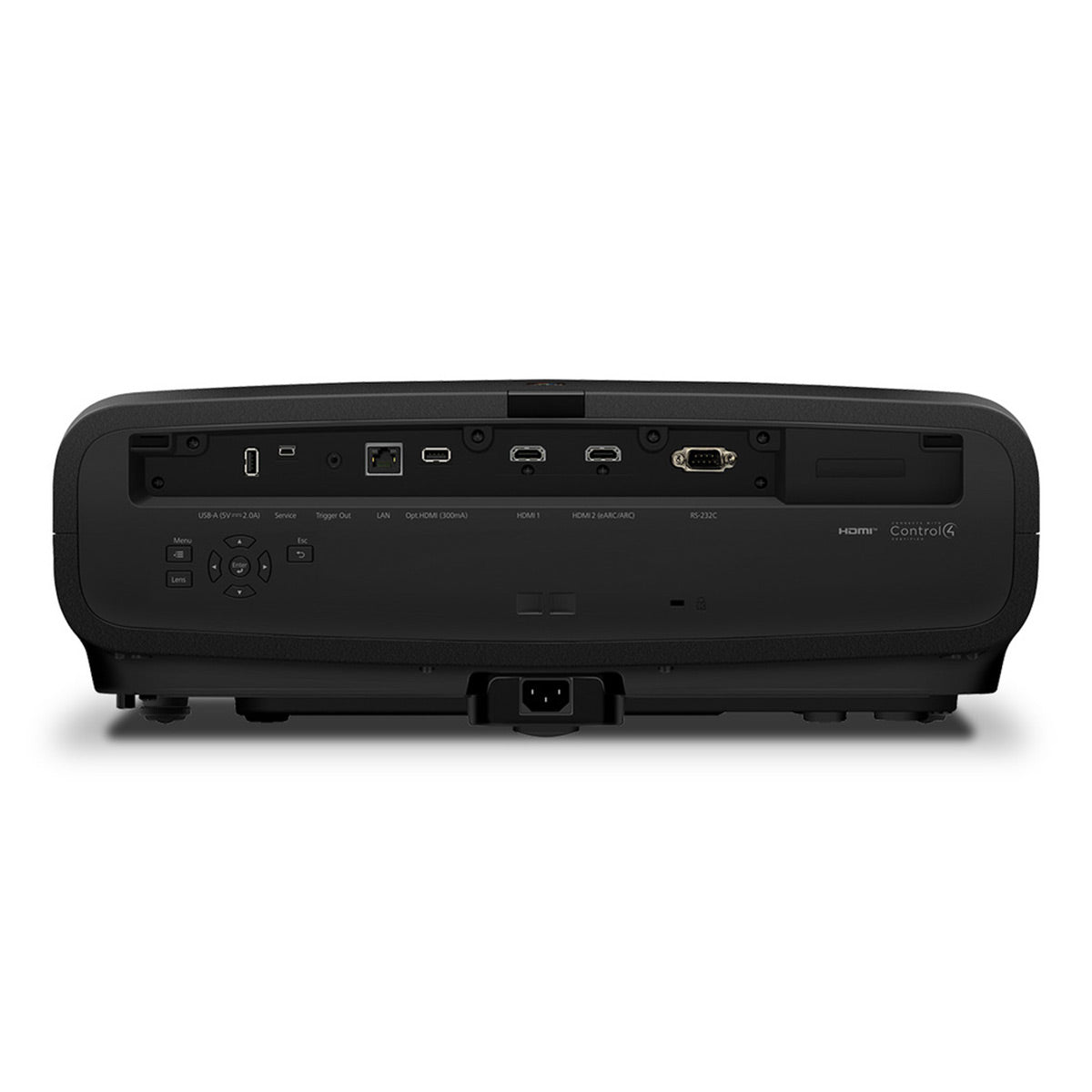

  • Interfaces
    • 2x HDMI® 2.1: (HDCP 2.3); one supporting eARC/ARC
    • 1x USB Type-A: for optical HDMI cable, 300 mA maximum power supply only
    • 1x USB Type-A: 5 V, 2.0 A for power and firmware
    • 1x Mini USB: service only
    • 1x LAN RJ45: control only
    • 1x RS-232c: DB-9
    • 1x Trigger out: On, Off, Anamorphic Wide, 12 V DC, 200 mA maximum (3.5mm mono or stereo mini-jack)
  • Dimensions (W x D x H):
    • Projector, Including Feet: 20.5" x 17.6" x 7.6"
    • Weight: 28.0 lb

What's In The Box

  • Pro Cinema LS9000B 4K HDR Laser Projector
  • Remote Control
  • Power Cord
  • Manual
