Epson Home Cinema LS11000 4K PRO-UHD Laser Projector

Now on demo at:

1 of 7

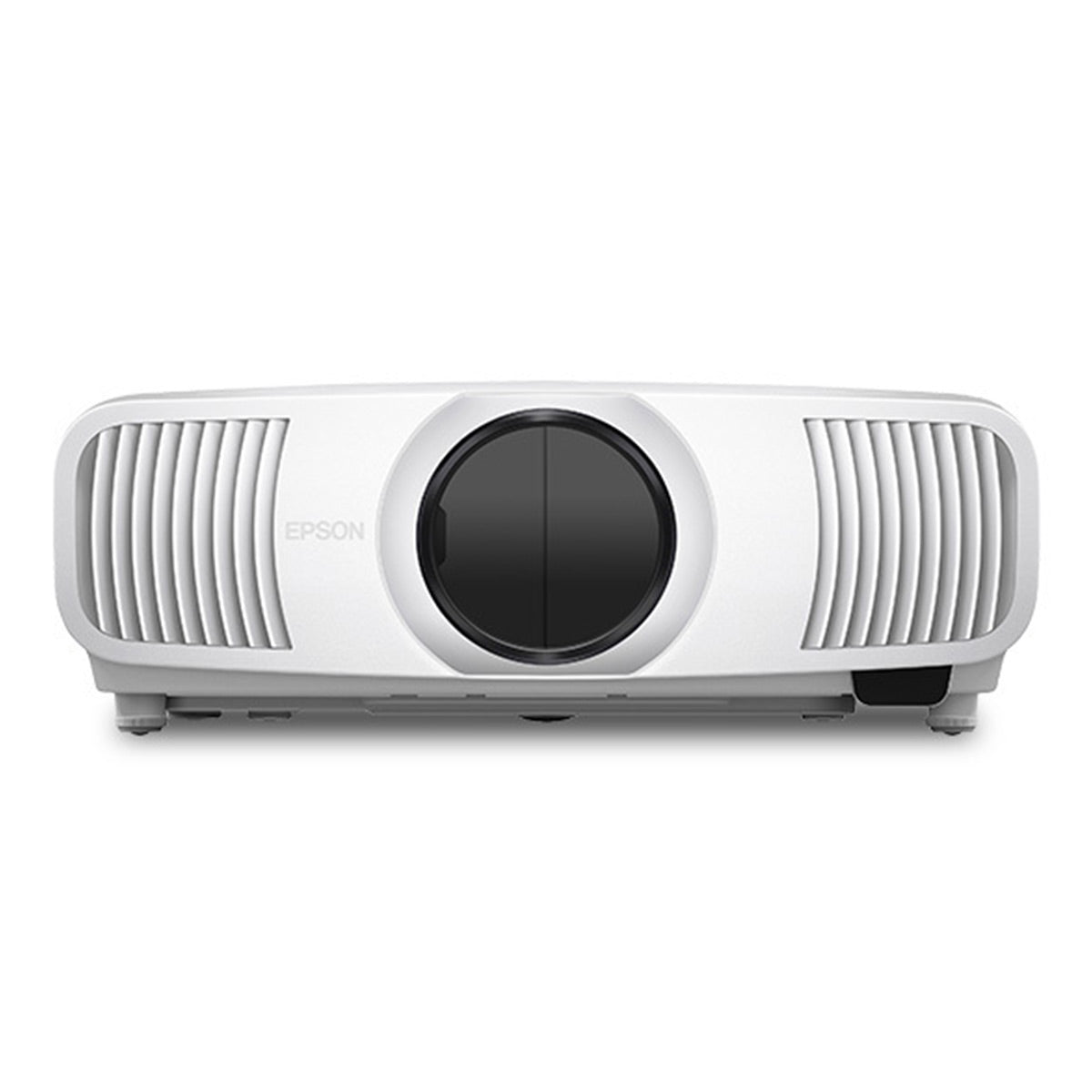

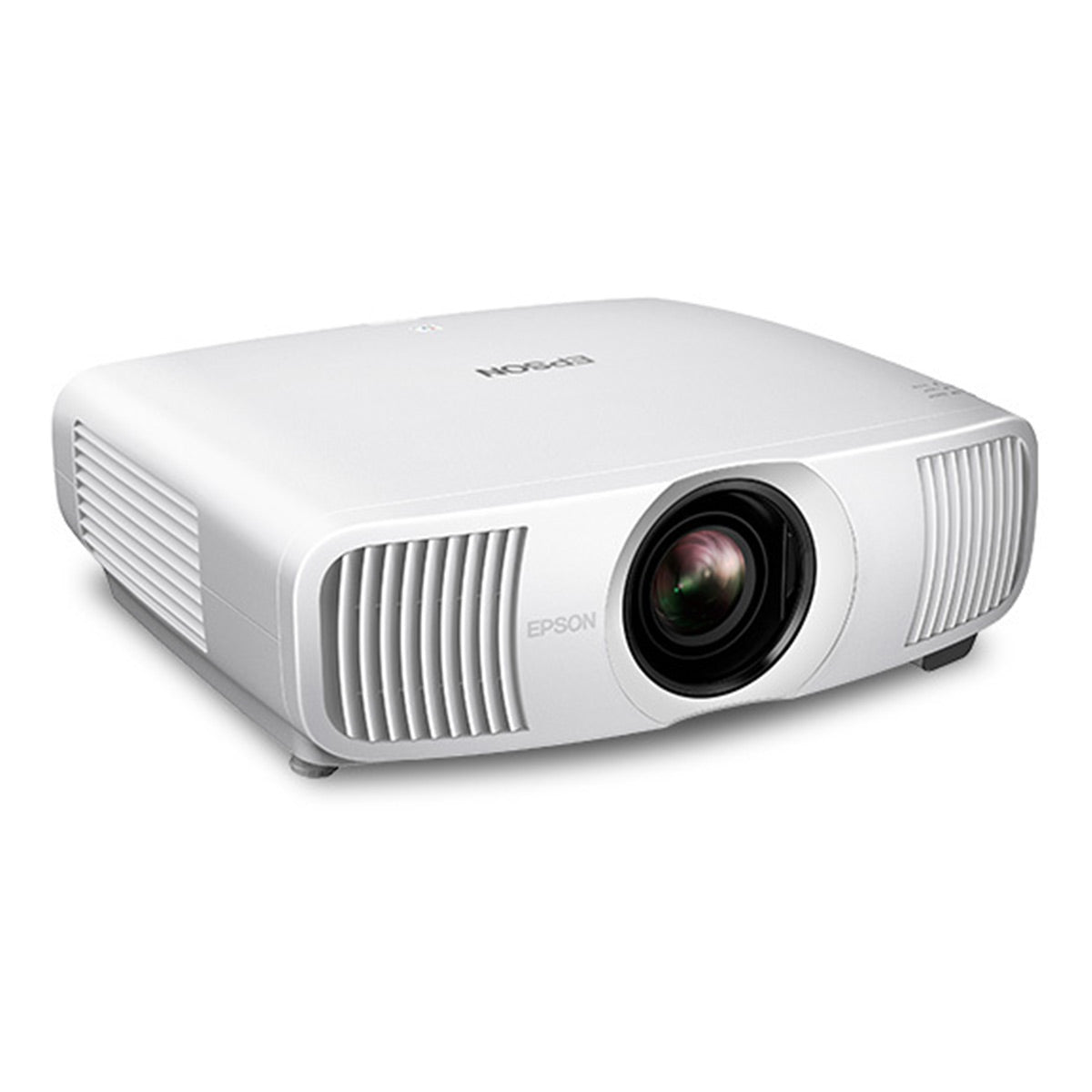

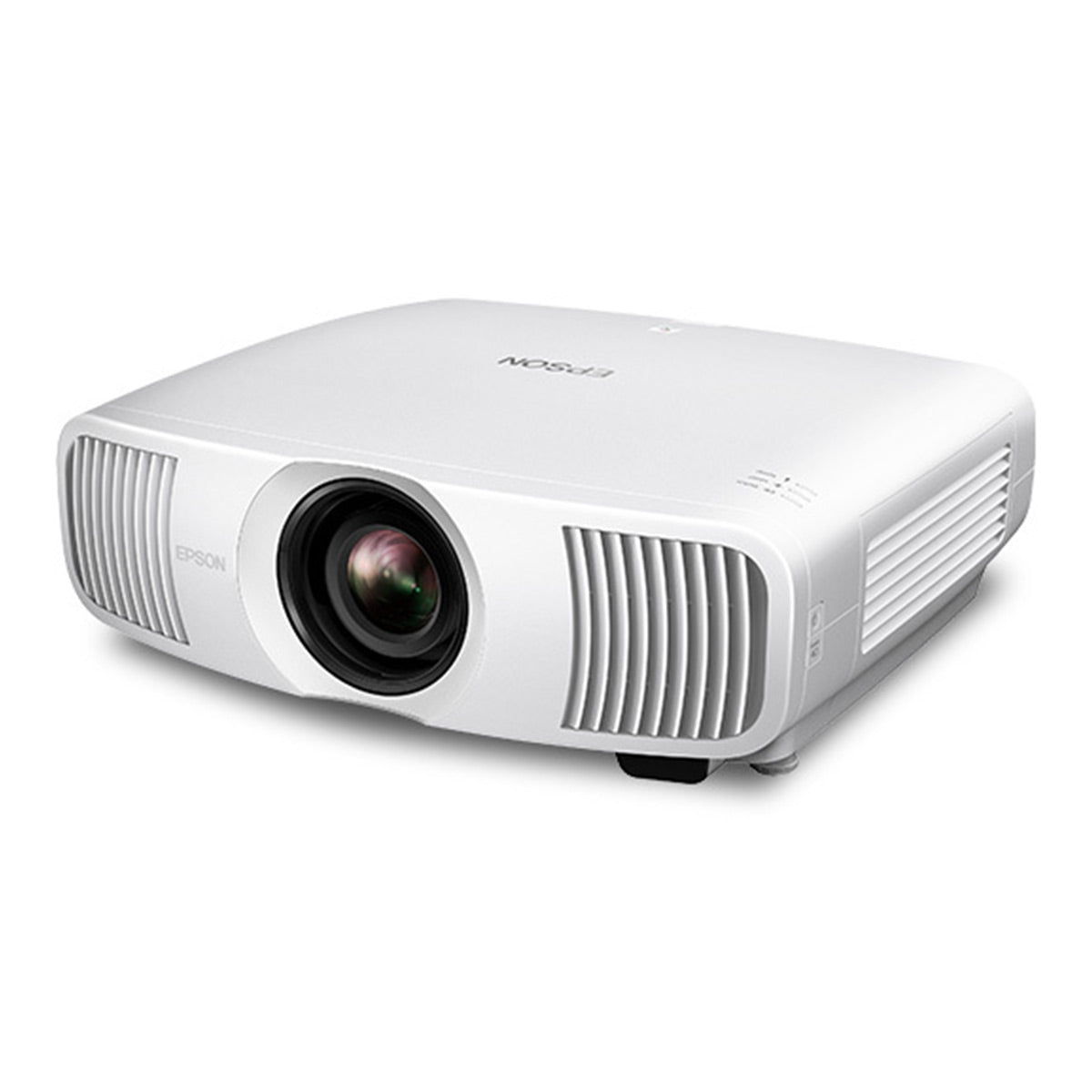

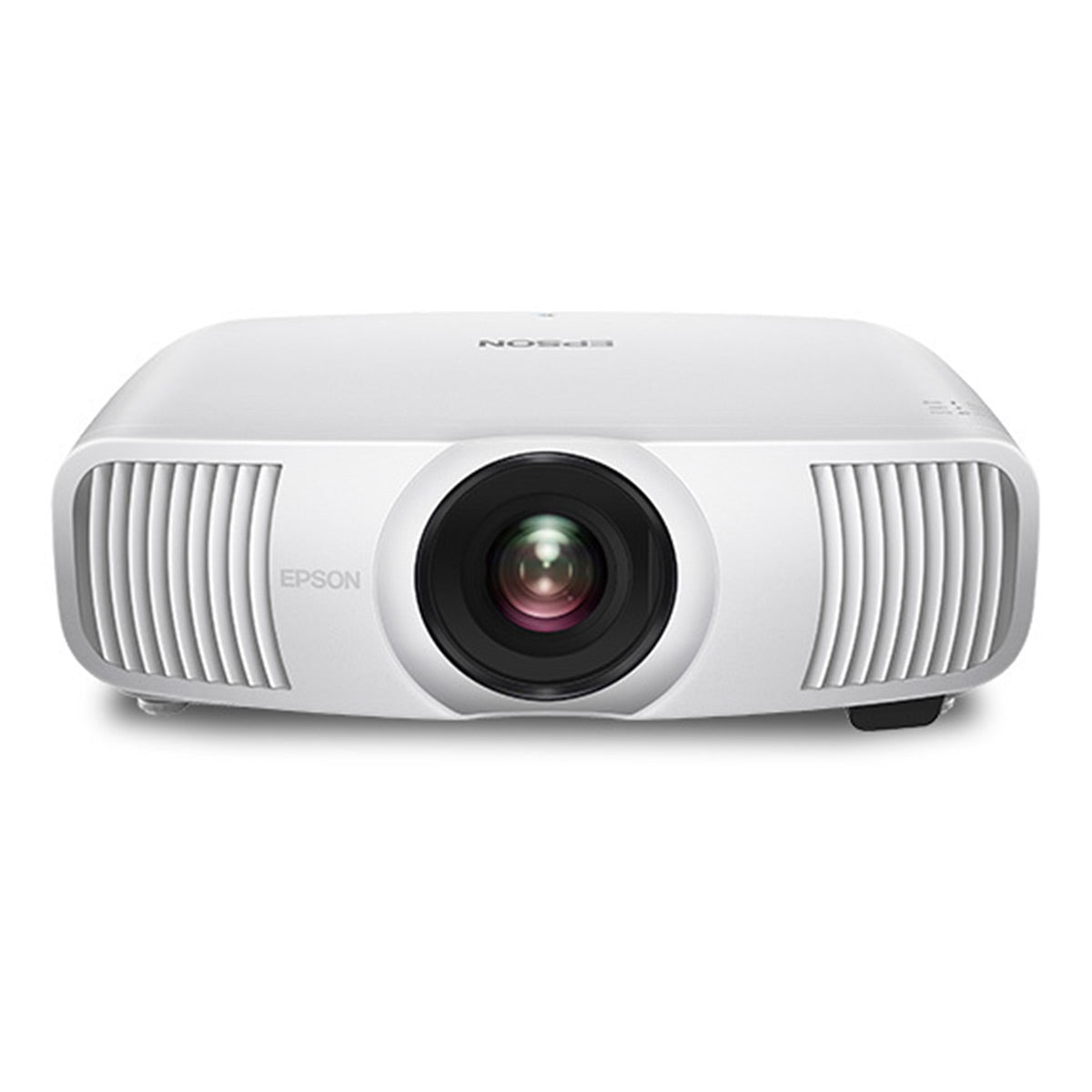

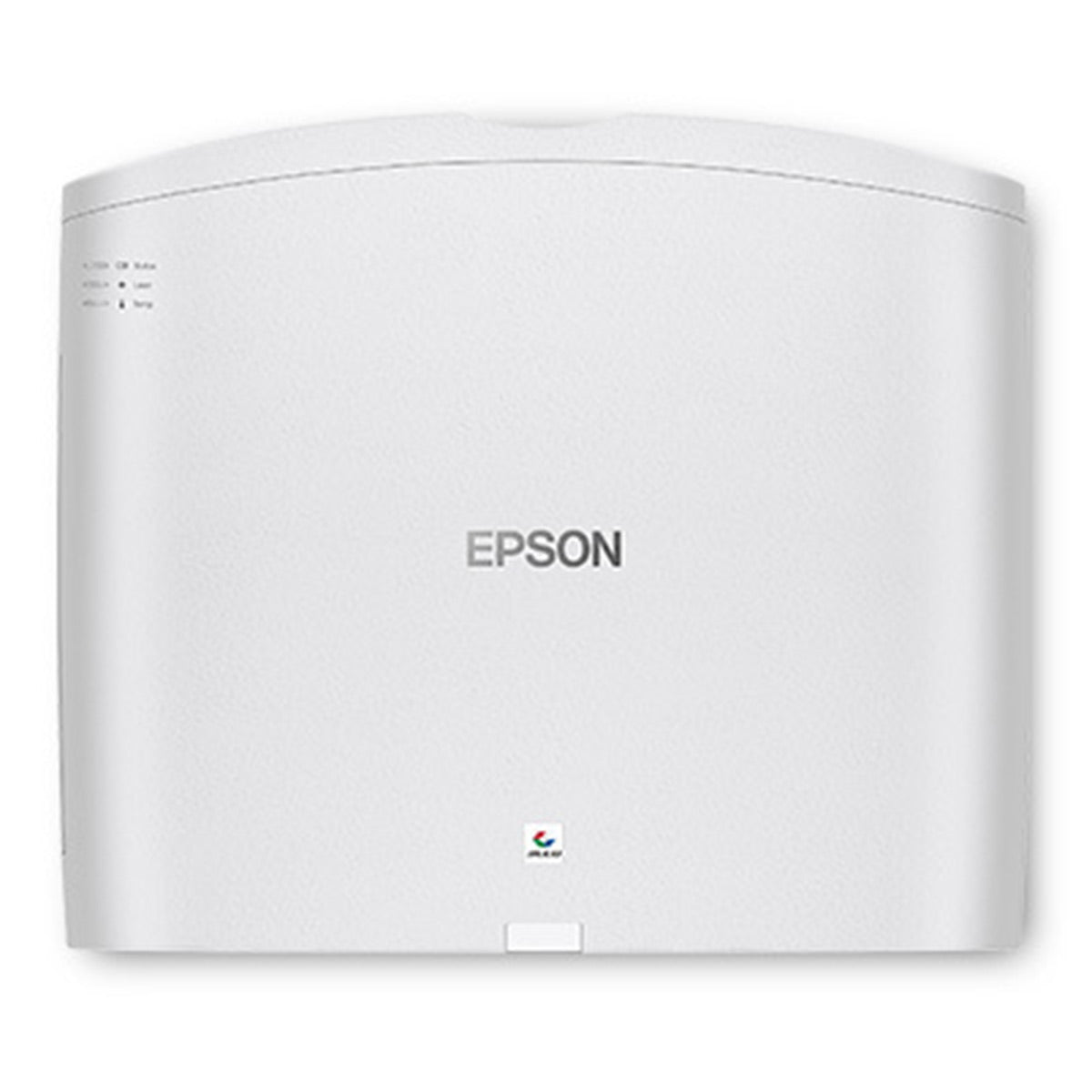

Epson Home Cinema LS11000 4K PRO-UHD Laser Projector

Regular price $4,499.99
Sale price $4,499.99 Regular price
$0.00 Save $-4,499.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: V11HA48020 | UPC: 010343967526

Specifications

What's In The Box

Product Information

Model: V11HA48020 | UPC: 010343967526

Projection Perfected

Featuring cutting-edge technology, the Home Cinema LS11000 uses proprietary 4K PRO-UHD1 technology and a proprietary Epson Picture Processor to produce a full 3,840 x 2,160-pixel, on-screen image to faithfully display your movies, TV shows and gaming sessions the way they were meant to be seen—with incredible picture sharpness, brightness and color accuracy.

Features

  • Full 10-Bit HDR
  • HDMI® 2.1  & 120 Hz Refresh Rate
  • Impressive Contrast
  • Epson Cinema Lens
  • 3-Way Motorized Lens
  • Real-Time Scene Adaptive Correction

4K PRO-UHD®

Advanced pixel-shifting technology works in parallel with three individual high-definition LCD chips without sacrificing picture brightness.

Precision Shift Glass Plate Technology

Unique, digitally controlled Precision Shift Glass Plate precisely refracts pixel light to display a 3840 x 2160, 8.29-million-pixel image for an exceptionally sharp and clear picture.

Epson® Picture Processor

Our most advanced video processing technology to date, the proprietary 36-bit Epson Picture Processor handles real-time color, contrast, HDR2, frame interpolation and resolution enhancement to faithfully reproduce the source material the way it was intended to be shown.

Laser Array Light Source

True multi-array laser diodes are the optimum light source to power the unique 3-chip 3LCD projector engine for incredible picture brightness, black contrast and color accuracy.

High Picture Brightness

Impressive 2,500 lumens of color and 2,500 lumens of white brightness for an exceptional picture in virtually any theater environment—even in rooms with some ambient light.

True 3-Chip 3LCD Projector Engine

Advanced 3LCD technology uses three individual LCD chips to continuously display 100% of the RGB color signal for every frame; this allows for outstanding color gamut while maintaining excellent brightness without any rainbowing or color brightness issues seen with other projection technologies.

Impressive HDR

Full 10-bit HDR color processing accepting 100% of the HDR source information to faithfully reproduce HDR, HDR10+ and HLG (Hybrid Log Gamma) content for an exceptional visual performance; real-time HDR curve adjustment allows for 16 steps of control to fine-tune the HDR performance regardless of the content.

120 Hz Refresh Rate

Refresh rates up to 120 Hz allow for smoother motion for supported content while providing the option for impressive frame interpolation for content below 120 Hz.

Specifications

  • Projection System: Epson 3LCD
  • Chip Design (Architecture): 3-Chip
  • Light Source: True Laser Diode Array
  • Projection Method: Front, Front-Ceiling, Rear, Rear-Ceiling
  • Product Color: White
  • Driving Method: Poly-silicon TFT Active Matrix, 0.74" wide panel, 12-bit
  • Output Resolution: 4K PRO-UHD 3840 x 2160 (dual-axis: 1920 x 1080)
  • Maximum Input Resolution: 4096 x 2160
  • Maximum Refresh Rate: 120 Hz
  • Supported Resolutions: 4K 2160p, 2K Full HD 1080p/i, HD 720p, 576p/i, 480p/i
  • Native Aspect Ratio: 16:9 widescreen
  • Resize Aspect Ratio Support: 1.9:1 (4096 x 2160), 21:9 (2560 x 1080), 4:3 (1600 x 1200), 9:6 (720 x 480), 5:4 (720 x 576); compatible with Normal, Full or Zoom Mode
  • Color Brightness: Color Light Output: 2,500 lumens
  • White Brightness: White Light Output: 2,500 lumens
  • Contrast Ratio: Up to and over 1,200,000:1, Auto Iris on
  • White Balance: 14-point temperature adjustment
  • Color Reproduction: Full-color (up to 1.07 billion colors)
  • Size (Projected Distance): 50" to 300" (at 58" to 62'4")
  • Keystone Correction: Vertical/Horizontal: ± 30 degrees
  • HDR Color Processing: Full 10-bit
  • Epson ZX Picture Processor: Full 12-bit
  • Light Source Life
    • Normal Mode: Up to 20,000 hours
    • Medium Mode: Up to 20,000 hours
    • Eco Mode: Up to 20,000 hours
  • Projection Lens
    • Epson VRX Lens: 15-element precision glass structure (AGS)
    • Type: Powered focus/optical zoom/lens position
    • F-number: 2.0 – 3.0
    • Focal Length: 22.5 – 46.7 mm
    • Zoom Ratio: 1 – 2.1
    • Throw Ratio Range: 1.35 – 2.84
    • Lens Shift
      • Vertical: -96.3% to +96.3% (H center, powered)
      • Horizontal: -47.1% to +47.1% (V center, powered)
    • Lens Cover: Powered, slide lens shutter

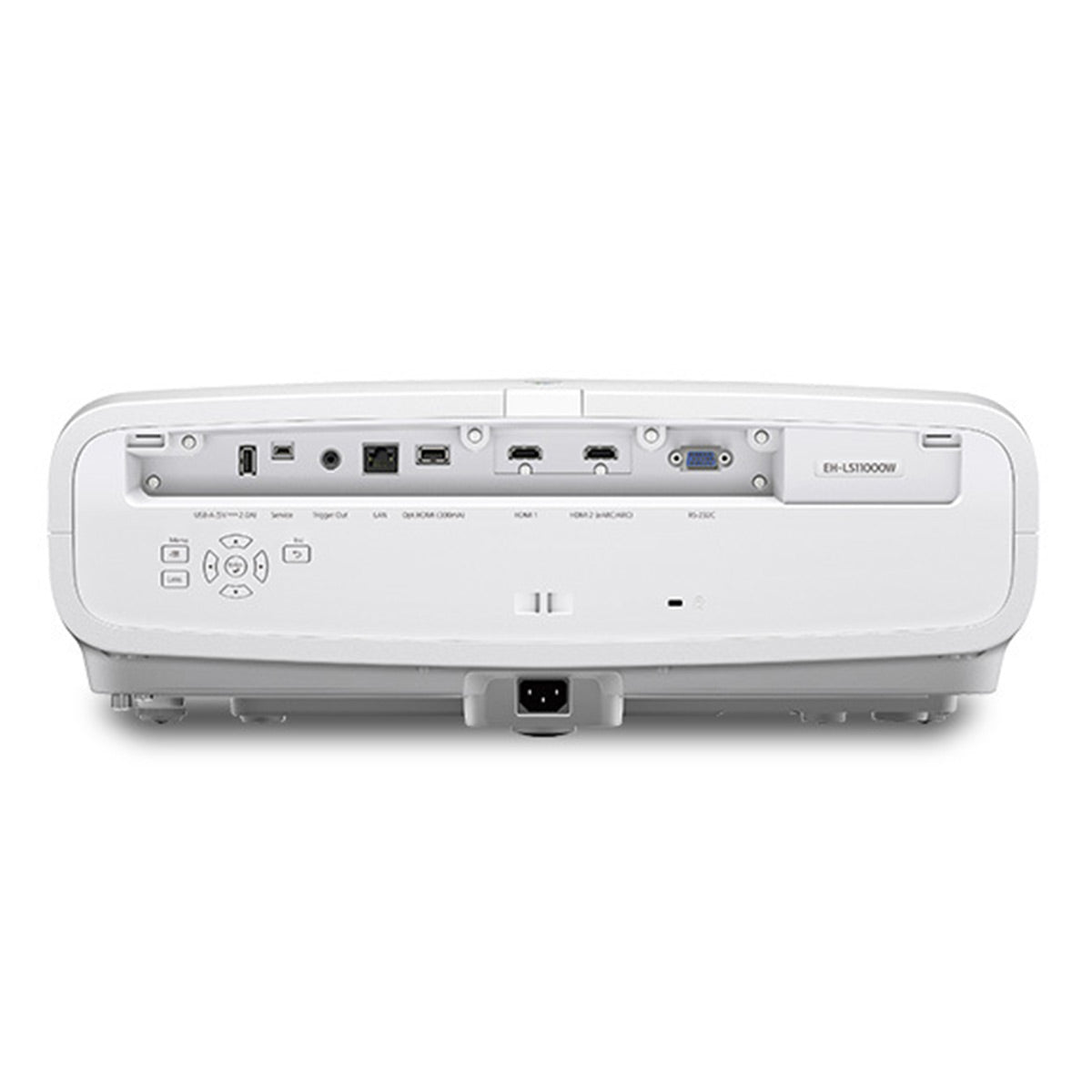

  • Interfaces
    • 2x HDMI® 2.1 (HDCP 2.3); one supporting eARC/ARC
    • 1x USB Type-A (for optical HDMI cable 300 mA maximum power supply only)
    • 1x USB Type-A 5 V, 2.0 A for power and firmware
    • 1x Mini USB (service only)
    • 1x LAN RJ45
    • 1x RS-232c
    • 1x Trigger out (On, Off) 12 V DC, 200 mA maximum
  • Other Features
    • Dynamic Range Support: HDR10, HDR10+, HLG
    • HDR Adjustment: 16 steps, real-time
    • Color Modes: Dynamic, Vivid, Bright Cinema, Cinema, Natural
    • Aspect Adjustment: Yes (Auto/Full/Zoom)
    • Frame Interpolation: Input up to 4K at 60 Hz, Output up to 4K at 120 Hz
    • eARC Audio Compatibility: LPCM, Dolby® Digital AC-3, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD, DTS-HD High-Resolution Audio, Master Audio, DTS:X, AAC
    • Computer Compatibility: PC, Mac®
    • ARC Audio Compatibility: LPCM, Dolby Digital (AC-3), DTS, AAC
    • Operating Temperature: 41° to 95° F (5° to 35° C)
    • Power Supply Voltage: 100 – 240 VAC ± 10%, 50/60 Hz
    • Power Consumption
      • Normal Mode: 311 W
      • Medium Mode: 243 W
      • Eco Mode: 204 W
    • Fan Noise: 22 – 30 dB
    • Security: Kensington® security lock port
    • Parental Controls: Power Button Lock hinders the projector from being turned on without parental supervision
  • Dimensions (W x H x D)
    • Projector, including feet (excluding cable cover): 20.5" x 17.6" x 7.6"
    • Weight: 28.0 lb
    • Packaging: 27.6" x 21.7" x 10.6"
    • Weight: 35.7 lb
  • Remote Control
    • Features: Front and rear directional
    • Operating Distance: 32 ft (10 m)
    • Operating Angle
      • Front Right/Left: ± 30 degrees
      • Upper/Lower: ± 30 degrees
      • Rear Right/Left: ± 30 degrees
      • Upper/Lower: 0 + 60 degrees

What's In The Box

  • Home Cinema LS11000 Projector
  • Remote Control
  • Power Cord
  • Manual
