Dual CS 718Q Reference Manual Direct Drive Turntable (Black)

Now on demo at:

1 of 6

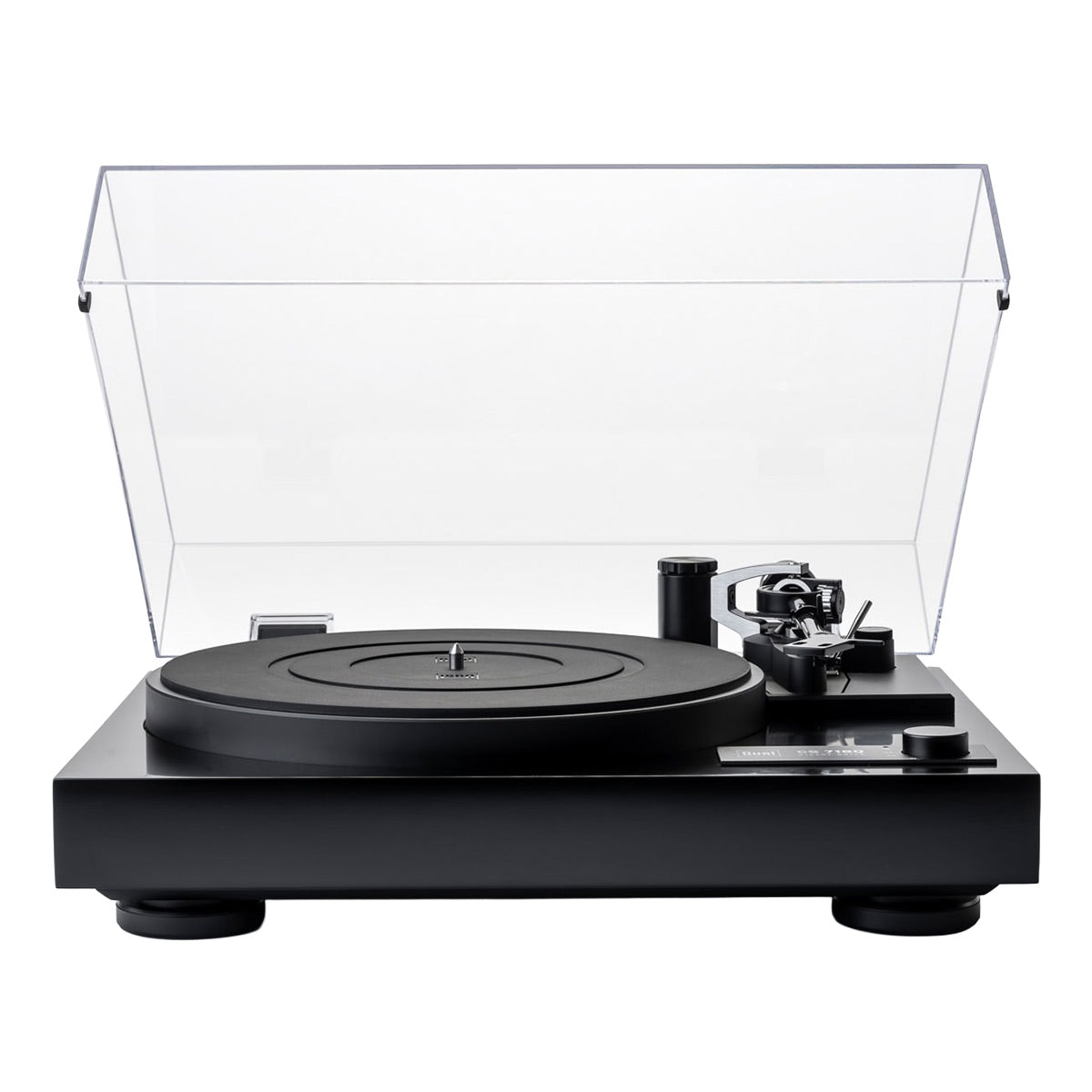

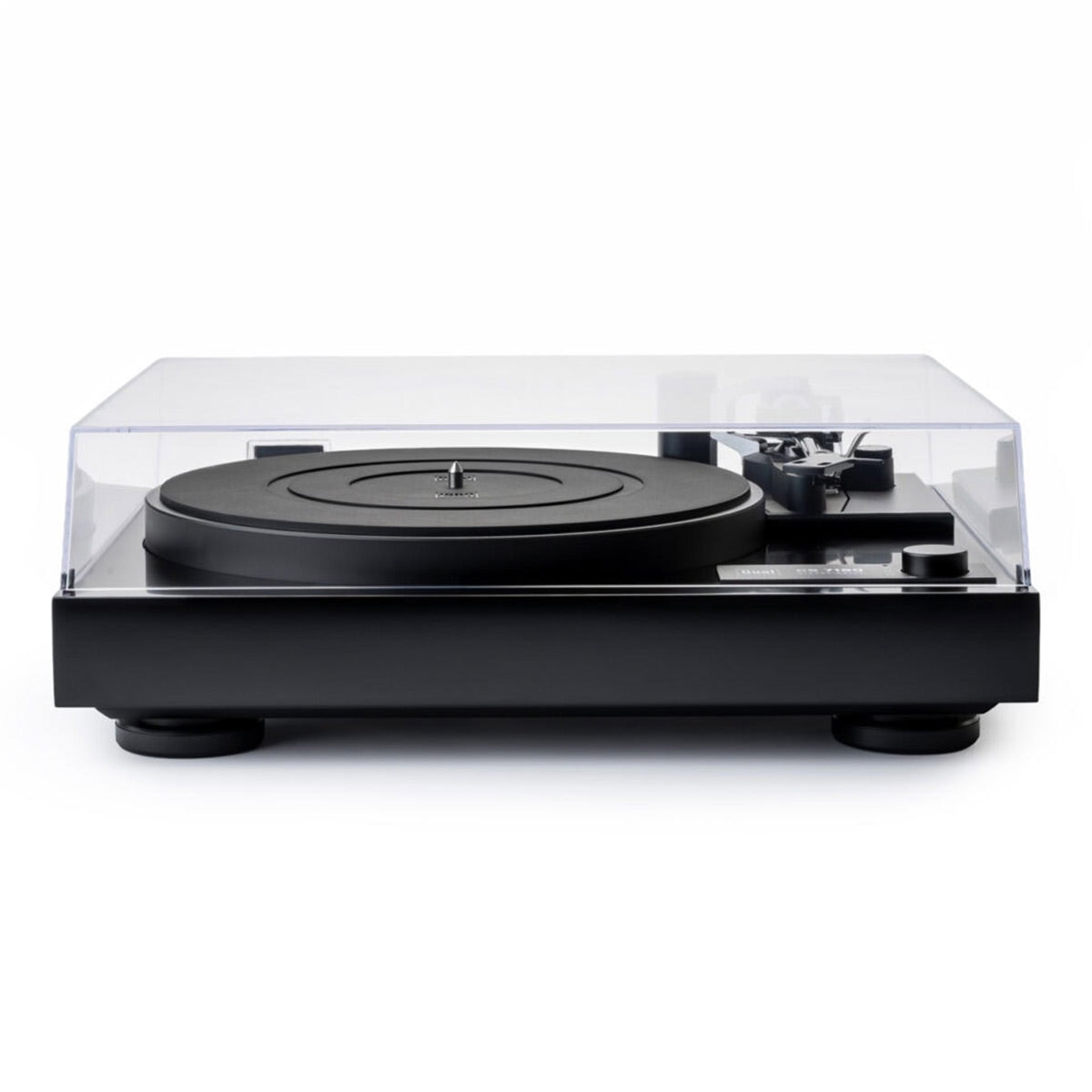

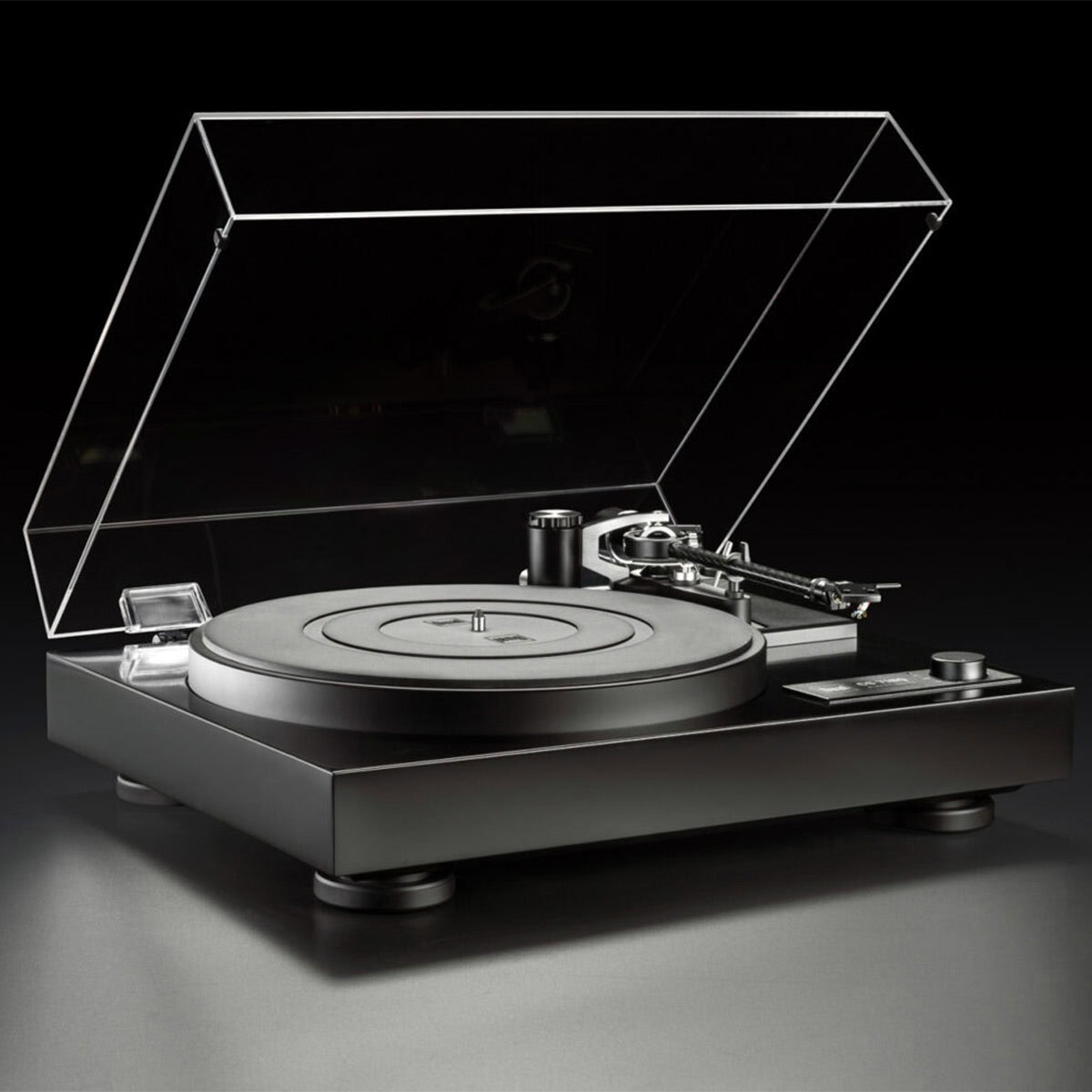

Dual CS 718Q Reference Manual Direct Drive Turntable (Black)

Regular price $3,499.00
Sale price $3,499.00 Regular price
$0.00 Save $-3,499.00 (%)
OR

Man with brown hair and beard wearing glasses and a gray button-down shirt

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781
Sad face plus music note equals happy face graphic

Dual CS 718 Overview

Product Information

Model: CS718SB | UPC: 4262425750434

Specifications

What's In The Box

Product Information

Model: CS718SB | UPC: 4262425750434

The CS 718Q, designed for demanding vinyl enthusiasts, combines precision direct-drive engineering with advanced tonearm adjustment and convenient automatic features. Its carbon-aluminium sandwich tonearm offers adjustable height and azimuth, while massless tracking force supports precise and reliable cartridge tracking. With quartz-stabilized speed control, automatic tonearm lift, and a switchable auto-stop function, the CS 718Q delivers refined performance together with flexible, high-quality playback.

Features

  • Precise Ironless Direct Drive
  • Massless Tracking Force
  • Height And Azimuth Adjustable Tonearm
  • Automatic Tonearm Lift
  • Quartz-Stabilized Three-Speed Control
  • Switchable Auto-Stop Function

Plinth

The MDF plinth features a satin black finish or real walnut wood veneer, an optimized, switchable auto-stop function, and height-adjustable feet with resonance absorbers.

Aluminum Platter

The precision die-cast platter weighs 1.9 kg and features full-surface rubber coating on the underside. A heavy Dual mat provides resonance damping.

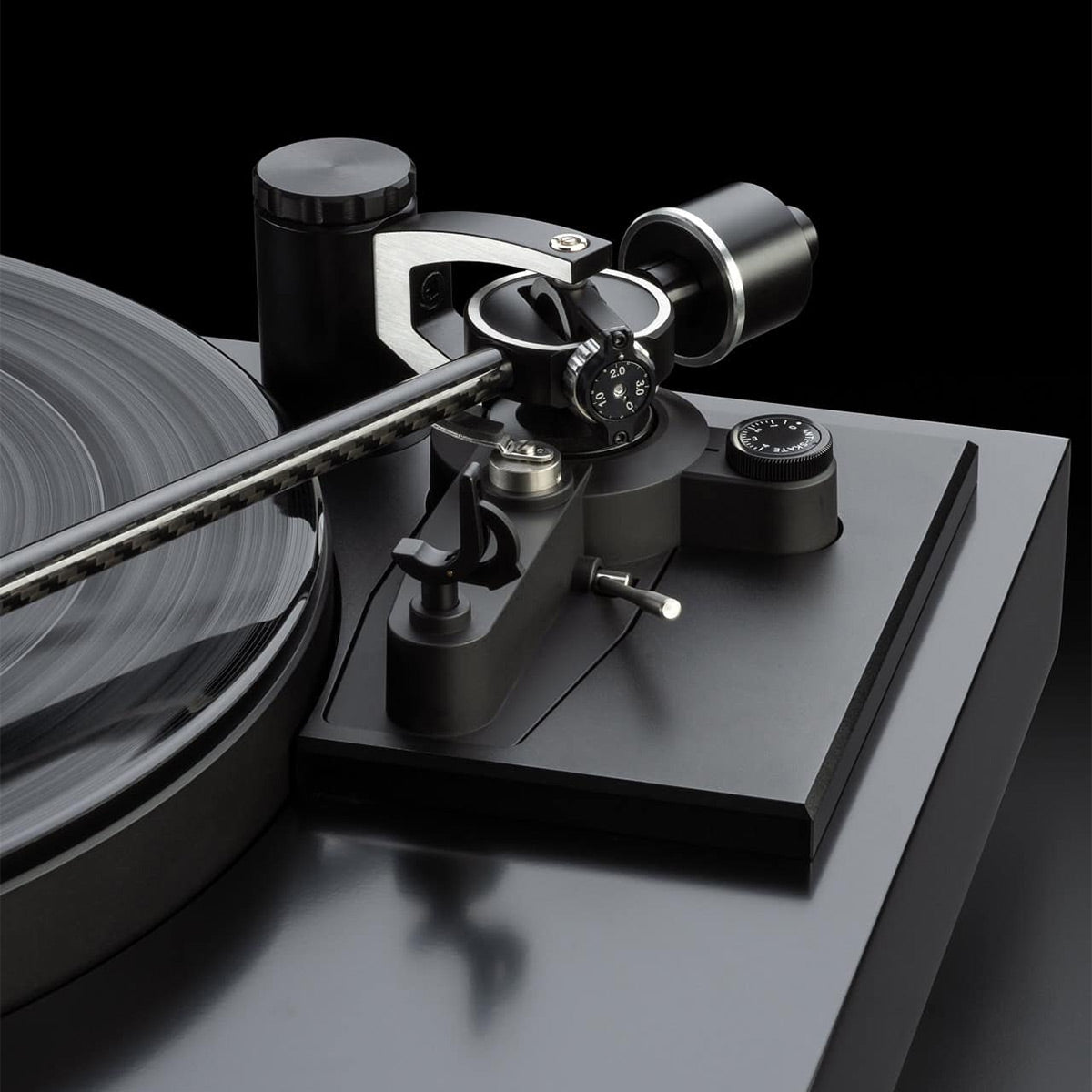

Aluminum-Carbon Sandwich Tube Tonearm

The tonearm features precise height adjustment via a rotary mechanism and finely adjustable tracking force via a spiral spring. It also includes automatic tonearm lift and a precision-machined headshell with azimuth clamp.

Direct-Drive

The direct-drive system features quartz-stabilized speed control for 33 / 45 / 78 rpm and wow and flutter values of 0.05% DIN. Ironless air-core coils prevent vibration, while double shielding protects against magnetic interference fields.

Specifications

  • Drive
    • Drive: Direct drive
    • Speed settings: 33/45/78
    • Wow & Flutter: < ±0.05 % (DIN WTD)
  • Platter
    • Material: Aluminium die-cast / Rubber
    • Mat: Rubber 0.16 in
    • Bearing: Hardened steel spindle Brass bushing
    • Diameter: 12.01 in
    • Weight (incl. Mat): 2200 g
  • Tonearm
    • Auto-Start/-Stop-Function: Auto-Stop / Auto Tonarmlift
    • Bearing: Twin gimbal mounting, Height adjustable
    • Headshell: Removable / Azimuth-adjustable
    • Tonearm tube: Carbon–Aluminium Sandwich
    • Effective length: 8.72 in
    • Height Adjustable: + 0.20 in / - 0.08 in
    • Offset Angle: 25,6°
    • Overhang: 0.75 in
    • Tracking force: dynamically balanced with damping
    • Stylus Pressure Range: 0 g to 3 g
    • Cartridge Weight Range: 3 g to 13 g
    • Factory installed cartridge: N / A
  • Plinth
    • Material: MDF
    • Surface finish: Satin Black
    • Veneer: Walnut
    • Feet: Ø 2.68 in / Elastomer Dampers, Height adjustable

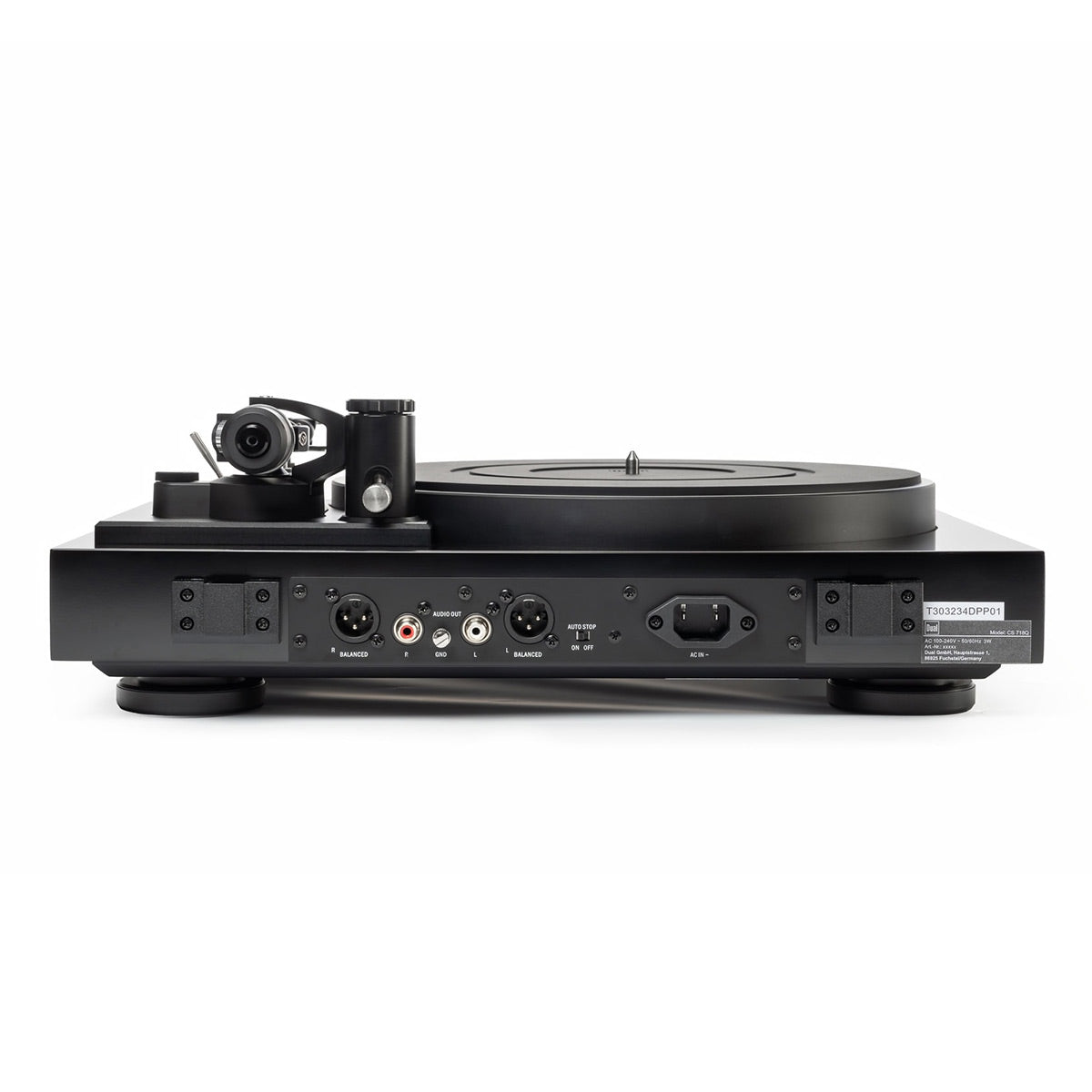

    • Connection: RCA socket, XLR socket
    • Connection to Phono Input: ✓
    • Dimensions (W x H x D): 17.13 x 14.45 x 6.10"
    • Dimension (Open Dustcover): D: 16.34" / H: 15.94"
    • Weight: 22.05 lbs

What's In The Box

  • CS 718Q Reference Manual Direct Drive Turntable
  • Dust Cover
  • Platter Including Belt
  • Platter Mat
  • Counterweight
  • 7" Spindle Adaptor
  • Power Supply
  • Coaxial Stereo Cable
  • Manual

*Please Note: Phono cartridge sold separately.
