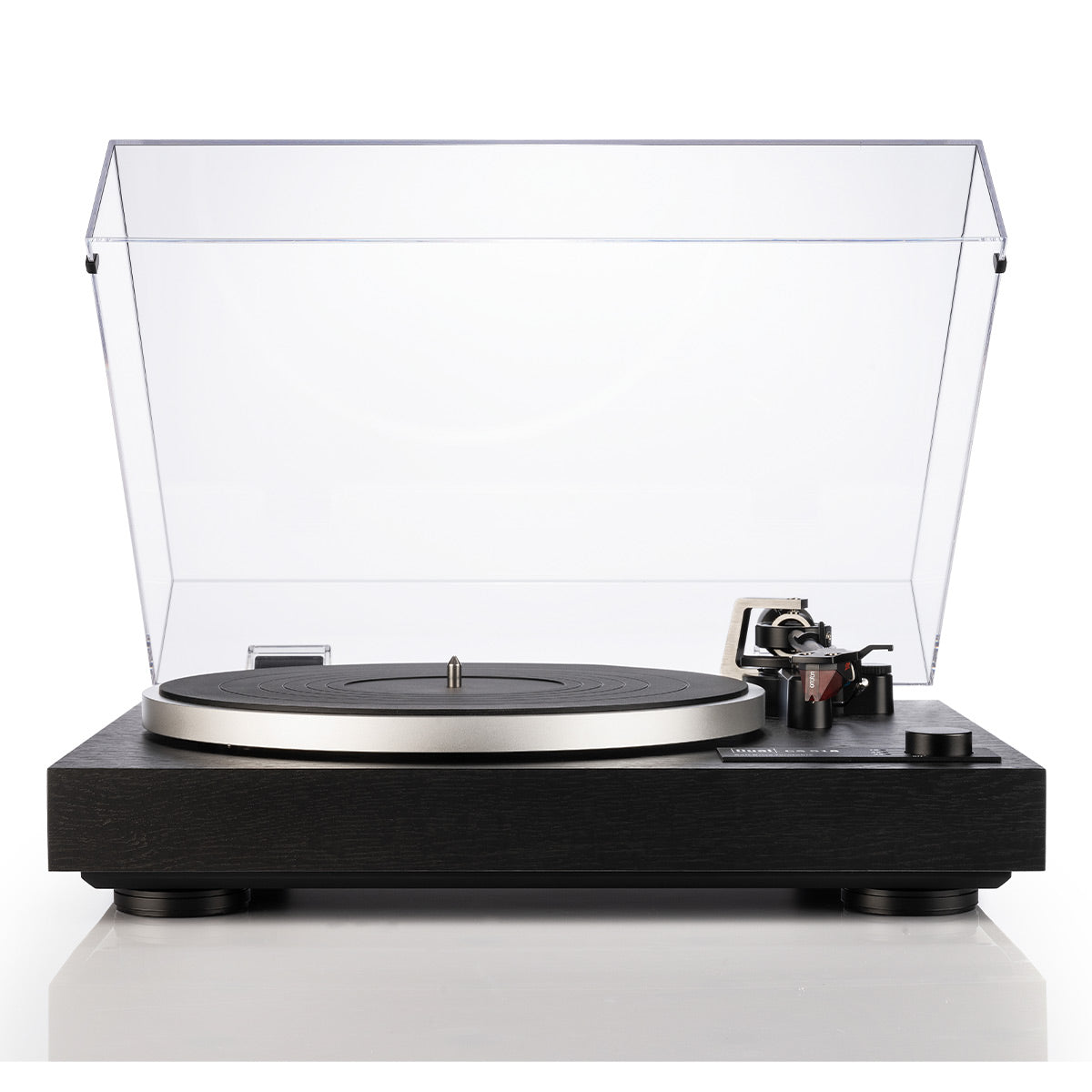

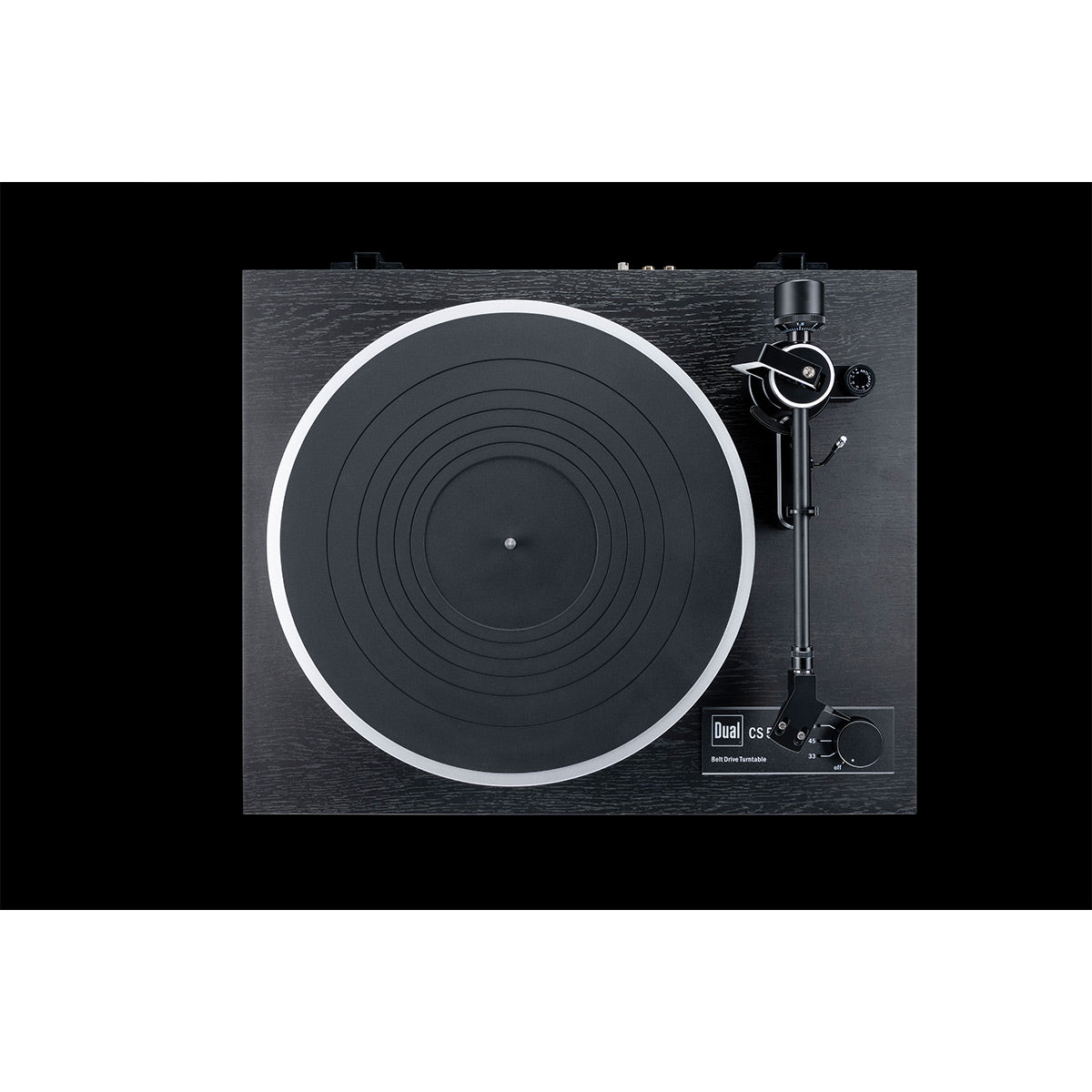

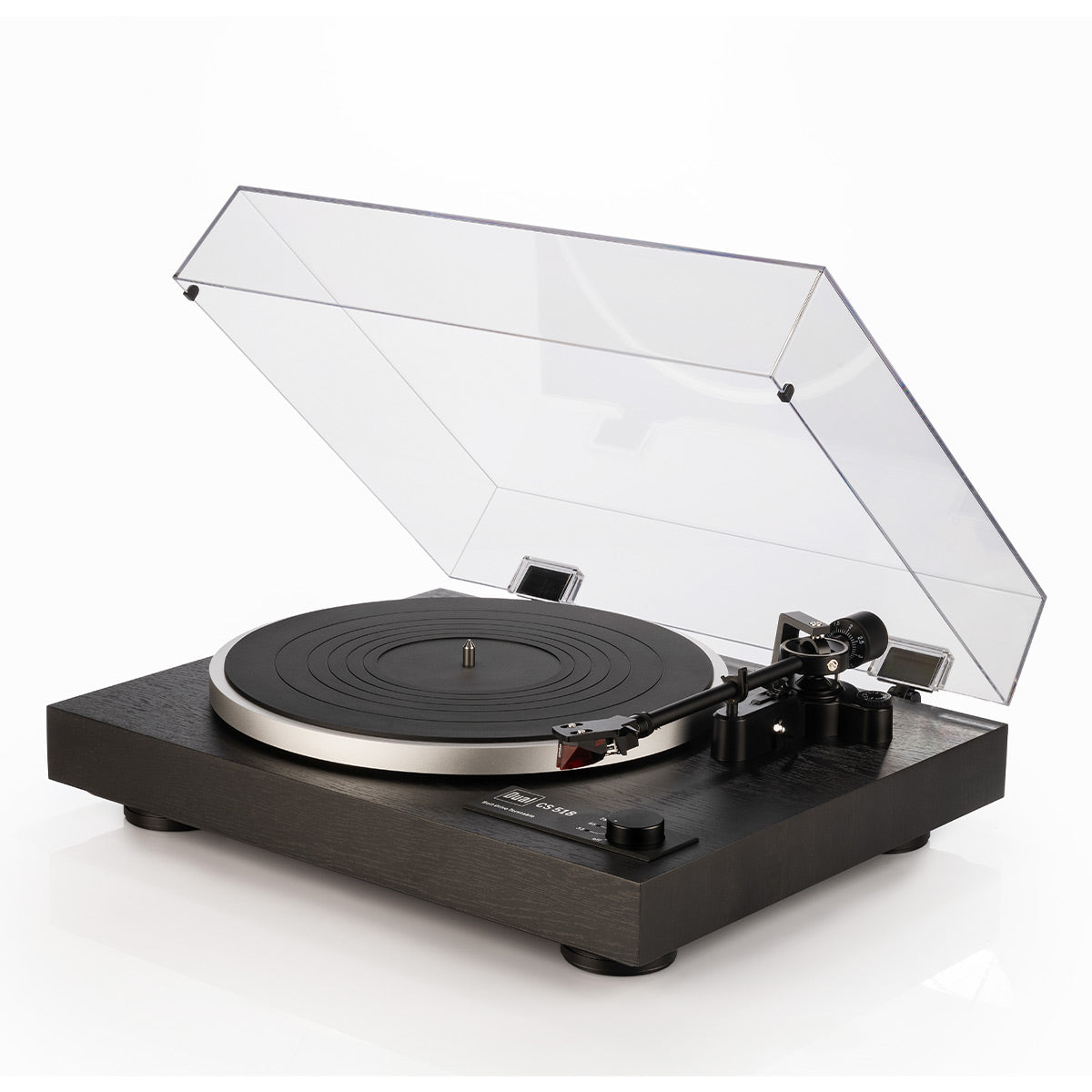

Dual CS 518 Manual Hi-Fi 3-Speed Turntable (Black Veneer)

Regular price $799.00
Sale price $799.00 Regular price
Save $-799.00 (%)
OR

Pair it with...
World Wide Stereo 12
World Wide Stereo 12" Cork Turntable Slipmat - 2019 Edition $19.99
The Last Factory Heritage Record Preservative & Cleaning Kit with Microfiber Applicators
The Last Factory Heritage Record Preservative & Cleaning Kit with Microfiber Applicators $92.95

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: CS518BK | UPC: 4260136676463

Specifications

What's In The Box

Product Information

Model: CS518BK | UPC: 4260136676463

The CS 518 is equipped with a twin gimbal tonearm design using pivot ball-bearings for optimal precision. This superior tonearm has the ability to guide even high-end pickups with the necessary accuracy providing a long-term solution to the serious audiophile. The Ortofon 2M Red pickup and a switchable MM-phono pre-amplifier are part of this ready-to-run package.

Plinth: Solid MDF

  • Folded MDF construction with a black vinyl veneer
  • Elastomer vibration absorber integrated inside the feet

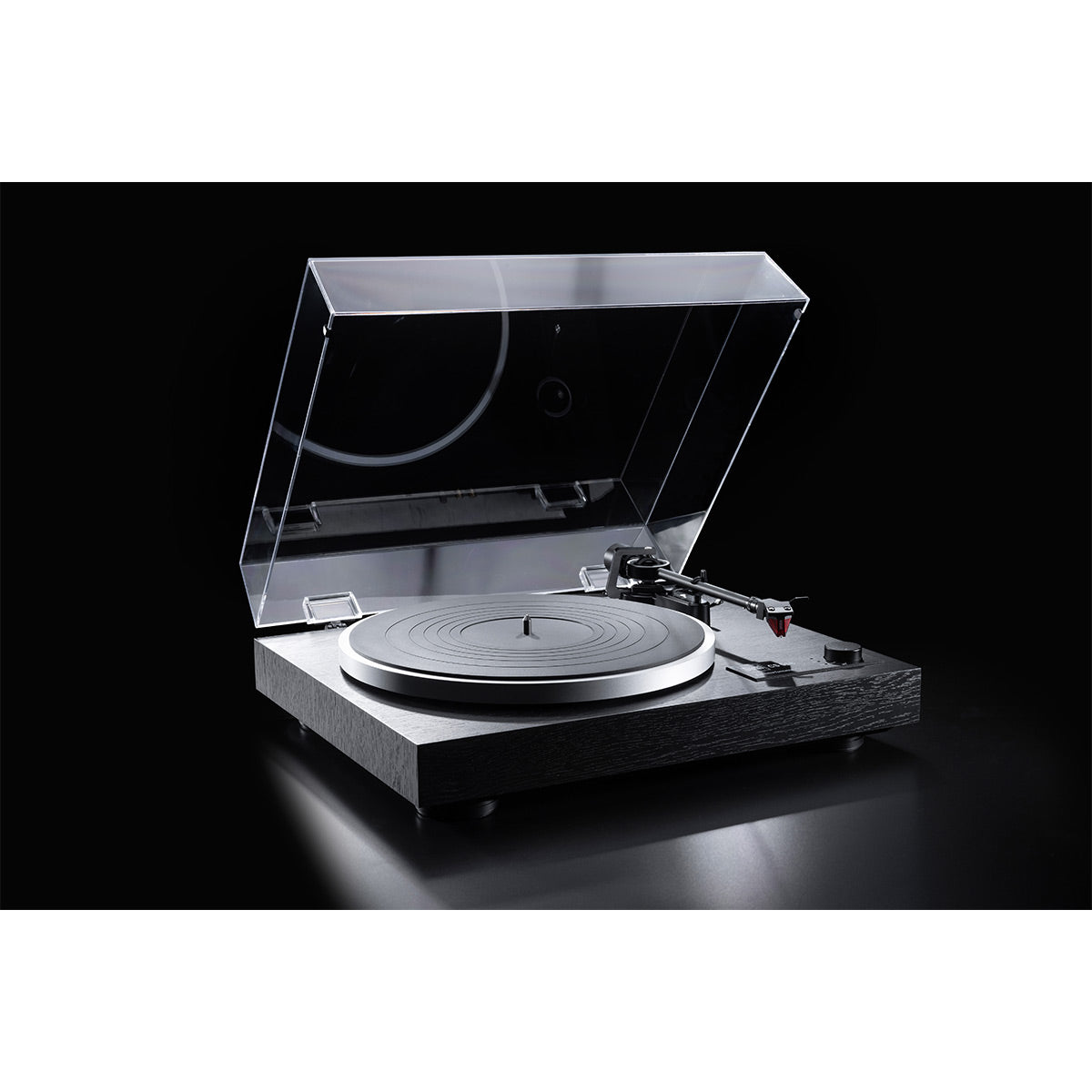

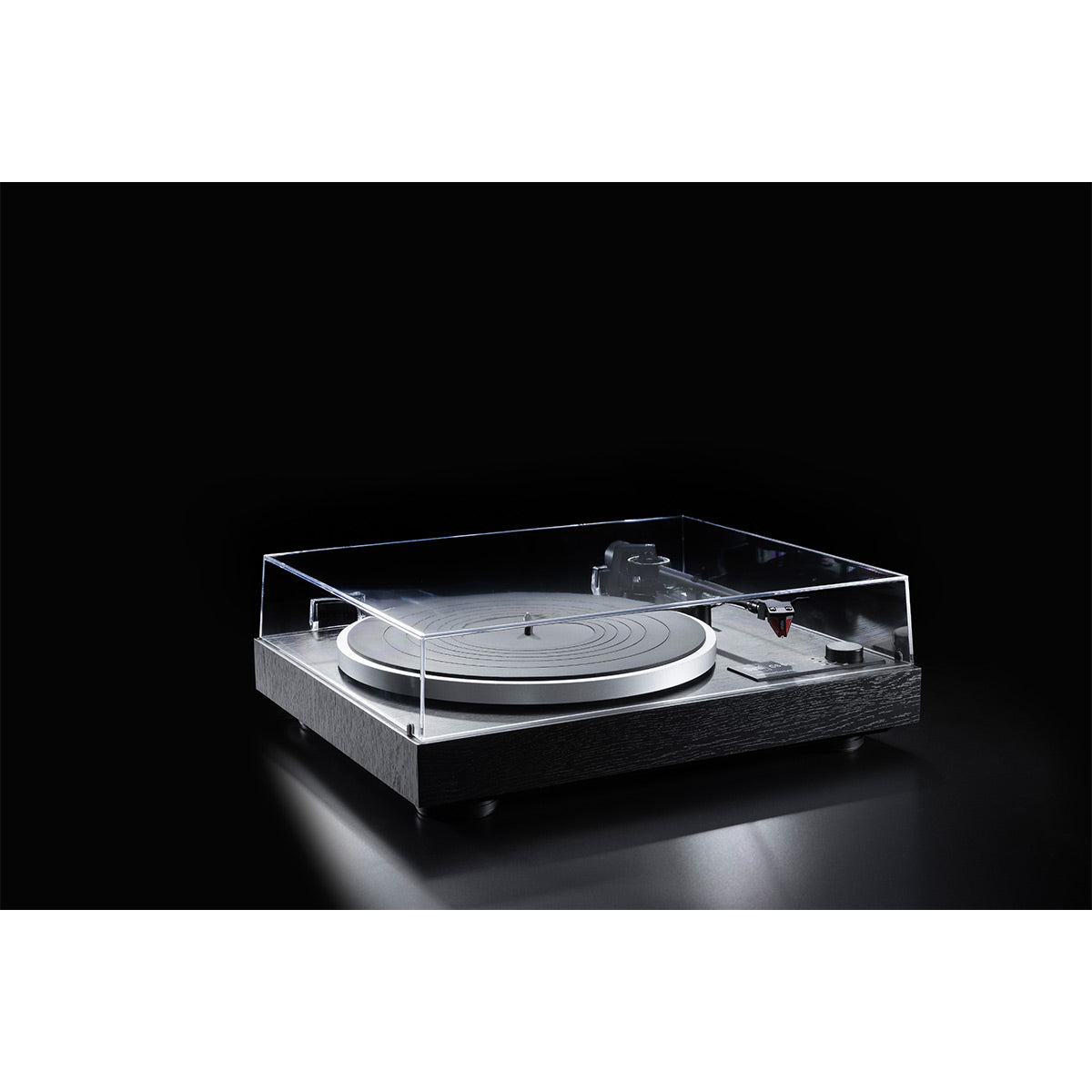

  • Removable dust cover

Platter: Aluminium Die-cast

  • Precise aluminum die-cast
  • Heavy rubber mat for resonance damping

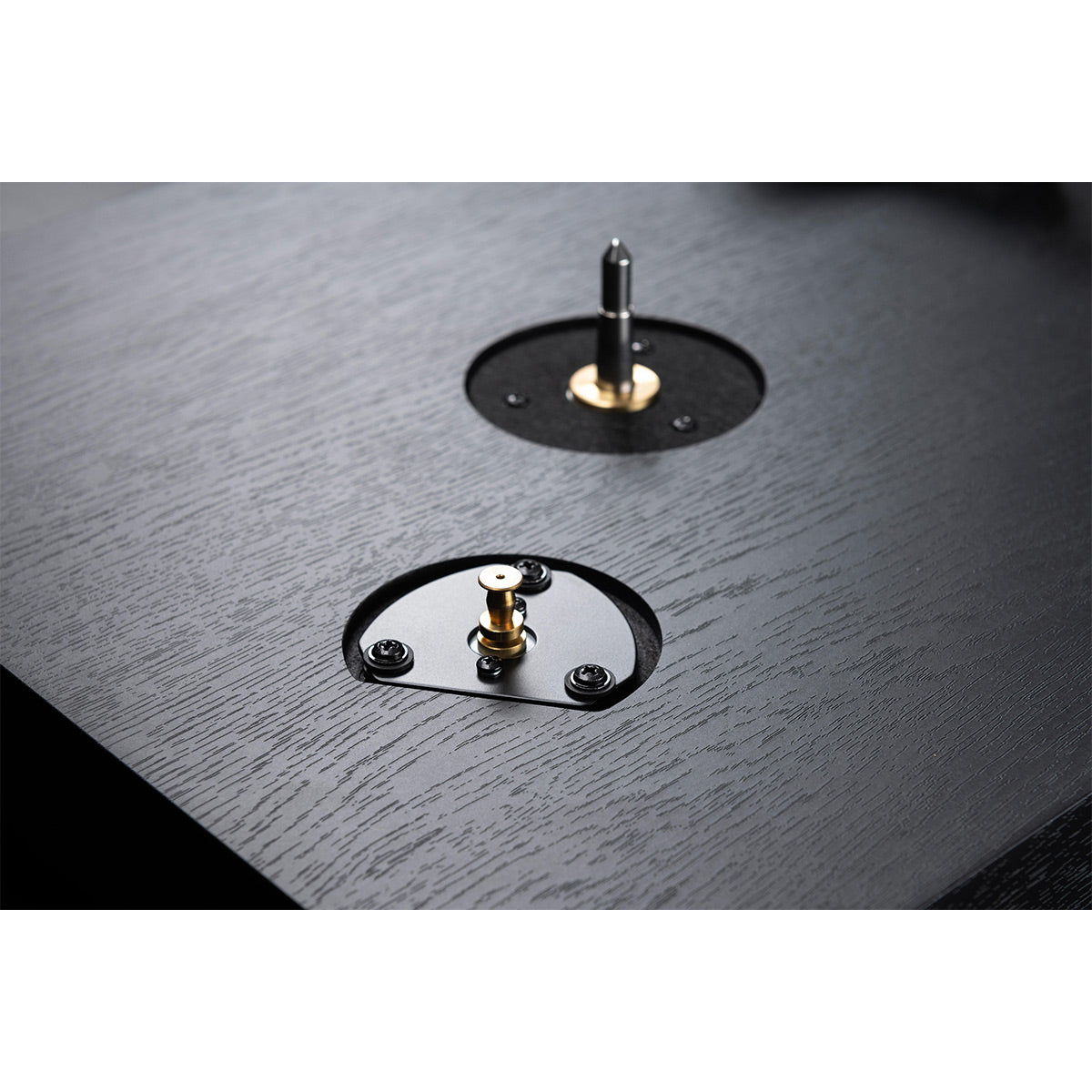

  • Solid platter bearing with a hardened steel spindle in a brass bushing

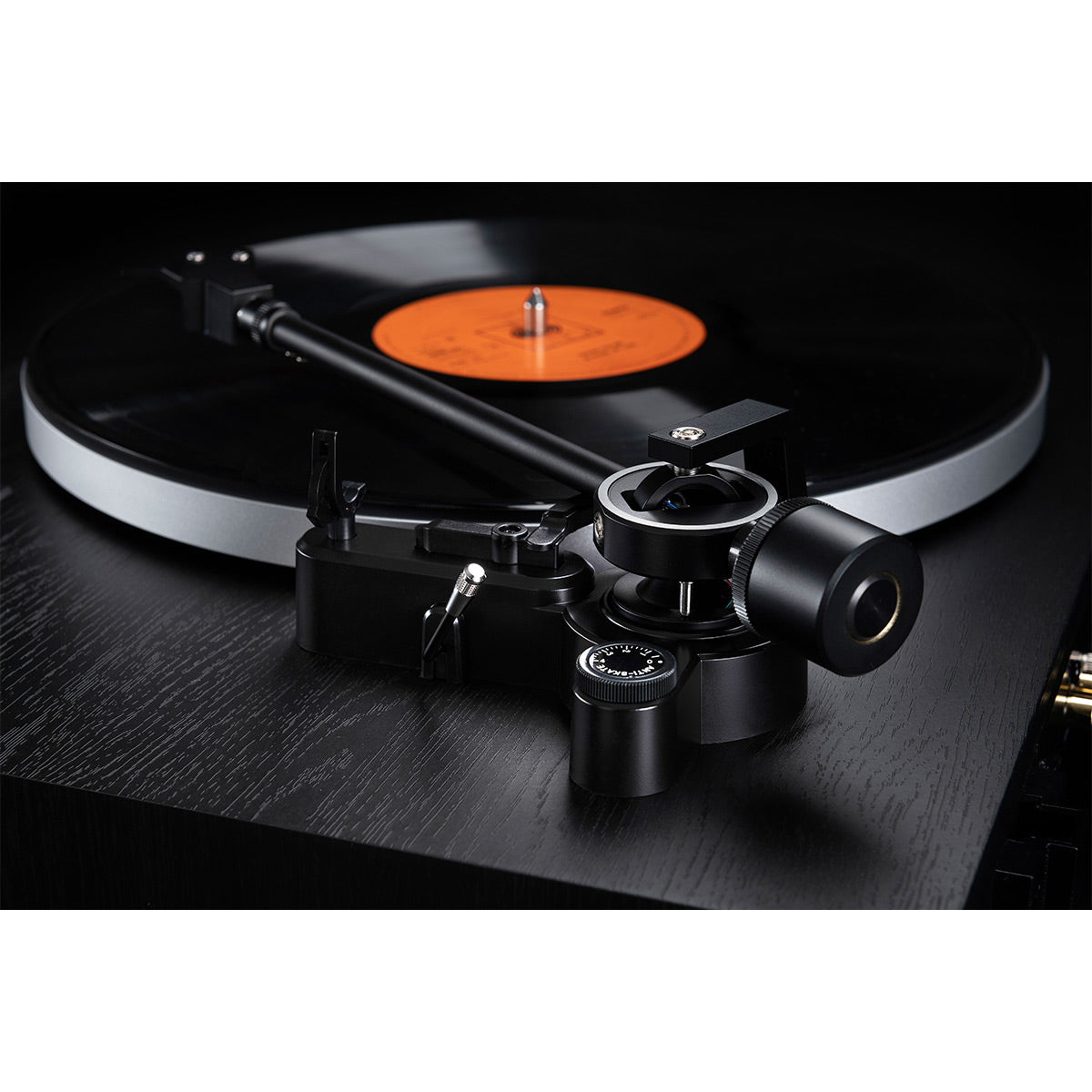

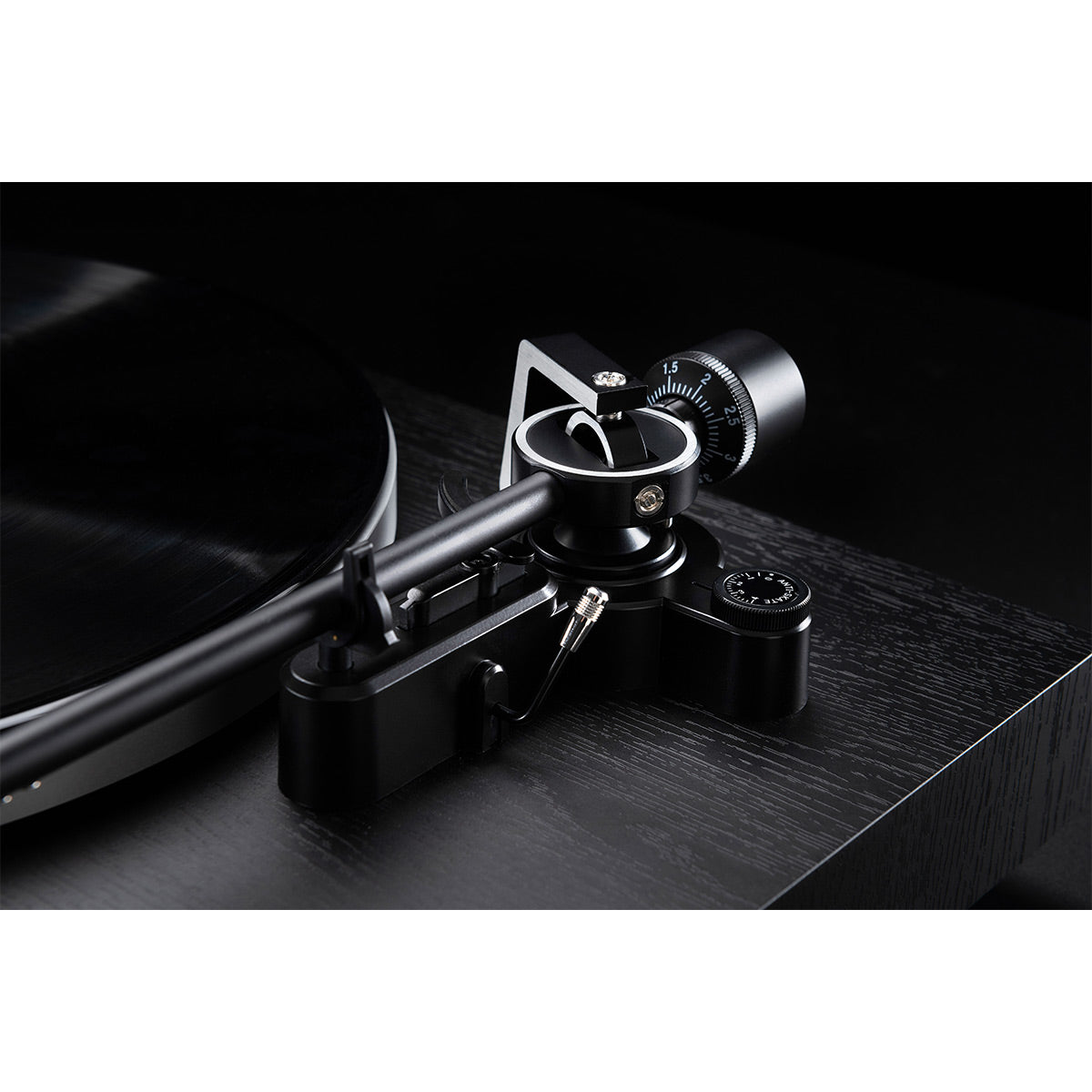

Tonearm: Twin Gimbal Design

  • Straight, statically balanced
  • Solid aluminum construction/precision pivot ball-bearing
  • Adjustable tracking force and anti-skating

Drive: DC-Motor / Belt

  • Low vibration DC-Servo-Motor
  • Rubber mountings for vibration decoupling
  • Precision-cut belt for lower wow & flutter

Specifications

  • Drive:
    • Drive: Belt
    • Speed settings: 33 / 45 / 78
    • Wow & Flutter: < ±0,1 % (DIN WTD)
  • Tonearm:
    • Auto-Start/-Stop-Function: X
    • Bearing: 4 x Pivot ball bearing, twin gimbal mounting
    • Effective length: 221.5 mm
    • Offset Angle: 25.6°
    • Overhang: 19 mm
    • Type: statically balanced
    • Stylus Pressure Range: 0 g to 4 g
    • Cartridge Weight Range: 5 g to 9 g

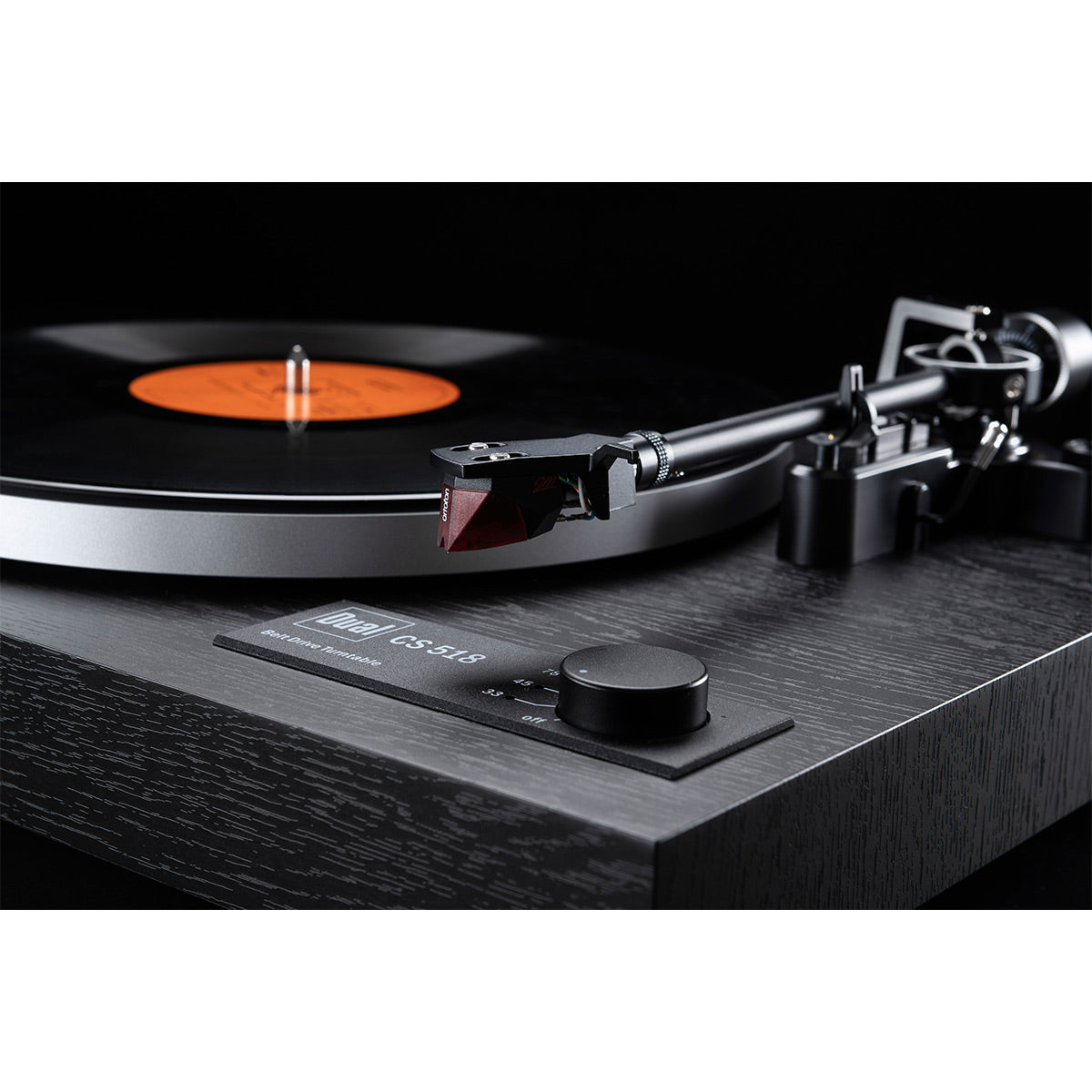

    • Factory-installed pick-up: Ortofon 2M Red
  • Platter:
    • Material: Aluminium Die-cast
    • Mat: Rubber 3.5 mm
    • Bearing: Hardened steel spindle, Brass bushing
    • Diameter: 305 mm
    • Weight: 1.59 lb
  • Plinth:
    • Material: MDF, folded
    • Surface finish: Vinyl veneer / Black
    • Feet: Ø 62 mm / Elastomer

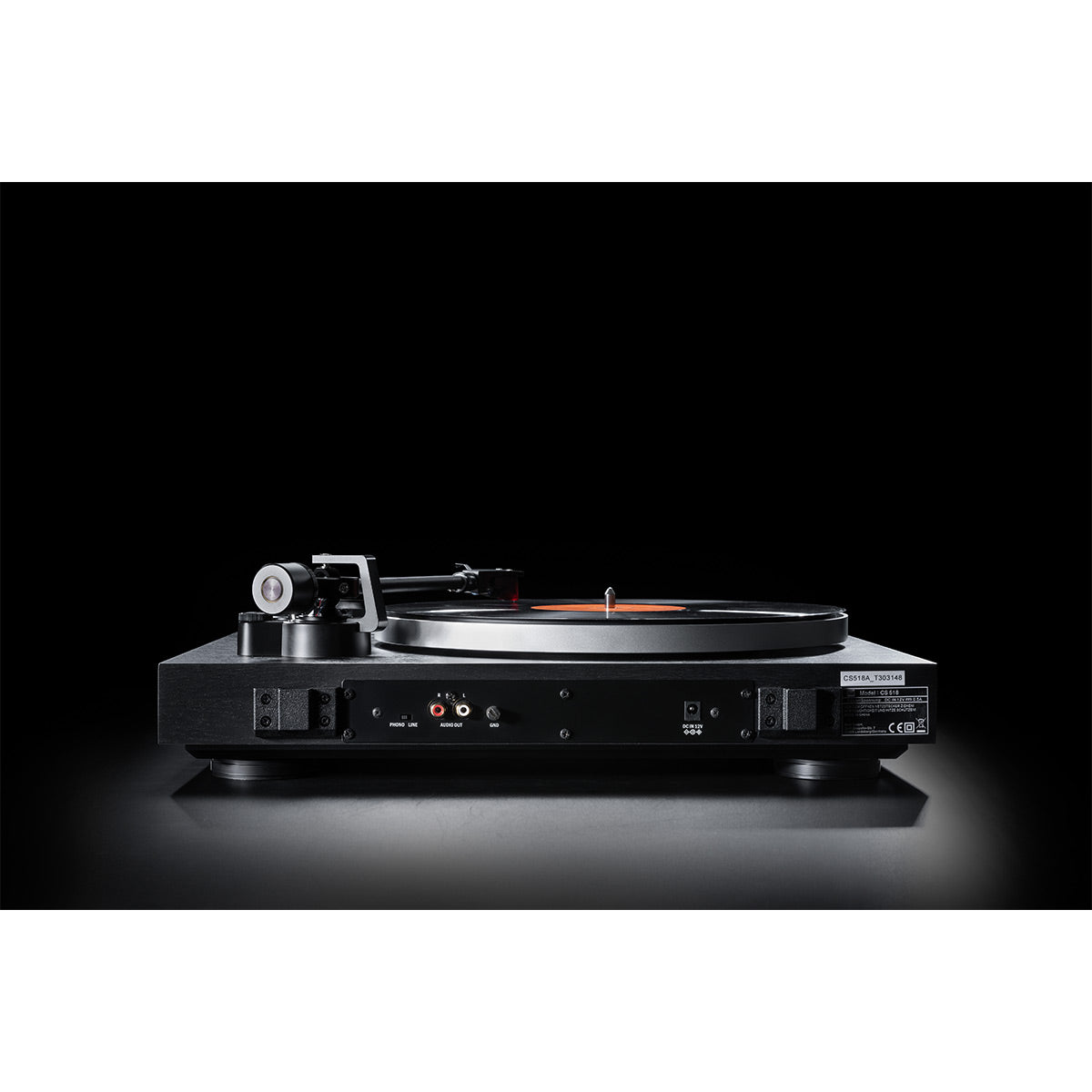

    • Connection: RCA socket
    • Connection to Phono Input: Yes
    • Connection to Line Input: Yes
    • Digital Output: X
    • Dimension, closed dustcover (W x H x D): 17.13" x 14.45" x 5.71"
    • Dimension, open dustcover: T: 16.34" / H: 15.75"
    • Weight: 13 lb

What's In The Box

  • CS 518 Manual Hi-Fi 3-Speed Turntable
  • Dust cover
  • Headshell with phono cartridge
  • Platter including belt
  • Platter mat
  • Counterweight
  • Spindle adaptor (for 7” Eps)
  • Power supply for connecting to the main supply
  • Coaxial stereo audio cable

*Please Note: This turntable must be connected to an amplifier/receiver and speakers, or a pair of self-powered speakers, sold separately.
