Denon

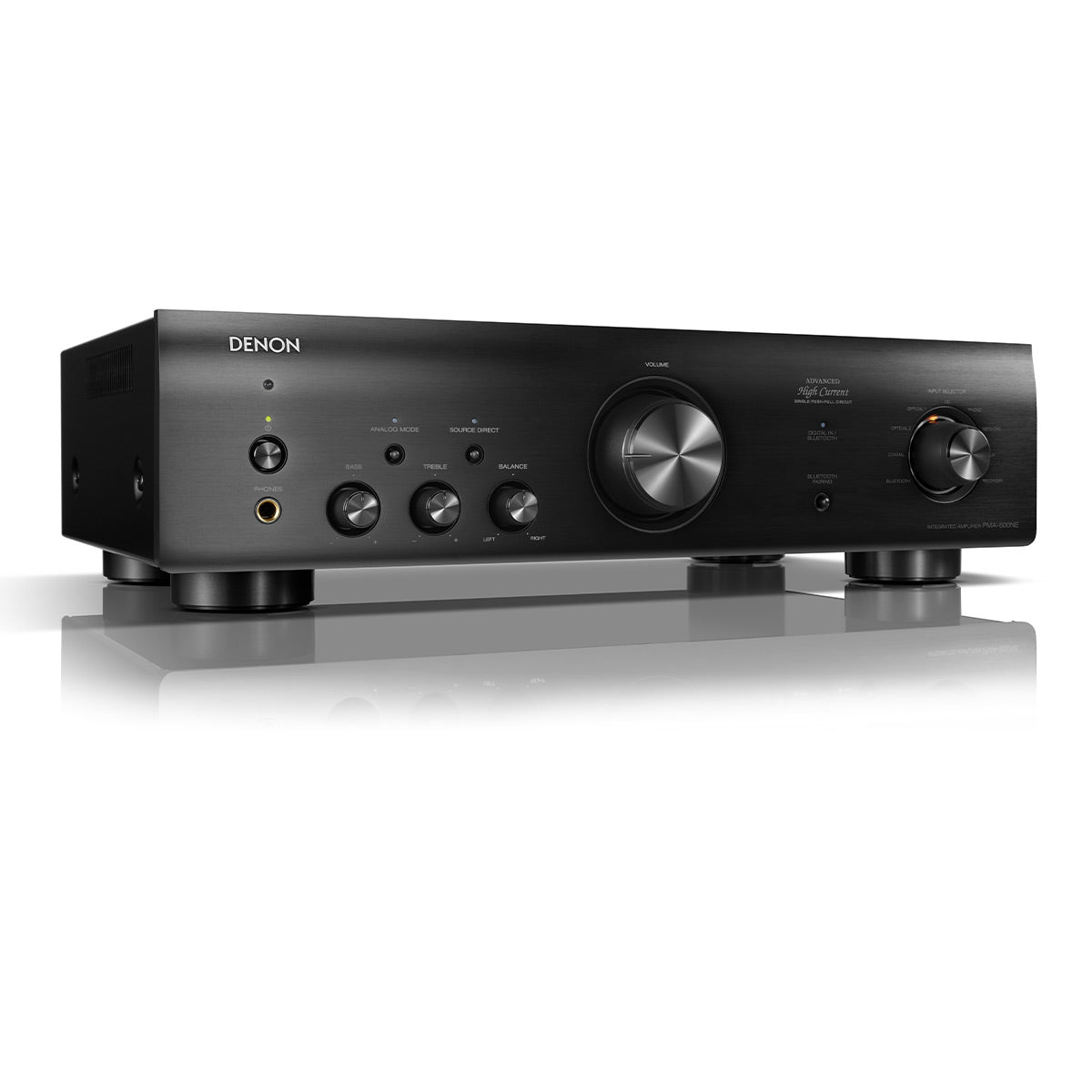

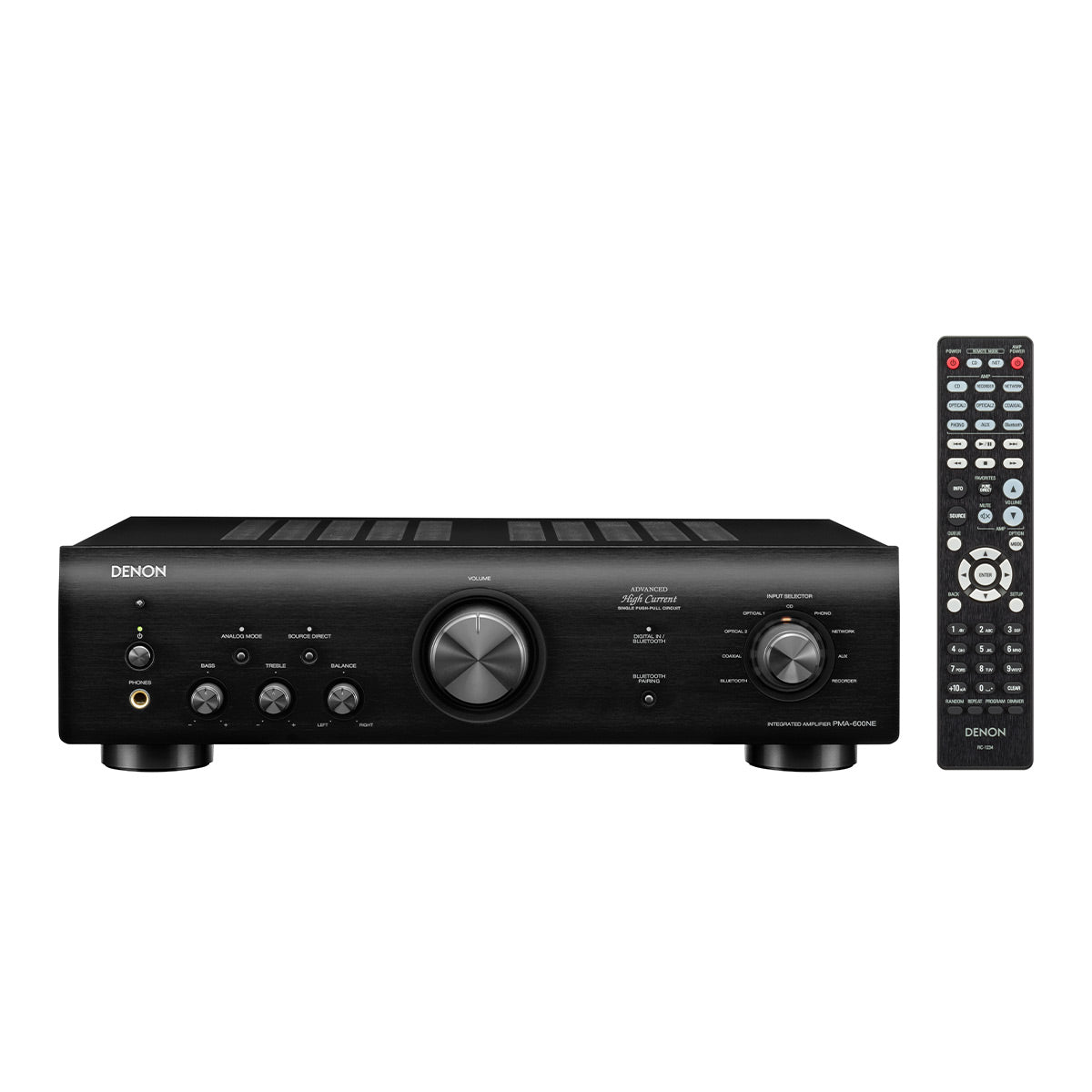

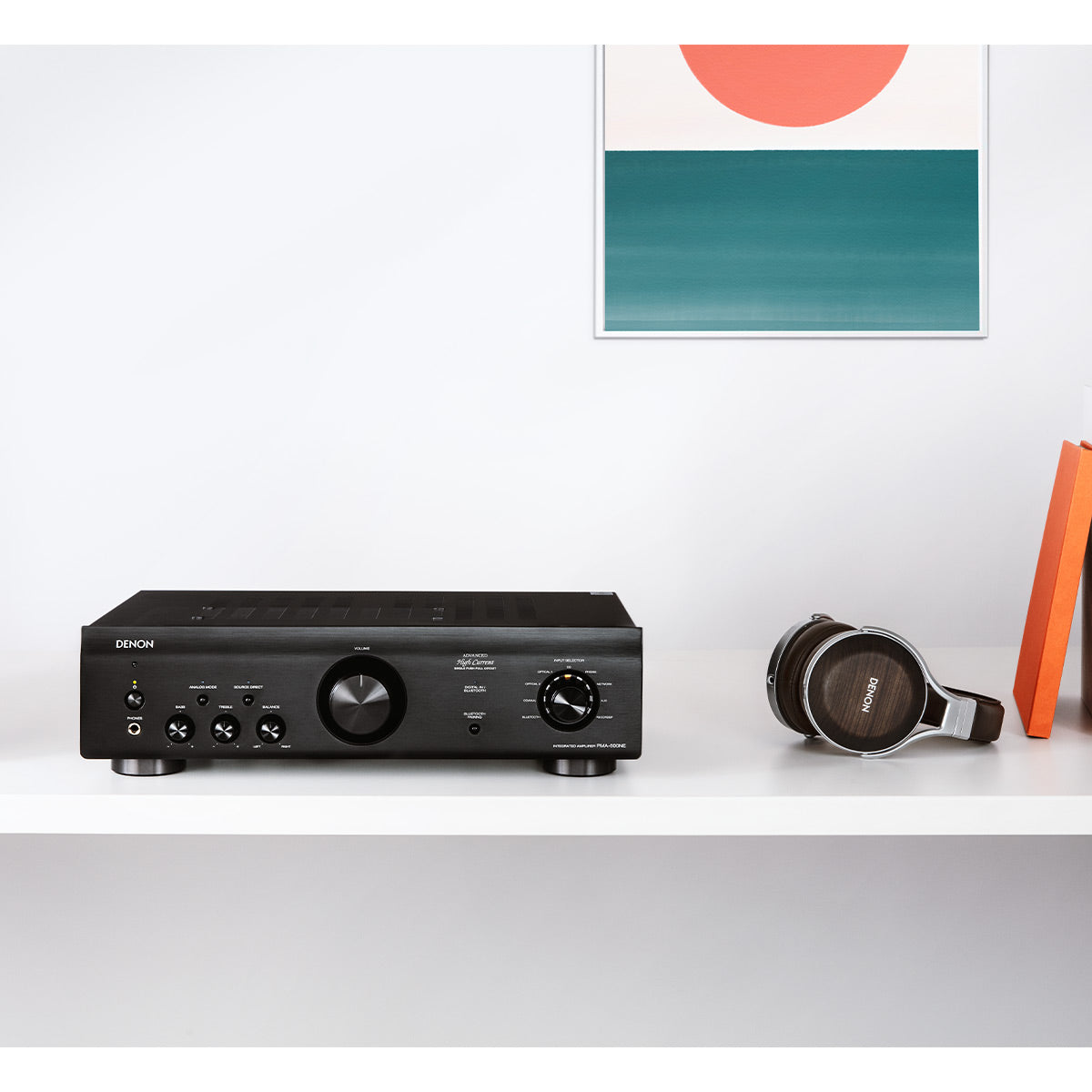

Denon PMA-600NE 2 Channel 70W Integrated Amplifier with Bluetooth

Regular price $499.00
Sale price $499.00 Regular price
Save $-499.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Apr 23 – Tue, Apr 30

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: PMA600NEBKE3 | UPC: 883795004909

Specifications

What's In The Box

Product Information

Model: PMA600NEBKE3 | UPC: 883795004909

Designed for the aspiring music enthusiast, the Denon PMA-600NE is the superior choice for those who want to build their first 2-channel Hi-Fi system. Powered by the Denon Advanced High Current (AHC) single-push pull circuit power amplifier, the PMA-600NE integrated amplifier delivers 70 Watts (4ohm, 1kHz, THD: 0.7%) of power-per-channel. Easily connect both analog and digital sources including your turntable to the built-in phono pre-amp. Listen to your favorite high-resolution audio content with the 192kHz/24bit D/A converter or connect via Bluetooth to stream nearly unlimited songs. The PMA-600NE provides exceptional sound quality that balances high power with delicate, musical details.

Features

  • High Power 70W Integrated Amplifier
  • Built-in 192kHz/24bit D / A Converter
  • MM Phono Equalizer
  • Analog Mode for pure audio reproduction
  • Denon-proprietary Signal Level Divided Construction (SLDC) chassis
  • Bluetooth streaming support

High Power 70W Integrated Amplifier

Power your loudspeakers with the Denon PMA-600NE integrated amplifier. Engineered with remarkable Denon amplifier technology, the PMA-600NE delivers 70 Watts of power per channel (4ohm, 1kHz, THD 0.7%). This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.

Bluetooth Support and Digital Connectivity

Extend your audio experience with nearly unlimited sources. Pair the PMA-600NE to your smart device or computer via Bluetooth, and listen to your favorite music wirelessly. Connect your TV, media player, computer, or any digital source via the Optical and Coaxial digital inputs for exceptional audio performance with the built-in DAC.

Advanced High Current (AHC) Single-Push-Pull Circuit

Enjoy powerful sound with detailed, musical accuracy. The PMA-600NE incorporates AHC transistors with two-to-three times the electrical current supply capacity of conventional audio power transistors. The acclaimed Denon AHC single-push-pull circuit now allows for the discrete amplifier in the PMA-600NE, producing powerful sound with musical fidelity.

High-Grade Audio Components

Denon engineers carefully constructed the amplifier circuit within the PMA-600NE to secure a frequency response of up to 100 kHz during applied use. The volume circuit suppresses noise in the amplifier, achieving high sonic resolution. The PMA-600NE handles a wide, dynamic range of high-resolution audio sources with tone control and power throughout.

Optical and Coaxial Digital Inputs

The PMA-600NE features two Optical inputs and one Coaxial input and supports PCM signals up to 192 kHz/24 bit. These digital inputs help to improve the sound and visual quality of your TV audio, Blu-ray, media players, and more. Also, use it to input high-resolution sound from an audio source on your computer.

Analog Mode

Analog Mode allows the PMA-600NE to operate as a purely analog amp, disabling digital inputs as well as Bluetooth while you listen to an analog source. Turn on Analog Mode to close power to the dedicated digital power source and stop the operation of the digital input and Bluetooth circuity, avoiding any high-frequency influence on the analog section of the PMA-600NE. Enjoy your favorite analog sources with uninhibited clarity and detailed reproduction.

MM Phono Equalizer

The PMA-600NE includes a phono equalizer that supports playing from sources with a MM cartridge. This phono equalizer has high gain, and unlike loops in other circuit board patterns which cause adverse effects on sound quality, the simple, straightforward design of the PMA-600NE phono equalizer significantly improves the sound.

Main Transformer with Individual Wiring

To eliminate interference and maintain exceptional sound quality, the main power transformer of the PMA-600NE has separate coiled wires for the audio and control circuits. An integrated microprocessor features Stop Mode for even greater sound quality while you listen.

Micro-Processor Stop Mode

The microprocessor of the PMA-600NE features a Stop Mode that automatically ceases all operations of the microprocessor when it’s not needed for playback. By stopping the oscillation of the microprocessor clock during these listening moments, the audio signal is protected from external noise and enhances sound quality.

Signal Level Divided Construction (S.L.D.C.)

The Signal Level Divided Construction (SLDC) chassis developed by Denon is used in the audio circuit to ensure that delicate musical signals are faithfully amplified and transmitted to the speakers. Listen with exemplary quality, every time.

Build Integrity with Thoughtfully Selected Components

With more than a 100-year legacy of designing premium audio components, trust that your Denon product has undergone rigorous testing. The overall aesthetic, sound quality, and design integrity of the PMA- 600NE and its Hi-Fi components are built to last.

100+ Years of Firsts in Audio Technology

Founded in 1910, Denon has a deep heritage of “firsts” in audio technology — from Japan’s first audio electronics manufacturer to producing the world’s first commercial CD player and Dolby Atmos-enabled AV receiver. This focused investment in audio R&D ensures you get the latest technology and highest quality with every listening experience.

Specifications

  • Power Amplifier
    • Rated Power
      • 45W + 45W (8ohm, 20Hz-20kHz, THD 0.07%)
      • 70W + 70W (4ohm, 1kHz., THD 0.7%)
    • Total Harmonic Distortion: .01% (Rated Output –3dB) 8ohm 1kHz
    • Input Sensitivity MM: 2.5 mV / 47 kohm
    • SN Ratio MM: 84 dB (5mV inputs signal)
    • CD/Network/Aux/Recorder: 100 mV
    • Input Sensitivity: 110 mV / 30 kohms
    • Sign to Noise Ratio: 105 dB
  • Features
    • Bluetooth: Yes
    • OFF mode: Analog Mode
  • Tone Controls
    • Bass: Yes
    • Treble: Yes
  • General
    • Power Supply
      • NA – AC 120V, 60kHz
      • EU – AC 230W, 50/60Hz
    • Power Consumption 185W
    • Dimensions (W x H x D): 17.1” x 4.76” x 12.1”
    • Weight: 15 lbs
  • Ports
    •  In
      • Phono (MM): x 1
      • CD: x 1
      • Aux: x 1
      • Optical Input: x 2
      • Coaxial Input: x 1
      • Bluetooth: Yes
      • Recorder (Playback): x 1
      • IR Control: Yes
    • Out
      • Preout: Yes (Subwoofer)
      • Recorder Out: Yes
      • IR Control: Yes
      • Speaker Terminal: x 1 pair

What's In The Box

  • PMA-600NE 2 Channel 70W Integrated Amplifier with Bluetooth
  • Quick Start Guide
  • Manual
  • Safety Instructions
  • Warranty
  • Radio notes
  • Remote Control (RC-1234)
    • (2) AAA Batteries
