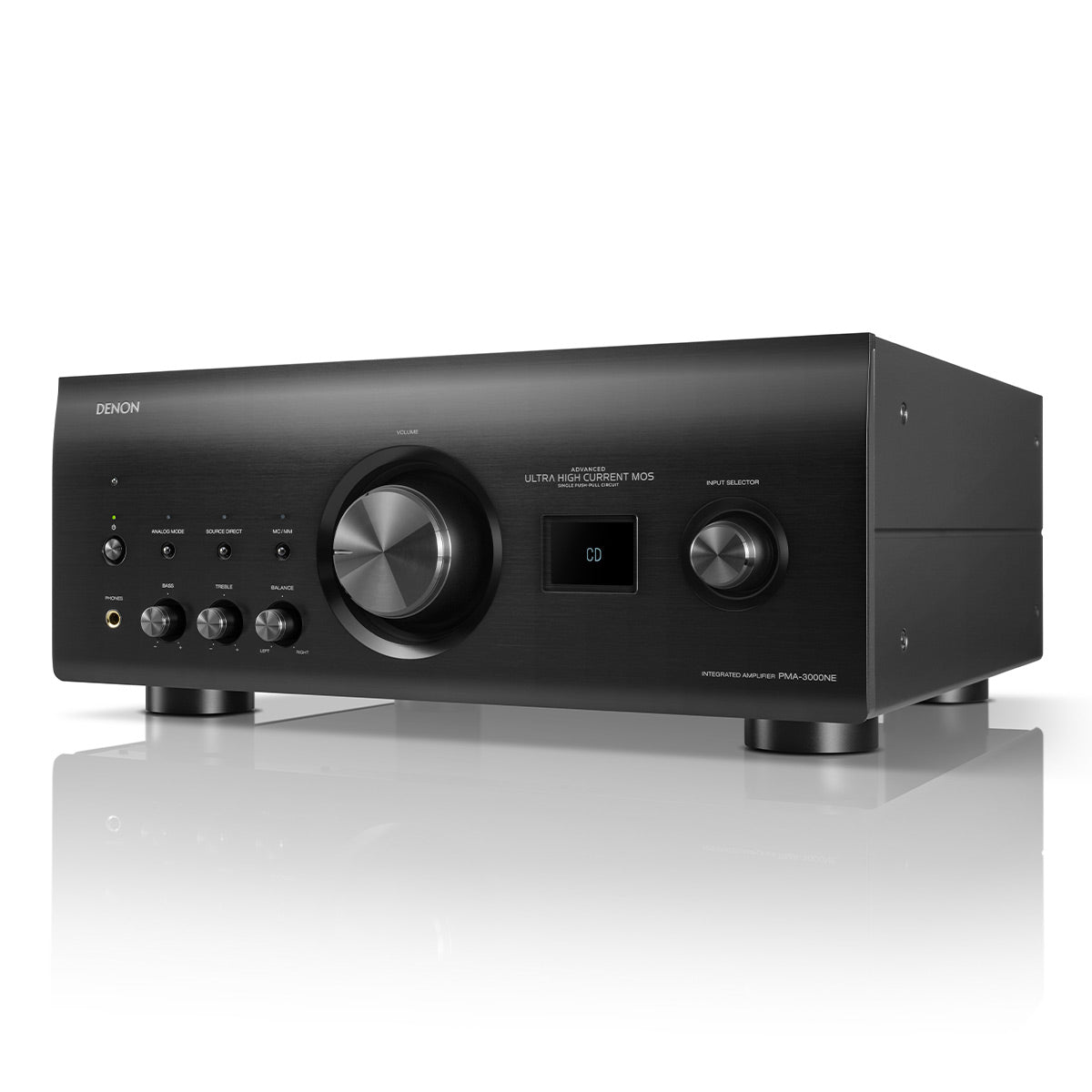

Denon PMA-3000NE Reference 2-Channel Integrated Amplifier (Black)

Regular price $3,499.00
Sale price $3,499.00 Regular price
Save $-3,499.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Denon PMA-3000NE Overview

Product Information

Model: PMA3000NEBKE3 | UPC: 747192143237

Specifications

What's In The Box

Product Information

Model: PMA3000NEBKE3 | UPC: 747192143237

Faithful To Any Sound Source

Experience audio excellence redefined with the Denon PMA-3000NE. This powerful amp drives even the most demanding speakers with clarity. With versatile digital connections, 384kHz/32-bit support, Pure Analog Mode, and an MM/MC phono stage, it delivers superior sound in any scenario.

Features

  • UHC-MOS Single Push-Pull Circuit
  • High-Performance MM/MC Phono Stage
  • Precision High-Resolution DAC
  • Ultra AL32 Processing
  • Pure Analog Mode Bypasses Digital Circuitry
  • Optical, Coaxial, RCA, & USB Type B Inputs

Advanced Amplifier Design

A UHC-MOS single push-pull circuit, paired with a differential 2-stage amplifier, effortlessly drives even the most demanding speakers, with a highly linear output stage ensuring stunning clarity at any volume. The PMA-3000NE accommodates a range of speaker types and impedances. Its advanced design offers increased efficiency, low distortion, and enhanced power handling, elevating every listening session to extraordinary new heights.

Ultra AL32 Processing

Denon's 7th-generation Ultra AL32 Processing analog waveform reproduction technology uses data interpolation algorithms to achieve smooth high-resolution output, with a waveform that closely matches the original. Algorithms support PCM input signal resolutions up to 384kHz/24-bit, performing upsampling to smooth out the waveform and deliver richly detailed, expressive sound that’s faithful to the source.

High-Performance MM/MC Phono Stage

Unlock your vinyl collection’s full potential with the PMA-3000NE's high- performance phono stage, which supports both MM and MC cartridges for the truest sonic reproduction regardless of cartridge type. Featuring a CR-type phono equalizer for exceptional stability in the high- frequency range, it excels when paired with high-quality cartridges like the Denon DL-103R. A high-gain design and "simple & straight" circuitry minimize distortion, delivering the pure sound of vinyl in all of its warmth and depth.

Digital Audio Inputs

Versatile connections let you integrate high-resolution audio from your computer, media players, and other digital sources. Optical and coaxial inputs support 192kHz/24-bit audio and a USB Type B input supports PCM files up to 32-bit/384kHz or 11.2 MHz DSD, reproducing high-resolution sound with a wide dynamic range for a truly immersive listening experience.

Pure Analog Mode

Pure Analog mode bypasses digital circuitry for a pure, all-analog sound. A Source Direct function bypasses the tone controls so that the signal path is as short and clean as possible, for enhanced clarity.

Precision Controls

Thanks to clever engineering, microcontroller-managed volume, balance, and tone controls offer precise, linear digital adjustments with the familiar, tactile feel of analog knobs. It’s the ultimate blend of modern digital functionality and old- school charm.

Specifications

  • General
    • Unit Dimensions (W × H × D): 17.08" × 7.16" × 17.44"
    • Net Weight: 54.2 lbs.
  • Audio
    • Total Harmonic distortion: 80.01 % (Rated output: –3 dB), ohm/ohms, 1 kHz
    • Input Sensitivity (Phono input)
      • MM: 2.5 mV / 47 kohm
      • MC: 200 µV / 100 ohm
    • Input Sensitivity (CD/LINE/RECORDER): 135 mV / 19 kohm
    • Input Sensitivity: Power Amp input 0.9V / 47 kohm (EXT. PRE)
    • Signal to Noise Ratio
      • PHONO (MM): 89 dB
      • PHONO (MC): 74 dB
      • CD: 107 dB
  • Power
    • Power Consumption: 400W
    • At Standby
      • 00.2W TV autoplay off
      • .4W TV autoplay on
  • Audio Features
    • Analog Audio
    • Power Amplifier Circuit: New UHC-MOS, Single Push Pull (7)
    • Preamplifier Circuit: Variable Gain Preamplifier (OP AMP)
    • Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
    • Source Direct: Yes
    • Analog Amp Mode: Yes (button on front panel)
  • Digital Audio
    • DAC Circuit: ES9018K2M × 4
    • Digital Processing: Ultra AL32 Processing
    • DAC Master Clock Design: Yes
    • Asynchronous mode (for USB-B input): Yes
  • Connectivity
    • Audio Video
    • Phono Input: Yes (MM / MC)
    • Analog Input (include Phono) / REC Out (RCA): 4/1 (Gold Plated) (Brass Machining type for all CD/PHONO/AUX/RECORDER)
    • Optical input / output (Maximum Support): 3 / 0 (192 kHz/24-bit)
    • Coaxial input / output (Maximum Support): 1 / 0 (192 kHz/24-bit)
    • Speaker Terminal: AVR-A1H type Gold Plated w/Cover
    • Headphone Output: 1 (Turns off the speaker automatically when headphone is inserted)
  • USB-B
    • USB B (USB DAC): 1 (Rear)
    • PCM Sample Rate / Resolution: ~384 kHz/32-bit
    • DSD Audio Streaming: ~11.2MHz
  • Network
    • Wi-Fi: No
    • HEOS: No

What's In The Box

  • PMA-3000NE Reference 2-Channel Integrated Amplifier
  • Remote
  • Power Cord
  • Manual
