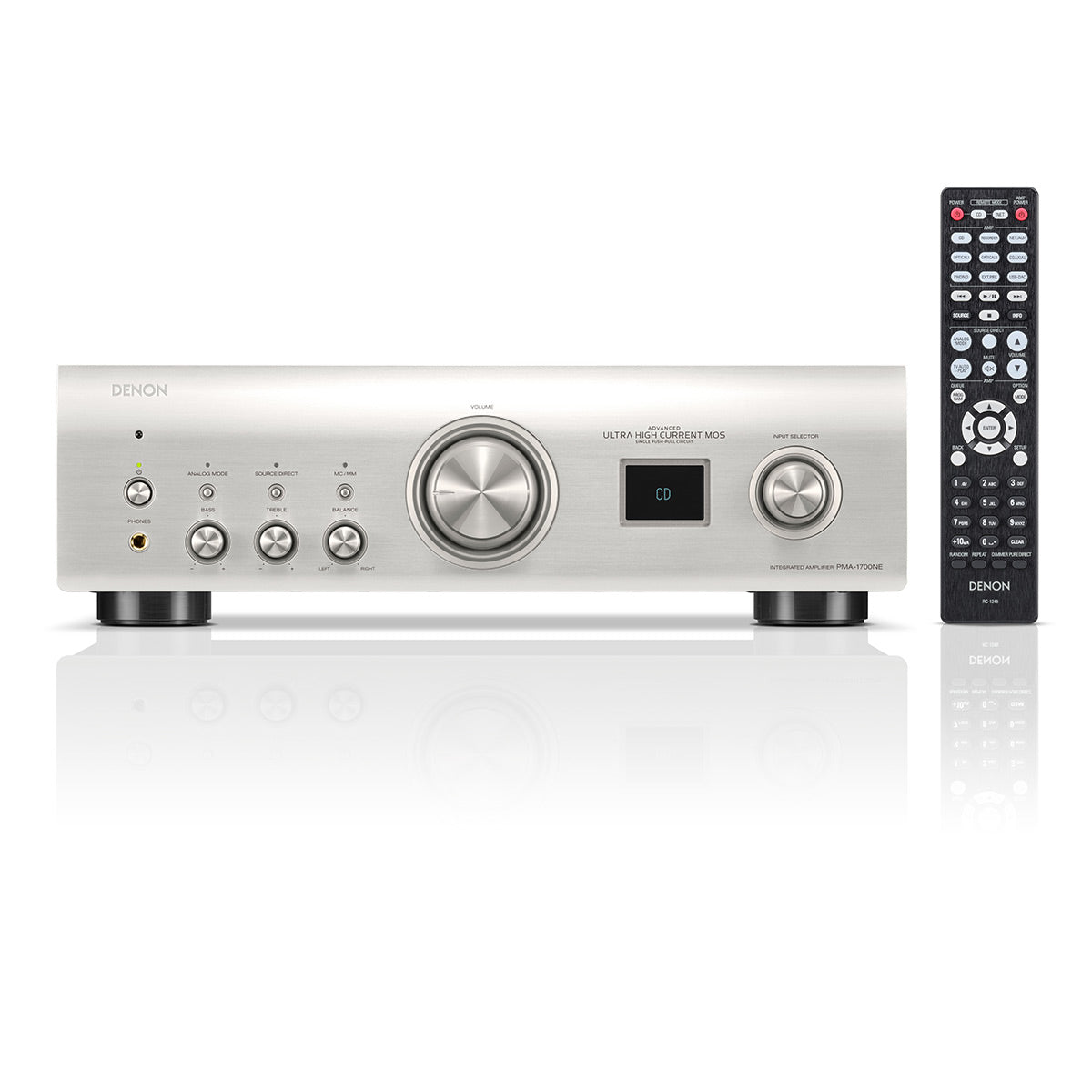

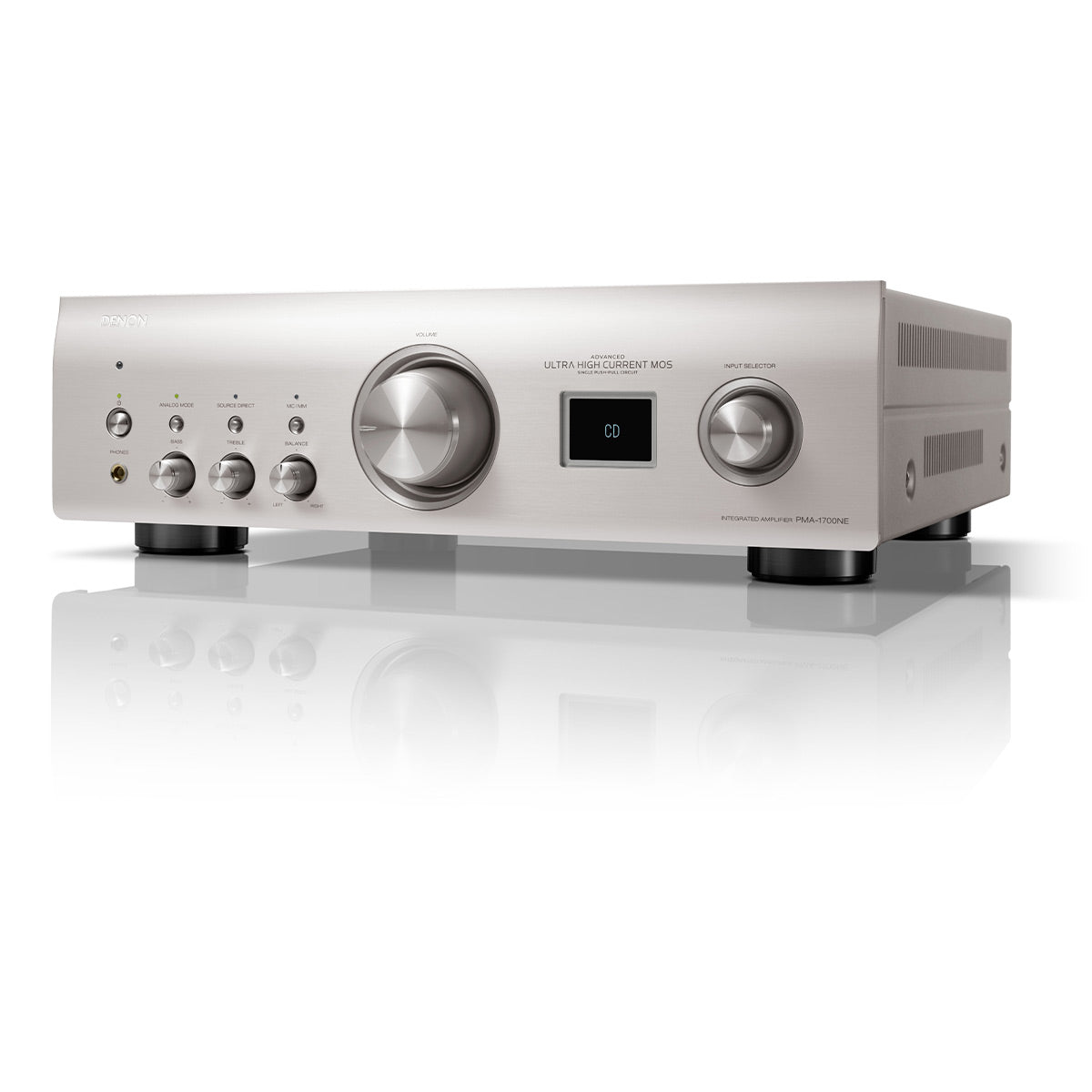

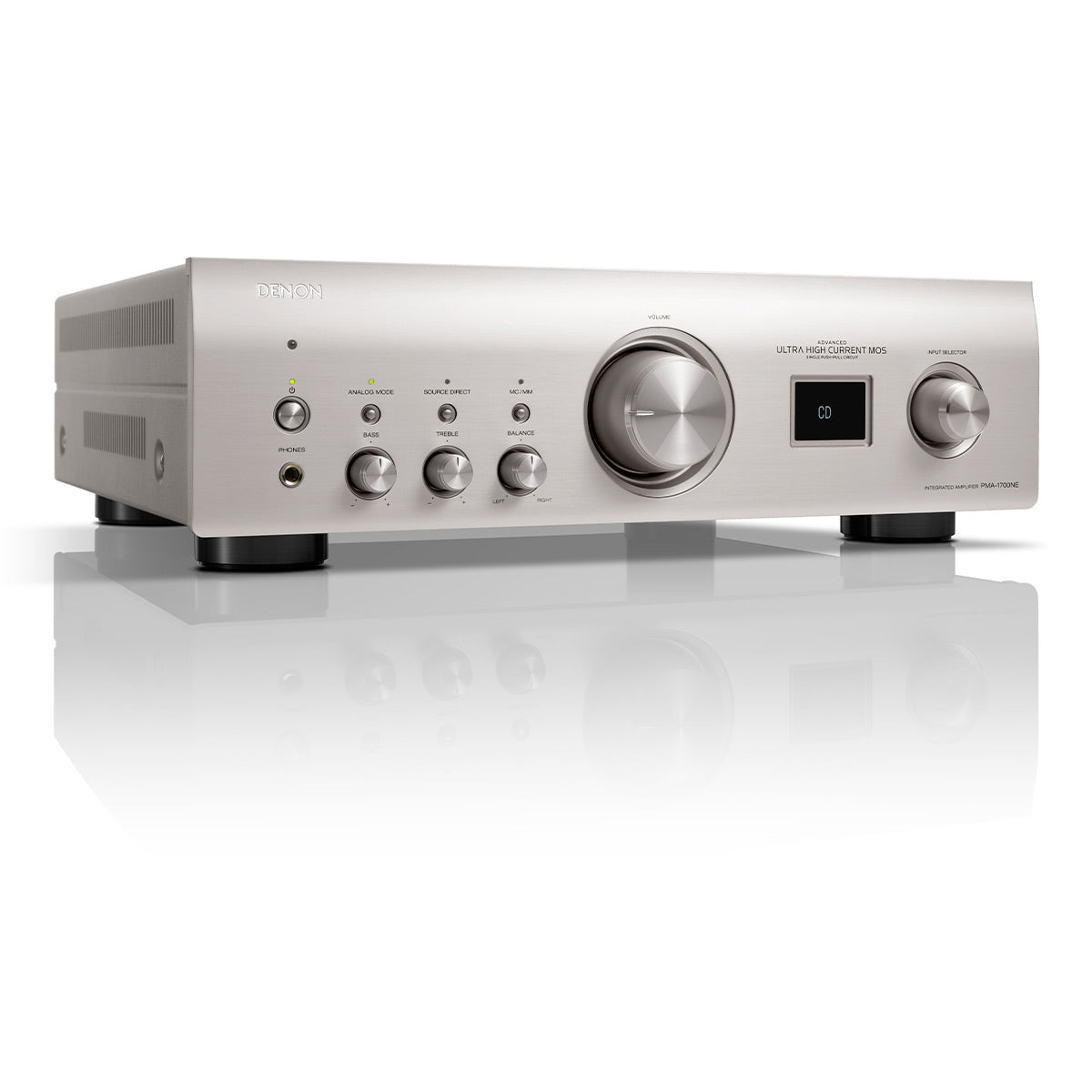

Denon PMA-1700NE Integrated Amplifier with 140W Power per Channel (Silver)

Regular price $2,099.00
Sale price $2,099.00 Regular price
Save $-2,099.00 (%)

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Denon PMA-1700NE Integrated Amplifier with 140W Power per Channel (Silver) Overview

Product Information

Model: PMA1700NESP | UPC: 747192137625


What's In The Box

Product Information

Model: PMA1700NESP | UPC: 747192137625

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.

High-power 140W integrated amplifier

Drive your loudspeakers with 140 Watts of power per channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.

Advanced AL32 Processing Plus

Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.


To accurately synchronize digital circuits, the PMA-1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.

High-precision electrical controls

The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.

MM and MC phono equalizer

The PMA-1700NE includes a phono equalizer that supports input from both MM and MC cartridges. The simple, straightforward design significantly improves sound quality.

Optical and coaxial digital inputs

The PMA-1700NE features two optical inputs and one coaxial input and supports PCM signals up to 192 kHz/24 bit.

External pre-amp input terminals

“EXT/PRE” input terminals are fixed gain inputs that can be used for connecting an external pre-amp using the PMA-1700NE as a power amp.

TV auto standby (digital input)

The PMA-1700NE includes autosensing to automatically switch the unit on when it senses a digital audio signal from an external source like your TV.

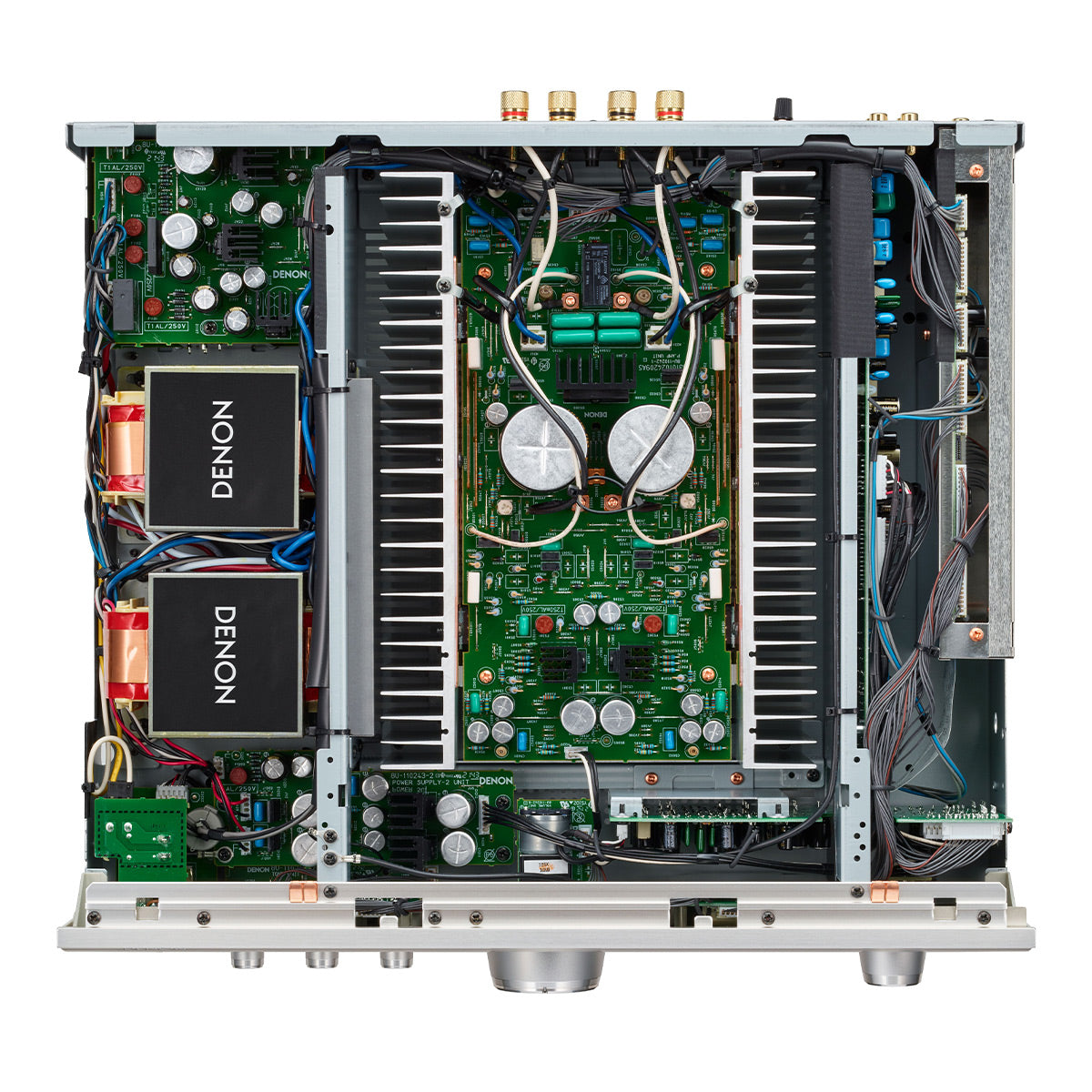

Six-block chassis configuration and direct mechanical ground construction

Constructed with 1mm-thick steel plates and made of ABS resin with rigid rib construction, the chassis protects the signal circuits from external vibration and eliminates adverse effects of mutual interference among the circuits.

Digital isolator

Equipped with a high-speed digital isolator, the PMA-1700NE eliminates adverse effects on sound quality caused by high-frequency noise from a USB-connected computer or digital inputs.

Analog mode

Analog mode can be used to turn off power to digital power sources and completely stop the operation of the digital input circuitry, avoiding any high-frequency influence on the analog section.


  • General
    • Dimensions (W x D x H) : 17.1” x 5.3” x 16.1”
    • Net weight: 38.8 lb
    • Material: Aluminum
  • Audio Specifications
    • Rated Output Power
      • 70W + 70W (8ohm,20Hz-20kHz,THD0.07%)
      • 140W + 140W (4ohm, 1kHz, THD0.7%)
    • Speaker Impedance
      • A or B : 4 ~ 16ohm
      • A + B : 8 ~ 16ohm
    • Frequency Response: 5Hz - 100kHz (0~ -3dB)
    • Total Harmonic Distortion: 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
    • Dumping Factor: 100 and over
    • Input Sensitivity: Phono input
      • MM: 2.5 mV / 47 kohm
      • MC: 200
    • RIAA Deviation: 20 Hz - 20 kHz ±0.5 dB (MM/MC)
    • Phono Maximum Input
      • MM : 130mV / 1kHz
      • MC : 10mV / 1kHz
    • Input Sensitivity
      • CD/LINE/RECORDER: 125 mV / 19 kohm
      • Power Amp input: 0.85V / 47kohm (EXT. PRE)
    • Signal to Noise Ratio
      • PHONO (MM): (89dB)
      • PHONO (MC): (74dB)
      • CD: (107dB)
    • Tone Control
      • Bass : 100Hz ±8dB
      • Treble : 10kHz ±8dB
    • Power Consumption: 295W
    • Power Consumption at Standby
      • 0.2W TV autoplay off
      • 0.4W TV autoplay on
  • Audio Feature
    • Power Amplifier Circuit
      • New UHC-MOS
      • Single Push Pull (7)
    • Power Trans: Dual El Core
    • Pre Amplifier Circuit        Variable Gain Preamplifier (OP AMP)
    • Volume: Electric (MUSES 72323)
    • Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
    • Type of Tone Control: Electric Controlled by Potentiometer
    • Headphone Circuit: Use power amplifier
    • Source Direct: Yes
    • Analog Amp Mode: Yes (button on front panel)
    • Other: 70
    • DAC Circuit: PCM1795
    • Digital Filter: Fixed
    • Digital Processing: Advanced AL32 Processing Plus
    • DAC Master Clock Design (Not Support Network Playback): Yes
    • Asyncronous mode (for USB-B input): Yes
    • Isolator (for USB-B input): Yes (Full Isolation)

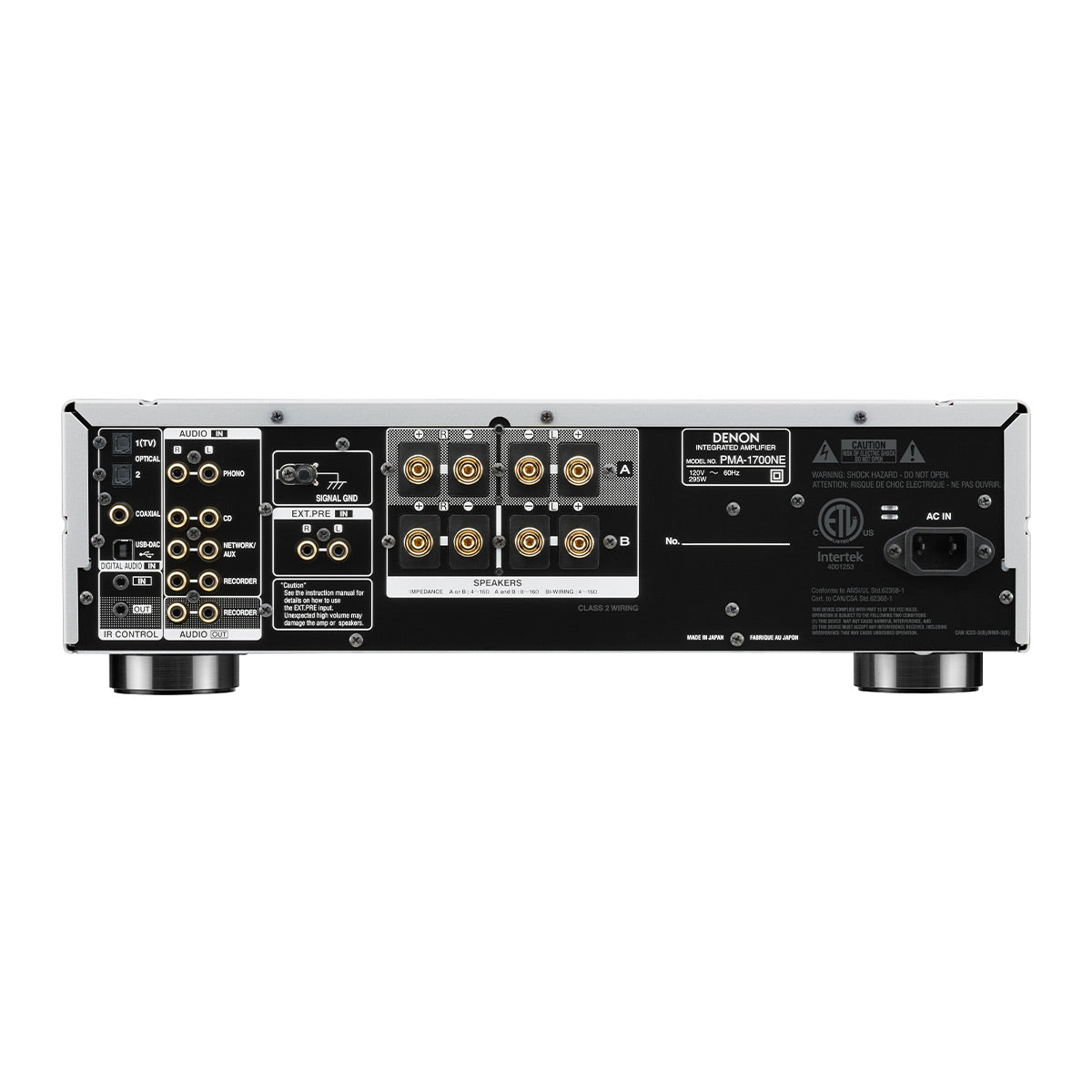

  • Connectivity
    • Phono Input: Yes (MM / MC) *default=MM
    • Analog Input (include Phono) / REC Out (RCA): 4/1 (PHONO / CD / NETWORK ,AUX/ RECORDER)
    • Optical input / output (Maximum Support): 2 / 0 (192kHz/24bit)
    • Coaxial input / output (Maximum Support): 1 / 0 (192kHz/24bit)
    • Ext. Pre Input (Power Amp Direct): Yes (Ext.Pre)
    • 2 sets of Speaker Output: Yes (Bi-wiring)
    • Speaker Terminal: Gold Plated
    • Headphone Output: 1
    • Remote Control Bus Terminal: Yes (mini)
    • AC Inlet : Yes
    • Wi-Fi: No
    • HEOS: No
    • USB B (USB DAC): 1 (Rear)
    • Module or Main Device: New XMOS (XU210-256-TQ128 )
    • PCM Sample Rate: ~384kHz/32bit
    • DSD Audio Streaming (DoP): ~11.2MHz
    • Roon Certification: Yes (Roon Tested)
  • Control
    • Remote Controller: System Remote (w/CD Player Control)
    • Front Panel Display: Yes (OLED 128 x 100 dot) MXS4036-A
    • Display Language: Alphabetical
    • Dimmer for Front Display: Bright / Dim / Dark / Off
    • Control with App via Network Player (Use Remote Control Bus): Yes
    • TV Auto-play (Opt/Coax digital-in detector): Yes
    • Last Function Memory: Yes
    • Auto Standby Mode: Yes

What's In The Box

  • Denon PMA-1700NE Integrated Amplifier with 140W Power per Channel
  • Owner's Manual
  • Quick Start Guide
  • Remote Controller
  • Battery (AAA x2)
  • Power Cord
