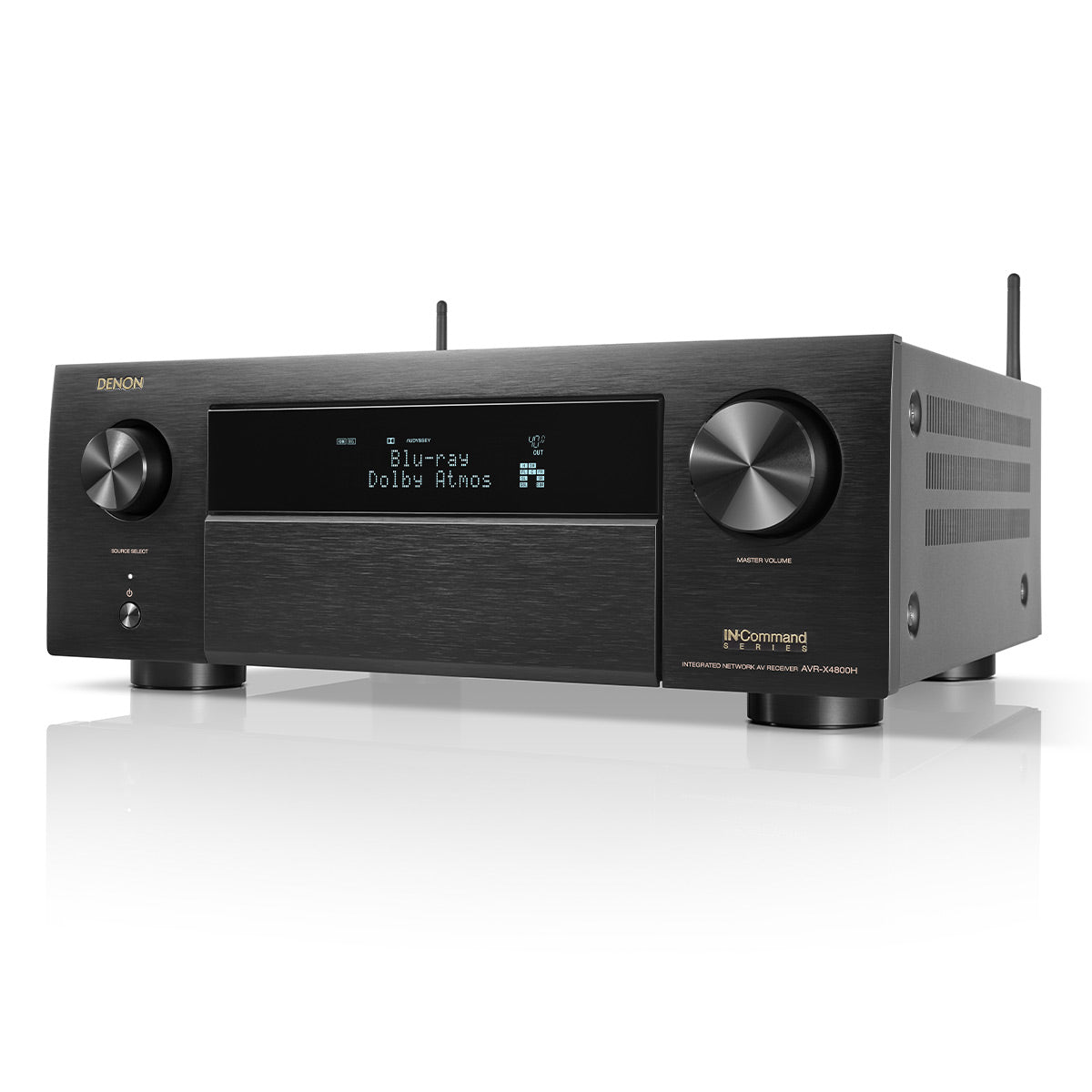

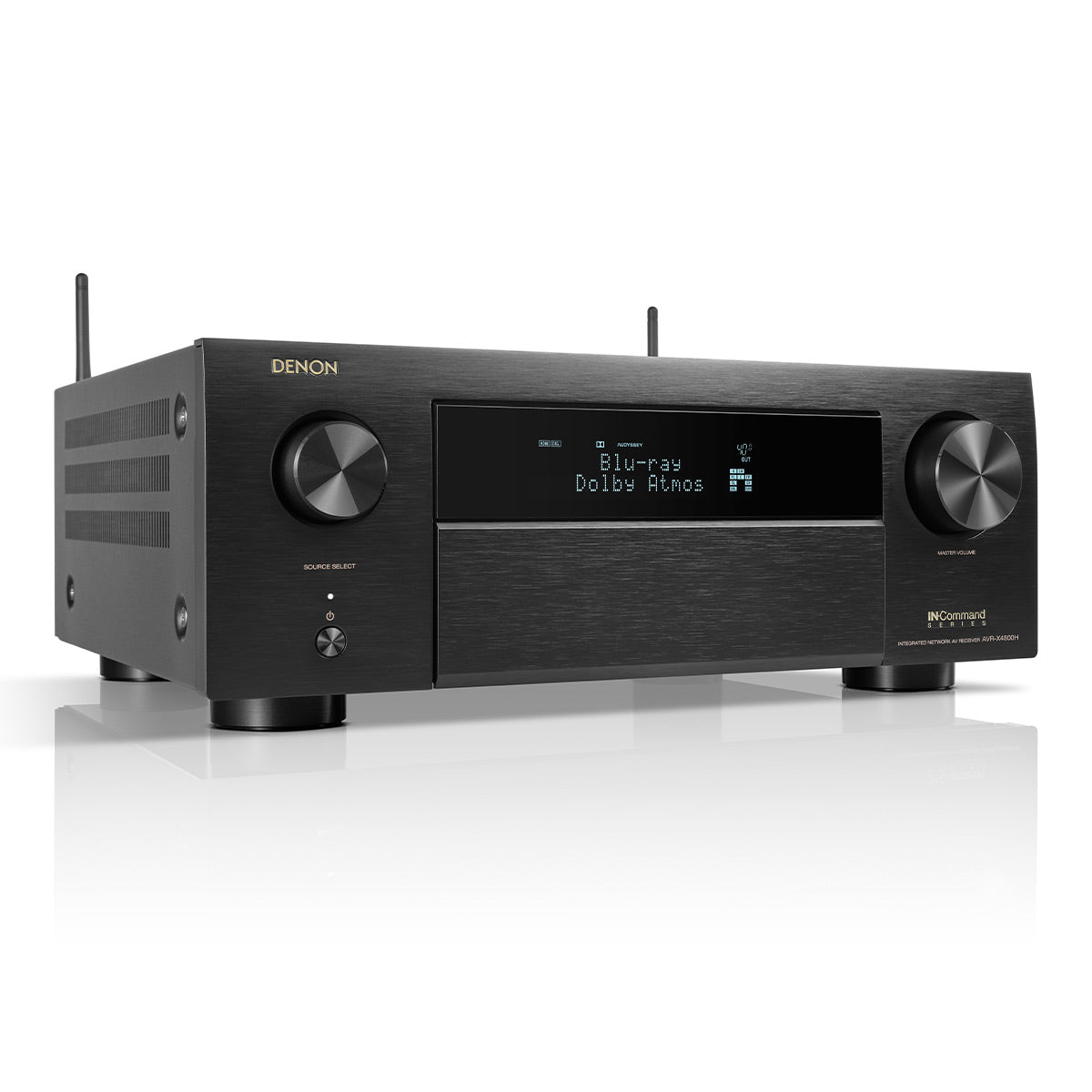

Denon AVR-X4800H 9.4 Channel 8K Home Theater Receiver IMAX Enhanced with Dolby Atmos/DTS:X and HEOS Built-In
More Product Details
Questions? We're here to help.
Model: AVR-X4800H UPC: 747192138356 Item: 178591
This product has been selected as one of The Best Home Theater Receivers of 2023. Our Gear Guides are highly-curated selections which represent the best of the best in their category. From televisions and Bluetooth speakers, to marine audio and outdoor speakers—-start (or finish) your shopping journey with our Gear Guides.
Product Information
Specifications
Specifications
- Multichannel Surround
- DTS HD Master, DTS:X, DTS:X Pro: Yes, Yes, No
- DTS Neo:X, DTS Neural:X: Yes, No
- DTS Virtual:X: Yes
- IMAX Enhanced: Yes
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music: Yes, Yes, Yes, Yes
- Dolby ProLogic Ilz, Dolby Surround: Yes, No
- Auro 3D: Yes
- 360 Reality Audio/MPEG H: Yes, Yes
- Multichannel Stereo: Yes
- Max. Number of Processing (Pre-Amp) Channels: 11.4
- Sound Enhancements
- Mono Block Power Amp Construction: No
- Discrete Power Amplifier: Yes
- D.D.S.C. HD Digital: Yes (32 bit)
- Pure Direct: Yes
- Gold-Plated RCA Terminals: No
- Clock Jitter Reducer: Yes
- Alpha Processing: AL32 Processing Multichannel
- Audyssey: MultEQ XT32
- Audyssey Dynamic EQ, Dynamic Volume: Yes, Yes
- Audyssey LFC: Yes
- Dirac Live Upgradability: Yes
- Compressed Audio Restorer: Yes
- Network
- Media Server: Yes
- HEOS Wireless Multi-Room Technology: Yes
- Alexa/Google Voice Assistant/Apple HomePod: Yes, Yes, Yes
- Lossy Formats: MP3, WMA, AAC: Yes, Yes, Yes
- Lossless Formats: FLAC, ALAC, WAV: Yes, Yes, Yes
- Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit): Yes, Yes, Yes
- DSD Audio Streaming: Yes (2.8/5.6MHz)
- AirPlay 2: Yes
- TuneIn: Yes
- Spotify Connect: Yes
- Pandora: Yes
- SiriusXM: Yes
- Roon Tested: Yes
- HEOS App Control: Yes
- Compatible with Remote APP for Smart Phones: Denon 2016 AVR Remote
- Ethernet Ports: Yes
- Wi-Fi: Yes
- Bluetooth: Yes
- HDMI
- HDMI Inputs: Back, Front: 7, No
- HDCP2.3 Support: Yes
- HDMI Outputs: Main, Zone: 2, 1
- HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB: Yes, Yes
- HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR: Yes, Yes, Yes, Yes, Yes
- ALLM (Auto Low Latency Mode) Pass-Through for Gaming: Yes
- Variable Refresh Rate, Quick Flame Transport, Quick Media Switching: Yes, Yes, No
- 3D Signal Pass-Through: Yes
- 8K Signal Pass-Through, Scaling, GUI Overlay: Yes, Yes, Yes
- DSD Audio Capability : Yes
- Audio Return Channel (ARC), Enhanced ARC: Yes, Yes
- Auto LipSync: Yes
- Multiroom / CI
- Multi-Room Zones: 3
- Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog: Yes (2ch), Yes (2ch), Yes, Yes
- Zone Audio Output: Speaker, Pre-Out: Yes, Yes
- Zone HDMI Output from HDMI Source: Yes
- IP Control, RS232 Control, Web Control, App Control: Yes, Yes, Yes, Yes
- Remote In/Out: Yes, Yes
- DC Trigger Output: 3
- HDMI Diagnostics: Yes
- Others
- Auto Speaker Setup by Microphone: Audyssey MultEQ XT32, Dirac Live (upgrade)
- Front Display: 2-Line FLD
- GUI Languages: 3
- Setup Assistant: Yes
- Quick Select Plus, Quick Select: Yes, No
- Variable Crossover: Yes
- Optimized Bass Redirection: Yes
- Bass Sync: Yes
- ECO Mode: Yes
- Auto Power Off: Yes
- Sleep Timer: Yes

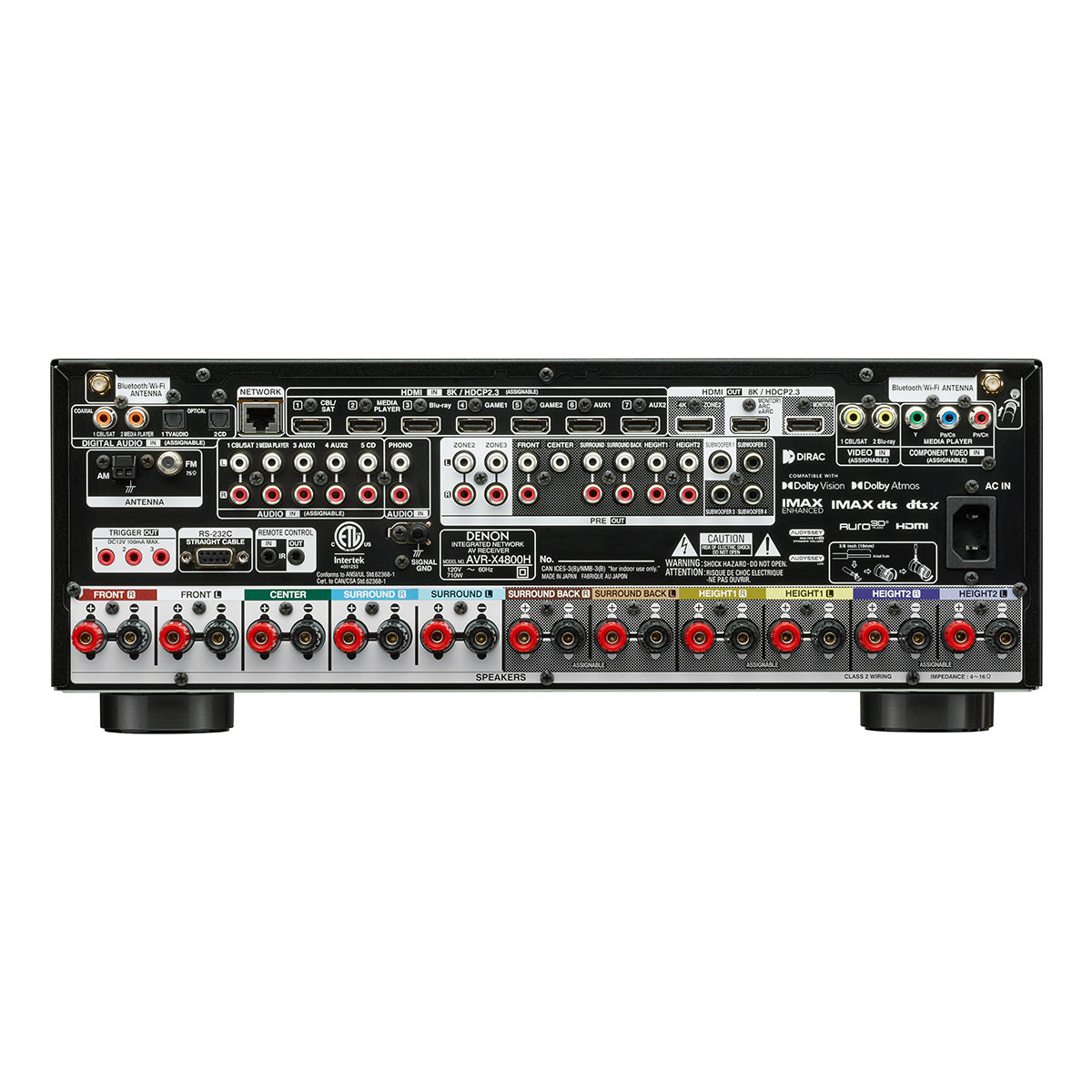

- Inputs/Outputs
- Video
- HDMI In, Out : 7, 3
- Multi-Room Video Out: Video, HDMI: Yes, No
- Audio
- Analog In, Out : 5, No
- Phono (MM) In: Yes
- Digital In: Optical, Coaxial: 2, 2
- Multi-Room Out: Analog, Digital: 2, No
- Multichannel Pre-Out: Yes (11.4)
- Subwoofer Out: 4 (independent)
- Video
- Other
- Speaker Terminal: Gold-Plated Screw, Regular Screw: Yes, No
- Number of Speaker Terminals: 11
- Speaker A/B: Assignable
- Bi-Amp Drive: Assignable
- Multi-Room Speaker Terminal: Assignable
- Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB: No, No, No, No, Yes
- USB Audio, Made for iPod, Made for iPhone: Yes, No, No
- AM/FM Tuner: Yes
- Power
- Number of Power Amps: 9
- Power Output (8 ohm, 20Hz - 20kHz, 0.08% 2ch Drive): No
- Power Output (8 ohm, 20Hz - 20kHz, 0.05% 2ch Drive): 125W
- Power Output (6 ohm, 1kHz, 0.7% 2ch Drive): 165W
- Power Output (6 ohm, 1kHz, 10% 1ch Drive): 235W
- General
- Metal Front Panel: Yes
- System Remote Control: RC-1252
- Pre-Programmed, Learnable, LCD Display: Yes, No, No
- Power Consumption in W: 710
- Power Consumption No-Sound (ECO on/off) in W: 65W/110W
- Standby Consumption in W: 0.1
- CEC Standby Consumption in W: 0.5
- Network Standby Consumption in W: Less than 2.0
- Maximum Dimensions (W x H x D)
- W/ Antenna: Horizontal: 17.1” x 6.6” x 15.3”
- W/ Antenna: Vertical: 17.1” x 9.3” x 15.3”
- W/o Antenna: 17.1” x 6.6” x 14.9”
- Weight in lbs: 29.1
What's in the Box
What's in the Box

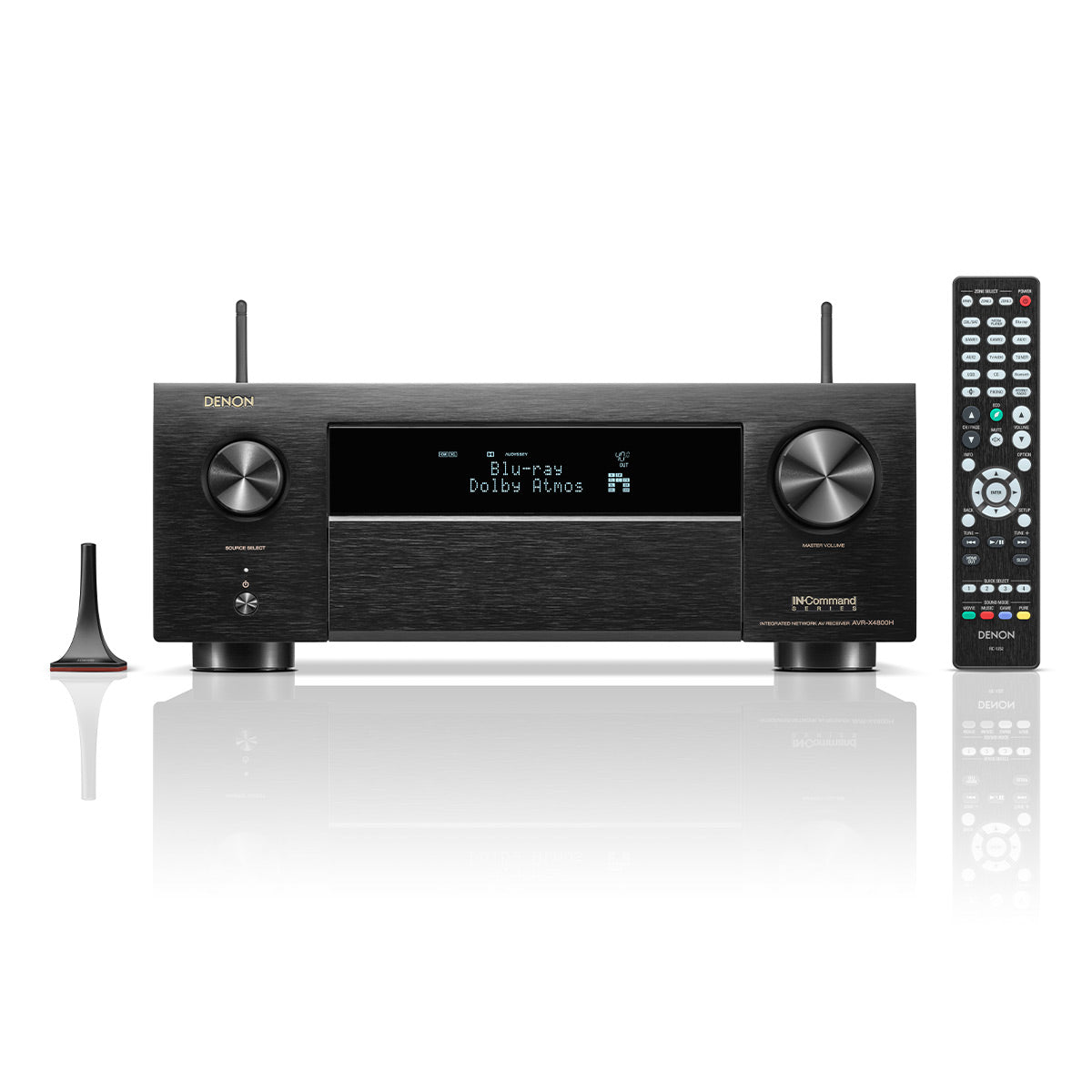

- AVR-X4800H 9.4 Channel 8K Home Theater Receiver IMAX Enhanced with Dolby Atmos/DTS:X and HEOS Built-In
- Remote Control
- Batteries
- AM/FM Antennas
- AC Cord
- Audyssey Microphone
- Quick Start Guide
Reviews
Customer Reviews for Denon AVR-X4800H 9.4 Channel 8K Home Theater Receiver IMAX Enhanced with Dolby Atmos/DTS:X and HEOS Built-In
4.6 / 5.0
8 Reviews
NOW the 4800 is Next Level! Dirac Live is Here!
So the receiver was already a top notch upgrade, saying you have a nice set of speakers and a quality sources. But Dirac Live (Full Version) is next level, this is your reason to upgrade to the AVR-X4800H. It makes such a cohesive and balanced bubble of sound after properly* configuring Dirac (make sure to watch a few YouTube videos). Save the default results as flat, and then create a movie and music curve the way you want it to sound. Once you have it how you think* you want it, upload it to the AVR and take it for a spin. Dirac has finally freed Denon AVR's into something exceptional, not just great. JUST FYI: You'll need a MiniDSP Umik-1 (or version 2, but not necessary), the curve text file from MiniDSP (90 degree version), a microphone stand to place the mic as instructed, the full Dirac license, your laptop annnd everyone out of the room (as close to absolute silence as possible). Watch some videos on setting up Dirac 3 so that you understand the initial settings etc. After each position is completed, hold on to your hats! You may need to adjust volumes here and there afterward, but you will notice that, wow, this thing sounds WAY better than Audyssey on its very best day in a perfect world with the Apps. Denon, thank you for adding Direc Live 3, now can we have Dirac Bass Management and Dirac ART (Active Room Treatment)? Unstoppable? Thank you in advance.
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
Pre amp buzzing
I'm coming from the avr3600h. Was excited about the 4 subs option. After I got it all hooked up there was really loud buzzing from my rear Dolby speakers from the pre amp. I changed to rear surround using different set of pre amp. Still buzzing. Then used my old Denon 3600 and used the front speakers pre amps. And I made loud popping crackling sounds. Of course it the weekend so I'll try to contact customer service Monday and send it back. Very disappointing. Had high hopes. But the sound on all other channels was great. Just those preamps not working.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Great sound and connection flexibility
Take the time to understand as many of the functions and connections. Great sound and operation will follow. Registered for DIRAC upgrade which is due to be released March 2023 which is TODAY! No word on when I will get the download???
- Was this review helpful? Yes (0) No (2)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (2)
- Flag as Inappropriate
Denon 4800h
So far so good I paired it with an Emotiva xpa 3 gen 3 and I love it
This review was collected as part of a promotion
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Best Denon yet.
This is my third Denon receiver. Best one yet. I usually upgrade every ten years. Hopefully this one will last ten years.
- Was this review helpful? Yes (4) No (2)
- Flag as Inappropriate
- Was this review helpful? Yes (4) No (2)
- Flag as Inappropriate
AVR-X4800H great upgrade to my Home Theater
Have been running this for a week, so far it has exceeded my expectations. The sound is crisp and clear. Setup was simple and straightforward. Great Product!
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Super Awesome! Get it if you can swing the price!
So the AVR-X4800h is really everything most people could possibly need for excellent and engaging sound at home. If you can swing the price, it's amazing! Just waiting for Direc Live to release in March of '23 lol. Now let me tell you what you need to know about owning this thing. You need great sounding speakers that will probably cost quite a bit more than this (5.1.4 for atmos is my setup), high quality speaker wire and banana plugs, high quality HDMI cables and to do a little research on operating it. Until Direc Live is released you'll be using Audyssey, which is good but with some limitations. You'll need the Audyssey app on a large phone screen or tablet. Set up the speakers, turn off midrange compensation, cap the Eq to 300 hz on each speaker, turn off all the extra junk and eq. After you upload your settings to the receiver, go into the receiver settings menu and make sure the volumes actually match and sound good, I usually bump all of them up from default settings that Audyssey selects during setup. Now you need quality sources right? Apple TV 4K, Xbox Series X (Purchase the Atmos App), PC with HDMI, and I'm sure the PS5 is good, just not my cup of tea. If you have a Blu Ray player, find some atmos content. I wouldn't recommend using "smart TV" apps and arc back to the receiver, you don't need that nonsense laggy TV stuff, just get an Apple TV and everything will be seamless (not even an Apple fan, but it's the best streaming device out by far). I am coming from a X3600h and I can say with confidence that now is a good time to make an upgrade. This one is actually made in Japan, not exactly common these days. If you're a Marantz fan it's equivalent to a Cinema 40, except about 1k less lol. Most people that write bad reviews either don't bother to look into what they are buying, how to use it, or went cheap on the stuff you need to let this thing shine such as: speakers, sub, wiring etc. This is an amazing and sophisticated sound computer essentially, a little steep on price but should last you a long long time.
- Was this review helpful? Yes (21) No (2)
- Flag as Inappropriate
- Was this review helpful? Yes (21) No (2)
- Flag as Inappropriate
Five Stars For Excitement
I am so excited to obtain one of these new even numbered series units with their upgraded features I cannot contain myself! Cannot wait to put a 4800H in place of my 4100W. Get Them Out As Soon As Possible Denon! Sincerely, Richard D. Tylen.
- Was this review helpful? Yes (0) No (8)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (8)
- Flag as Inappropriate
