Specifications
Specifications
- Multichannel Surround
- DTS HD Master, DTS:X, DTS:X Pro: Yes, Yes, No
- DTS Neo:X, DTS Neural:X: Yes, No
- DTS Virtual:X: Yes
- IMAX Enhanced: Yes
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music: Yes, Yes, Yes, Yes
- Dolby ProLogic Ilz, Dolby Surround: Yes, No
- Auro 3D: Yes
- 360 Reality Audio/MPEG H: Yes, Yes
- Multichannel Stereo: Yes
- Max. Number of Processing (Pre-Amp) Channels: 11.4
- Sound Enhancements
- Mono Block Power Amp Construction: No
- Discrete Power Amplifier: Yes
- D.D.S.C. HD Digital: No
- Pure Direct: Yes
- Gold-Plated RCA Terminals: No
- Clock Jitter Reducer: No
- Alpha Processing: No
- Audyssey: MultEQ XT32
- Audyssey Dynamic EQ, Dynamic Volume: Yes, Yes
- Audyssey LFC: Yes
- Dirac Live Upgradability: Yes
- Compressed Audio Restorer: Yes
- Network
- Media Server: Yes
- HEOS Wireless Multi-Room Technology: Yes
- Alexa/Google Voice Assistant/Apple HomePod: Yes, Yes, Yes
- Lossy Formats: MP3, WMA, AAC: Yes, Yes, Yes
- Lossless Formats: FLAC, ALAC, WAV: Yes, Yes, Yes
- Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit): Yes, Yes, Yes
- DSD Audio Streaming: Yes (2.8/5.6MHz)
- AirPlay 2: Yes
- TuneIn: Yes
- Spotify Connect: Yes
- Pandora: Yes
- SiriusXM: Yes
- Roon Tested: Yes
- HEOS App Control: Yes
- Compatible with Remote APP for Smart Phones: Denon 2016 AVR Remote
- Ethernet Ports: Yes
- Wi-Fi: Yes
- Bluetooth: Yes
- HDMI
- HDMI Inputs: Back, Front: 6, No
- HDCP2.3 Support: Yes
- HDMI Outputs: Main, Zone: 2, 1
- HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB: Yes, Yes
- HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR: Yes, Yes, Yes, Yes, Yes
- ALLM (Auto Low Latency Mode) Pass-Through for Gaming: Yes
- Variable Refresh Rate, Quick Flame Transport, Quick Media Switching: Yes, Yes, No
- 3D Signal Pass-Through: Yes
- 8K Signal Pass-Through, Scaling, GUI Overlay: Yes, Yes, Yes
- DSD Audio Capability: Yes
- Audio Return Channel (ARC), Enhanced ARC: Yes, Yes
- Auto LipSync: Yes
- Multiroom / CI
- Multi-Room Zones: 2
- Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog: Yes (2ch), Yes (2ch), Yes, Yes
- Zone Audio Output: Speaker, Pre-Out: Yes, Yes
- Zone HDMI Output from HDMI Source: Yes
- IP Control, RS232 Control, Web Control, App Control: Yes, Yes, Yes, Yes
- Remote In/Out: Yes, Yes
- DC Trigger Output: 1
- HDMI Diagnostics: Yes
- Others
- Auto Speaker Setup by Microphone: Audyssey MultEQ XT32, Dirac Live (upgrade)
- Front Display: 1-Line FLD
- GUI Languages: 3
- Setup Assistant: Yes
- Quick Select Plus, Quick Select: Yes, No
- Variable Crossover: Yes
- Optimized Bass Redirection: Yes
- Bass Sync: Yes
- ECO Mode: Yes
- Auto Power Off: Yes
- Sleep Timer: Yes

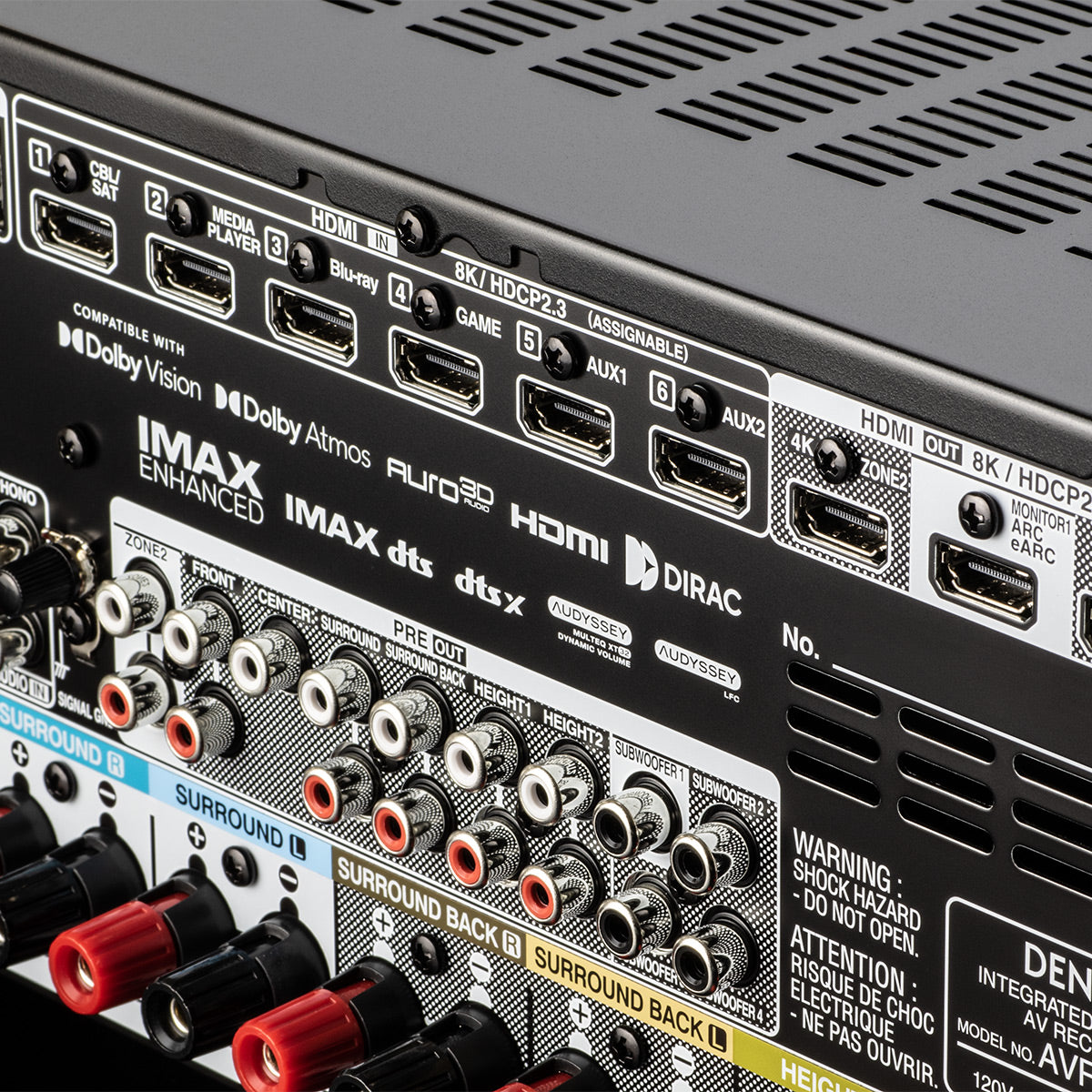

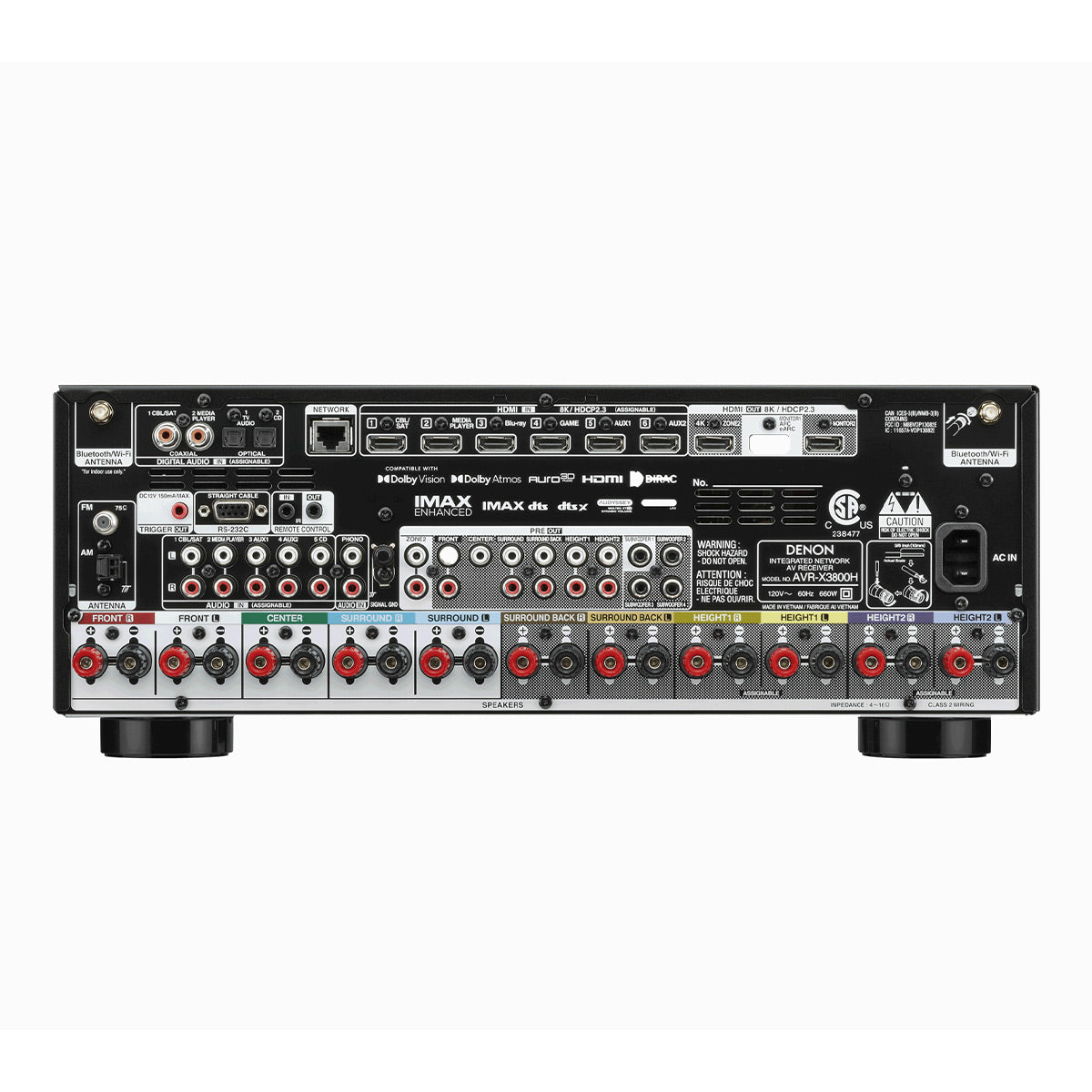

- Inputs/Outputs
- Video
- HDMI In, Out : 6, 3
- Multi-Room Video Out: Video, HDMI: Yes, No
- Audio
- Analog In, Out: 5, No
- Phono (MM) In: Yes
- Digital In: Optical, Coaxial: 2, 2
- Multi-Room Out: Analog, Digital: 1, No
- Multichannel Pre-Out: Yes (11.4)
- Subwoofer Out: 4 (independent)
- Video
- Other
- Speaker Terminal: Gold-Plated Screw, Regular Screw Yes, No
- Number of Speaker Terminals: 11
- Speaker A/B: Assignable
- Bi-Amp Drive: Assignable
- Multi-Room Speaker Terminal: Assignable
- Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB: No, No, No, No, Yes
- USB Audio, Made for iPod, Made for iPhone: Yes, No, No
- AM/FM Tuner: Yes
- Power
- Number of Power Amps: 9
- Power Output (8 ohm, 20Hz - 20kHz, 0.08% 2ch Drive): 105W
- Power Output (8 ohm, 20Hz - 20kHz, 0.05% 2ch Drive): No
- Power Output (6 ohm, 1kHz, 0.7% 2ch Drive): 135W
- Power Output (6 ohm, 1kHz, 10% 1ch Drive): 215W
- General
- Metal Front Panel: No
- System Remote Control: RC-1253
- Pre-Programmed, Learnable, LCD Display: No, No, No
- Power Consumption in W: 660W
- Power Consumption No-Sound (ECO on/off) in W: 60W/100W
- Standby Consumption in W: 0.1
- CEC Standby Consumption in W: 0.5
- Network Standby Consumption in W: Less than 2.0
- Maximum Dimensions (W x H x D)
- W/ Antenna: Horizontal: 17.1” x 6.6” x 15.3”
- W/ Antenna: Vertical: 17.1” x 9.3” x 15.3”
- W/o Antenna: 17.1” x 6.6” x 14.9”
- Weight in lbs: 27.6
What's in the Box
What's in the Box

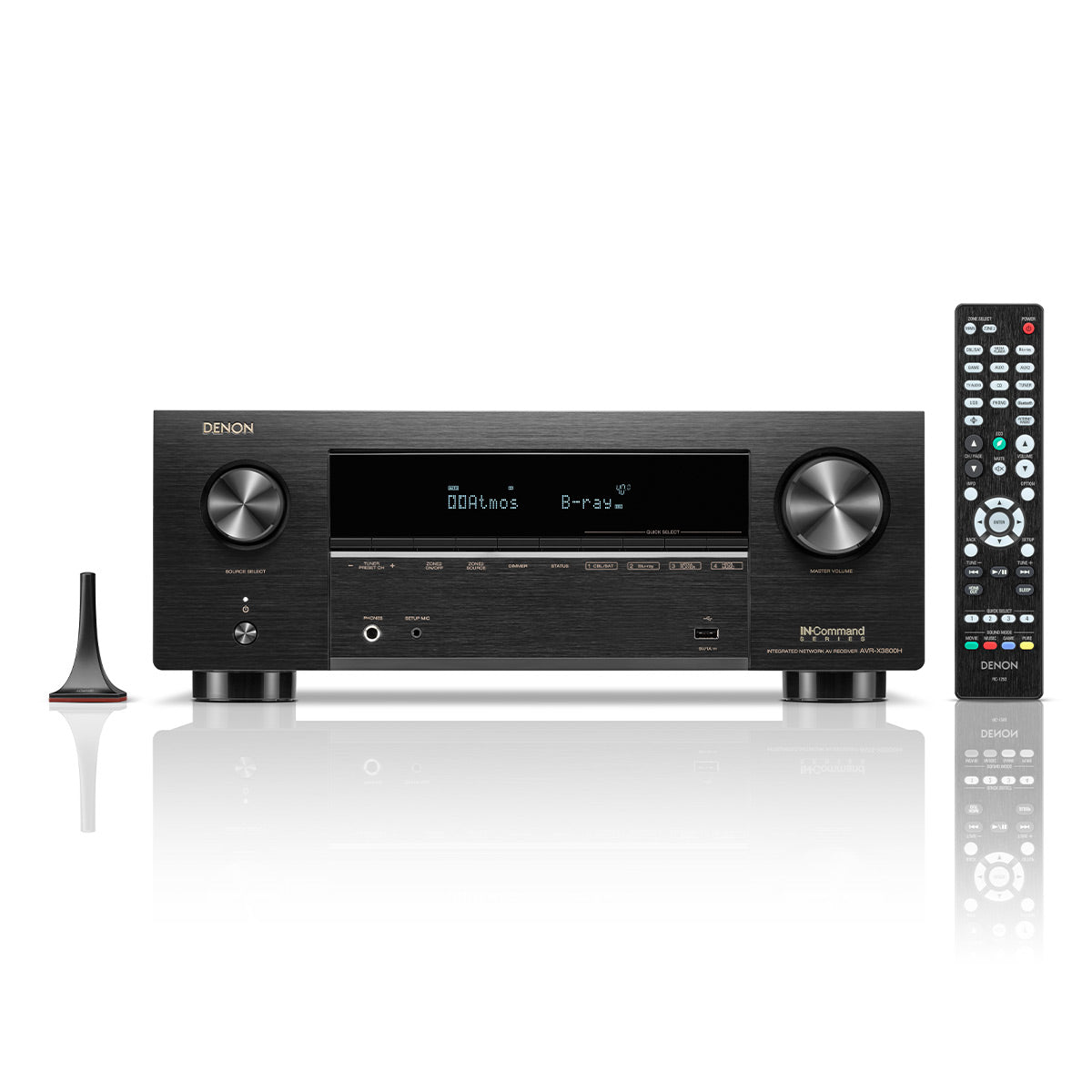

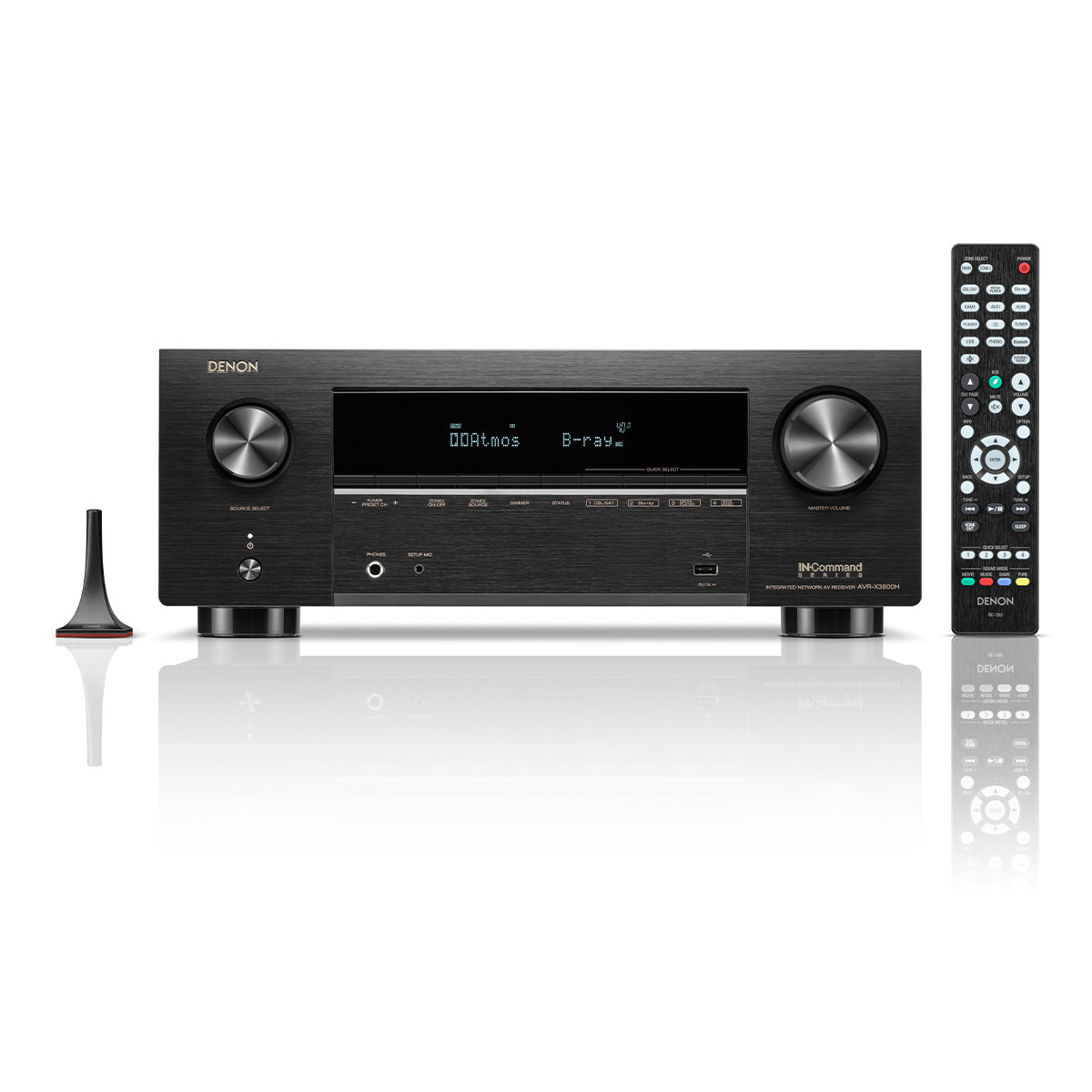

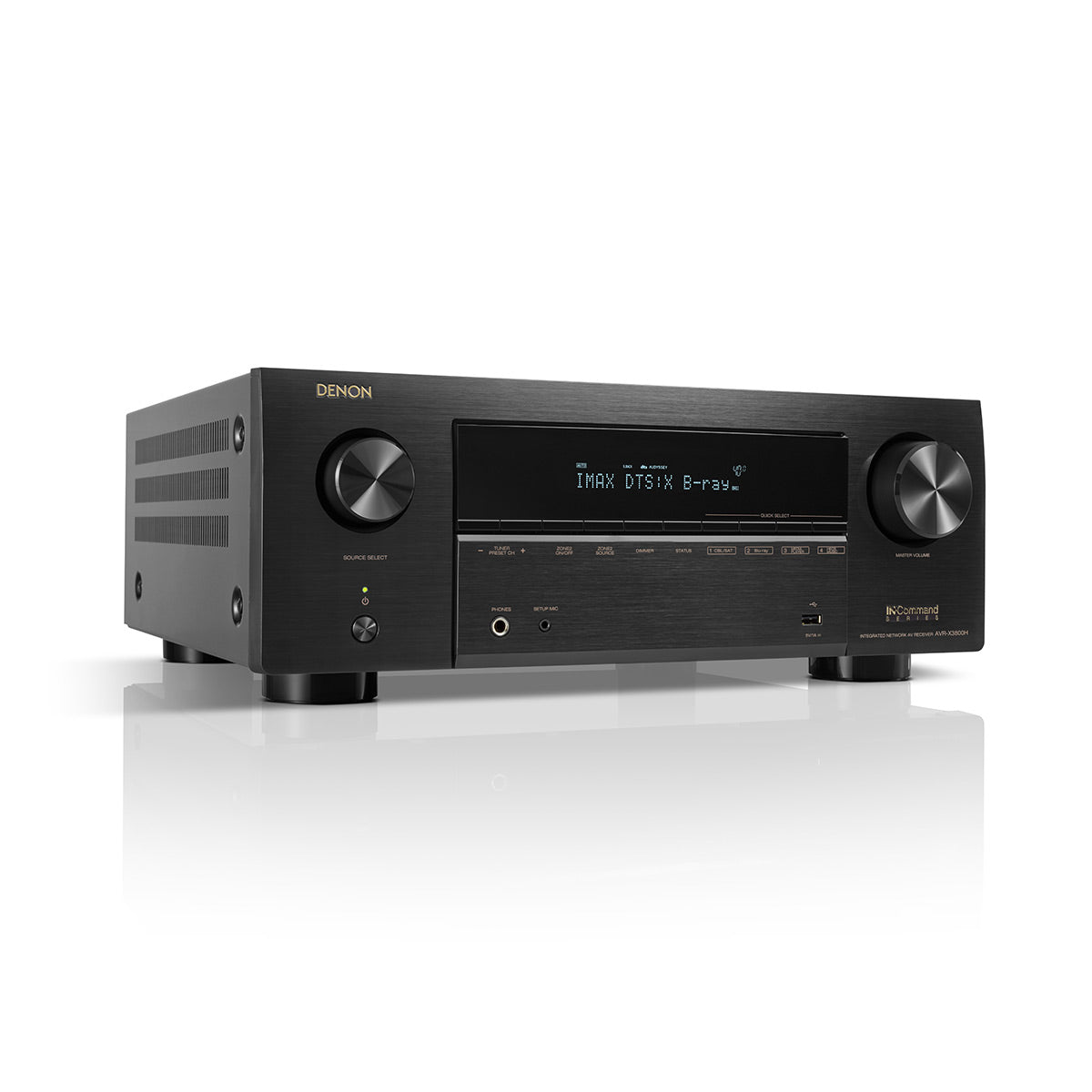

- AVR-X3800H 9.4 Channel 8K Home Theater Receiver IMAX Enhanced with Dolby Atmos/DTS:X and HEOS Built-In
- Remote Control
- Batteries
- AM/FM Antennas
- AC Cord
- Audyssey Microphone
- Quick Start Guide
