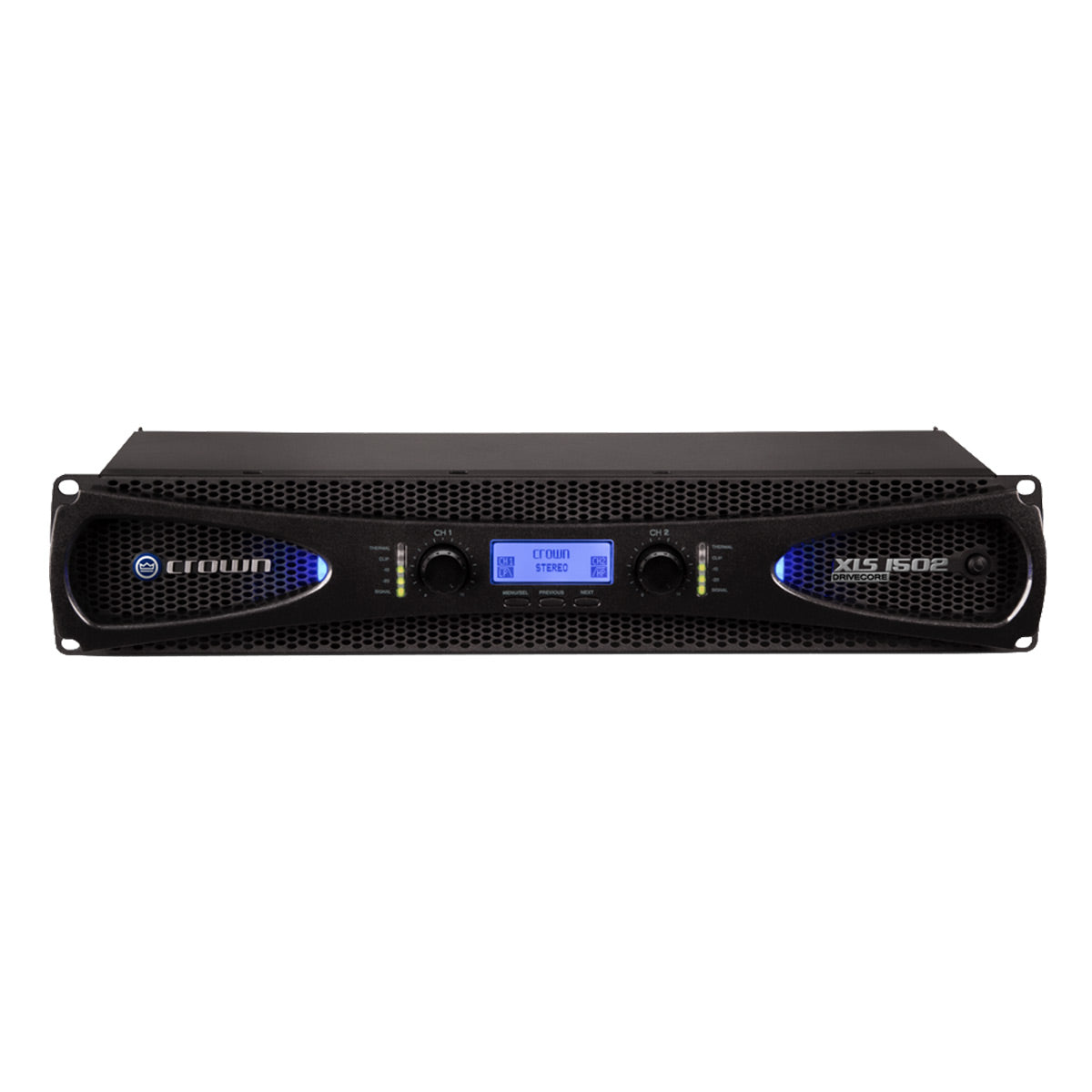

Crown XLS 1502 2 x 525W Power Amplifier

Name: Crown XLS 1502 2 x 525W Power Amplifier
Brand: Crown
SKU: 185159
Price: 650.0 USD
Availability: InStock

$650.00

$810.00 Save $160.00 (20%)

60-Day Returns

Price Match Guarantee

In Stock & Ready to Ship

Free Shipping Get it between Wed, May 27 – Wed, Jun 3

Overview

Product Information

Model: NXLS1502-0-US | UPC: 691991001000

Specifications

What's In The Box

Product Information

Model: NXLS1502-0-US | UPC: 691991001000

Lightweight Class-D Amplifier

The Crown XLS 1502 is a lightweight Class-D power amplifier powered by DriveCore Technology with expanded DSP, selectable input sensitivity, remote power control, and flexible stereo, bridge, and Input-Y modes. It delivers 525W per channel at 4Ω, 300W per channel at 8Ω, and up to 1550W bridged at 4Ω.

Features

Lightweight Class-D Amplifier
DriveCore Technology
Expanded DSP With Band Pass
User Controllable Lighting
Selectable Input Sensitivity
Remote Power Control

Specifications

Performance
- Sensitivity: .775Vrms or 1.4Vrms
- Frequency Response, 1W, 20Hz–20kHz: +0dB, -1dB
- Signal to Noise Ratio, rated dBr to full rated 8Ω power output, A-weighted: >103dB*
- Total Harmonic Distortion, THD: <0.5%
- Intermodulation Distortion, 60Hz and 7kHz at 4:1 from full rated output to -30dB: <0.3%
- Damping Factor, 80Hz, 10Hz–400Hz: >200
- Crosstalk, below rated 8Ω power: At 1kHz: >85dB; At 20kHz: >55dB
  - *When operated at 1.4Vrms sensitivity.
Physical
- Dimensions (W x H x D): 19 x 3.5 x 7.7”
- Net Weight: 8.6 lbs (3.9 kg)
- Shipping Weight: 13.6 lbs (6.2 kg)
Power Matrix
- Channels: 2
- 2Ω Dual: 775W
- 4Ω Dual: 525W
- 8Ω Dual: 300W
- 4Ω Bridged: 1550W
- 8Ω Bridged: 1050W

What's In The Box

XLS 1502 2 x 525W Power Amplifier
Power Cord
Manual
