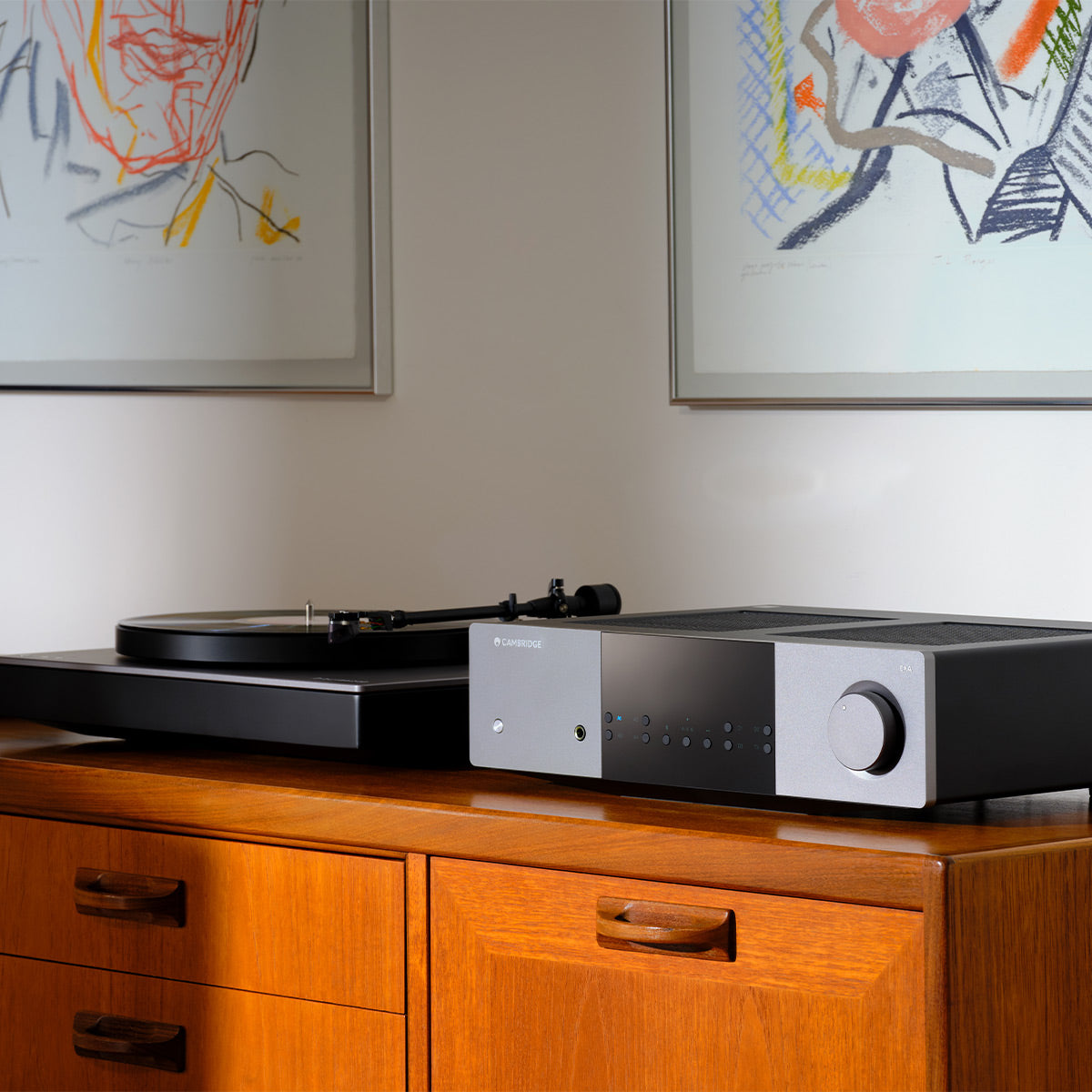

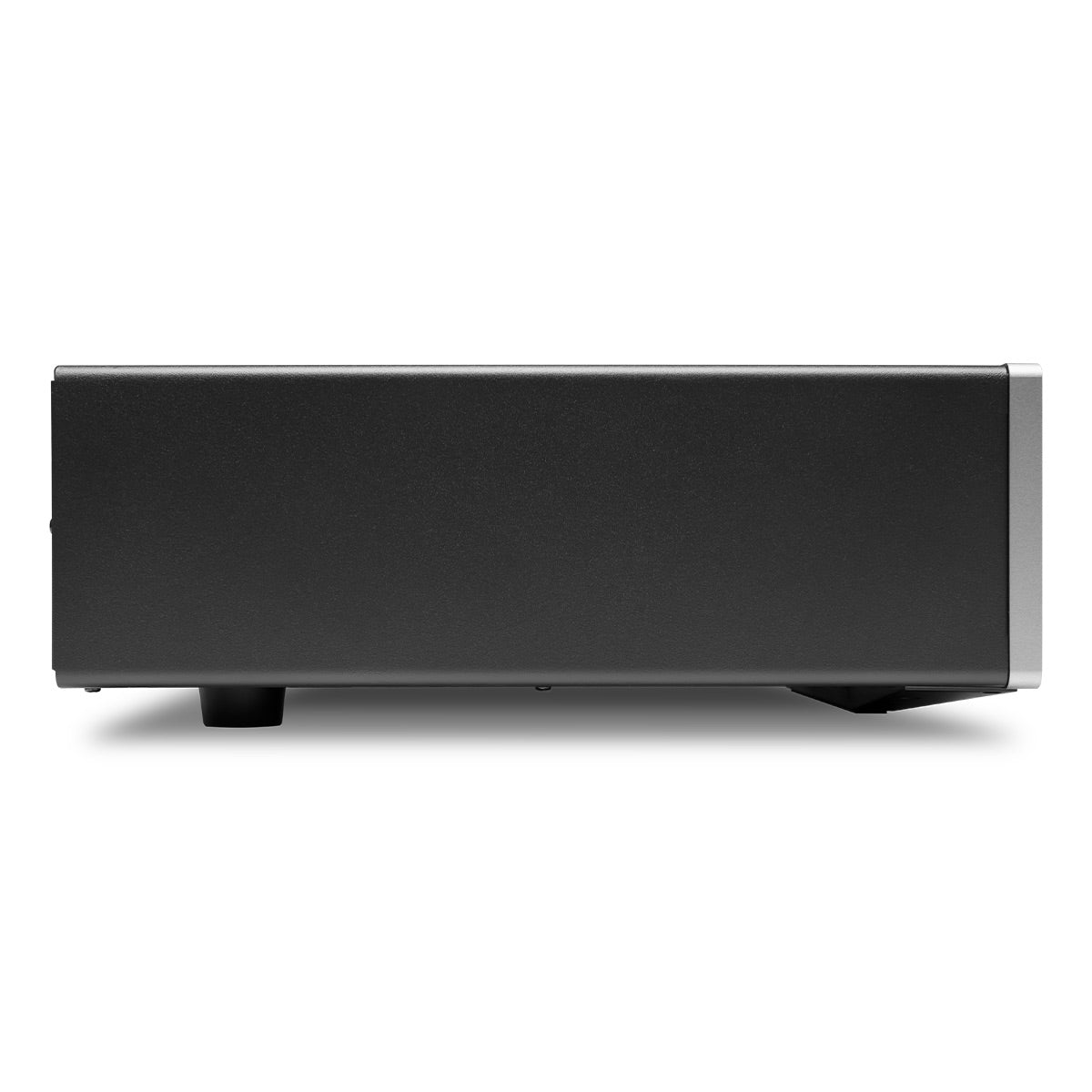

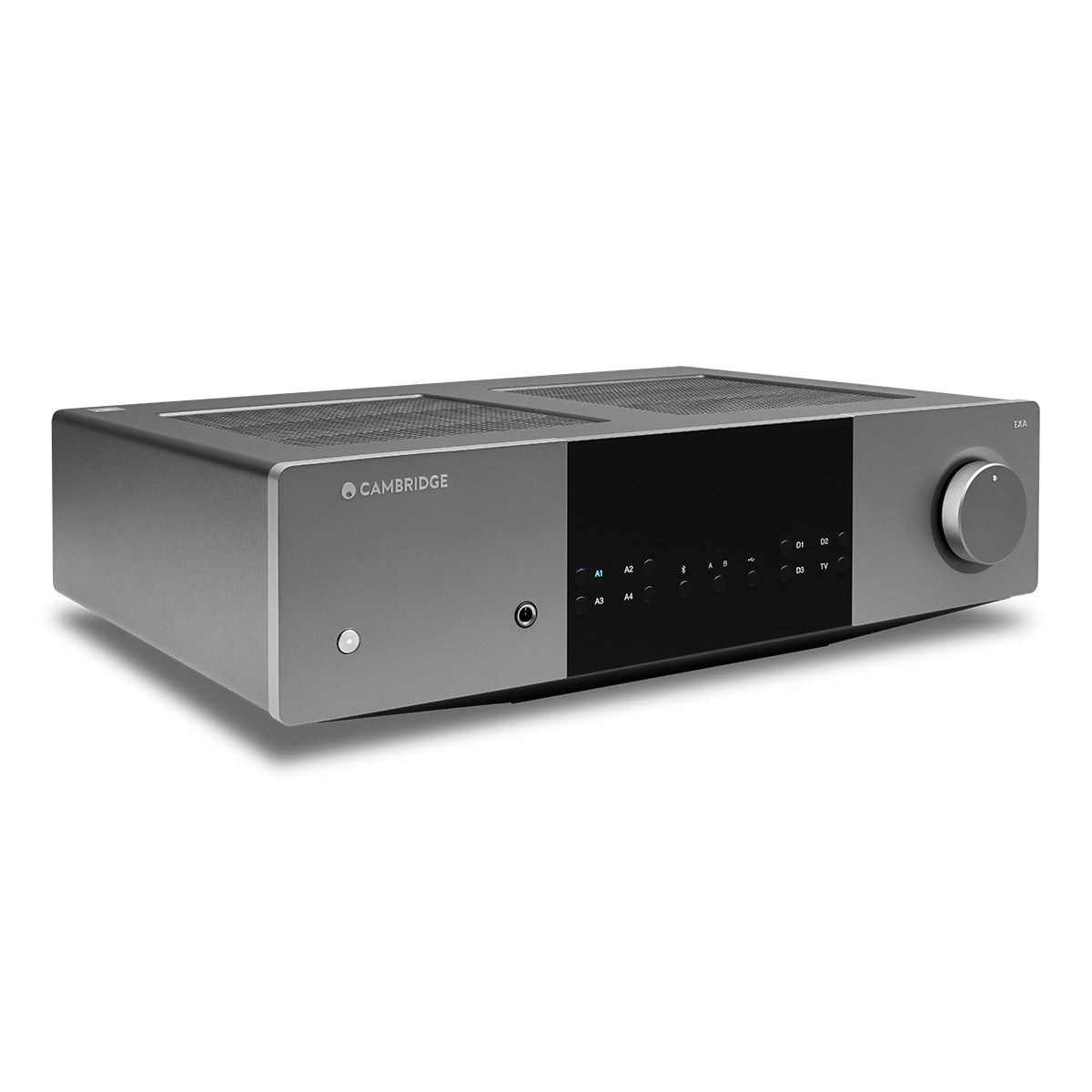

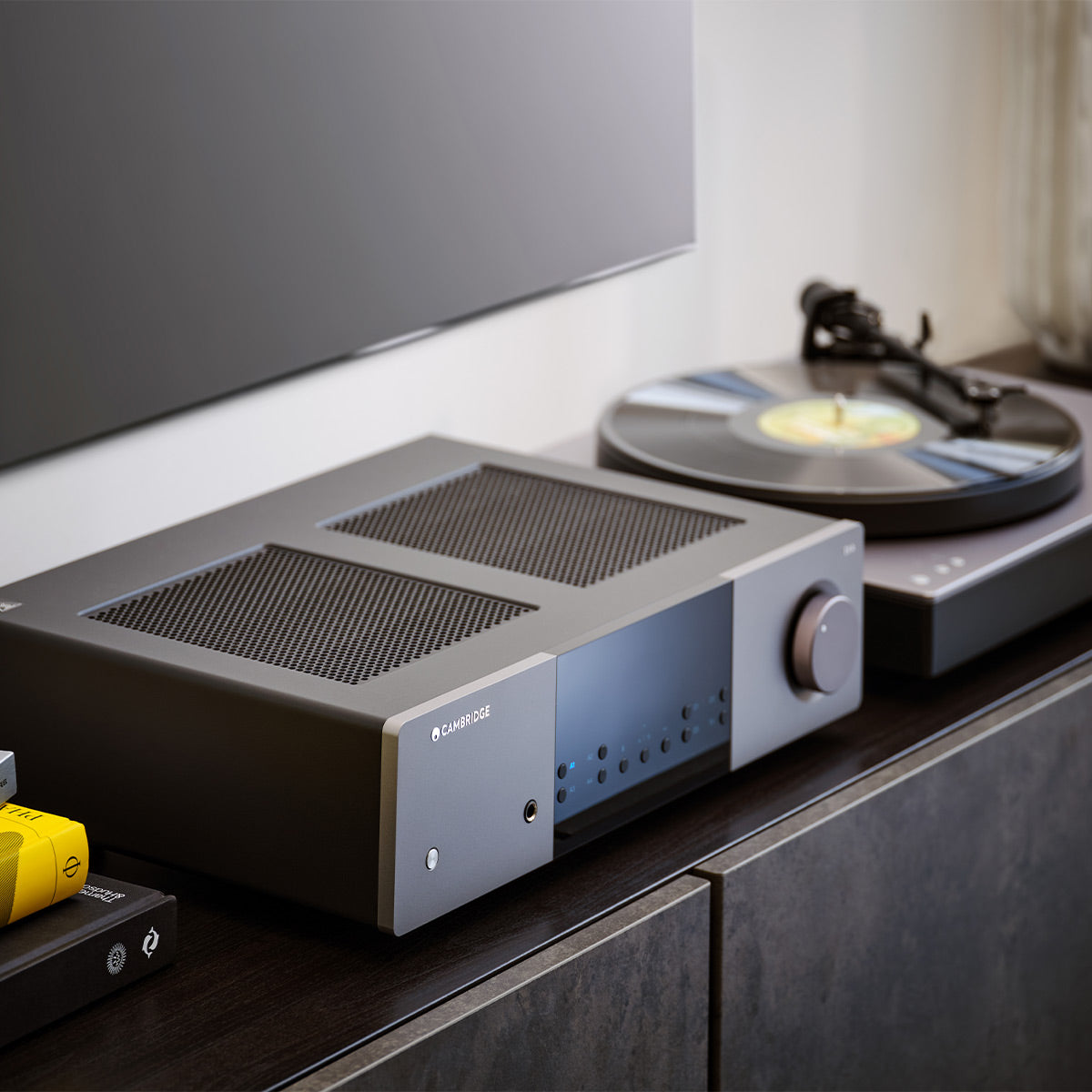

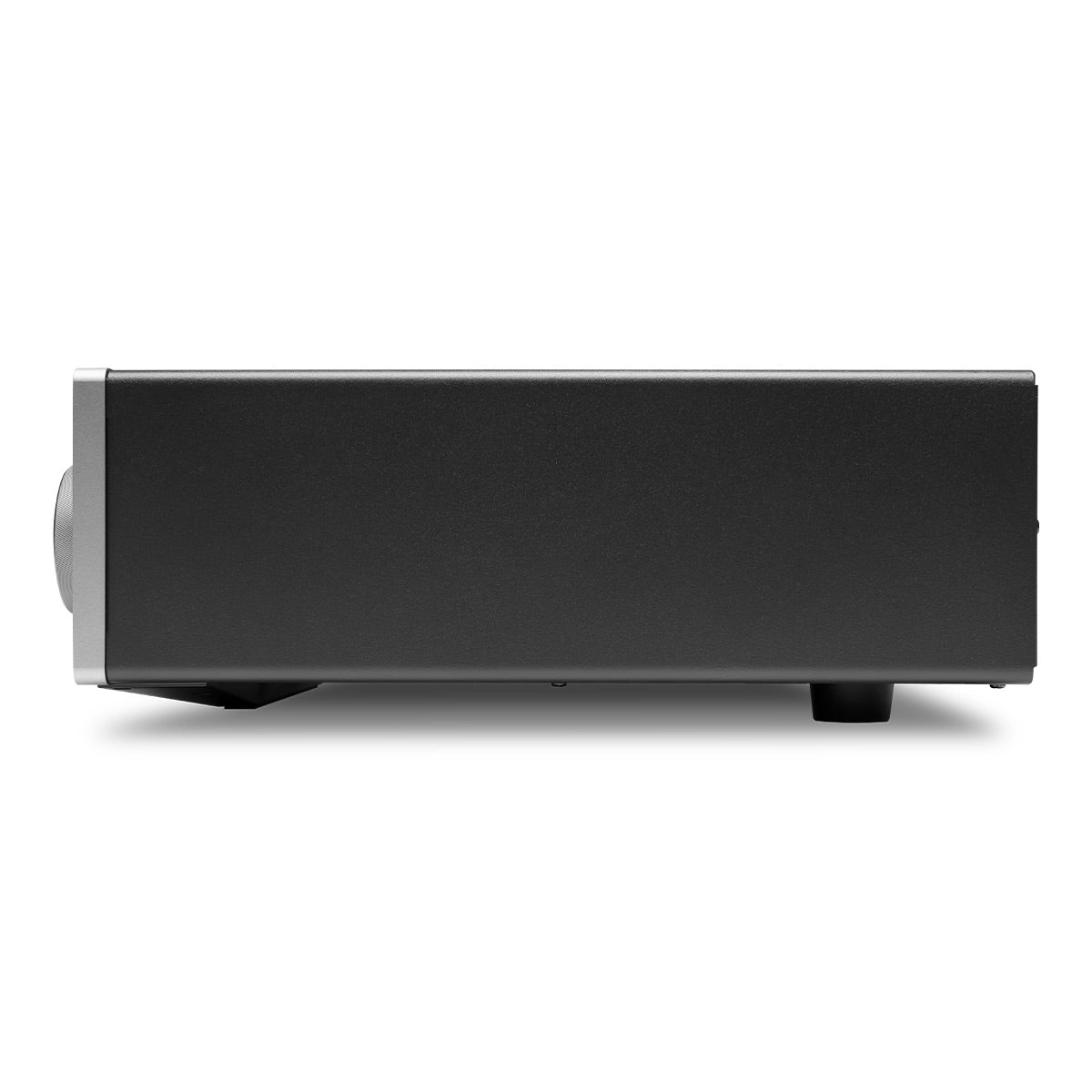

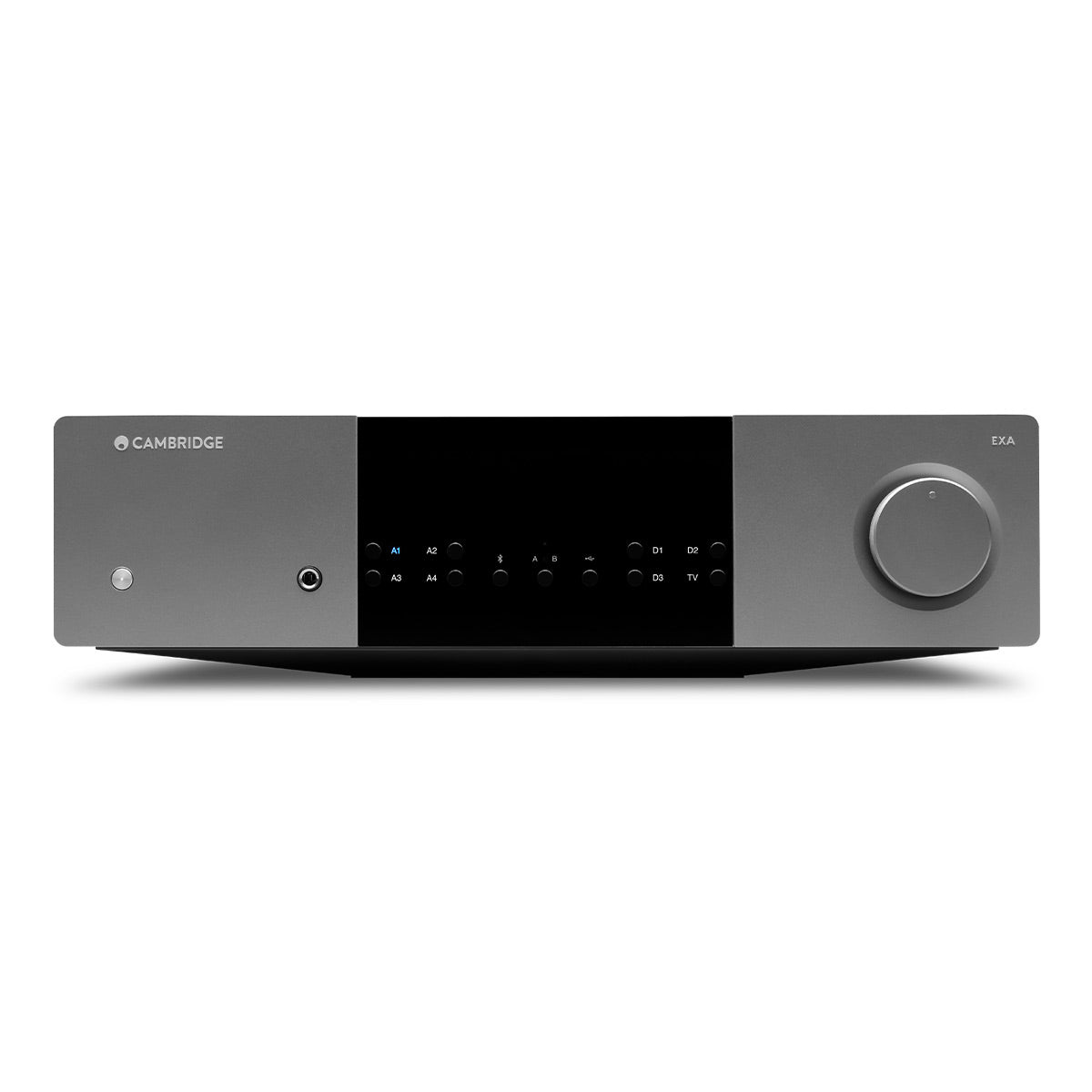

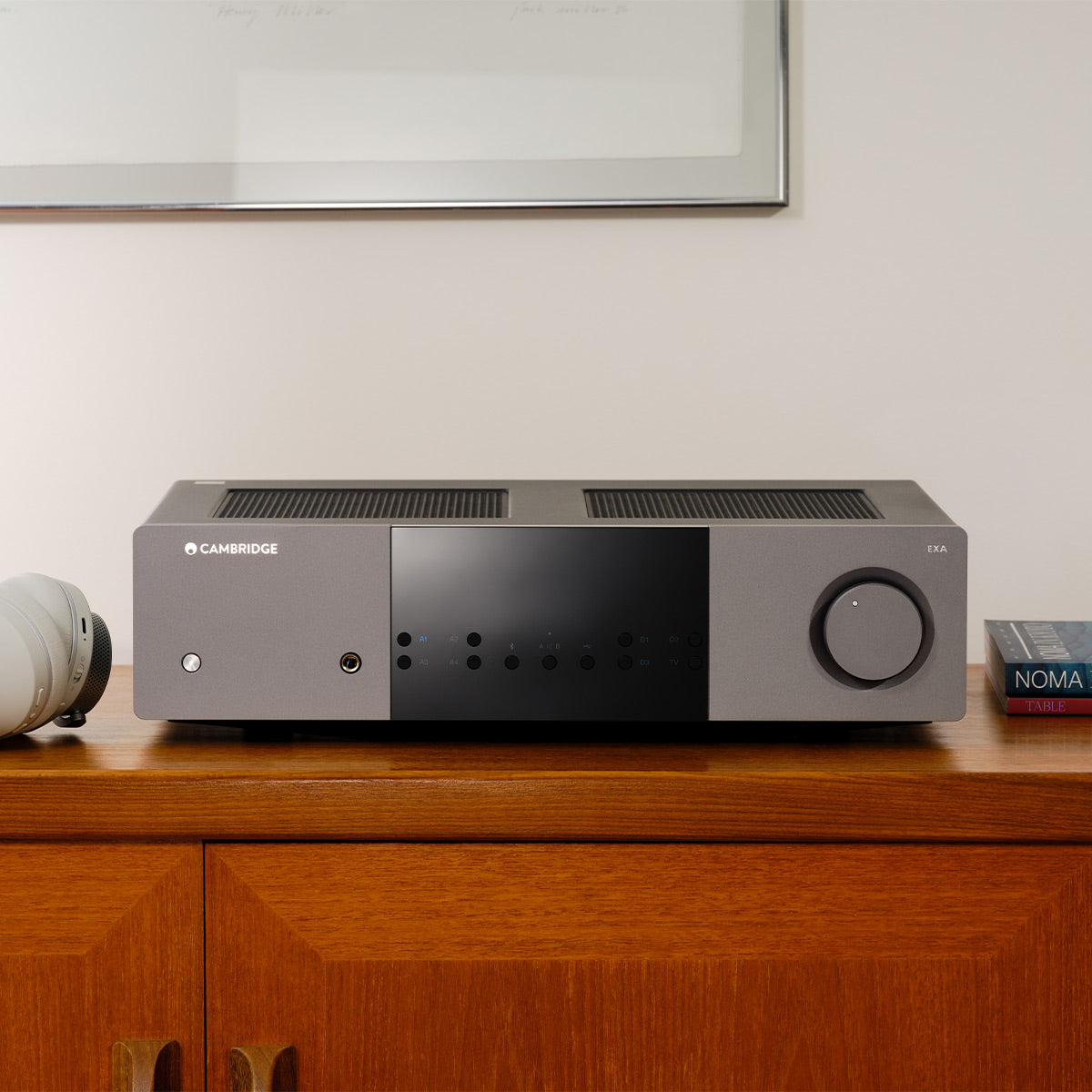

Cambridge Audio EXA100 Integrated Amplifier

Regular price $2,199.00
Sale price $2,199.00 Regular price
Save $-2,199.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: C11268K | UPC: 5055300421906

Specifications

What's In The Box

Product Information

Model: C11268K | UPC: 5055300421906

The Power of Three

The beating heart of EX, Cambridge’s EXA100 integrated amplifier took three years to develop; more than a thousand dedicated days of tuning at their London HQ has created a massive step up in power and performance from the CX Series amps.  An amplifier for the modern age, lovingly Made By Music.

Features

  • Class AB Amplification
  • Best-in-Class Sound
  • Balanced XLR Inputs
  • Bluetooth aptX HD
  • Dual Zones
  • HDMI eARC, TOSLINK, Coaxial & USB Audio Digital Inputs

Different Class

Boosted by trickledown technology from the flagship Edge M monobloc power amplifier, EXA100 uses its 100W of beautifully refined Class AB amplification to drive even high-end speakers with ease.

Sounding Great Since 1968

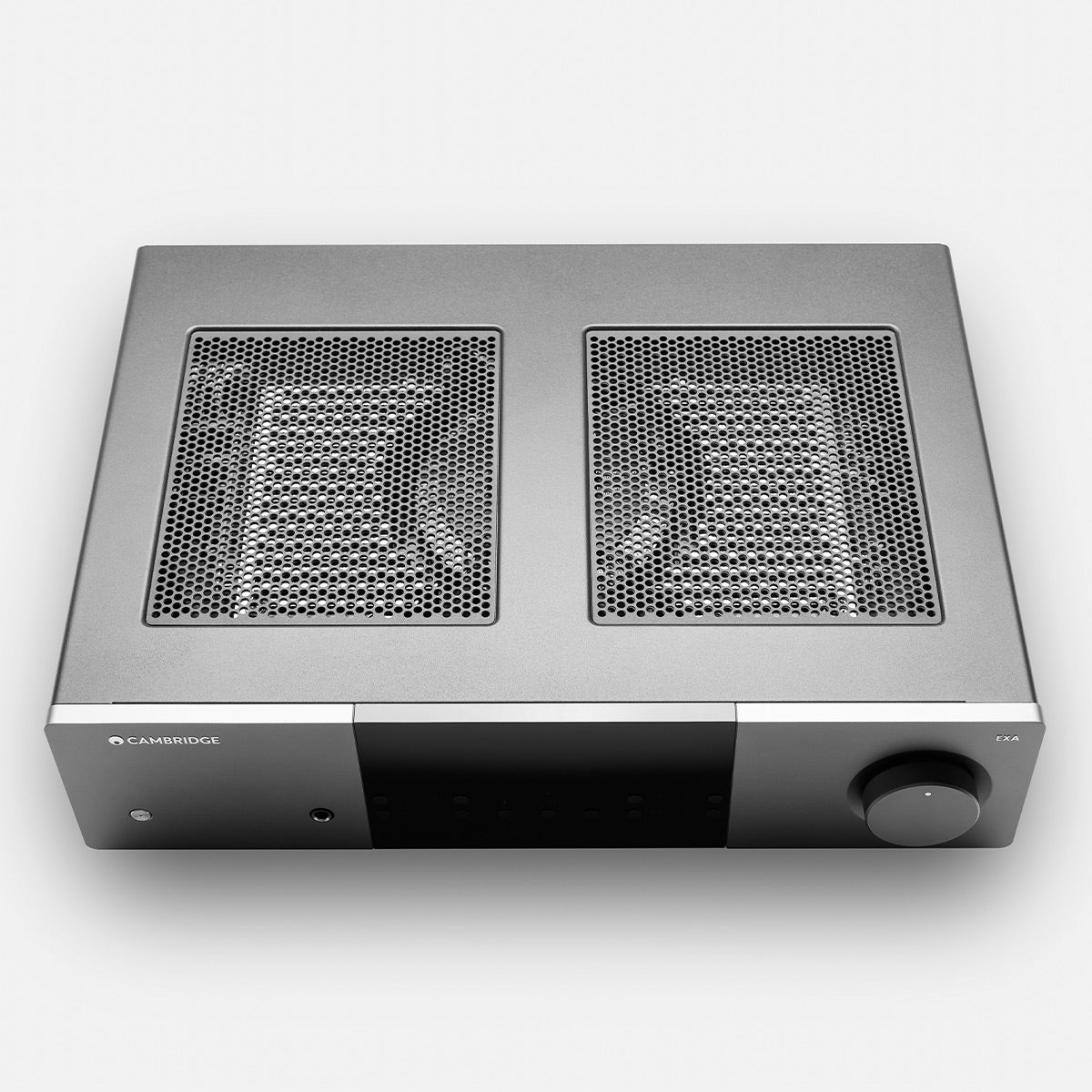

Back in the Summer of Love, Cambrdige’s P40 amplifier was the very first to feature a toroidal transformer – and transformed audio forever.  EXA100’s advanced toroidal transformer is amply shielded, super-quiet and flanked by heavy-duty heat sinks for impeccable performance that’s more than worthy of extending the P40 legacy.

Shout Out to My EX

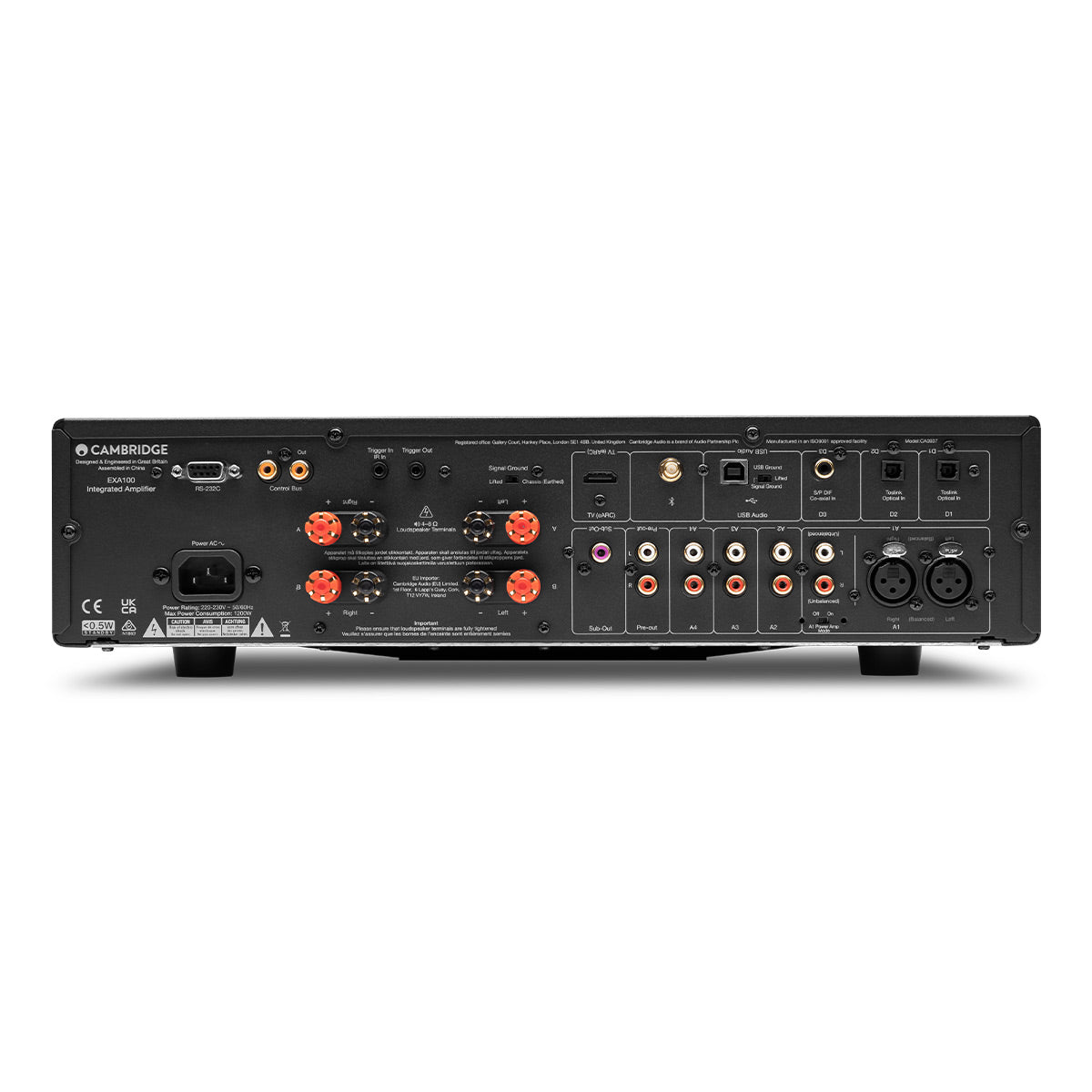

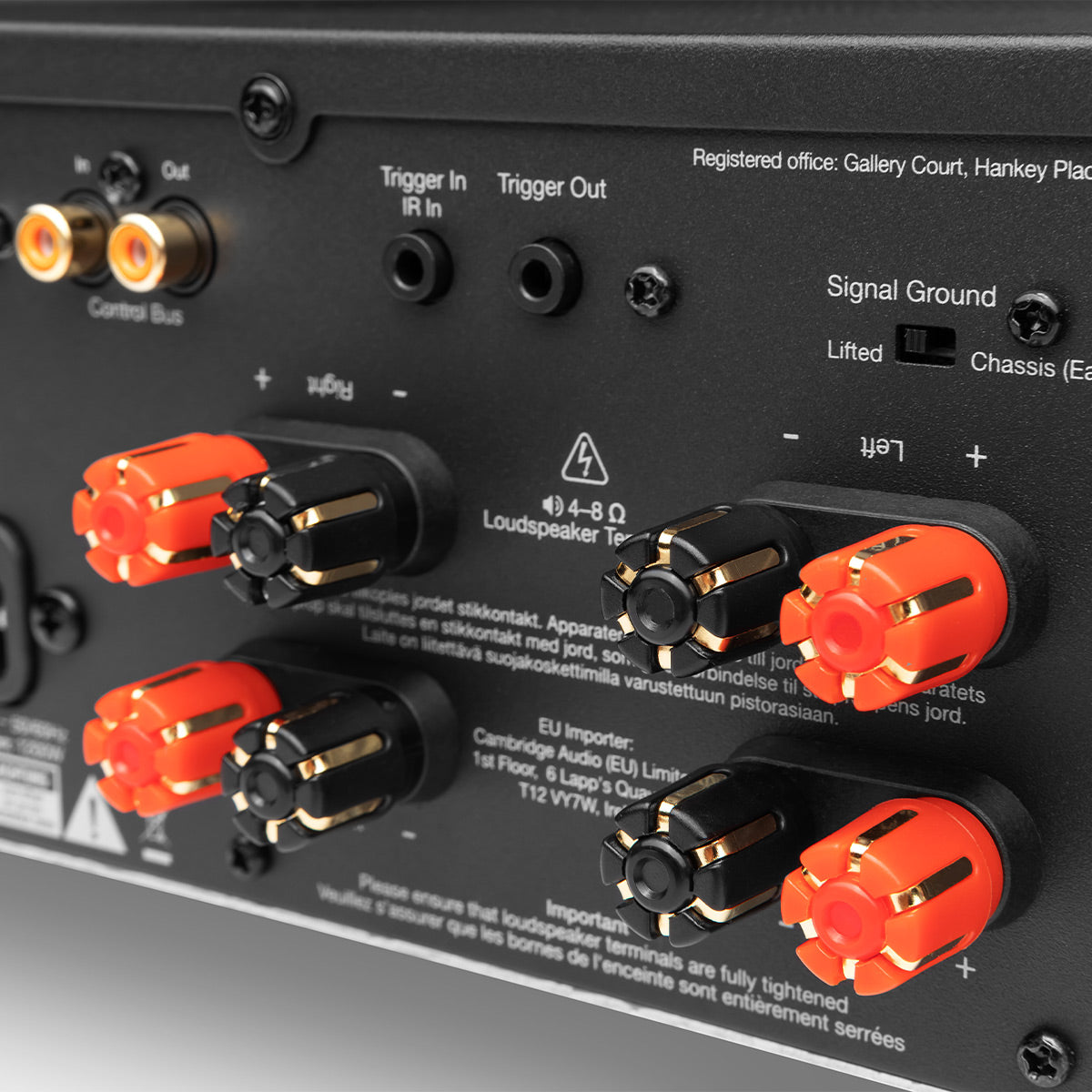

The EXA100 lets you listen how and wherever you want, in sublime quality. Balanced XLR inputs offer a premium analogue connection, while two sets of speaker outputs can power music in two different rooms. Bass-heads can even add a subwoofer to the dedicated pre-out. With EX, you get a world of listening possibilities.

Digital Love

From its exceptional hi-res DAC to the HDMI eARC input and Bluetooth aptX HD, EXA100 is a digital audio powerhouse. Whatever music service or source device you choose, EXA100 will breathe new life into your digital sounds.

A Strong Look

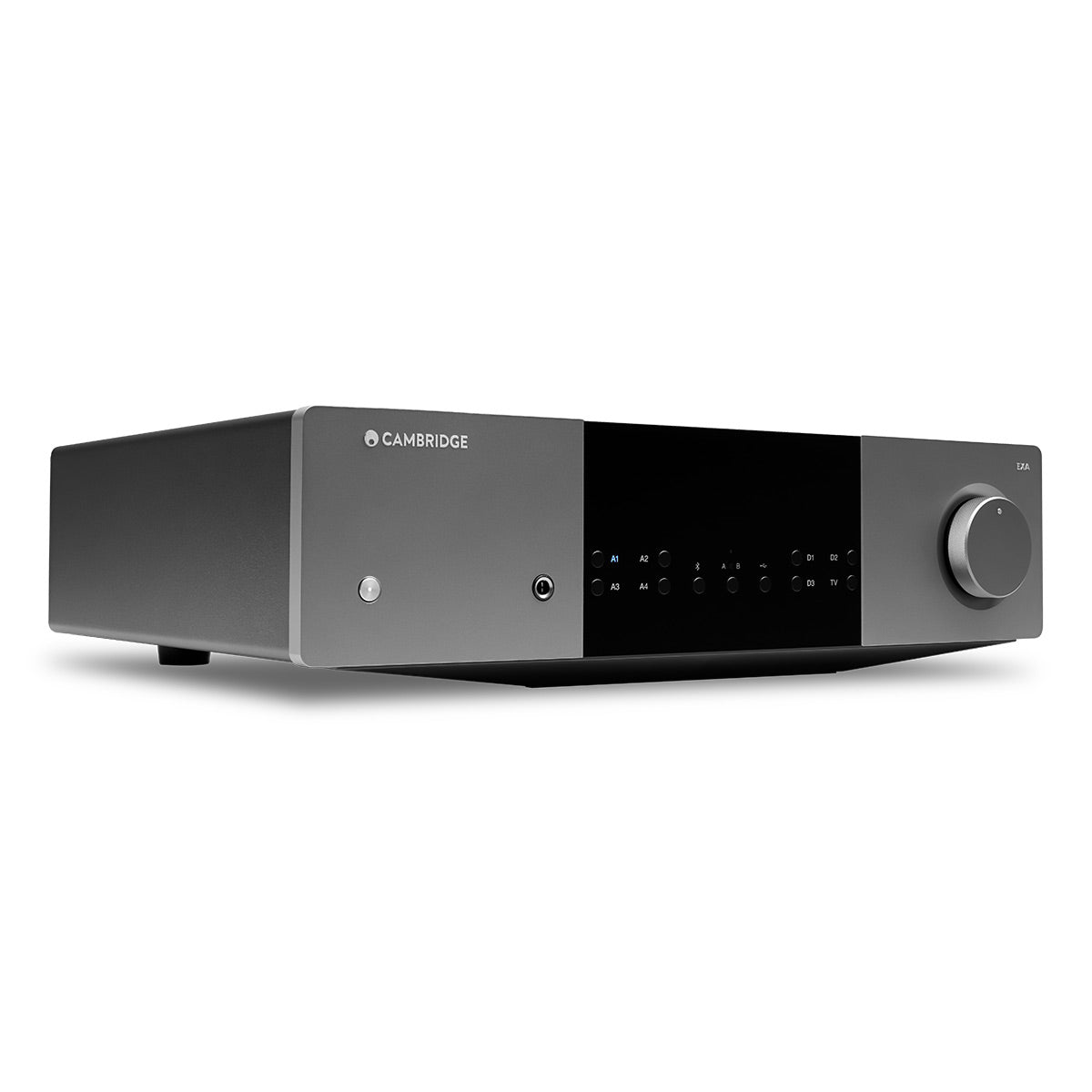

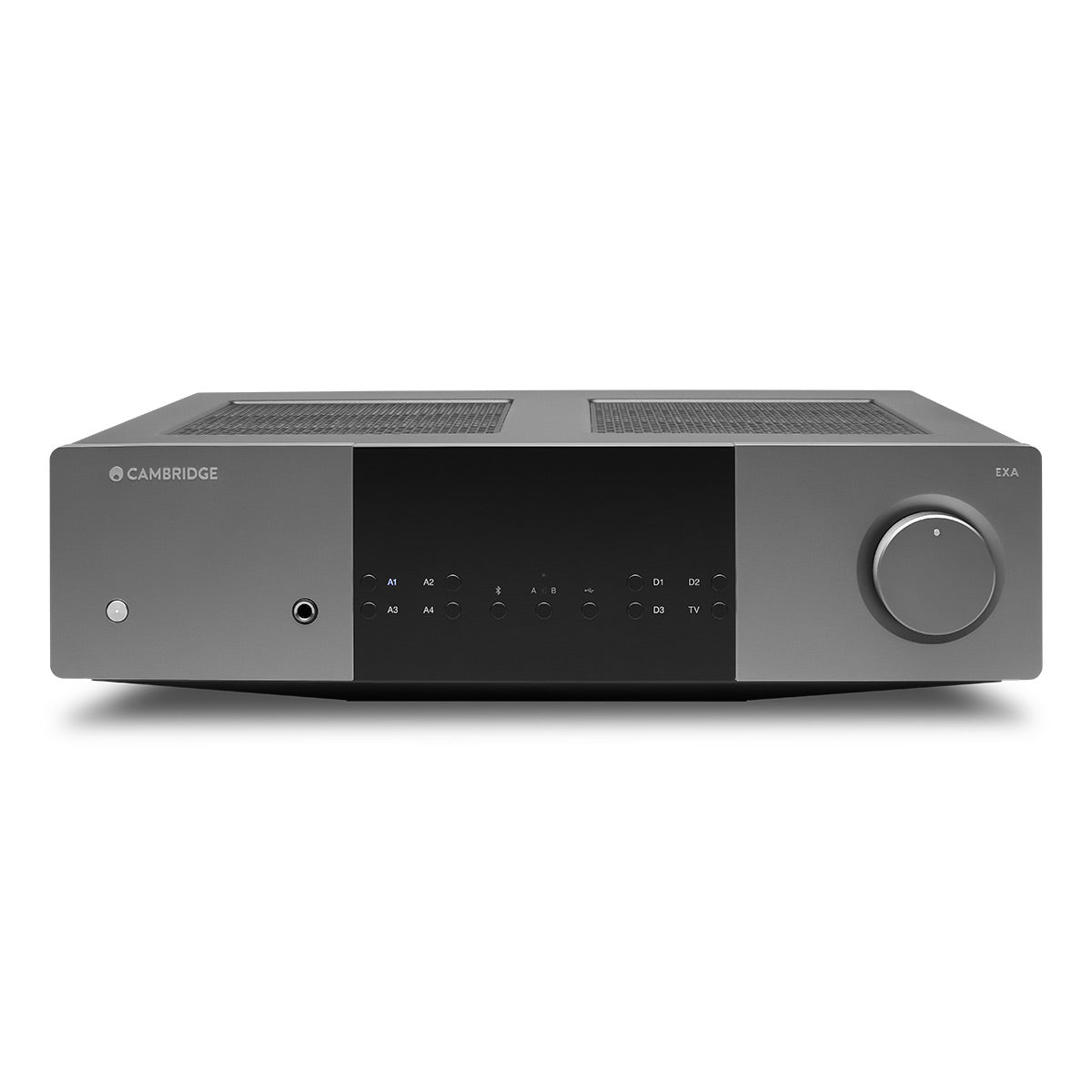

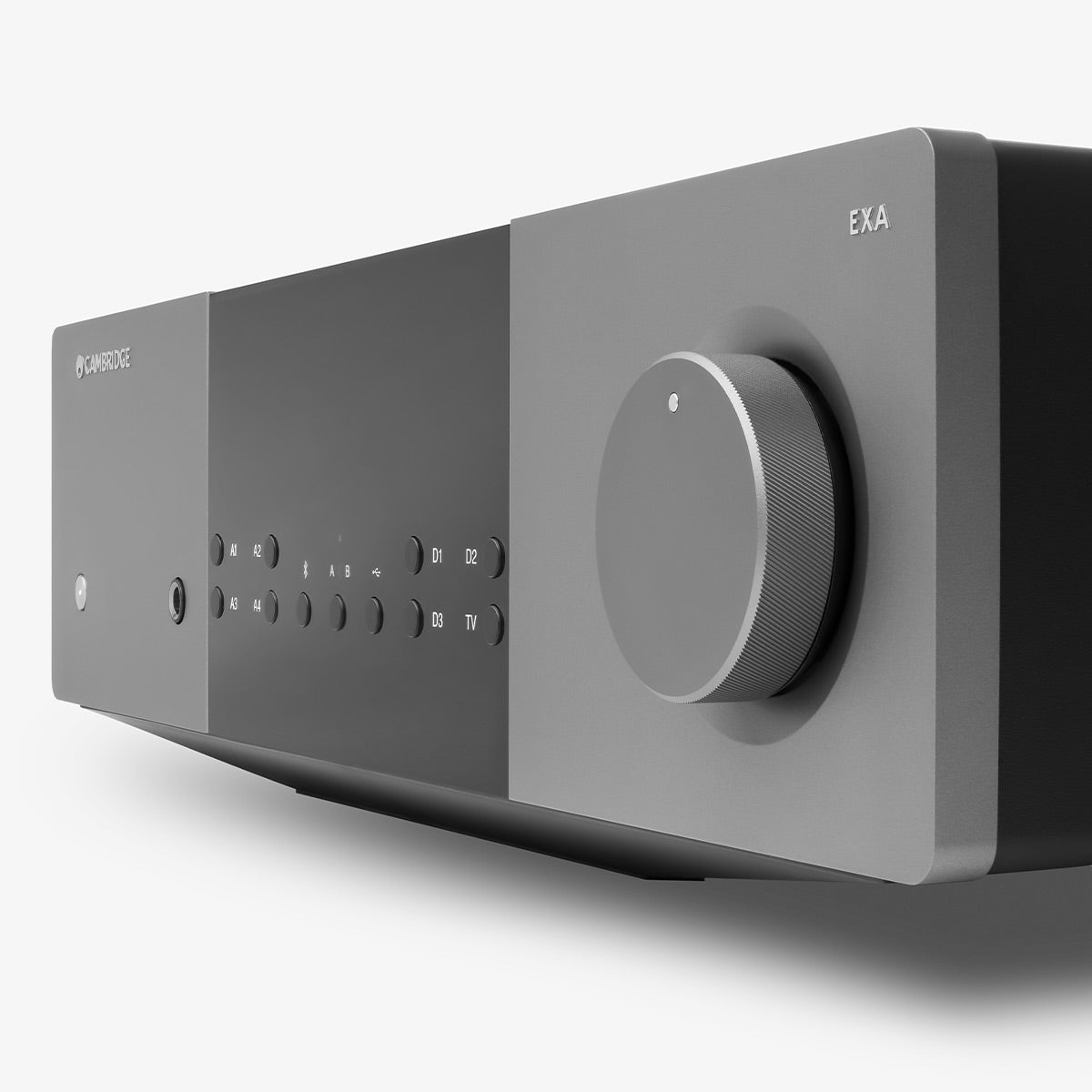

Our innovation doesn’t stop on the inside: the EXA100 has a stunning new design, complete with a milled aluminum front panel and a tactile knurled volume knob you can’t keep your hands off.

Power to the People

Switch it to Power Amp Mode and the EXA100 pairs brilliantly with any pre-amp, giving flexibility you never knew you needed – whether in a stereo or multi-channel system.

And The Beat Goes On

To ensure a longer, happier listening life for Cambridge’s amps and the speakers they power, they developed an exceptional proprietary protection system, CAP. It uses an array of different methods to detect potential issues, such as power and temperature overloads, and take preventive action. So, you can just relax and enjoy the music, worry-free.

Everything and Then Some

From its precision build to the technology inside, the EXA100 is gloriously over-engineered. Whether it’s a four-layer PCB or a reservoir capacitor, every component is specially selected and expertly implemented. We sweat the small stuff; it matters.

Specifications

  • Power Output: 100W RMS into 8 Ohms @ <1%THD+N, 155W RMS into 4 Ohms @ 1kHz <1%THD+N
  • Amplification: Class-A/B
  • DAC: ES9018K2M
  • Preamp Mode: Yes
  • Frequency Response: <3Hz – >40kHz +/-1dB
  • Toroidal Transformer: Yes
  • Bi-wiring possible: Yes
  • Analogue RCA Inputs: 4 pairs
  • Balanced XLR Input: 1 pair
  • S/PDIF TOSLINK Input: 2
  • S/PDIF Coaxial Input: 1
  • Asynchronous USB Input: USB Type B conforming to USB Audio Class 1 or USB Audio Class 2 (user selectable)
  • Bluetooth: 5.0 aptX HD
  • HDMI ARC Input: 1 (eARC compatible)
  • Preamp Output: RCA pre-out
  • Headphone Output: Yes
  • Subwoofer Output: 1 x RCA
  • Speaker Outputs: Yes
  • S/PDIF TOSLink Optical: TOSLINK: 16/24-bit 32-96kHz
  • S/PDIF Coaxial: Coax SPDIF: 16/24-bit 32-192kHz
  • HDMI eARC: PCM up to 24bit/192kHz
  • USB Audio
    • USB Audio Class 1: Up to 24-bit 96kHz (asynchronous)
    • USB Audio Class 2: Up to 24-bit 384kHz (asynchronous) and up to DSD-256
  • Bluetooth: 5.0 A2DP/AVRCP supporting SBC, aptX and aptX HD codecs
  • RS232 Control: Yes
  • THD (Unweighted)
    • <0.002% 1kHz at 80% of rated power (8 Ohms)
    • <0.02% 20Hz – 20kHz at 80% of rated power
  • S/N Ratio (REF 1W): >91 dB
  • Crosstalk @1kHz: >90
  • Input Sensitivity: Input A2-A4 (unbalanced) 395mV RMS
  • Input Impedances: Input A1 (balanced) 100 kOhm Input A2-A4 (unbalanced) 45 kOhm
  • Power Amp Damping Factor: >160 at 1kHz
  • Subwoofer Output: 1 x RCA
  • Max Power Consumption: 1200w
  • Standby Power Consumption: <0.5W
  • Dimensions (W x H x D): 4.5 x 16.9 x 13.4”
  • Weight: 28.2 lbs.

What's In The Box

  • EXA100 Integrated Amplifier
  • Remote
  • Power Cord
  • Manual
