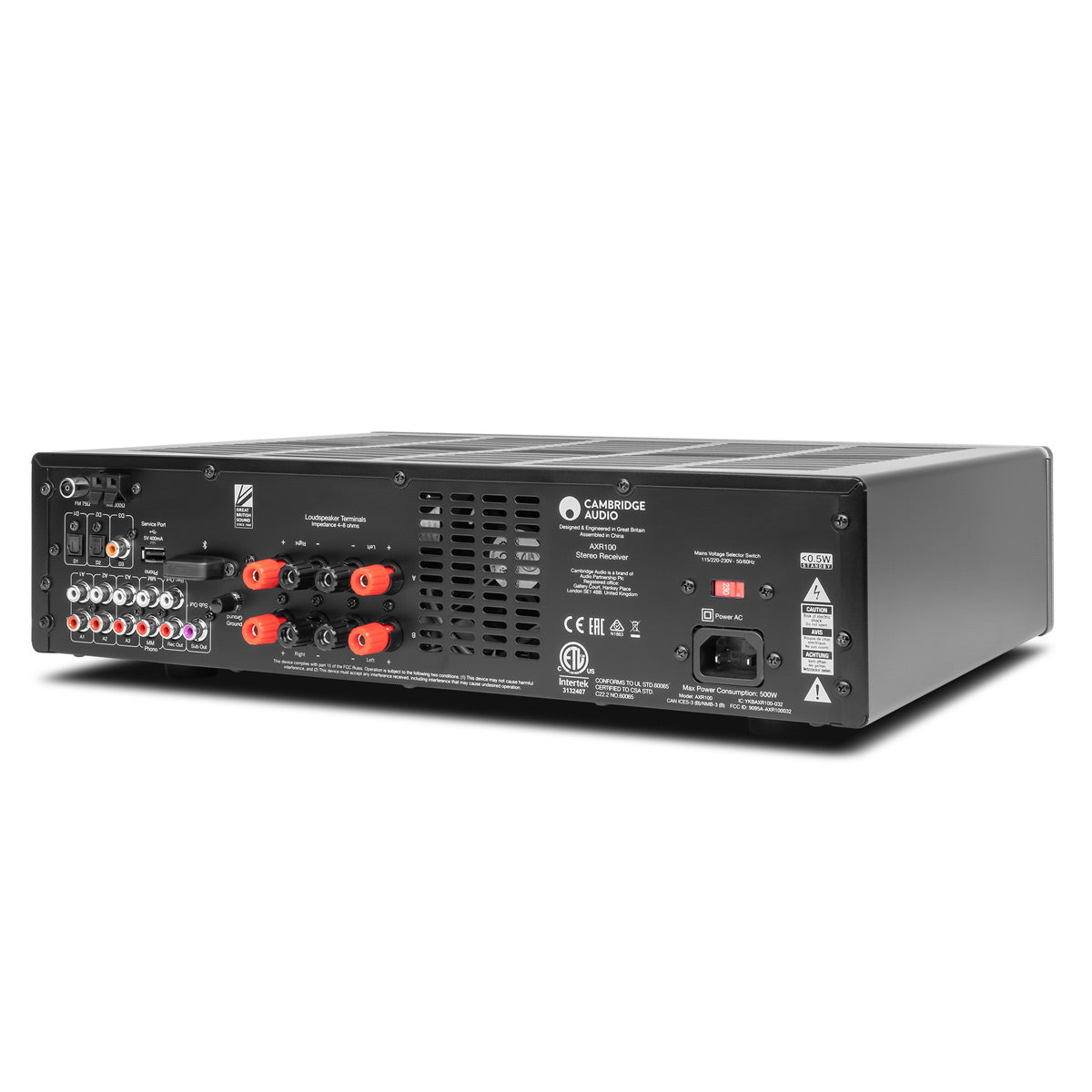

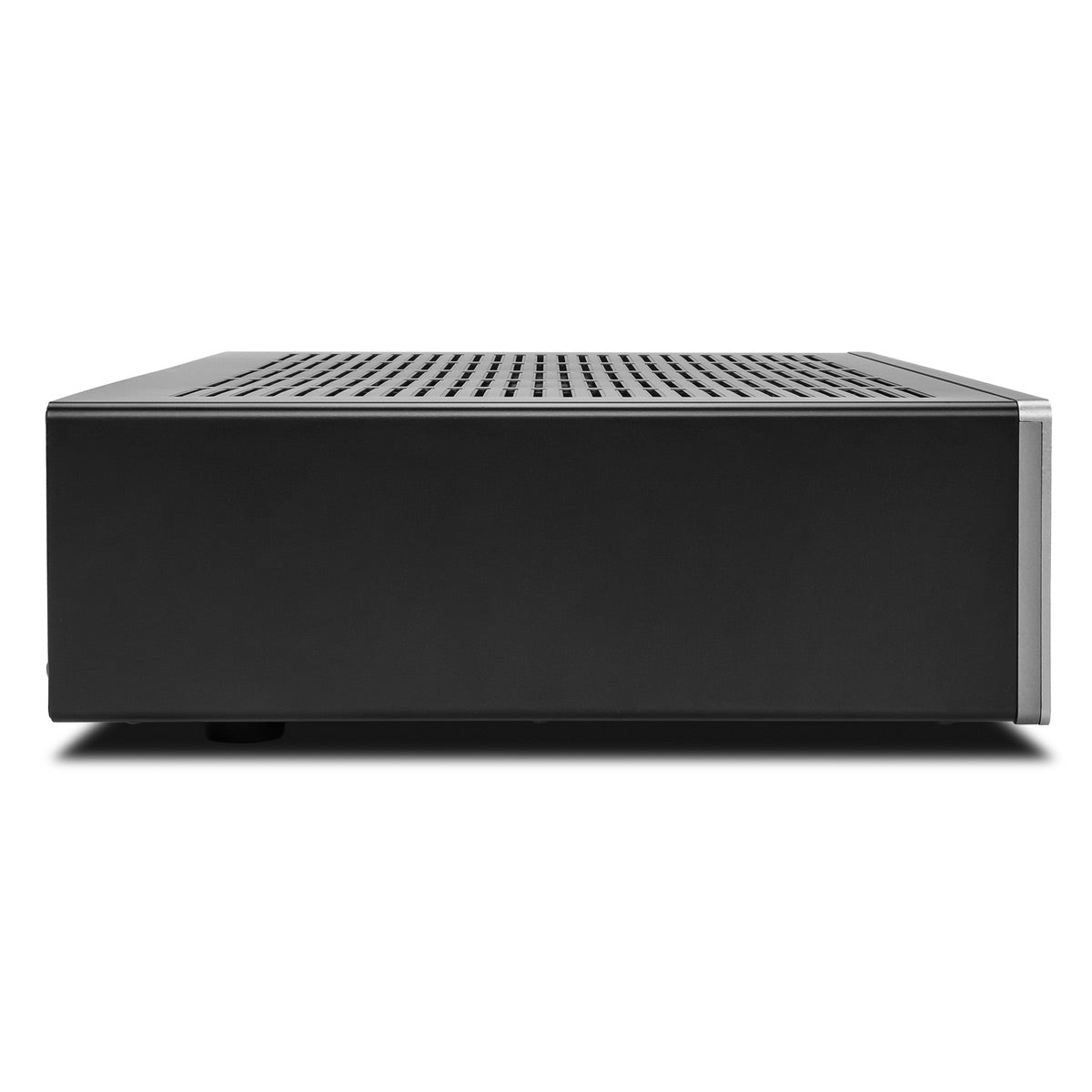

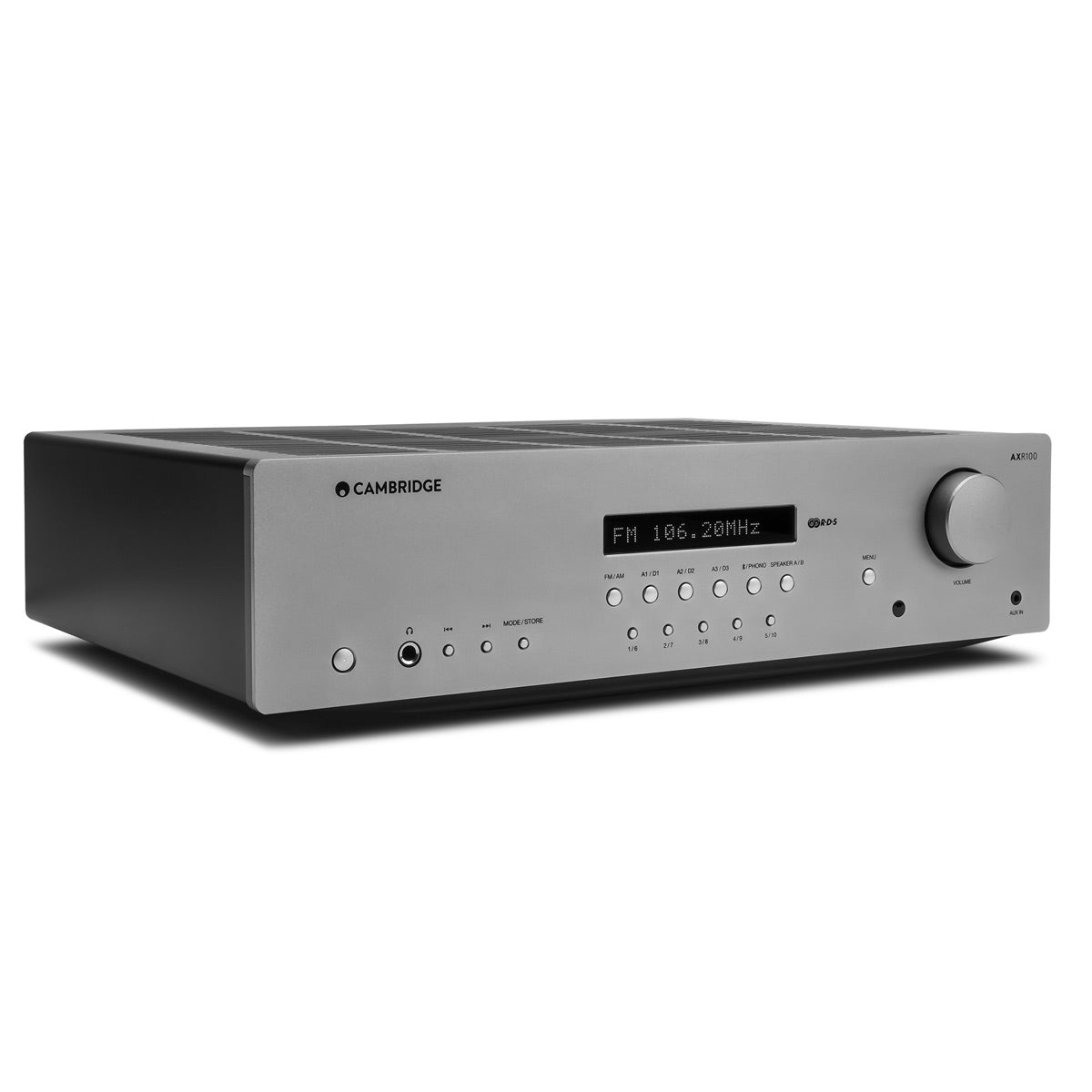

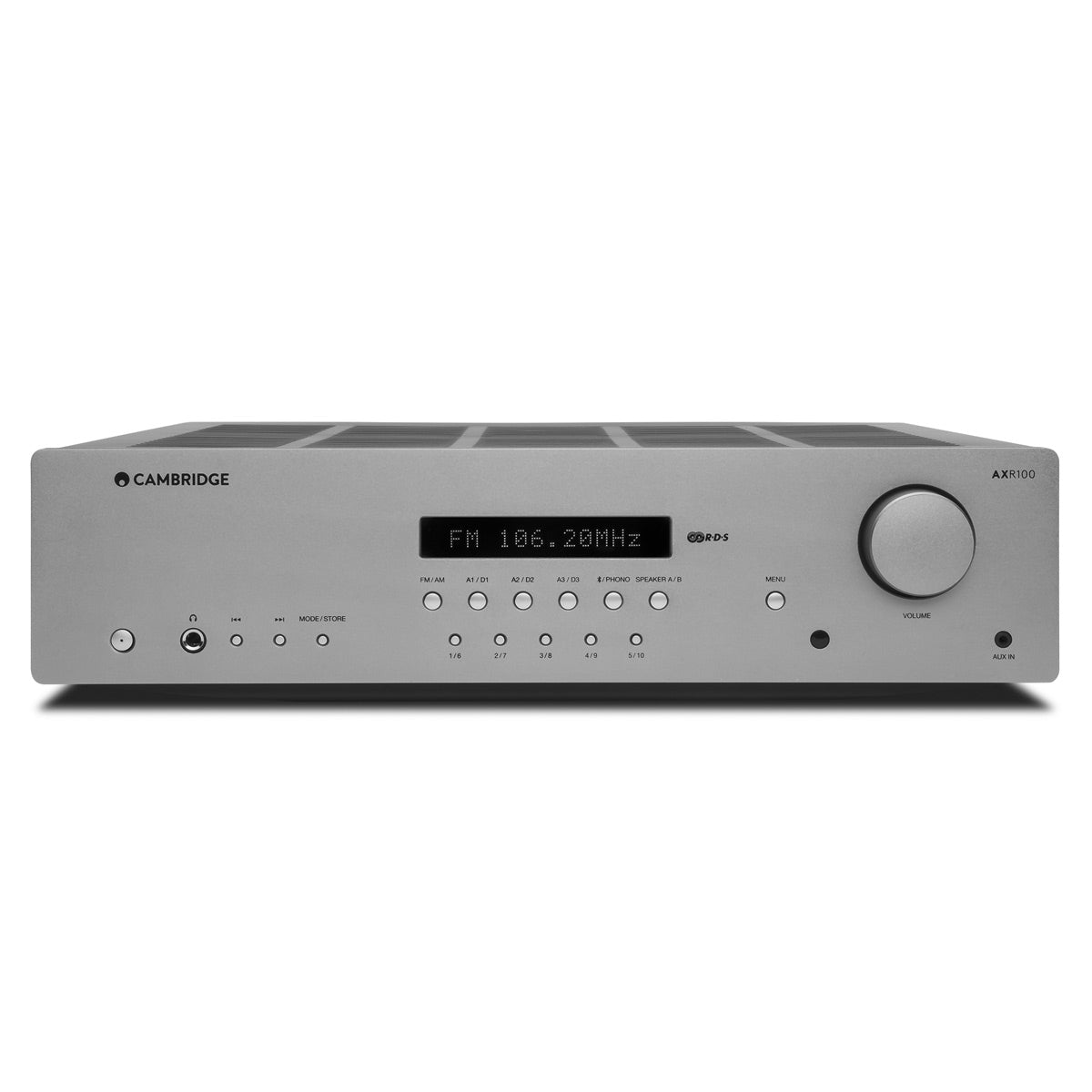

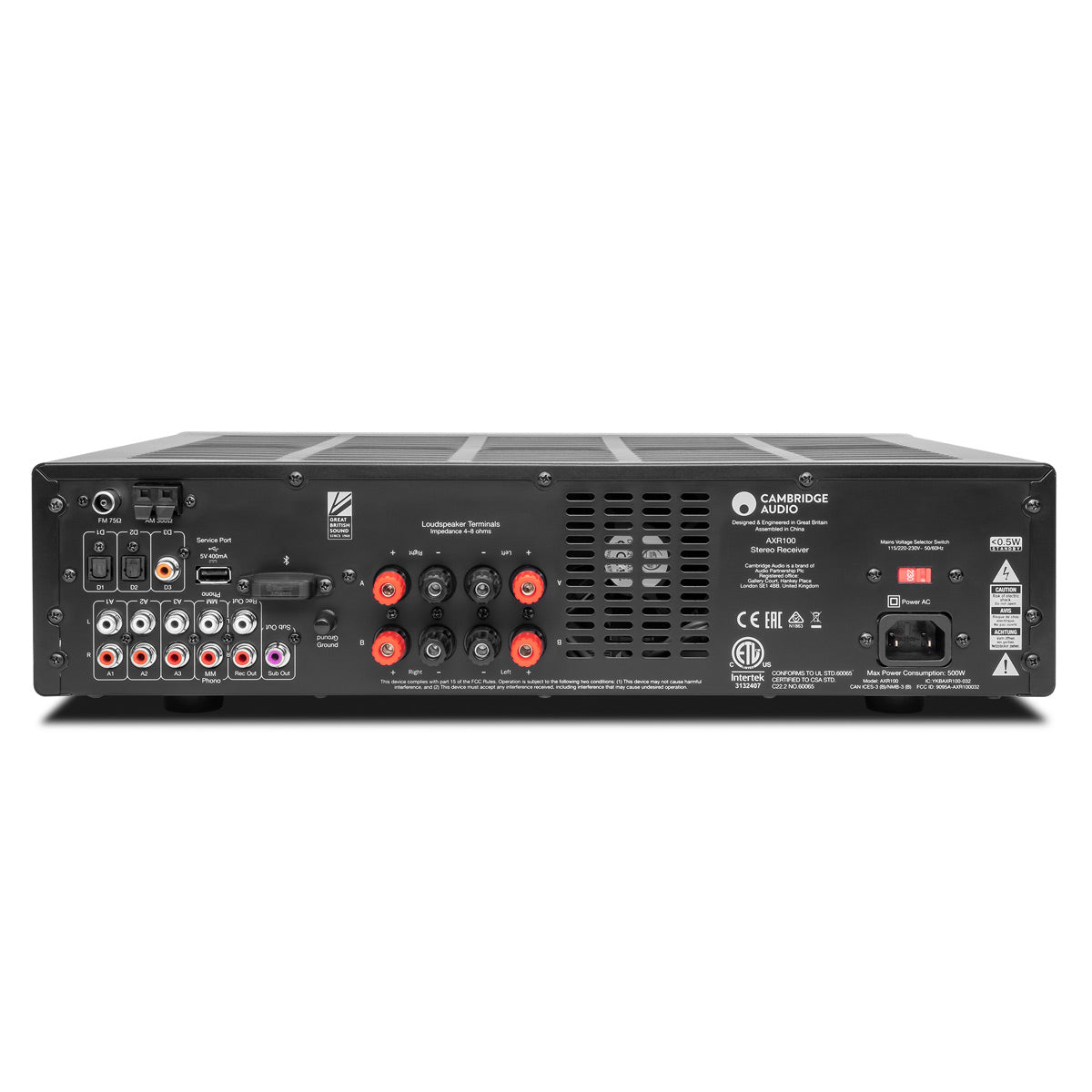

Cambridge Audio AXR100 FM/AM Stereo Receiver (Silver)
Overview
Product Information
Specifications
What's In The Box
Product Information
AXR100 FM/AM Stereo Receiver
The most powerful amplifier in the AX range offers a massive 100 watts per channel, a dedicated subwoofer speaker output for improving bass and two sets of speaker outputs. It also features analogue inputs, digital inputs, a phono stage, an FM/AM receiver with RDS and a 3.5 mm input. In addition, the built-in Bluetooth receiver allows you stream your favorite music from your smartphone, tablet or PC.
AX Series: STEP UP TO HI-FI
The AX Series pairs high quality with outstanding value for money and is the perfect way for the Hi-Fi curious to build their first stacking separates system. Taking design cues from our award-winning Edge and CX ranges, we designed the AX components to be a straightforward introduction to Great British Sound. It will change the way you appreciate music forever. Your journey starts here. The AX Series consists of amplifier, stereo receiver and CD player options.
Specifications
- POWER OUTPUT: 100 watts (into 8Ω)
- THD (UNWEIGHTED): <0.01% @ 1kHz, 80% of rated power, <0.15% 20Hz - 20kHz, 80% of rated power
- FREQUENCY RESPONSE (-1DB): 5Hz - 50kHz
- S/N RATIO (REF 1W): >82dB (unweighted)
- INPUT IMPEDANCES: 47k ohms
- POWER AMP DAMPING FACTOR: >50
- STANDBY POWER CONSUMPTION: <0.5W
- MAX. POWER CONSUMPTION: 550W
- BASS/TREBLE CONTROLS: Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 20kHz
- SUBWOOFER OUTPUT: 200Hz 2nd order L+R Level follows volume setting
- DIGITAL INPUTS: PCM 16-24-bit S/P DIF Co-axial 32-192kHz, TOSlink Optical 32-192kHz
- DIMENSIONS (HxWxD): 110 x 430 x 340mm (4.3 x 16.9 x 13.4”)
- WEIGHT: 8.1kg (17.8lbs)
- BLUETOOTH: 5.0 A2DP/AVRCP supporting SBC
- TUNER BANDS: European AM (522-1629kHz) FM (87.5-108MHz) / US AM (530-1710kHz) FM (87.5-108MHz)
- AERIAL INPUTS: FM 75 ohms, Coaxial. AM 300 ohms wire loop/ single wire
- SIGNAL TO NOISE (TUNER): 60dB typical (FM)
- DISTORTION (TUNER): <0.4% @ 1kHz 50kHz deviation (FM mono) <0.6% @ 1kHz 50kHz deviation (FM stereo)
What's In The Box
- AXR100 Stereo Receiver
- FM Antenna
- AM Antenna
- Remote Control
- Quick Start Guide
