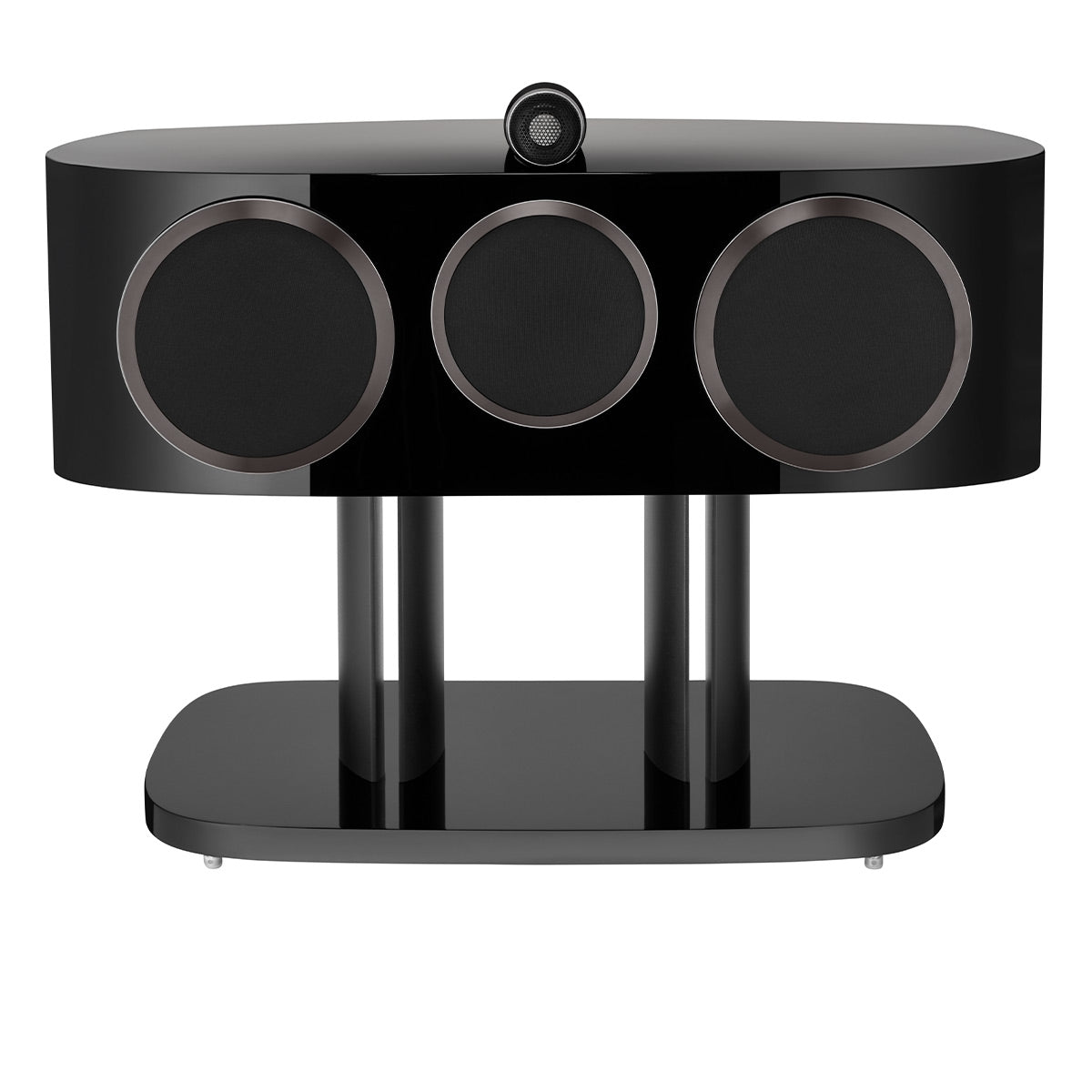

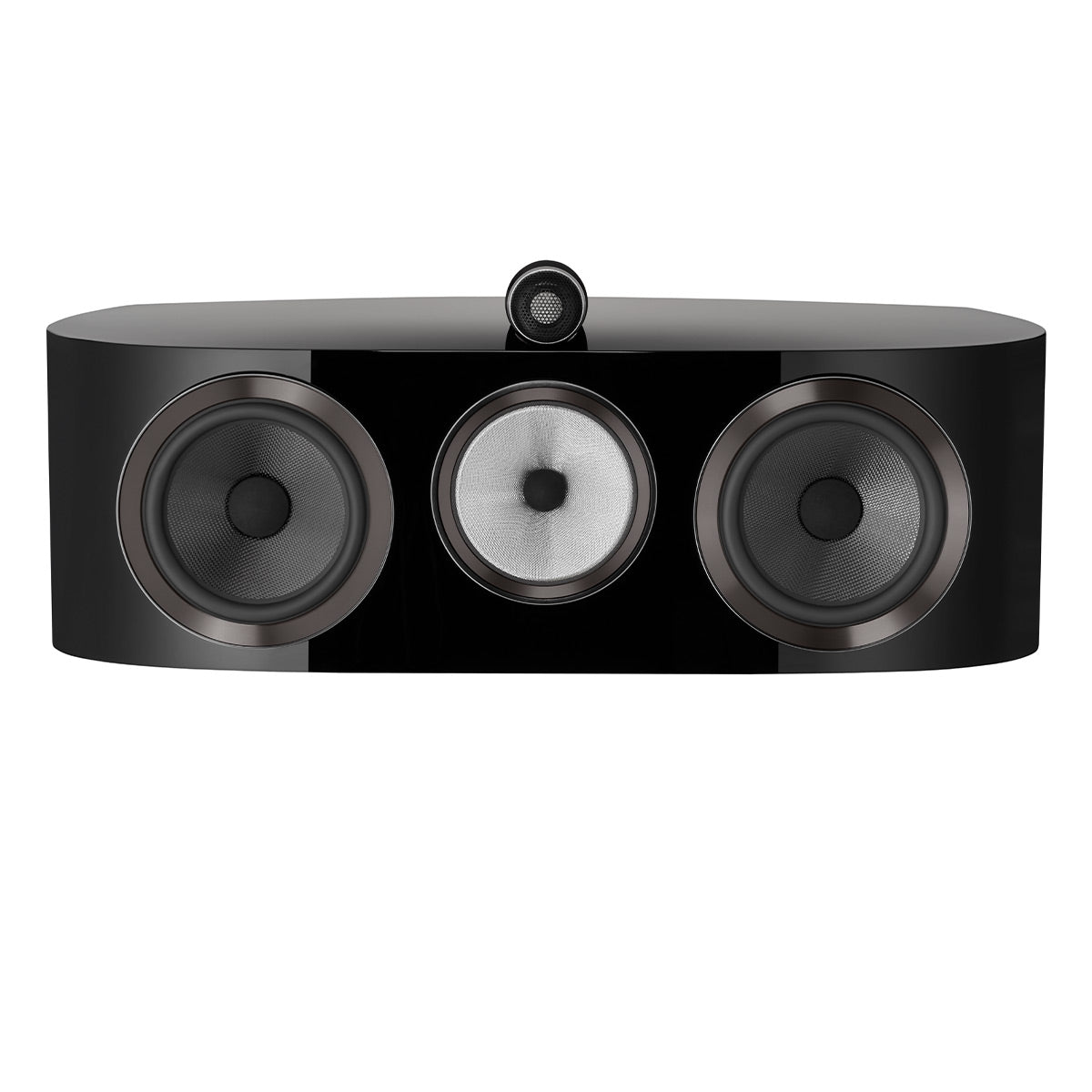

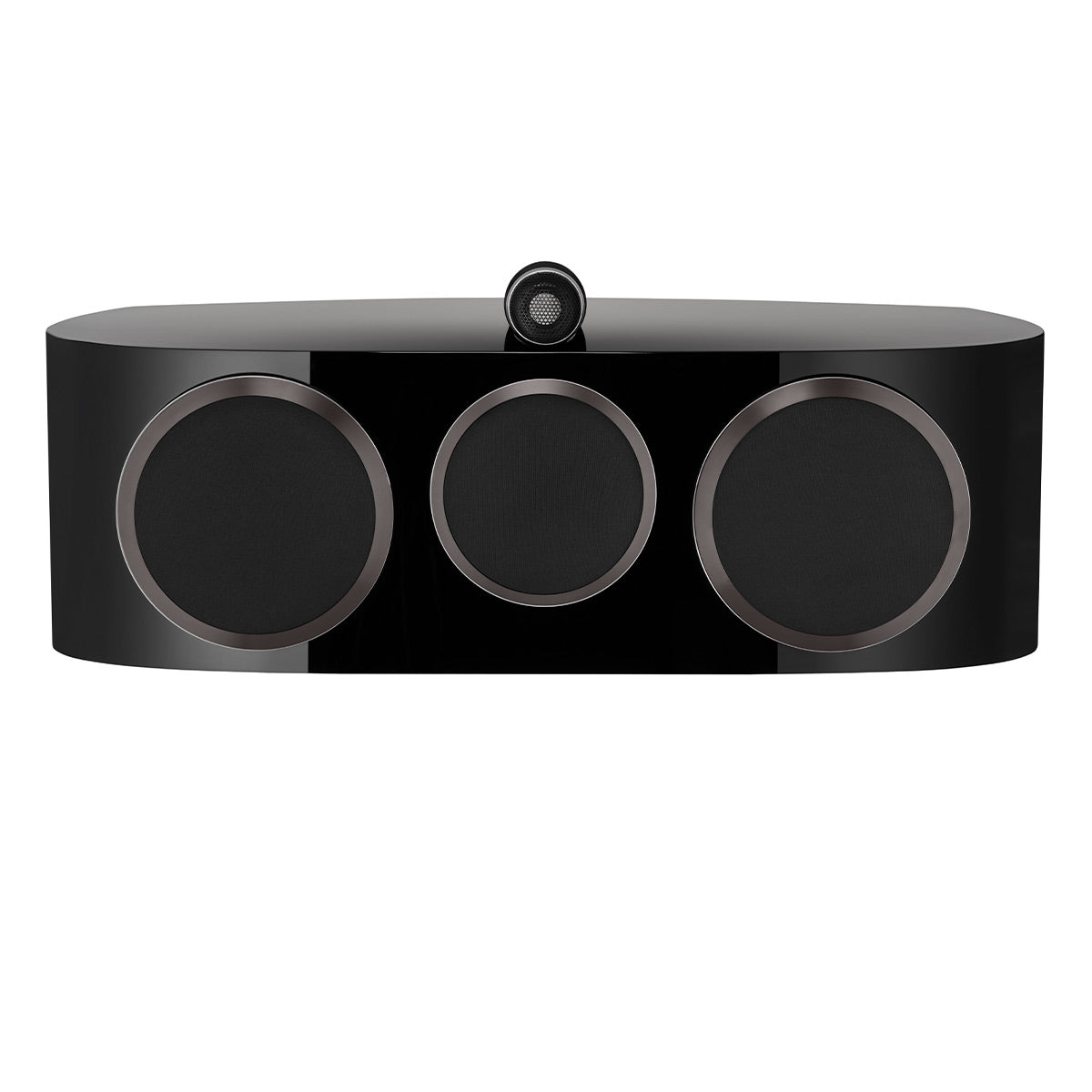

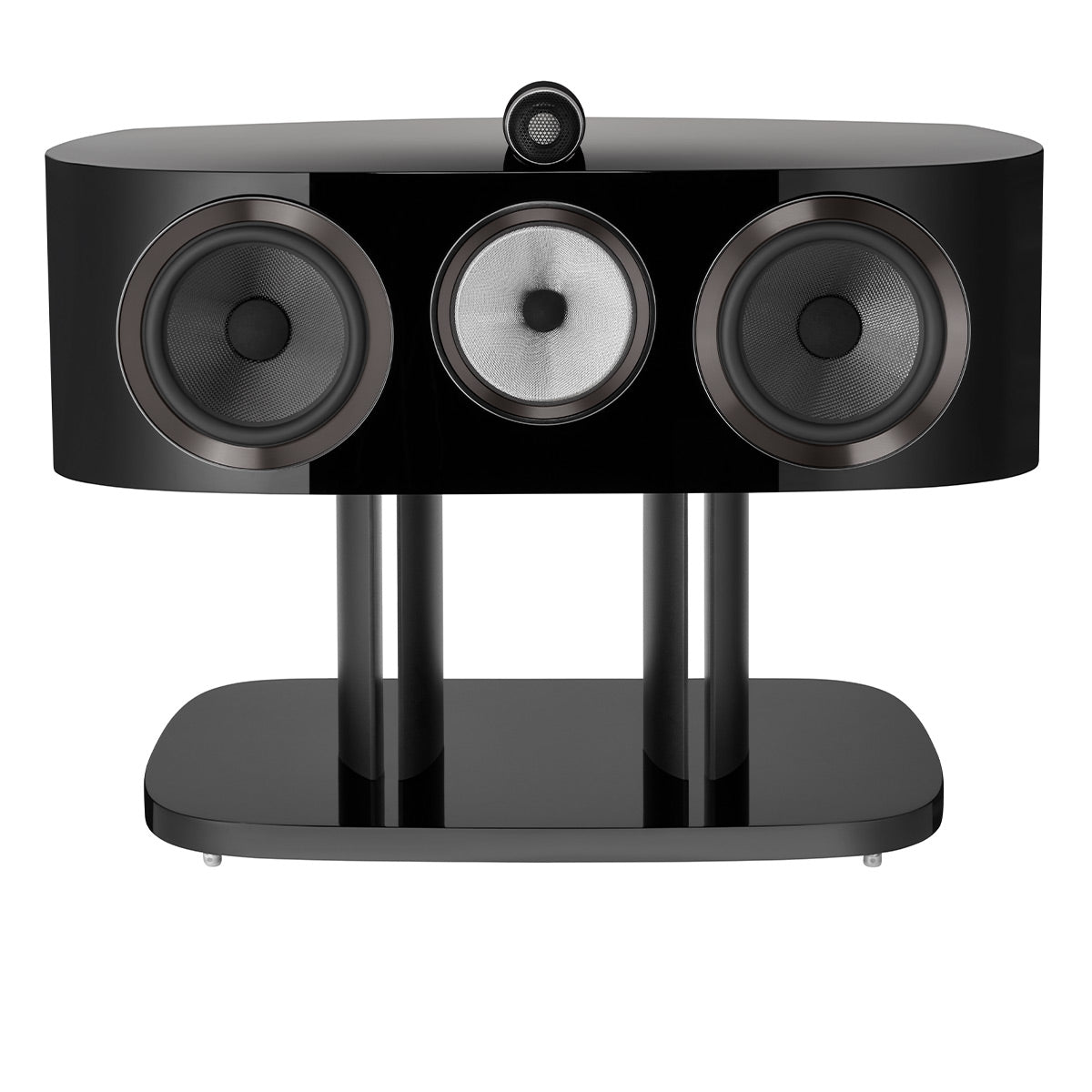

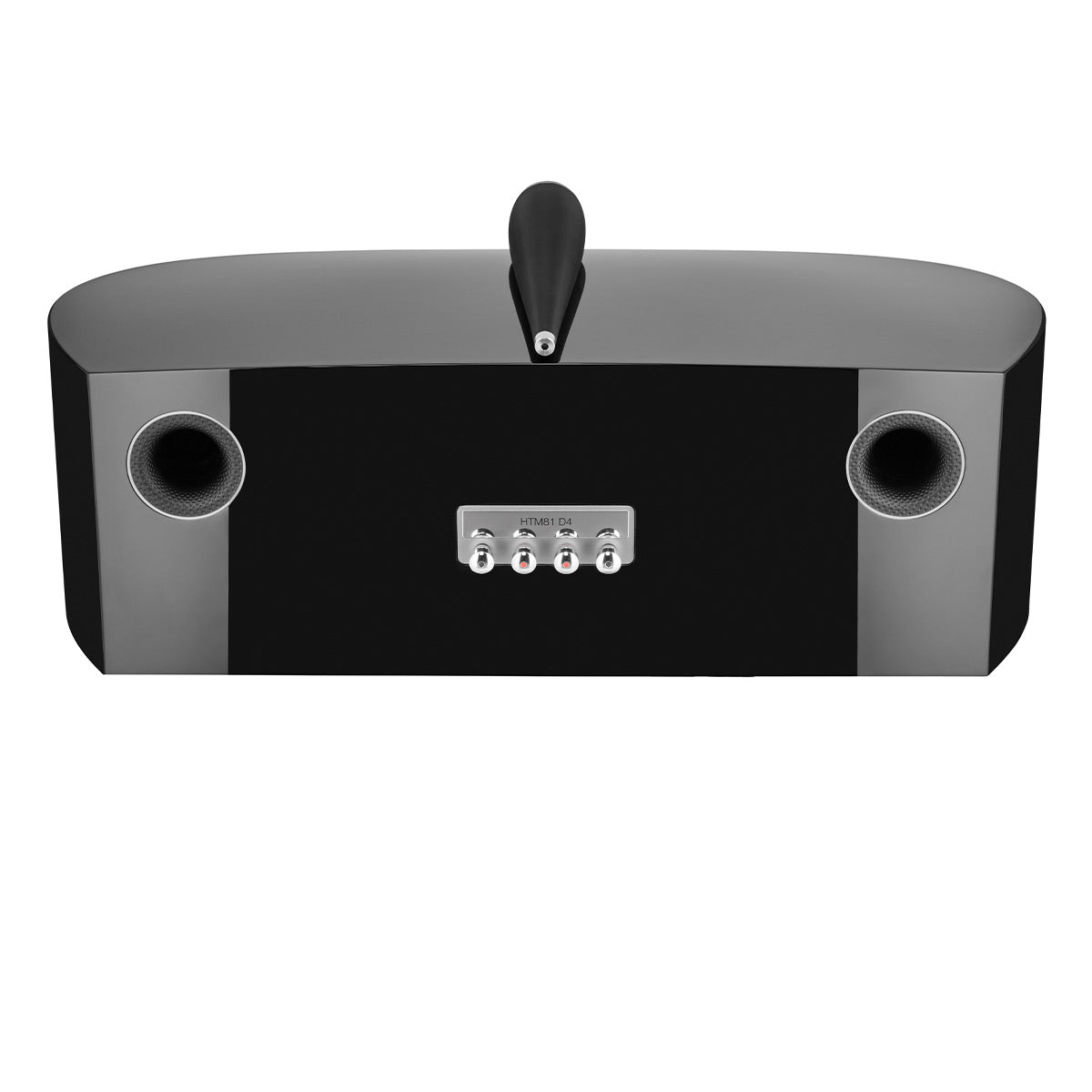

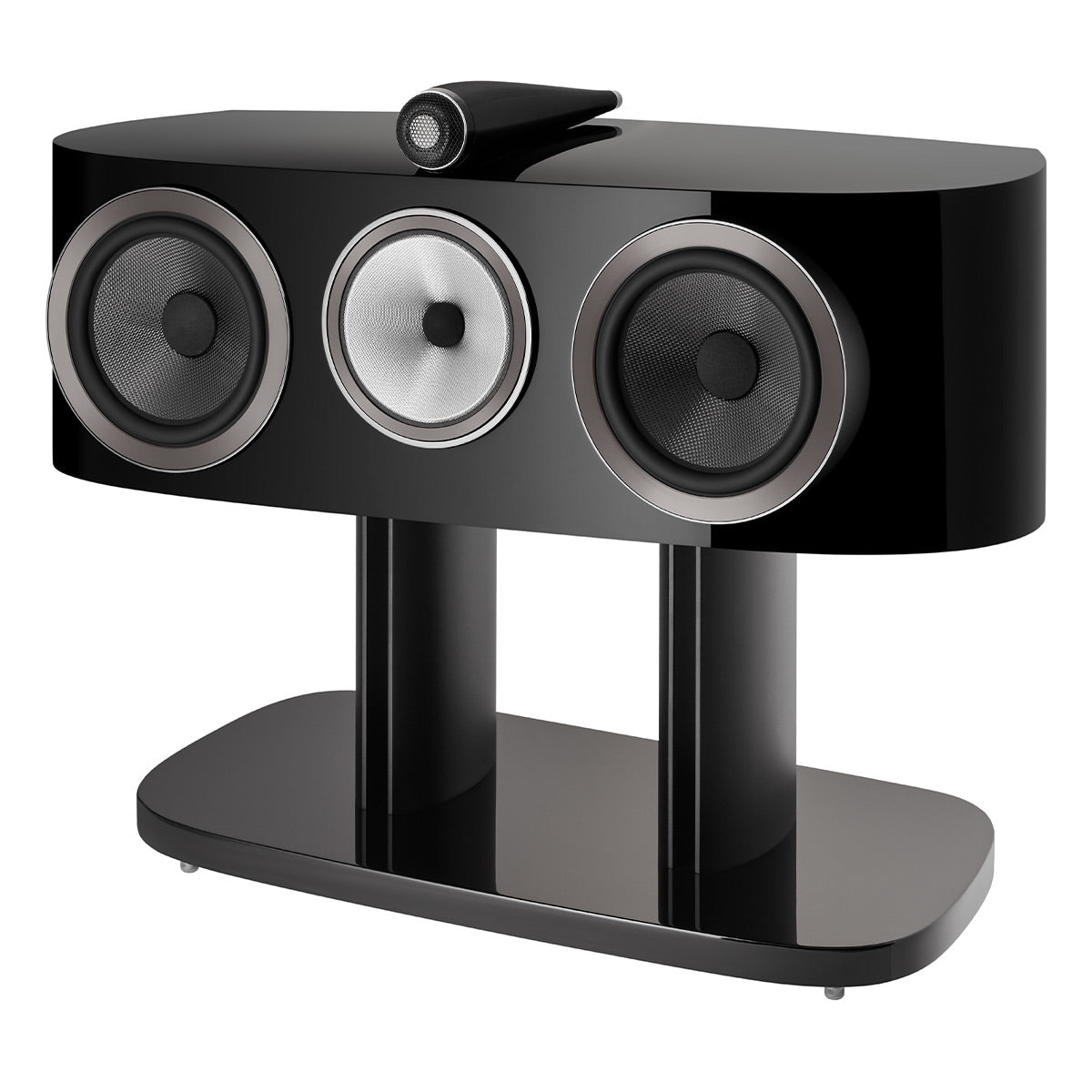

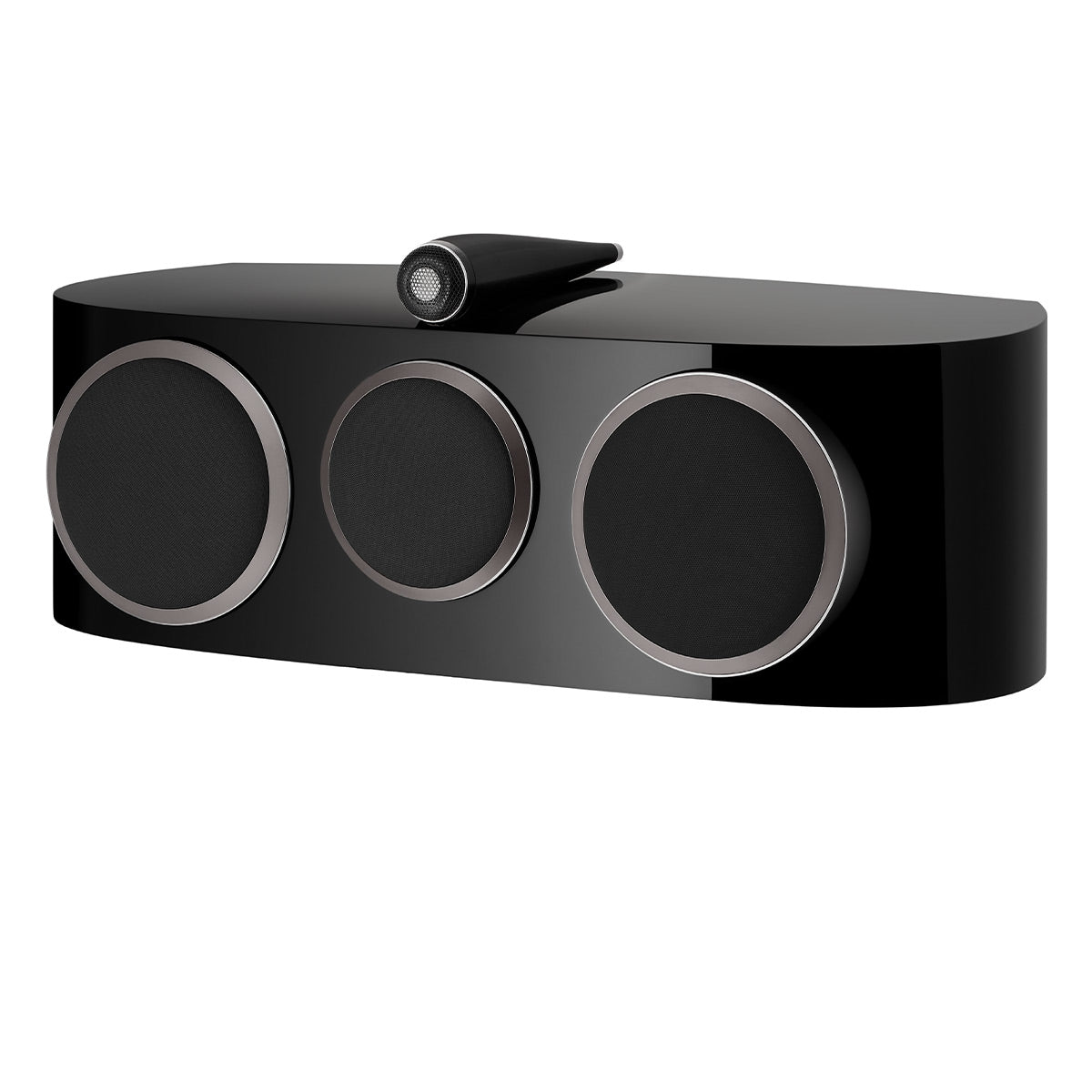

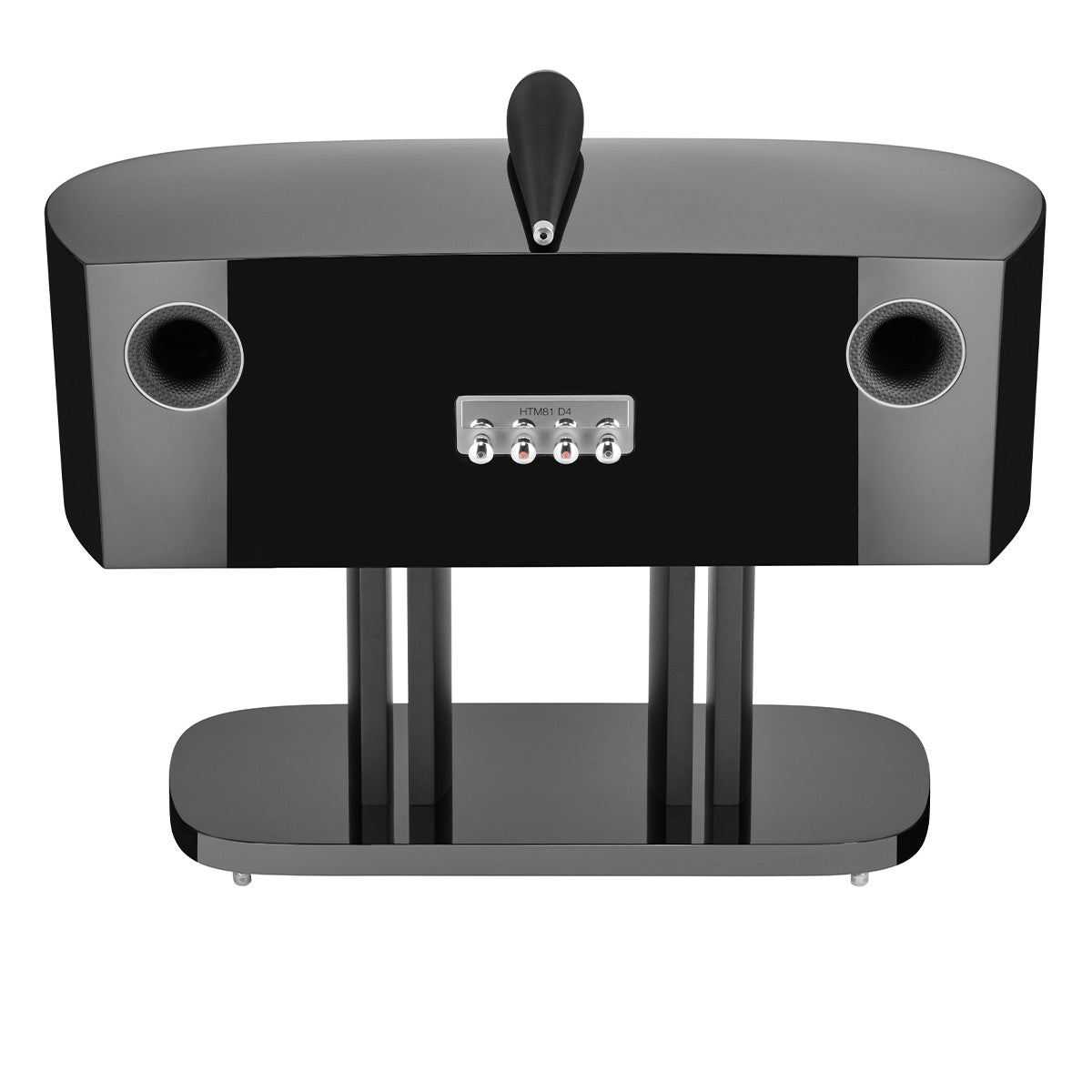

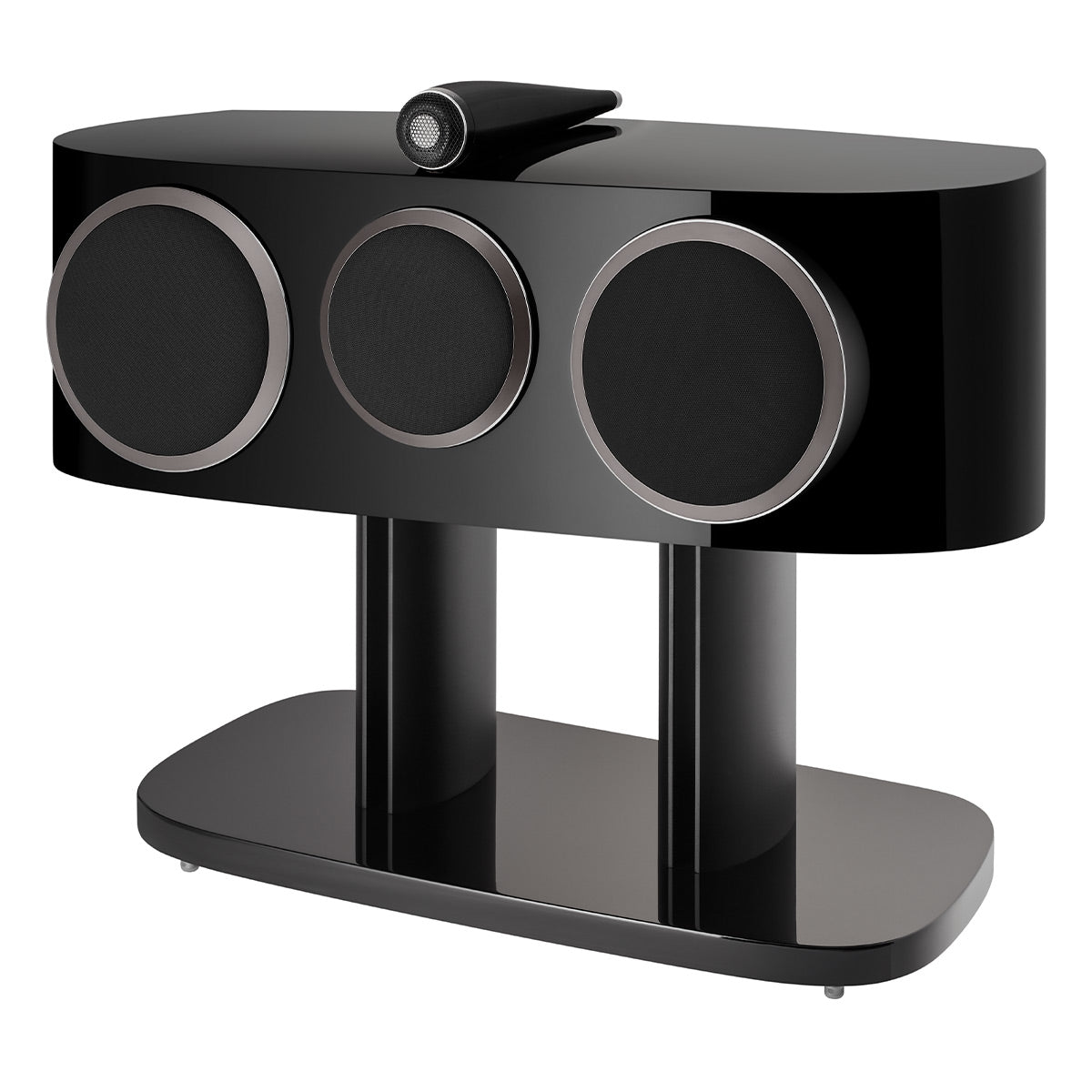

Bowers & Wilkins HTM81 D4 3-Way Center Channel Speaker (Gloss Black)

Regular price $9,500.00
Sale price $9,500.00 Regular price
Save $-9,500.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live


Product Information

Model: FP42056 | UPC: 714346334209


What's In The Box

Product Information

Model: FP42056 | UPC: 714346334209

Excellence. Evolved.

This is not just another speaker range. Each new generation of 800 Series Diamond is a landmark event for Bowers & Wilkins. This is their benchmark, their icon; the most advanced range of loudspeakers they know how to make. For Bowers & Wilkins, the 800 Series Diamond is everything they know, and everything they are.

Bowers & Wilkins's largest center-channel speaker is designed to be the perfect partner for the 801 D4 or 802 D4. Small wonder, then, that it's such a powerful performer, with a sound that matches the quality of its illustrious stablemates.


  • Diamond tweeter
  • Solid-body Tweeter-on-Top
  • Continuum cone FST™
  • Anti-Resonance plug
  • Biomimetic Suspension
  • Matrix™
  • Aerofoil cone bass units
  • Flowport™

Midrange Enclosure

Inside HTM81 D4, a stiff, aluminum enclosure is designed to maximize the performance of the midrange drive unit. It provides a controlled location point for the midrange decoupling and prevents unwanted air leakage into the surrounding cabinet.

Aerofoil Bass Cone

The Aerofoil bass cone technology remains an outstanding solution to the conundrum of combining low mass and high stiffness, thanks to its carbon-fiber skin and variable-profile foam core. Now, an Anti-Resonance Plug™ has been added for lower distortion and even cleaner bass.


  • Description: 3-way vented-box system
  • Drive Units
    • 1x 25mm (1 in) diamond dome high-frequency
    • 1x 150mm (6 in) Continuum cone FST midrange
    • 2x 200mm (8 in) Aerofoil cone bass units
  • Frequency Range: 20Hz to 35kHz
  • Frequency Response (+/- 3dB from reference axis): 28Hz to 28kHz
  • Sensitivity (on axis at 2.83Vrms at 1m): 90dB
  • Harmonic Distortion
    • 2nd and 3rd harmonics (90dB, 1m on axis)
    • <1% 80Hz - 20kHz
    • <0.3% 100Hz - 20kHz
  • Nominal Impedance: 8Ω (minimum 3.0Ω)
  • Recommended Amplifier Power: 50W - 500W into 8Ω on unclipped program
  • Max. Recommended Cable Impedance: 0.1Ω
  • Dimensions (W x H x D): 33.35" x 13.15" x 14.61"
  • Weight: 70.99 lbs

What's In The Box

  • Loudspeaker
  • Literature Pack
