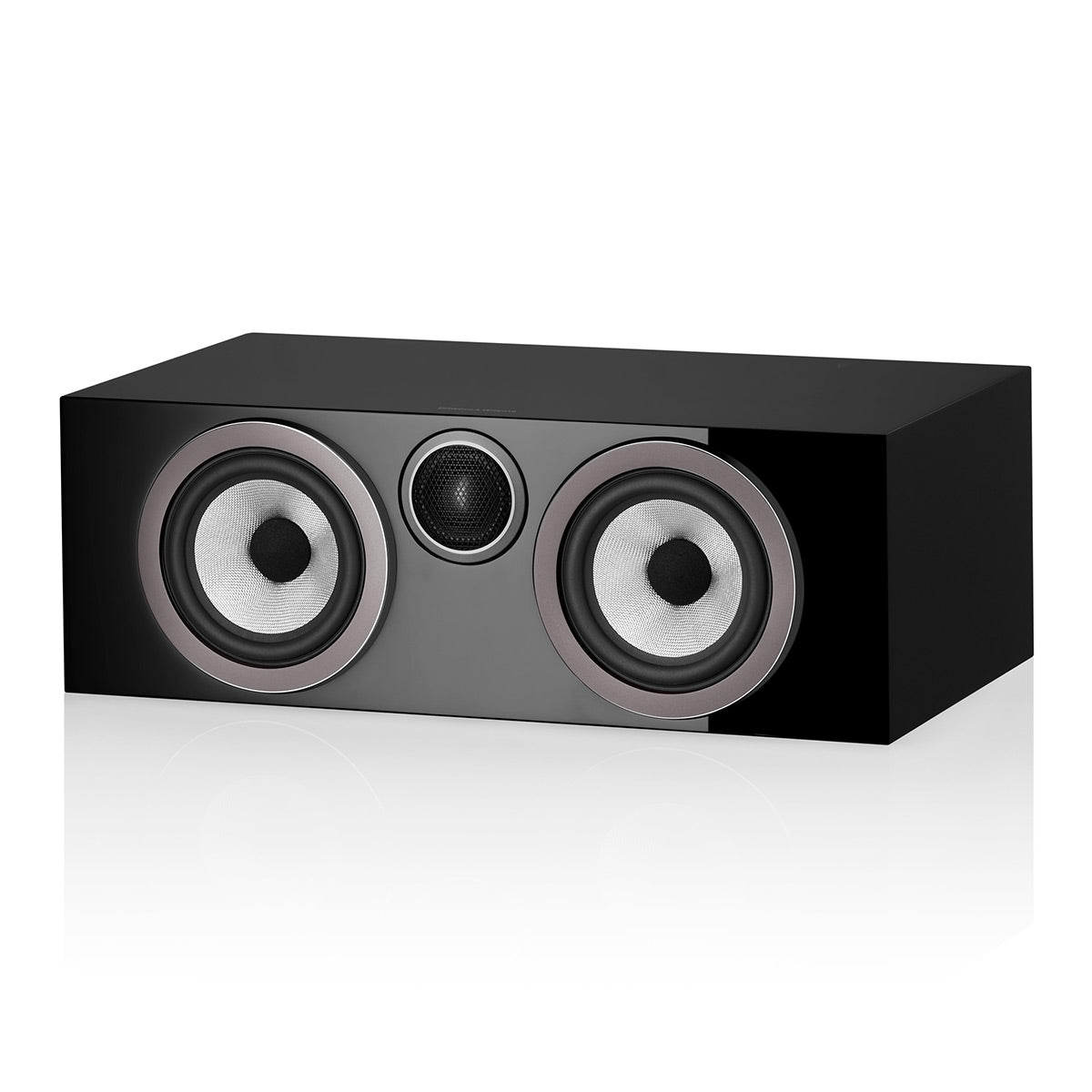

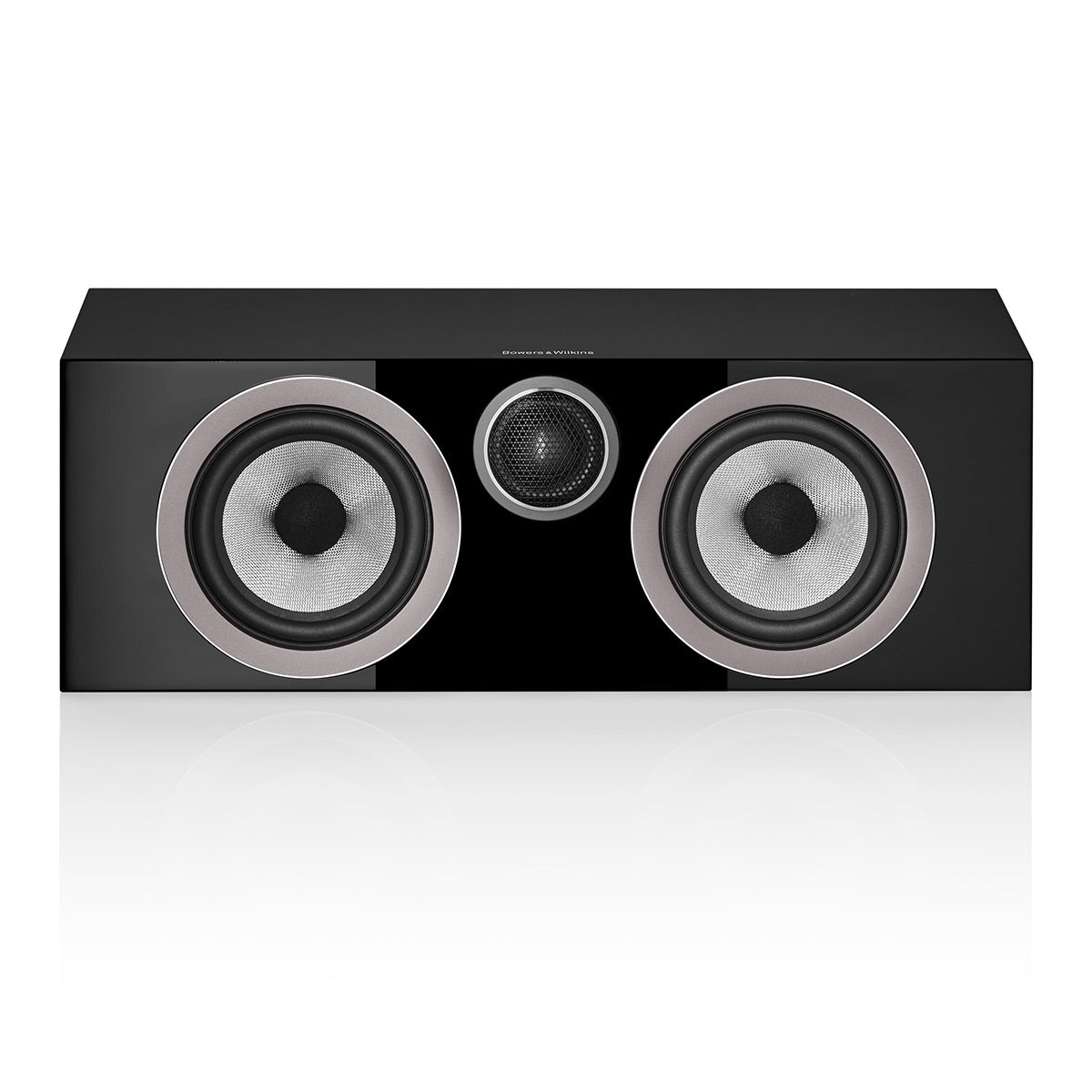

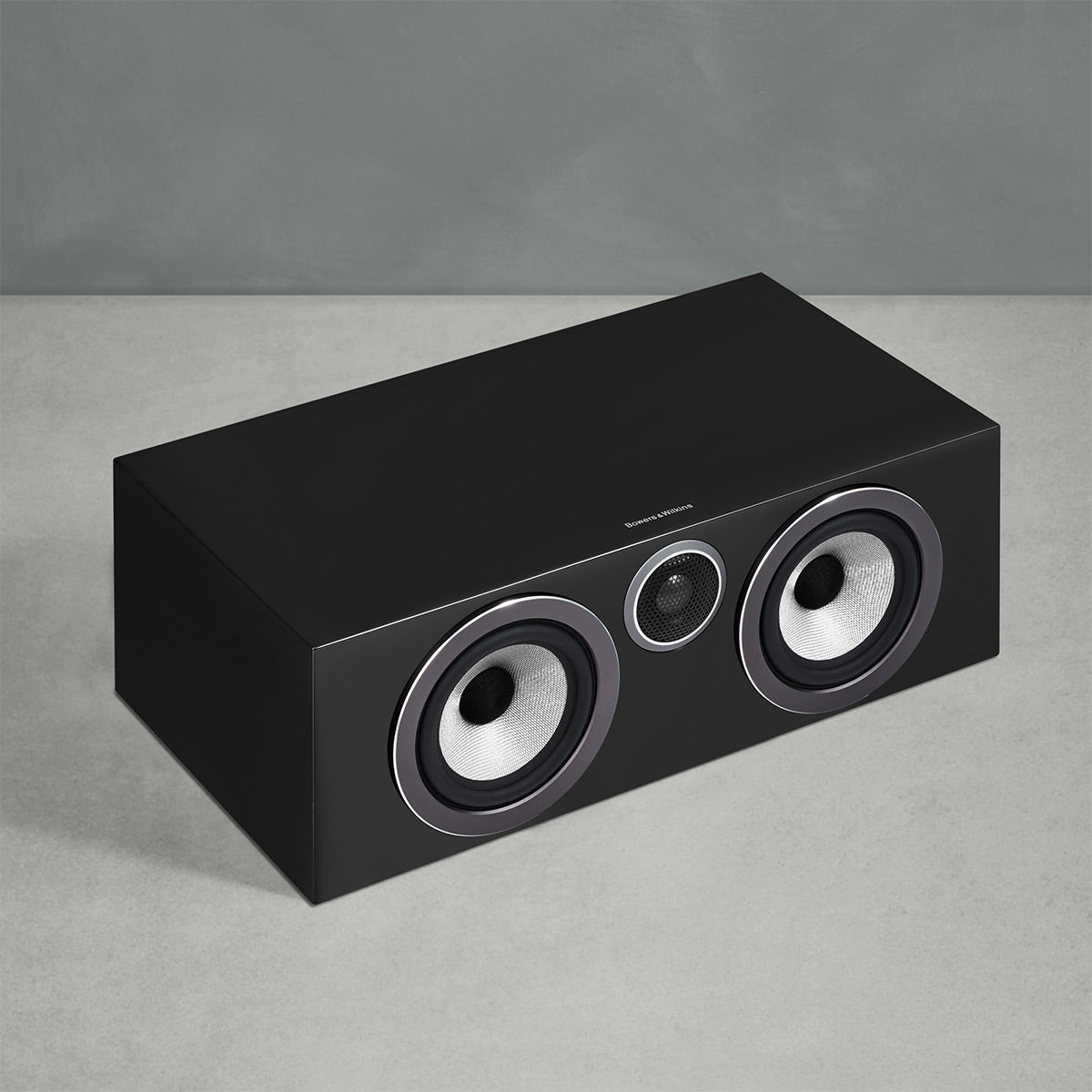

Bowers & Wilkins HTM72 S3 2-Way Center Channel Speaker (Gloss Black)

Regular price $1,499.00
Sale price $1,499.00 Regular price
Save $-1,499.00 (%)
OR

In Stock - Local Pickup Only
Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: FP43222 | UPC: 714346339310

Specifications

What's In The Box

Product Information

Model: FP43222 | UPC: 714346339310

Studio Sound Comes Home

HTM72 S3 is the more compact centre channel speaker in the new 700 Series. It features a Carbon Dome tweeter and twin Continuum cone Mid/Bass drivers. It’s the perfect partner for a home theatre system based around the 704 S3, 706 S3 or 707 S3.

Carbon Dome Tweeters

Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double-dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

Biomimetic Suspension

Sometimes, making a big difference takes unconventional thinking. The transition from Bowers & Wilkins' famous yellow Aramid Fiber midrange cones to Continuum Cone technology resulted in a massive improvement to midrange performance. Now, they turned their attention to another crucial element in a loudspeaker cone: the fabric spider. The new Biomimetic Suspension revolutionizes midrange cone performance by greatly reducing the unwanted air pressure and coloration that a conventional fabric spider can generate. The result? Midrange transparency you wouldn’t believe possible.

Continuum™ Cone

Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

Decoupled Midrange Assembly

Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.

Aerofoil™ Profile Bass Cone

Developed using advanced computer modeling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.

Curved Baffle

The new 700 Series features a curved front baffle for the first time. This allows the midrange and bass drivers to be located in individual pod-type housings that sit proud of the speaker baffle. When combined with the curvature of the structure, this new approach – derived from the 800 Series Diamond – reduces the audible impact of the cabinet, creating a cleaner, more open and more immersive sound.

Specifications

  • Description: 2-way vented-box system
  • Drive units
    • 1x ø25mm (1in) Decoupled Carbon Dome high-frequency
    • 2x ø130mm (4in) Continuum cone bass / midrange
  • Frequency range: 48Hz to 33kHz
  • Frequency response (+/-3dB from reference axis): 70Hz - 28kHz
  • Sensitivity (on axis at 2.83Vrms at 1m): 87dB
  • Harmonic distortion
    • 2nd and 3rd harmonics (90dB, 1m on axis)
    • <1% 100Hz - 22kHz
    • <0.5% 200Hz - 22kHz
  • Nominal impedance: 8Ω (minimum 4.3Ω)
  • Recommended amplifier power: 30W - 120W into 8Ω on unclipped program
  • Max. recommended cable impedance: 0.1Ω
  • Dimensions (W x H x D)
    • Cabinet only: 6.5” x 18.8” x 10.5”
    • Including grille and terminals: 6.5” x 18.8” x 11.9”
  • Net weight: 21.3 lbs

What's In The Box

  • HTM72 S3 2-Way Center Channel Speaker

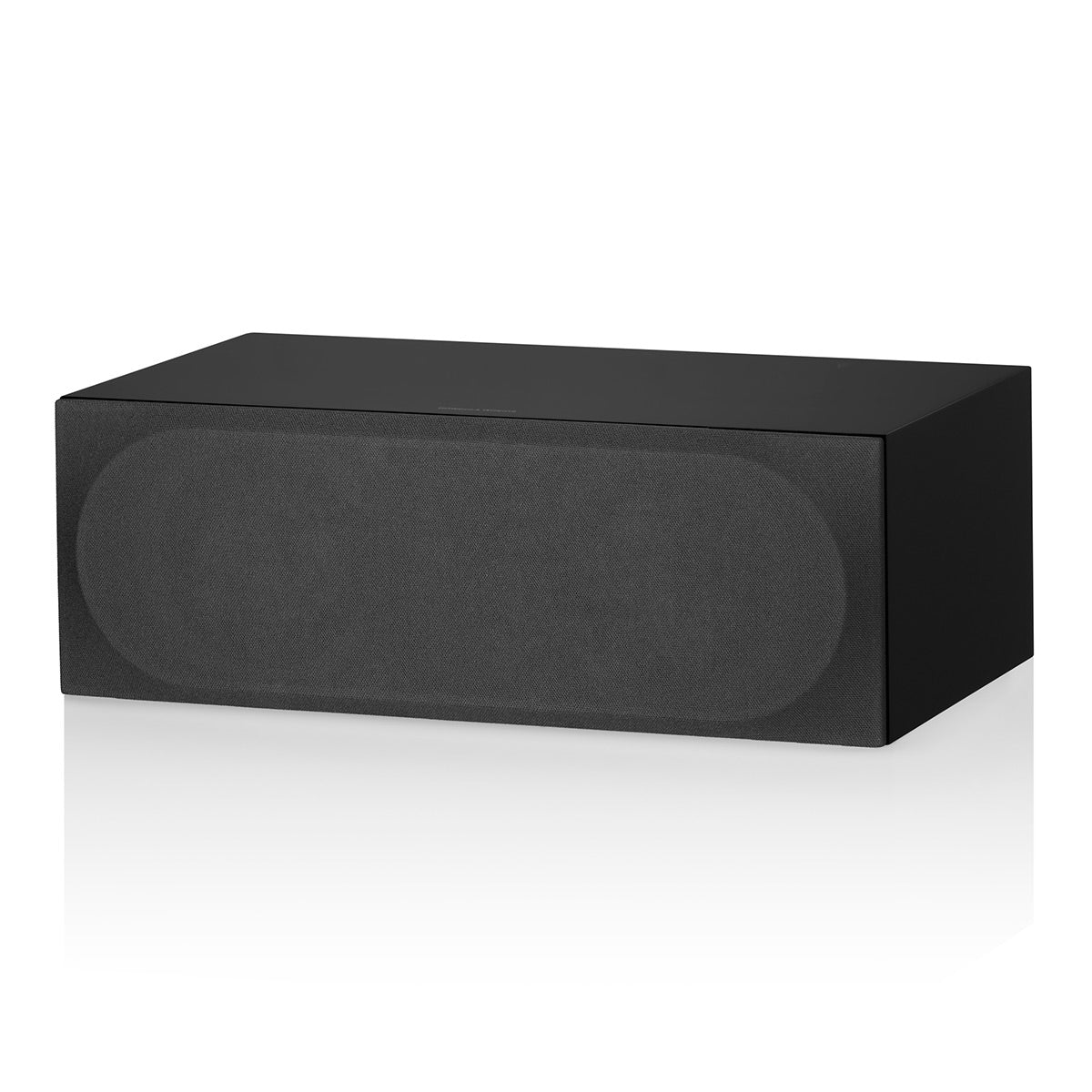

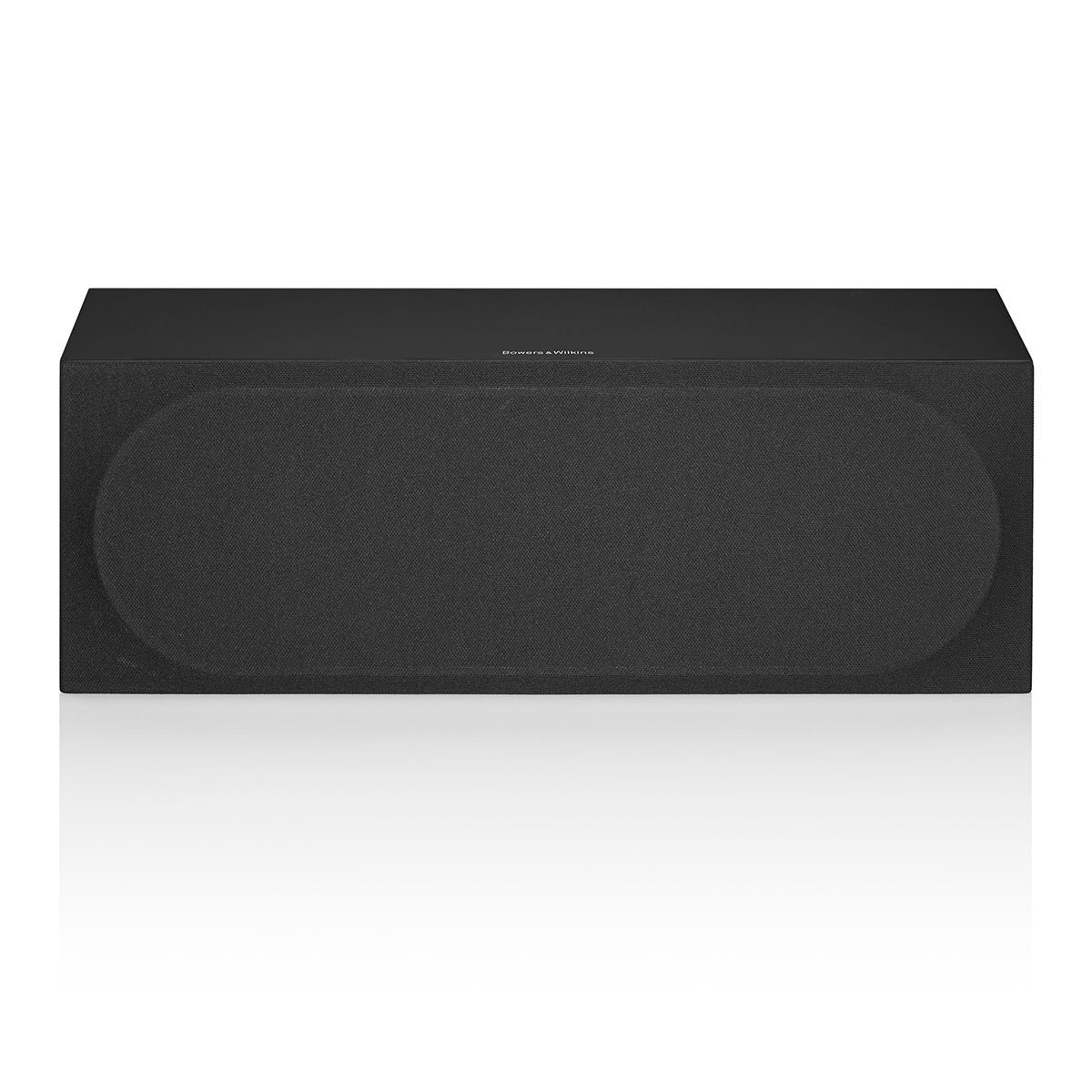

  • Grille
  • Literature Pack
  • Foam Plug
  • Self-adhesive Rubber Feet
