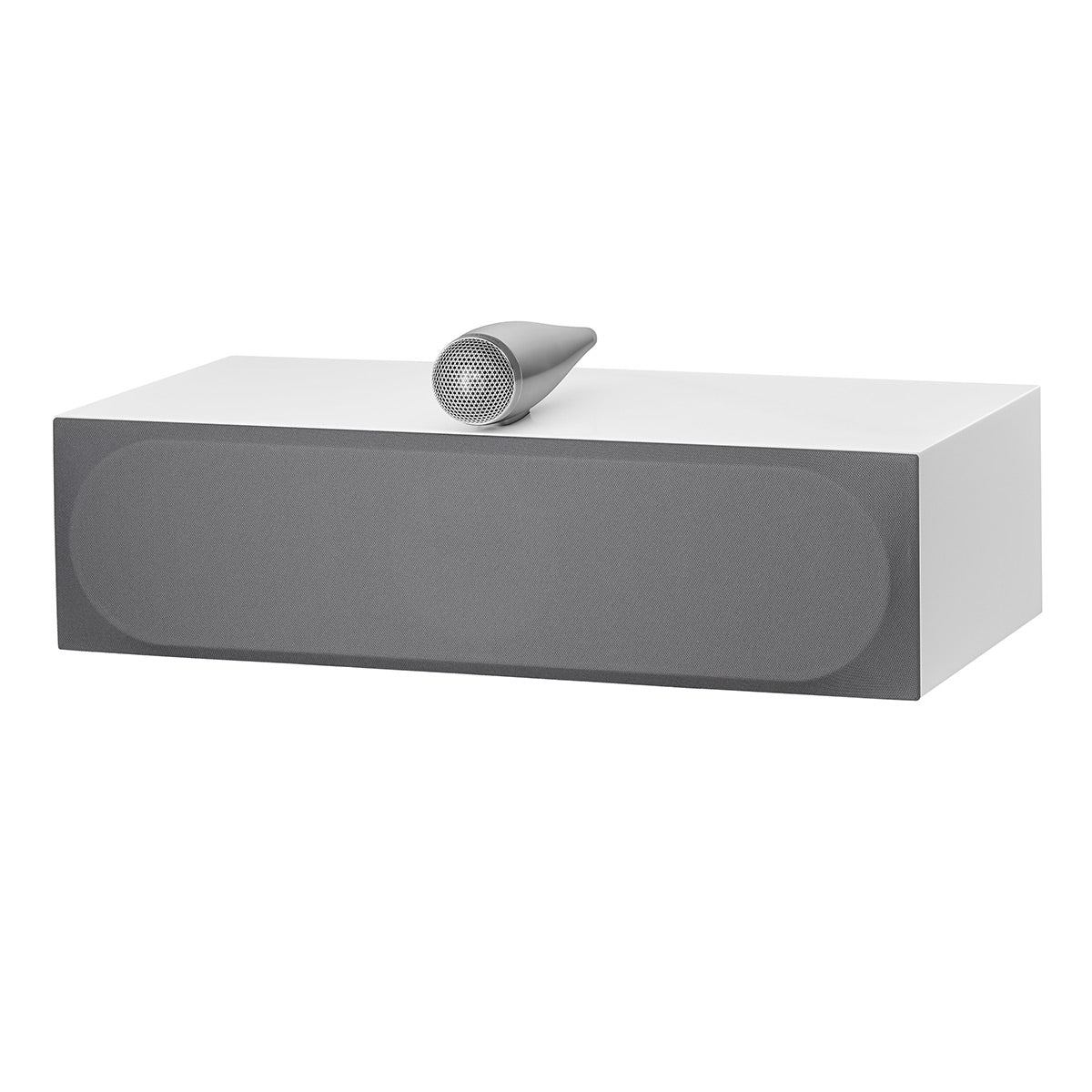

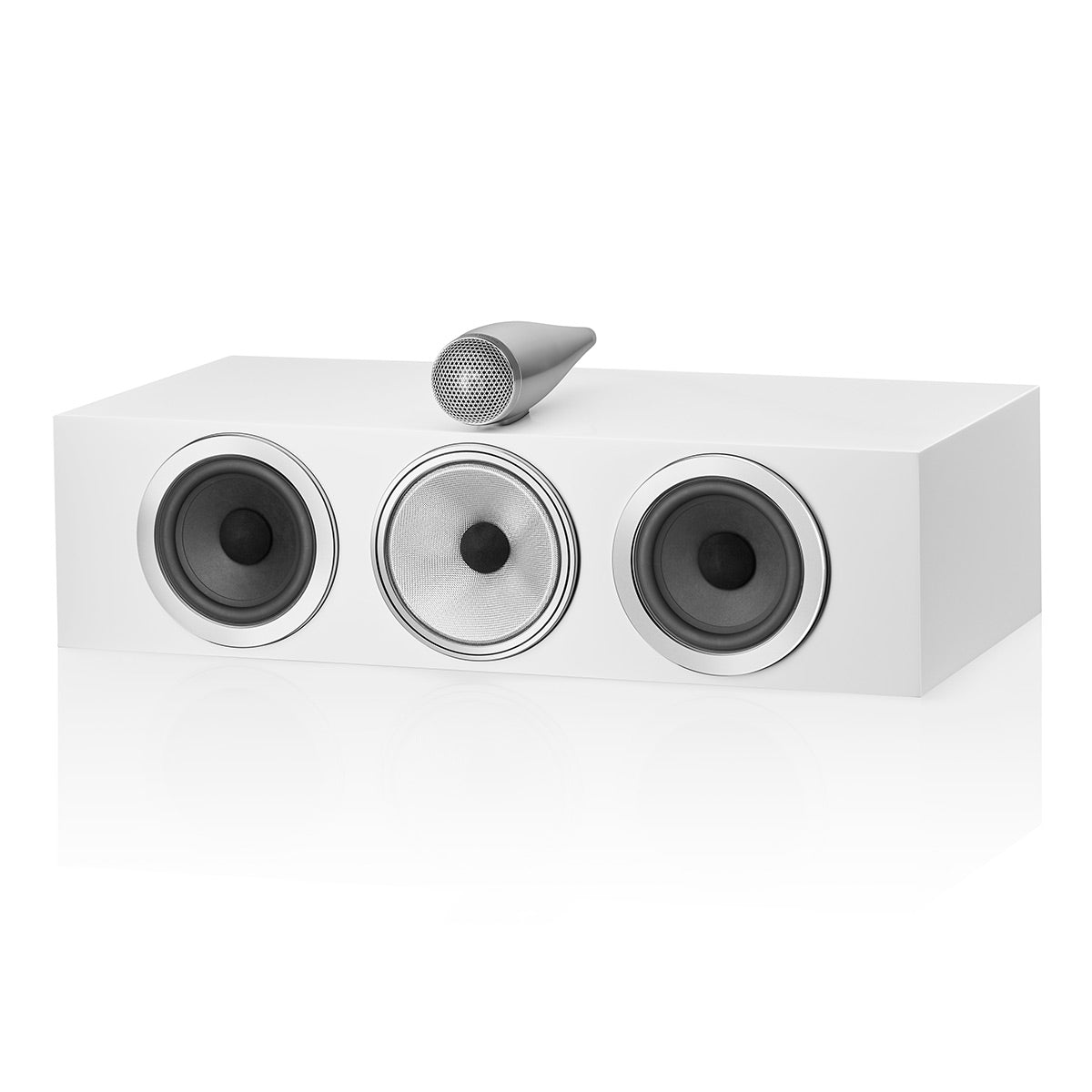

Bowers & Wilkins HTM71 S3 3-Way Center Channel Speaker (Satin White)
Overview
Product Information
Specifications
What's In The Box
Product Information
Studio Sound Comes Home
Bowers & Wilkins’ flagship center-channel loudspeaker, the HTM71 S3 features a Carbon Dome drive unit housed in a Tweeter-On-Top enclosure, making it the perfect match for its 705 S3, 703 S3, and 702 S3 stablemates. This approach allows for outstanding integration and an even-more-immersive listening experience across Bowers & Wilkins' premium 700 Series-based surround sound systems. The HTM71 S3 also features an all-new 130mm (5in) Continuum Cone FST™ midrange driver complete with Bowers & Wilkins' Biomimetic Suspension – particularly important for clarity with dialogue.
Solid Body Tweeter
The 700 Series features the latest generation of Bowers & Wilkins' iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.
Carbon Dome Tweeters
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double-dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Biomimetic Suspension
Sometimes, making a big difference takes unconventional thinking. The transition from Bowers & Wilkins' famous yellow Aramid Fiber midrange cones to Continuum Cone technology resulted in a massive improvement to midrange performance. Now, they turned their attention to another crucial element in a loudspeaker cone: the fabric spider. The new Biomimetic Suspension revolutionizes midrange cone performance by greatly reducing the unwanted air pressure and coloration that a conventional fabric spider can generate. The result? Midrange transparency you wouldn’t believe possible.
Continuum™ Cone
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Decoupled Midrange Assembly
Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.
Aerofoil™ Profile Bass Cone
Developed using advanced computer modeling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
Curved Baffle
The new 700 Series features a curved front baffle for the first time. This allows the midrange and bass drivers to be located in individual pod-type housings that sit proud of the speaker baffle. When combined with the curvature of the structure, this new approach – derived from the 800 Series Diamond – reduces the audible impact of the cabinet, creating a cleaner, more open and more immersive sound.
Specifications
- Description: 3-way vented-box system
- Drive units
- 1x ø25mm (1in) Decoupled Carbon Dome high-frequency
- 1x ø130mm (5in) Continuum cone FST midrange
- 2x ø130mm (5in) Aerofoil Profile bass
- Frequency range: 45Hz to 33kHz
- Frequency response (+/-3dB from reference axis): 50Hz - 28kHz
- Sensitivity (on axis at 2.83Vrms at 1m): 89dB
- Harmonic distortion
- 2nd and 3rd harmonics (90dB, 1m on axis)
- <1% 90Hz - 22kHz
- <0.5% 120Hz - 20kHz
- Nominal impedance: 8Ω (minimum 3.0Ω)
- Recommended amplifier power: 30W - 200W into 8Ω on unclipped program
- Max. recommended cable impedance: 0.1Ω
- Dimensions (W x H x D)
- Cabinet only: 24.7” x 6.5” x 12.5”
- Including grille, terminals, and tweeter: 24.7” x 9.2” x 14”
- Net weight: 38.5 lbs
What's In The Box
- HTM71 S3 3-Way Center Channel Speaker
- Grille
- Literature Pack
- Foam Plug
- Self-adhesive Rubber Feet
