Bowers & Wilkins CWM652 5" In-Wall Speakers - Pair

Regular price $850.00
Sale price $850.00 Regular price
$0.00 Save $-850.00 (%)
OR

Trade In Your Gear

Get a personalized trade-in estimate within 48 hours and apply it toward your next premium upgrade.

Request Trade-In Quote
Trade In Your Gear

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Bowers & Wilkins CWM652 Overview

Product Information

Model: FP29653 | UPC: 714346310418

Specifications

What's In The Box

Product Documents

Product Information

Model: FP29653 | UPC: 714346310418

High-Fidelity Two-Way Design

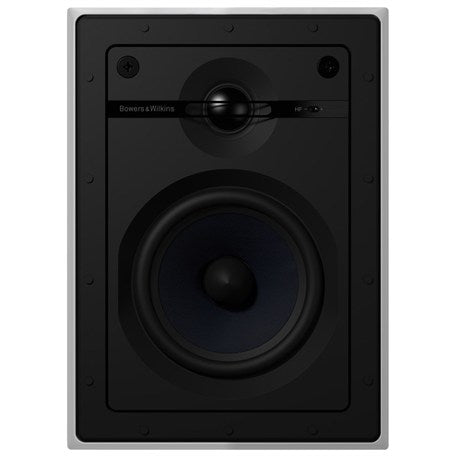

The Bowers & Wilkins CWM652 is a premium two-way in-wall speaker engineered to deliver clear, detailed sound for both music and home theater systems. Its 5" Kevlar® bass/midrange driver and 1" aluminum dome tweeter with Nautilus™ tube loading provide fast, controlled bass and smooth, accurate high frequencies.

Advanced Driver Technology

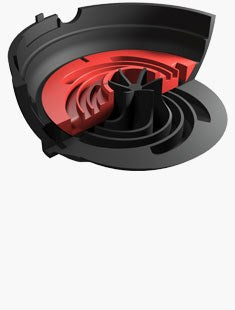

A rigid die-cast driver chassis minimizes unwanted resonance, resulting in cleaner bass and more articulate midrange performance. The tweeter’s Nautilus™ tube design absorbs excess energy behind the diaphragm, reducing distortion and improving detail and clarity.

Customizable Sound

A three-position high-frequency switch allows you to fine-tune the speaker’s treble response to match your room’s acoustics, ensuring balanced performance whether the space is lively, neutral, or dampened.

Easy Installation

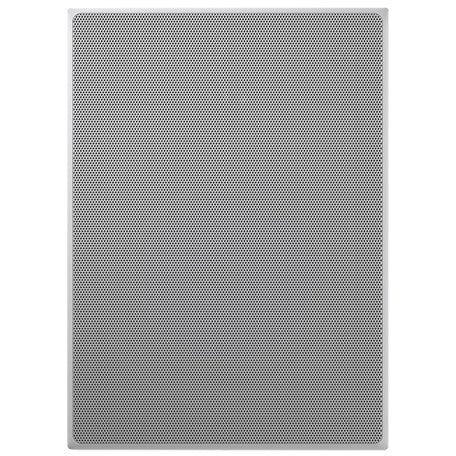

The CWM652 uses Bowers & Wilkins’ QuickDogs™ fixing system for fast, secure mounting and includes a plug-and-play frame that simplifies setup. Its paintable magnetic grille blends seamlessly into any room for an unobtrusive look.

Broad Frequency & System Compatibility

With a wide operating range and 86 dB sensitivity, the CWM652 works well with a variety of amplifiers and provides balanced, room-filling sound across the full audio spectrum, making it versatile for stereo or surround applications.

Discreet Aesthetics

A slim bezel and low-profile, paintable grille allow the CWM652 to disappear visually into the wall while maintaining high performance, making it ideal for design-conscious installations.

Specifications

  • Drive units
    • 1x 1" Nautilus tube loaded aluminum dome tweeter
    • 1x 5" blue Kevlar cone bass/midrange
  • Frequency range (-6dB): 54Hz - 50kHz
  • Maximum amp power: 25 - 100W
  • Sensitivity SPL (2.83V, 1m): 86dB
  • Impedance nominal (min): 8Ω (4.5Ω)
  • Frame dimensions (H x W): 10.9" x 7.5"
  • Cut-out dimensions (H x W): 9" x 6"
  • Depth behind surface: 3.7"
  • Protrusion: 0.2"

What's In The Box

  • CWM652 5" In-Wall Speakers - Pair
  • CWM6 Series speaker assembly (baffle, frame, grille)
  • Cut-out template
  • Paint mask
  • Document pack containing Quick Start Guide and Warranty information
