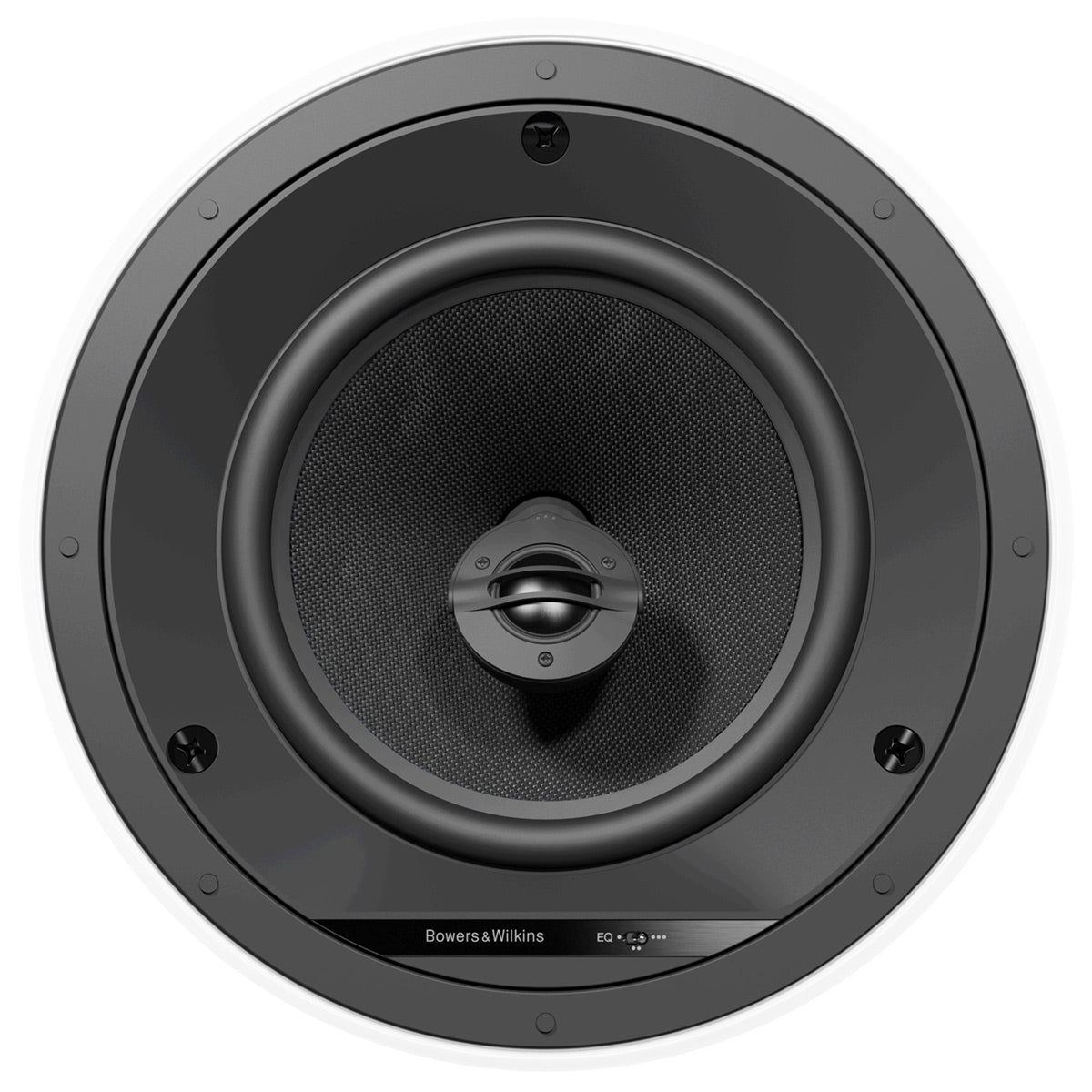

The entry point among the CI 600 range of 8in in-ceiling speakers, the two-way CCM684 features a 200mm (8in) woven glass fiber cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. As with the other 8in speakers in the range, the tweeter housing pivots for adjustable off-axis treble response. It also comes with an EQ switch, as well as QuickDogsTM and a plug-and-play functionality for easy installation.
- Description: 2-way in-ceiling system
- Drive Units: 1x 25mm (1in) soft dome tweeter, 1x 200mm (8in) black glass fiber cone bass/midrange
- (-6dB): 35Hz 35kHz
- Recommended Amp Power: 25 130w
- Sensitivity SPL (2.83V, 1m): 88dB
- Impedance Nominal (min): 8ohms (4.5ohms)
- Frame diameter: 290mm (11.4in)
- Cut-out diameter: 250mm (9.8in)
- Depth behind surface: 133mm (5.2in)
- Protrusion: 4mm (0.2in)
- : C8
- Back Box: 6C
