Bowers & Wilkins CCM662 6" In-Ceiling Speaker - Each

Regular price $700.00
Sale price $700.00 Regular price
Save $-700.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, May 21 – Tue, May 28

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: FP29564 | UPC: 714346311644

What's In The Box

Product Information

Model: FP29564 | UPC: 714346311644

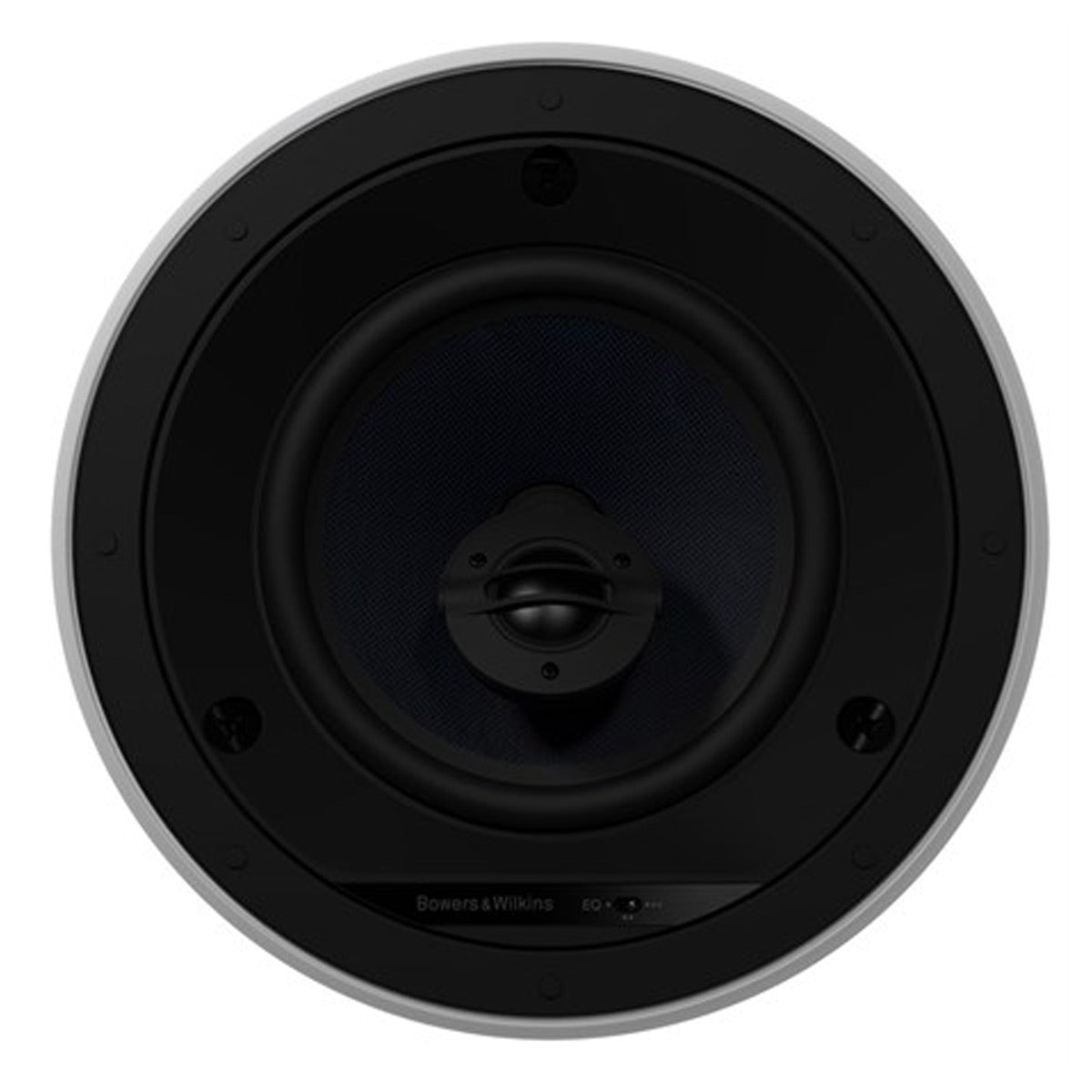

CCM662 6" In-Ceiling Speaker

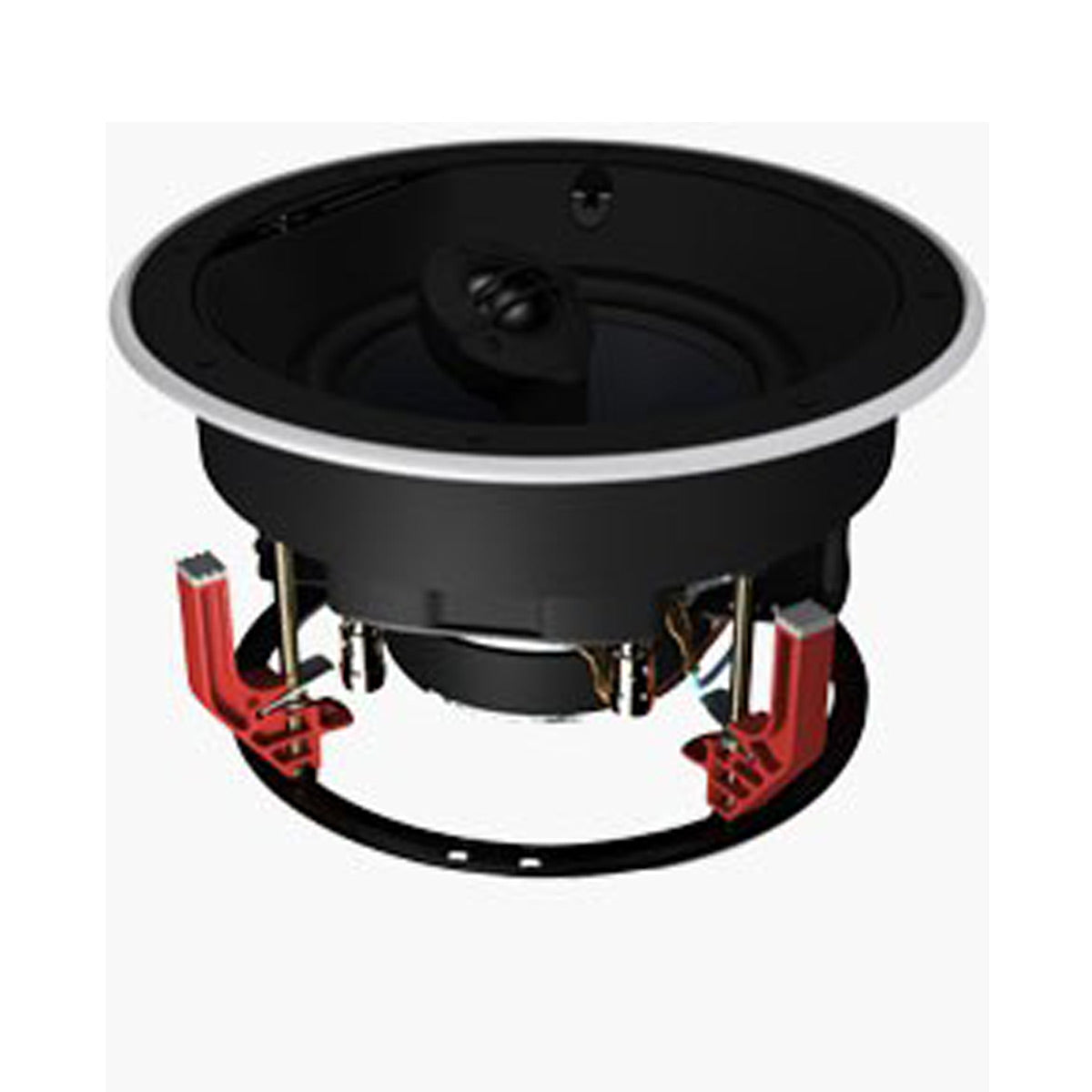

The top 6" in-ceiling speaker in the CI 600 series. This high-performance speaker features a Nautilus swirl-loaded 25mm (1") aluminium dome tweeter that pivots for adjustable off-axis treble response. Other highlights include a bass/midrange driver with a rigid die-cast chassis, a three-position EQ switch, superior crossover components, gold plated terminals and an impressive maximum amp power of 150W. Installation couldn’t be easier, thanks to their QuickDogs fixing system and plug-and-play connection.



CCM662 Specifications:

  • Description: 2-way in-ceiling system
  • Drive Units: 1x @ 25mm (1in) Nautilus swirl loaded aluminium dome tweeter; 1x @ 150mm (6in) blue Kevlar cone bass/midrange
  • Frequency Range (-6dB): 45Hz – 50kHz
  • Recommended Amp Power: 25 – 150w
  • Sensitivity SPL (2.83V, 1m): 88dB
  • Impedance Nominal (min): 8 ohms (4.5 ohms)
  • Frame Diameter: 240mm (9.5in)
  • Cut-out Diameter: 202mm (8in)
  • Depth Behind Surface: 133mm (5.2in)
  • Protrusion: 4mm (0.2in)
  • Pre-mount Kit: C6
  • Back Box: 6C

What's In The Box

  • CCM Series speaker assembly (baffle, frame, and bezel, grille)
  • Cut-out template
  • Paint mask
  • Document pack containing Quick Start Guide and Warranty information
