Bowers & Wilkins

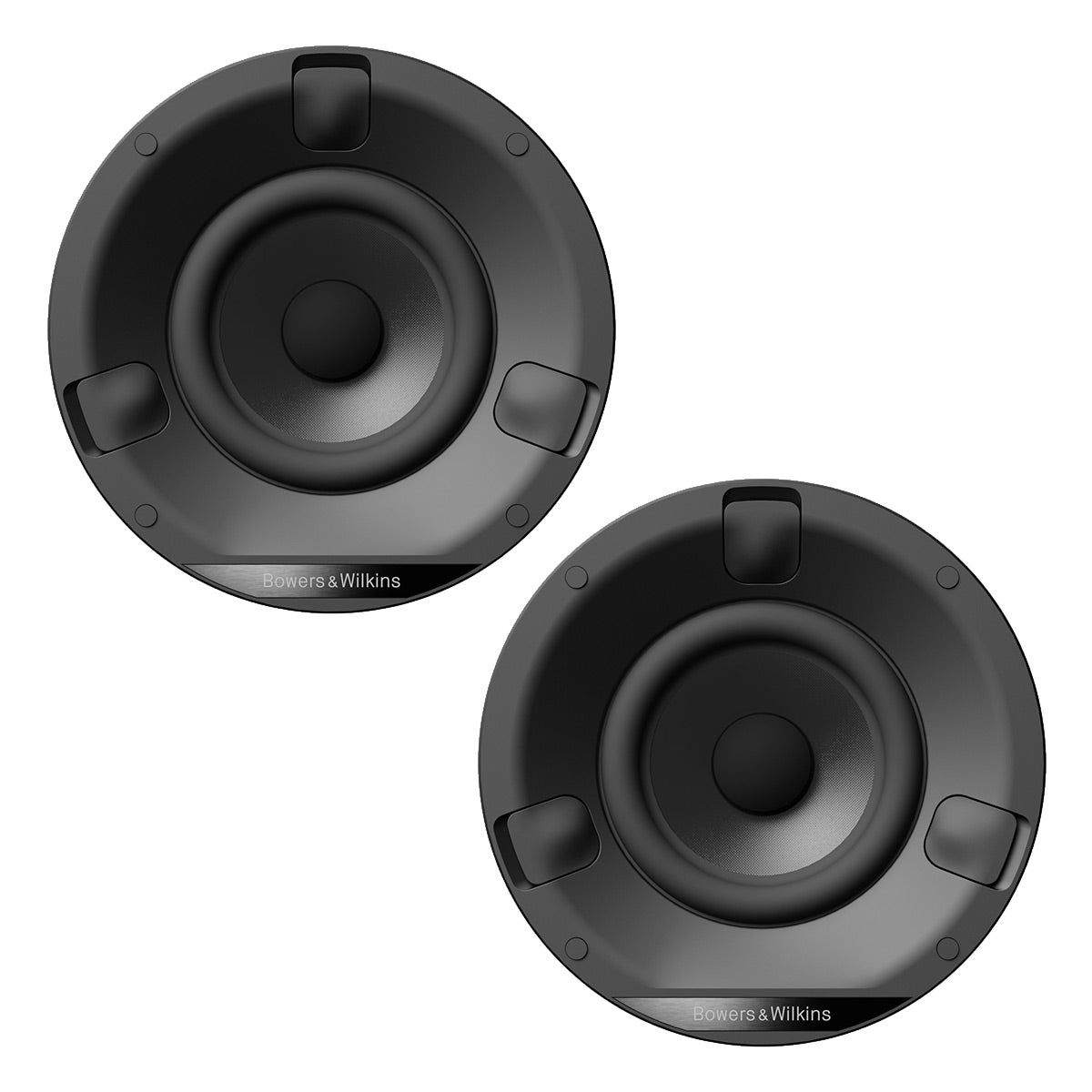

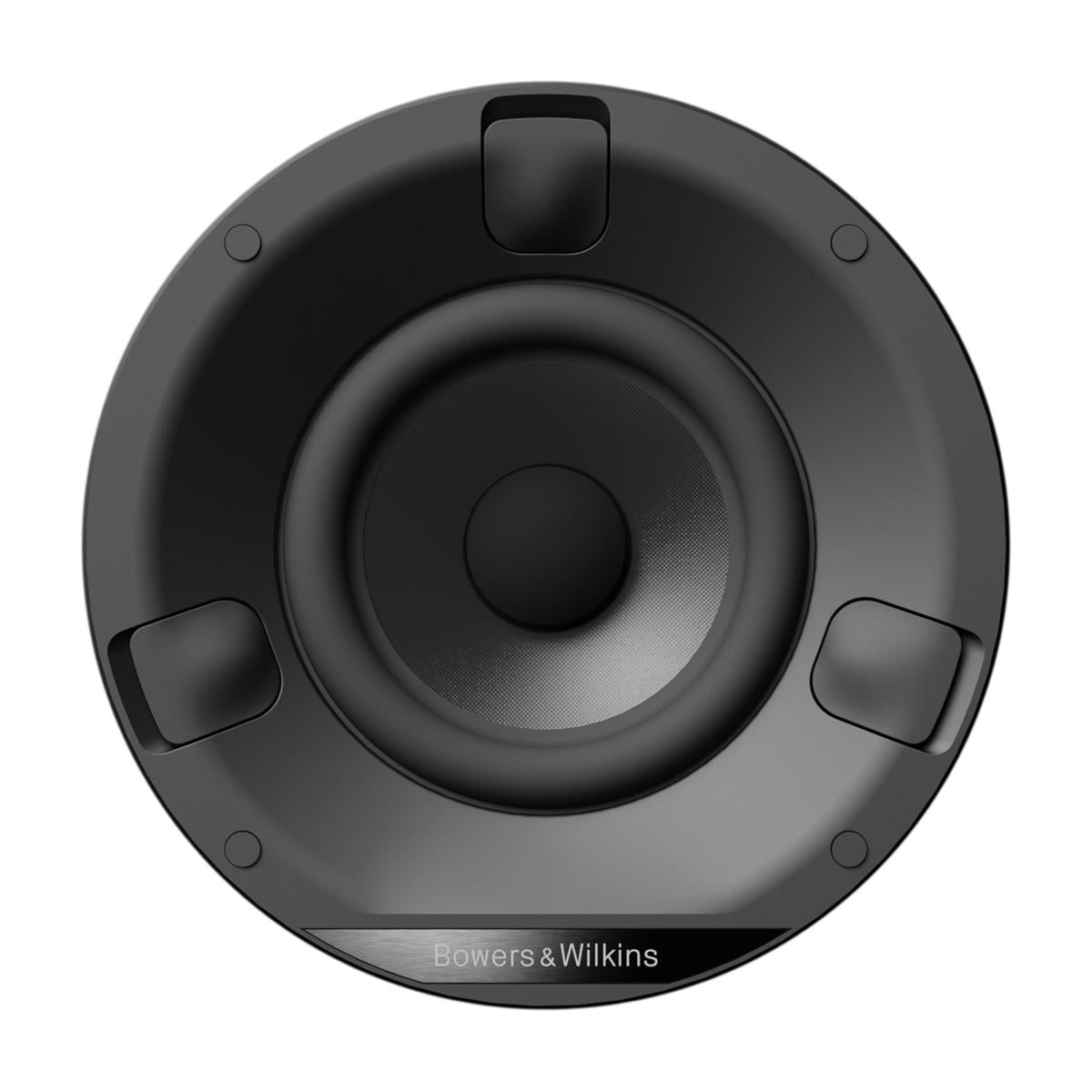

Bowers & Wilkins CCM632 CI Series 3" In-Ceiling Speakers - Pair

Regular price $700.00
Sale price $700.00 Regular price
Save $-700.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: FP37613 | UPC: 714346323807

What's In The Box

Product Documents

Product Information

Model: FP37613 | UPC: 714346323807

Bowers & Wilkins' CCM632 is an in-ceiling speaker designed to deliver a full range of sound at high quality in a very small space.

Getting small install speakers right is hard. They're great for tight squeezes or satellite placement. But usually either the bass is too mild or the mid-range suffers thanks to the tweeter placed in front of it.Bowers & Wilkins' CCM632 squeezes a full-range driver with beautifully well-balanced sound into a 150mm diameter install space. The space taken may be small, the sound is anything but.Bowers & Wilkins' CCM632 features an integral enclosure to avoid acoustic bleed. And they are simple to install in a wide variety of places, and will work in almost any panel thickness.



Bowers & Wilkins CCM632 In-Ceiling Speaker Specifications:

  • Description: Single driver in-ceiling system
  • Drive Units: 1x @ 75mm (3 in) paper cone full-range
  • Frequency Range (-6dB): 100Hz – 17kHz
  • Frequency Response (+/-3dB): 112Hz - 16kHz
  • Recommended Amplifier Power: 10W – 60W
  • Sensitivity: 84dB (2.83V, 1m)
  • Nominal Impedance: 8 ohms (5 ohms minimum)
  • Frame: @ 147mm (5.8 in)
  • Cut-out: @ 120mm (4-3/4 in)
  • Depth Behind Surface: 100mm (4 in)
  • Protrusion: 5.5mm (0.22 in)
  • Pre-mount Kit: PMK C3
  • Back Box: Integral
  • Grille Options: Square and round grilles included

What's In The Box

  • CCM632 CI Series 3" In-Ceiling Speakers - Pair
  • CCM Series speaker assembly (baffle, frame, and bezel, grille)
  • Cut-out template
  • Paint mask
  • Document pack containing Quick Start Guide and Warranty information
