Bowers & Wilkins

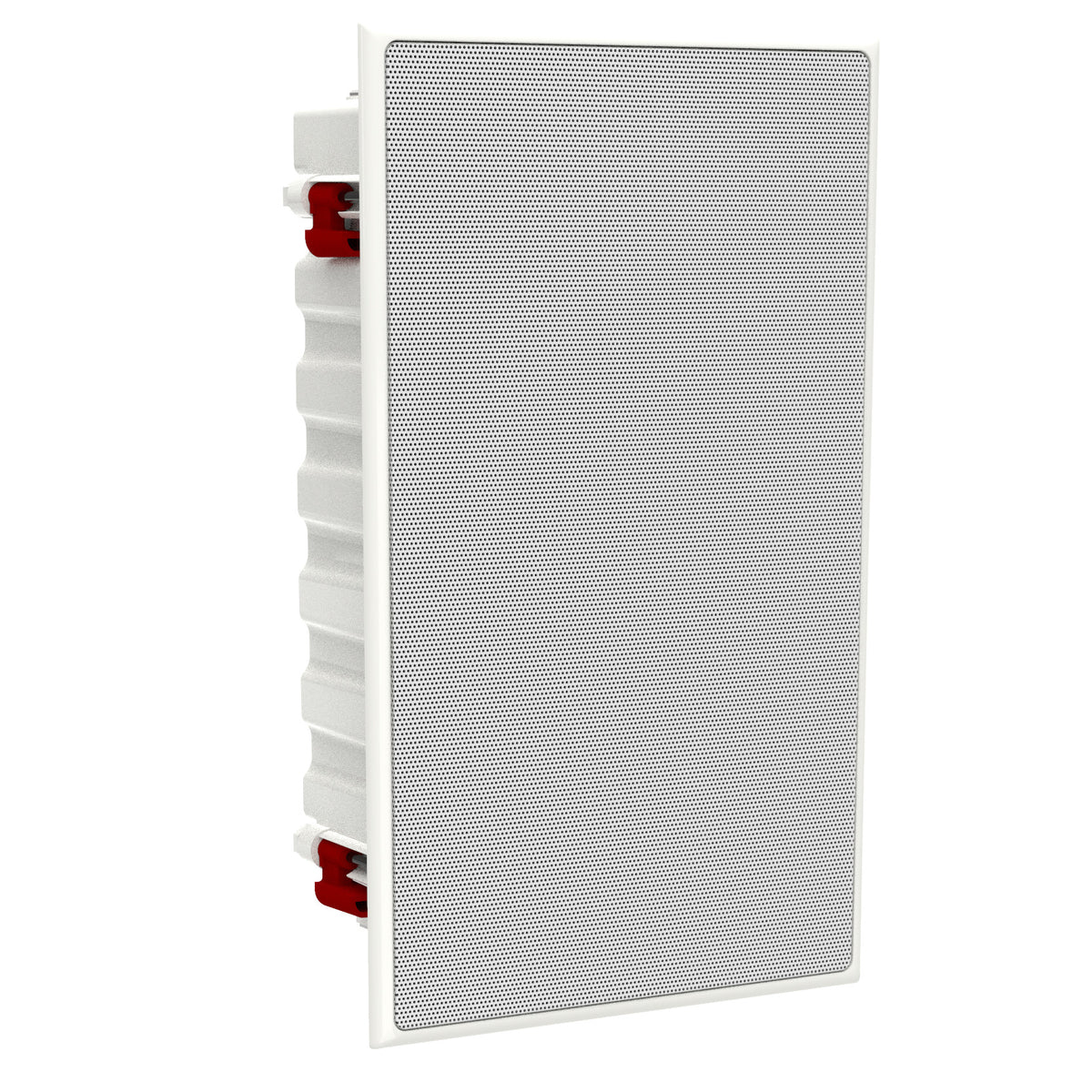

Bowers & Wilkins Bowers & Wilkins CWM7.5S2 In Wall Speaker - Each

Regular price $1,000.00
Sale price $1,000.00 Regular price
Save $-1,000.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: FP41106 | UPC: 714346332168

Specifications

What's In The Box

Product Documents

Product Information

Model: FP41106 | UPC: 714346332168

See nothing, hear everything

The CWM7.5 shares the acoustic configuration of the 707 S2 and like its sibling, it houses a 130mm (5in) bass/mid-range Continuum cone driver plus a 25mm (1in) Carbon Dome tweeter, coupled to a forward-firing FlowportTM for outstanding bass response from a relatively small  footprint. It has a critically formed baffle constructed from glass reinforced ABS plus its own integrated backbox, ensuring retrofittable installation plus optimum performance. It’s an outstanding performer when used in stereo or multi-room installations, and is equally at home as the rear speaker in a larger theatre application.

Specifications

  • Drive units:
    • 1x ø25mm (1 in) Carbon Dome high-frequency
    • 1x ø130mm (5 in) Continuum cone mid/bass
  • Frequency range: (-6dB) -6dB at 43Hz and 33kHz
  • Frequency Response: -3dB 45Hz - 28kHz ±3dB
  • Sensitivity: 86dB spl (2.83Vrms, 1m)
  • Harmonic distortion: 2nd and 3rd harmonics (90dB, 1m)
    • <1% 90Hz - 33kHz
    • <0.5% 120Hz - 33kHz
  • Nominal impedance: 8Ω (minimum 3.8Ω)
  • Recommended amplifier power: 25W - 150W into 8Ω on unclipped programme
  • Frame height: 356mm (14in)
  • Frame width: 212mm (8.5in)
  • Depth: (behind surface) 102mm (4in)
  • Cut-out height: 331mm (13in)
  • Cut-out width: 187mm (7.4in)
  • Cut-out height w/PMK: 336mm (13.2in)
  • Cut-out width w/PMK: 192mm (7.6in)
  • Reservoir box height: 385mm (15.2in)
  • Reservoir box width: 181mm (7.1in)
  • Protrusion: 8mm (0.32in)
  • PMK: 7.5W
  • Net weight: 3.8kg (8.38 lb)

What's In The Box

  • Speaker
  • Integrated back box
