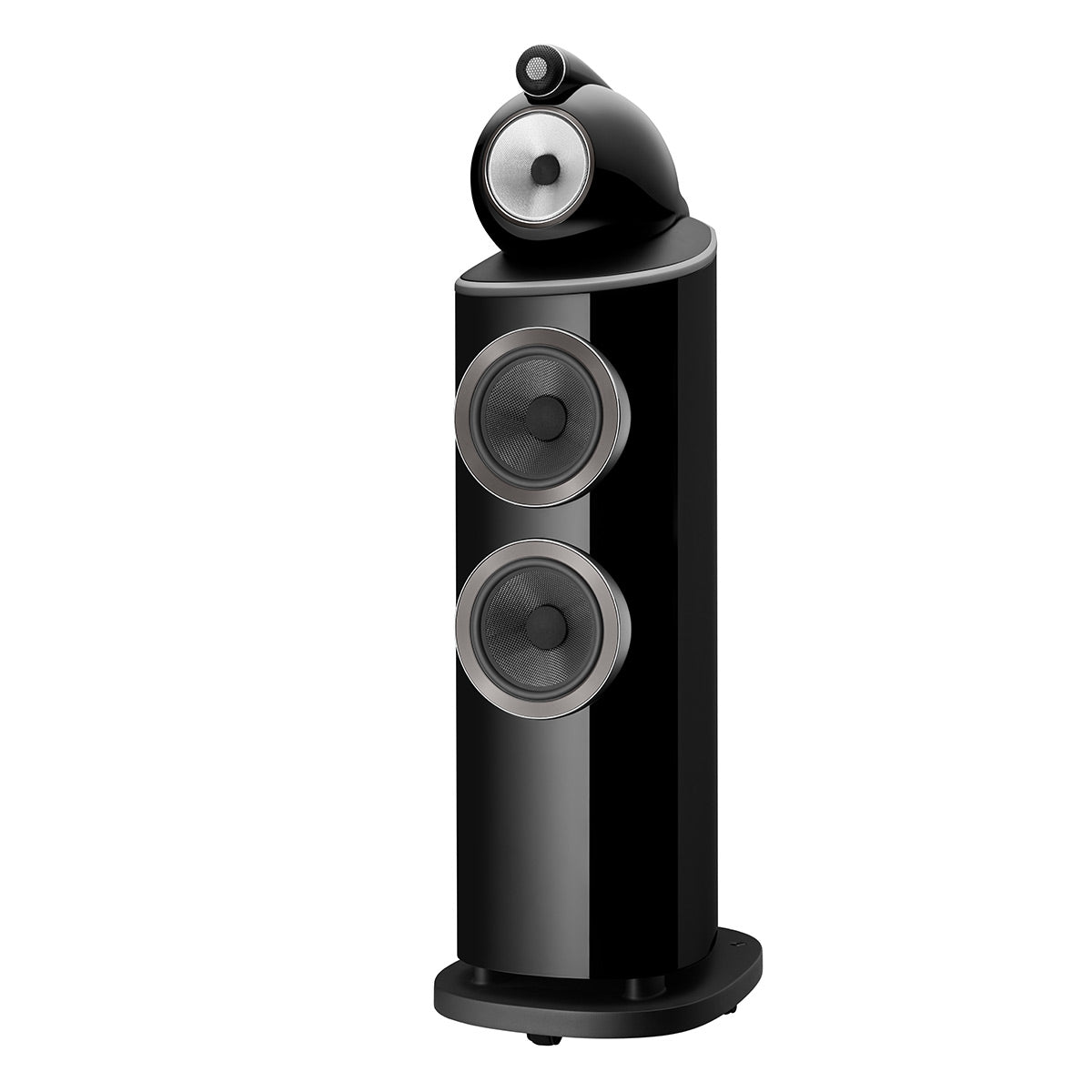

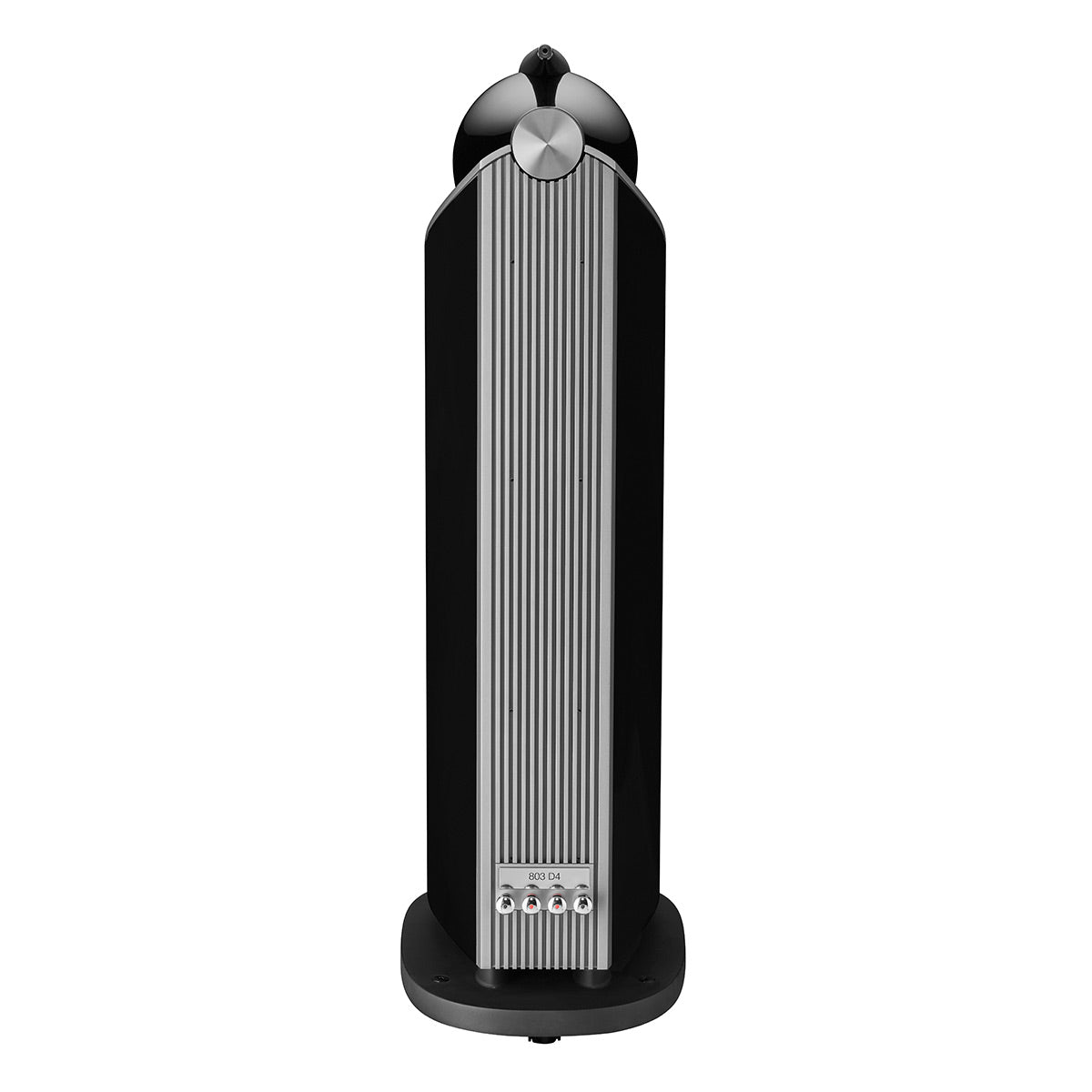

Bowers & Wilkins 803 D4 3-Way Floorstanding Speaker - Each (Gloss Black)
Overview
Product Information
Specifications
What's In The Box
Product Information
Excellence. Evolved.
This is not just another speaker range. Each new generation of 800 Series Diamond is a landmark event for Bowers & Wilkins. This is their benchmark, their icon; the most advanced range of loudspeakers they know how to make. For Bowers & Wilkins, the 800 Series Diamond is everything they know, and everything they are.
The most compact-headed model brings all of the technical advantages of a dedicated midrange enclosure to a smaller footprint that's easily accommodated in any home. Small doesn't mean compromised, either; 803 D4 still bristles with technical innovation throughout.
Features:
- Diamond tweeter
- Solid-body Tweeter-on-Top
- Continuum cone FST™
- Anti-Resonance plug
- Biomimetic Suspension
- Turbine Head
- Matrix™
- Aerofoil cone bass units
- Flowport™
Biomimetic Suspension
The all-new Biomimetic Suspension revolutionizes midrange cone performance by greatly reducing the unwanted air pressure and coloration that a conventional fabric spider can generate. The result? Midrange transparency you wouldn't believe possible.
Aluminum Bass Pods
803 D4 mounts two Aerofoil bass cones in aluminum bass pods, each of which is clamped into an internal aluminum plate fixed to the stiffest part of its cabinet. Formed as single pieces of metal, these structures provide the perfect location for clean, accurate bass.
Specifications
- Description: 3-way vented-box system
- Drive Units
- 1x 25mm (1 in) diamond dome high-frequency
- 1x 130mm (5 in) Continuum cone FST™ midrange
- 2x 180mm (7 in) Aerofoil cone bass units
- Frequency Range: 16Hz to 35kHz
- Frequency Response (+/- 3dB from reference axis): 19Hz to 28kHz
- Sensitivity (on axis at 2.83Vrms at 1m): 90dB
- Harmonic Distortion
- 2nd and 3rd harmonics (90dB, 1m on axis)
- <1% 80Hz - 20kHz
- <0.3% 100Hz - 20kHz
- Nominal Impedance: 8Ω (minimum 3.0Ω)
- Recommended Amplifier Power: 50W - 500W into 8Ω on unclipped program
- Max. Recommended Cable Impednace: 0.1Ω
- Dimensions (W x H x D): 14.05" x 45.87" x 20.12"
- Weight: 137.02 lbs
What's In The Box
- 1x Loudspeaker
- Literature Pack
