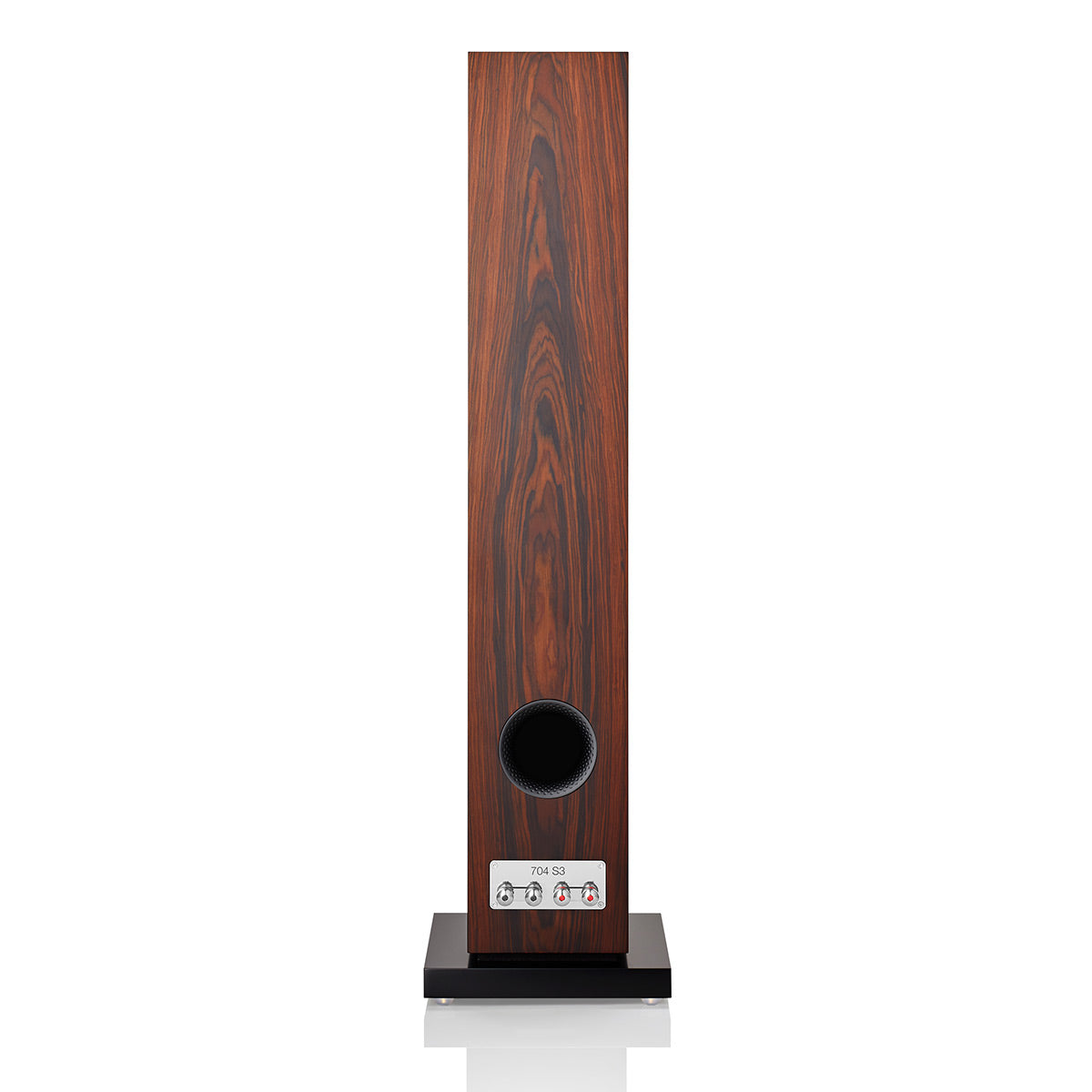

Bowers & Wilkins 704 S3 3-Way Floorstanding Speaker - Each (Mocha)
Overview
Product Information
Specifications
What's In The Box
Product Information
Studio Sound Comes Home
If space is at a premium, 704 S3 provides the answer. The slimmest floorstanding loudspeaker Bowers & Wilkins makes, it still packs a mighty punch, with its twin Aerofoil Profile bass drivers ensuring ample extension and scale. Thanks to its decoupled Continuum cone FST™ midrange driver – enhanced here with Bowers & Wilkins' Biomimetic Suspension – it’s capable of delivering crystal clear midrange performance.
Carbon Dome Tweeters
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double-dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Biomimetic Suspension
Sometimes, making a big difference takes unconventional thinking. The transition from Bowers & Wilkins' famous yellow Aramid Fiber midrange cones to Continuum Cone technology resulted in a massive improvement to midrange performance. Now, they turned their attention to another crucial element in a loudspeaker cone: the fabric spider. The new Biomimetic Suspension revolutionizes midrange cone performance by greatly reducing the unwanted air pressure and coloration that a conventional fabric spider can generate. The result? Midrange transparency you wouldn’t believe possible.
Continuum™ Cone
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Decoupled Midrange Assembly
Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.
Aerofoil™ Profile Bass Cone
Developed using advanced computer modeling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
Curved Baffle
The new 700 Series features a curved front baffle for the first time. This allows the midrange and bass drivers to be located in individual pod-type housings that sit proud of the speaker baffle. When combined with the curvature of the structure, this new approach – derived from the 800 Series Diamond – reduces the audible impact of the cabinet, creating a cleaner, more open and more immersive sound.
Specifications
- Description: 3-way vented-box system
- Drive units
- 1x ø25mm (1in) Decoupled Carbon Dome high-frequency
- 1x ø130mm (5in) Continuum cone FST midrange
- 2x ø130mm (6.5in) Aerofoil Profile bass
- Frequency range: 43Hz to 33kHz
- Frequency response (+/-3dB from reference axis): 48Hz - 28kHz
- Sensitivity (on axis at 2.83Vrms at 1m): 88dB
- Harmonic distortion
- 2nd and 3rd harmonics (90dB, 1m on axis)
- <1% 100Hz - 22kHz
- <0.5% 300Hz - 20kHz
- Nominal impedance: 8Ω (minimum 3.1Ω)
- Recommended amplifier power: 30W - 150W into 8Ω on unclipped program
- Max. recommended cable impedance: 0.1Ω
- Dimensions (W x H x D)
- Cabinet only: 6.5” x 36.4” x 10.4”
- Including plinth, tweeter, and terminals: 9.9” x 38” x 12.6”
- Net weight: 45.3 lbs
What's In The Box
- 704 S3 3-Way Floorstanding Speaker - Each
- Grille
- Plinth
- Literature Pack
- Foam Plug
- Accessory Pack (Spikes, Rubber Feet, Screws & Washer)
