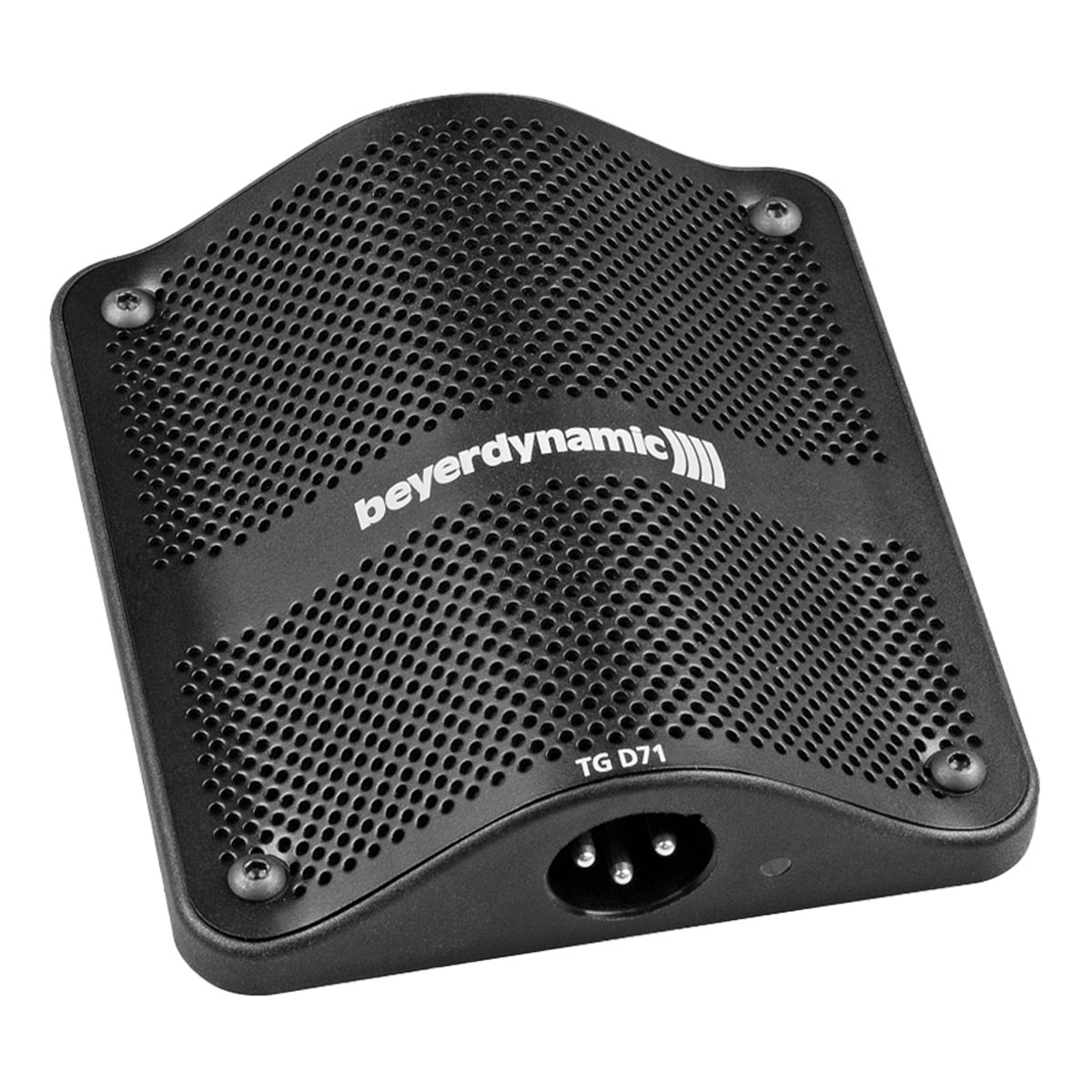

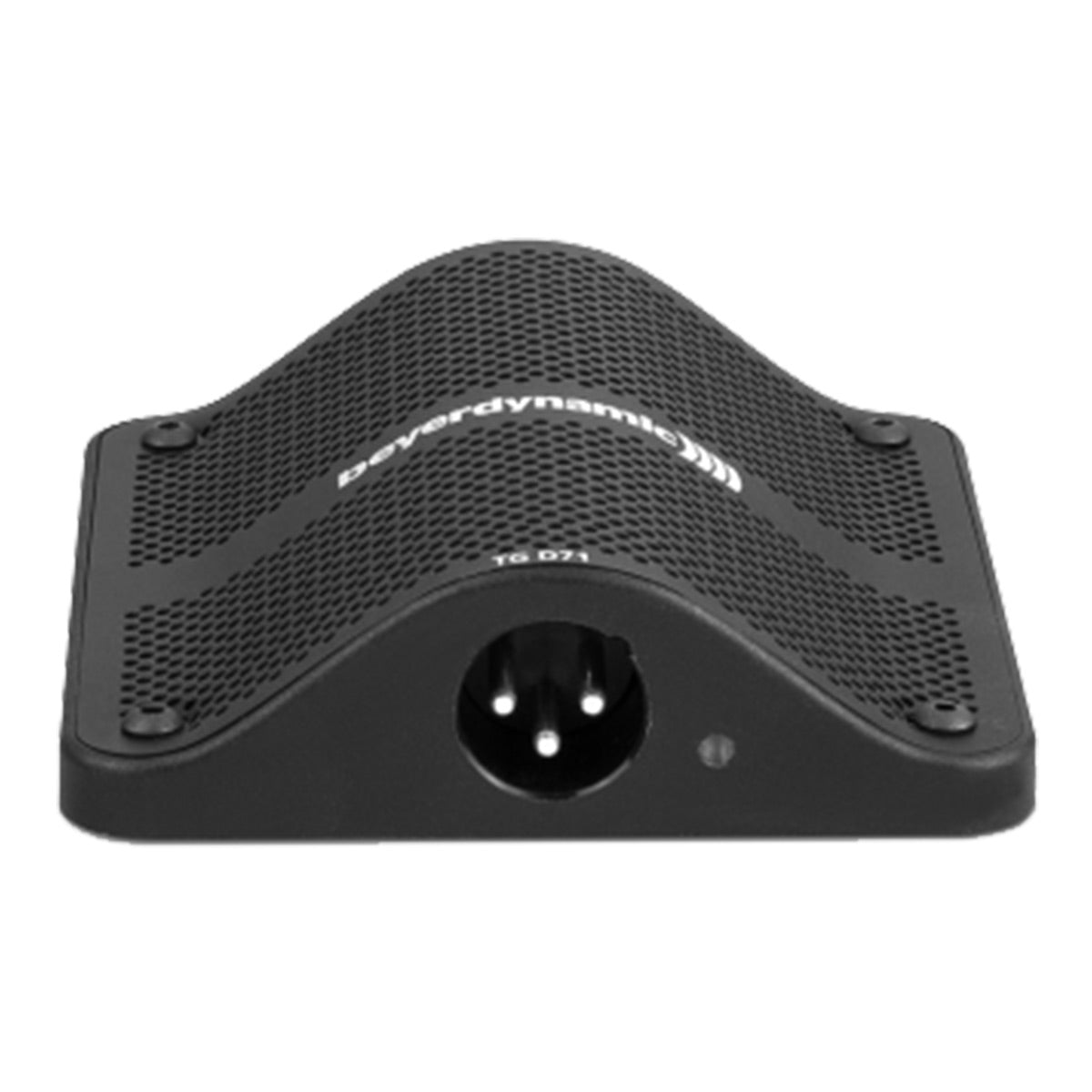

Beyerdynamic TG D71 Semi-Cardioid Condenser Boundary Microphone

✕

Now on demo at:

1 of 5

Beyerdynamic TG D71 Semi-Cardioid Condenser Boundary Microphone

Regular price $349.99
Sale price $349.99 Regular price
$399.99 Save $50.00 (13%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Nov 3 – Tue, Nov 10
Man with brown hair and beard wearing glasses and a gray button-down shirt

Need advice?

Consult with a system designer from our showroom.

Call: (866) 818-6622
Sad face plus music note equals happy face graphic

beyerdynamic TG D71 Overview

Product Information

Model: 708992 | UPC: 4010118708992

Specifications

What's In The Box

Product Information

Model: 708992 | UPC: 4010118708992

Simple positioning, an unparalleled lean and robust design and exceptional sound qualities turn the boundary microphone TG D71 into the consummate companion on stage, in rehearsal rooms or in home studios. The microphone takes sound quality to the next level when it is used on kick drums and cajóns. Well-considered features like the helpful status LED and the rubber underside enhance the microphone’s emphatic design.

Features

  • Professional Condenser Boundary Microphone
  • Focused Half-Cardioid Polar Pattern
  • Wide 25Hz–20kHz Frequency Response
  • High 148dB Maximum SPL
  • Non-Slip Rubber Underside
  • Integrated Phantom Power Status LED

Convincing Performance

The TG D71 delivers powerful, natural sound for kick drums, cajóns, grand pianos and percussion instruments. Its high impulse fidelity, fast attack and maximum sound pressure level of 148dB support clear reproduction of loud instruments.

Clever Details

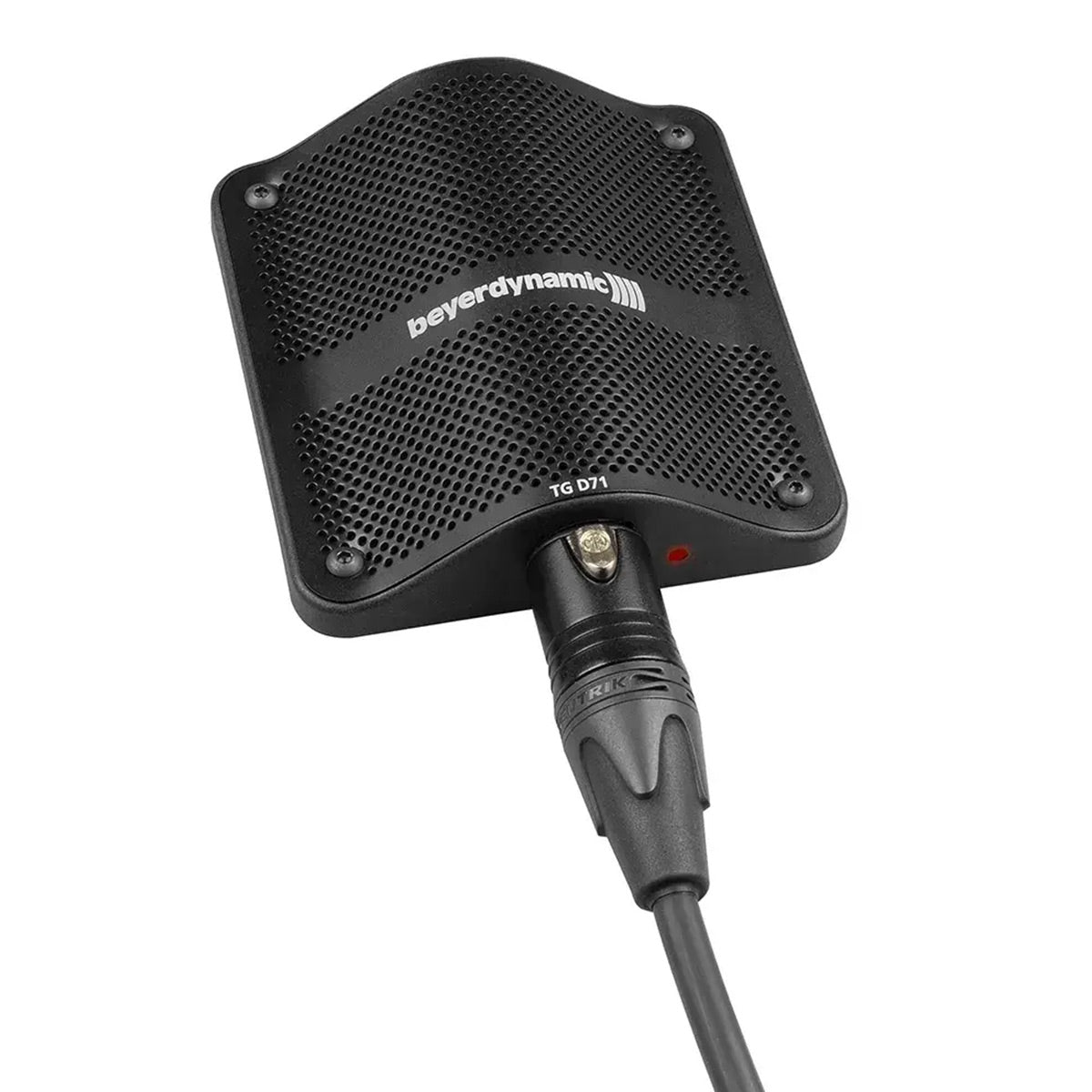

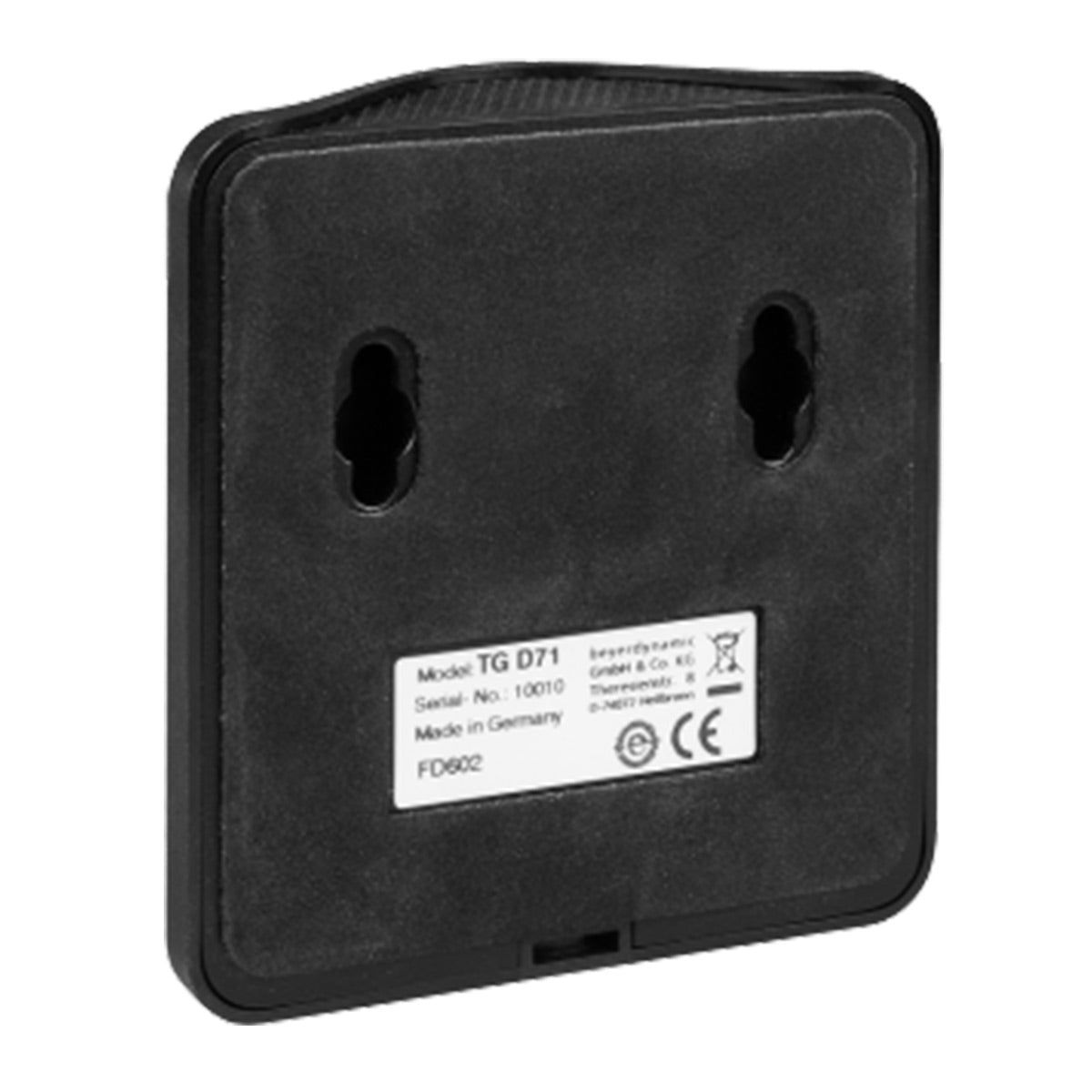

A red status LED indicates when phantom power is supplied. The non-slip rubber underside keeps the microphone securely positioned, while integrated mounting holes allow permanent installation. An included bag protects the microphone during transportation.

Made In Germany

The TG D71 is carefully handcrafted at beyerdynamic's headquarters in Heilbronn, Germany. Beyerdynamic manufactures the microphone using high-quality mechanical and electronic components and robust materials.

Sound Channeling Technology

Beyerdynamic's Sound Channeling Technology (SCT) uses specially designed acoustic labyrinths, tuned delay lines and attenuation pads to control sound waves and optimize the microphone's polar pattern.

Specifications

  • Model: TG D71
  • Product type: Condenser boundary microphone
  • Article number: 708992
  • EAN: 4010118708992
  • Transducer type: Condenser (back electret)
  • Operating principle: Pressure gradient
  • Polar pattern: Half-cardioid
  • Frequency response: 25–20,000Hz
  • Sensitivity (open circuit voltage): 1.5mV/Pa (-56dBV)
  • Nominal impedance: <200Ω
  • Load impedance: ≥1kΩ
  • Maximum SPL at 1kHz: 148dB SPL (1% THD)
  • Signal-to-noise ratio (A, RMS): 63dB
  • Signal-to-noise ratio (CCIR, Q-Peak): 50dB
  • Noise voltage (A, RMS): 1.1µV
  • Noise voltage (CCIR, Q-Peak): 4.9µV
  • A-weighted equivalent SPL: 31.2dB
  • Power supply: 11–52V phantom power
  • Phantom power standards: P12, P24 and P48
  • Current consumption: <3.2mA
  • Output wiring: Balanced
  • Polarity: Positive pressure produces positive voltage on pin 2 relative to pin 3
  • Connection: 3-pin male XLR
  • Transmission type: Wired
  • Construction type: Boundary microphone
  • Preamplifier: Integrated
  • Status indicator: Red phantom power LED
  • Base: Non-slip rubber underside
  • Mounting: Two integrated mounting holes
  • Dimensions (L x W x H): 3.54 x 3.39 x 1.06" (without connector)
  • Weight: 0.91lbs
  • Country of manufacture: Germany

What's In The Box

  • TG D71 Semi-Cardioid Condenser Boundary Microphone
  • Carrying Bag
  • Manual
