Audio-Technica

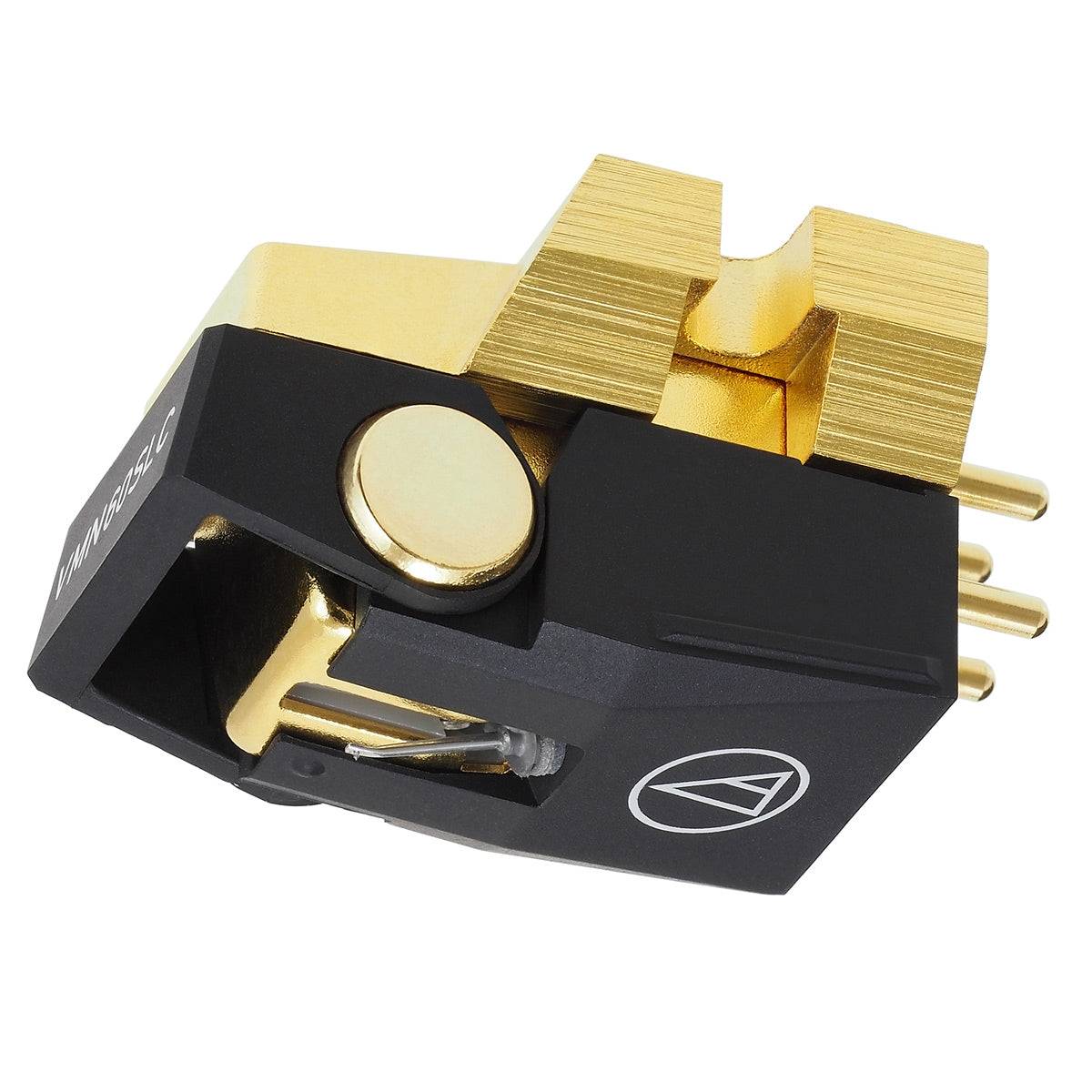

Audio-Technica VM760SLC Dual Moving Magnet Cartridge

Regular price $649.00
Sale price $649.00 Regular price
Save $-649.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: VM760SLC | UPC: 4961310137595

Specifications

What's In The Box

WARNING: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Product Information

Model: VM760SLC | UPC: 4961310137595

The VM760SLC special line contact stylus cartridge is the flagship model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM760SLC is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s ultra-lightweight special line contact stylus allows it to trace the record groove with incredible accuracy and minimum abrasion, resulting in nuanced audio reproduction, low distortion, and low record wear.

Features

  • VM dual magnet cartridge with special line contact stylus
  • Aluminum tapered cantilever
  • Paratoroidal coils improve generating efficiency
  • Center shield plate between the left and right channels reduces crosstalk
  • Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield

Specifications

  • Frequency response: 20 - 30,000Hz
  • Channel separation: 30dB (1kHz)
  • Vertical tracking force: 1.8 - 2.2g (2.0g standard)
  • Stylus construction: Nude rectangular shank
  • Recommended load impedance: 47,000 ohms
  • Output: 4.0mV (at 1kHz, 5cm/sec)
  • Channel balance: 1.0dB (1kHz)

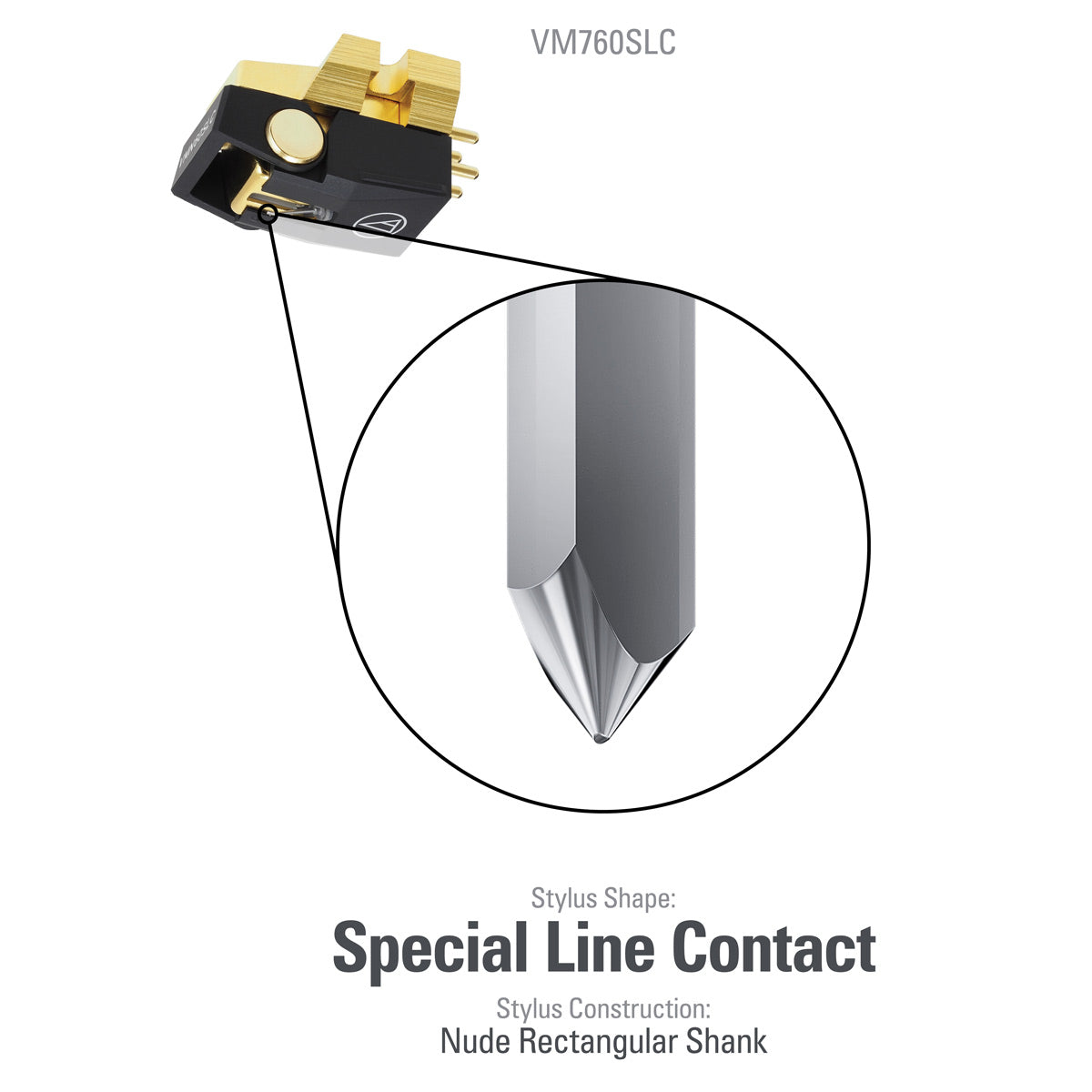

  • Stylus shape: 1.5 x 0.28 mil special line contact
  • Cantilever: Aluminum tapered pipe
  • Mount: Half-inch
  • Coil impedance: 2,700 ohms (1kHz)
  • DC resistance: 800 ohms
  • Load capacitance: 100 - 200pF
  • Coil inductance: 460mH (1kHz)
  • Static compliance: 40 x 10 - 6cm/dyne
  • Dynamic compliance: 10 x 10 - 6cm/dyne (100Hz)
  • Vertical tracking angle: 23°
  • Dimensions (H x W x D): 0.7" x 0.7" x 1.1"
  • Weight: 0.3 ounces

What's In The Box

  • VM760SLC Dual Moving Magnet Cartridge
  • Four cartridge installation screws (5mm x 2, 10mm x 2)
  • Two washers
  • Hexagon nuts
  • Non-magnetic screwdriver
  • Brush
  • Lead wire set
