AudioTechnica AT-VM95E Dual Moving Magnet Cartridge

Model: AT-VM95E UPC: 4961310146016 Item: 172509

Product Information

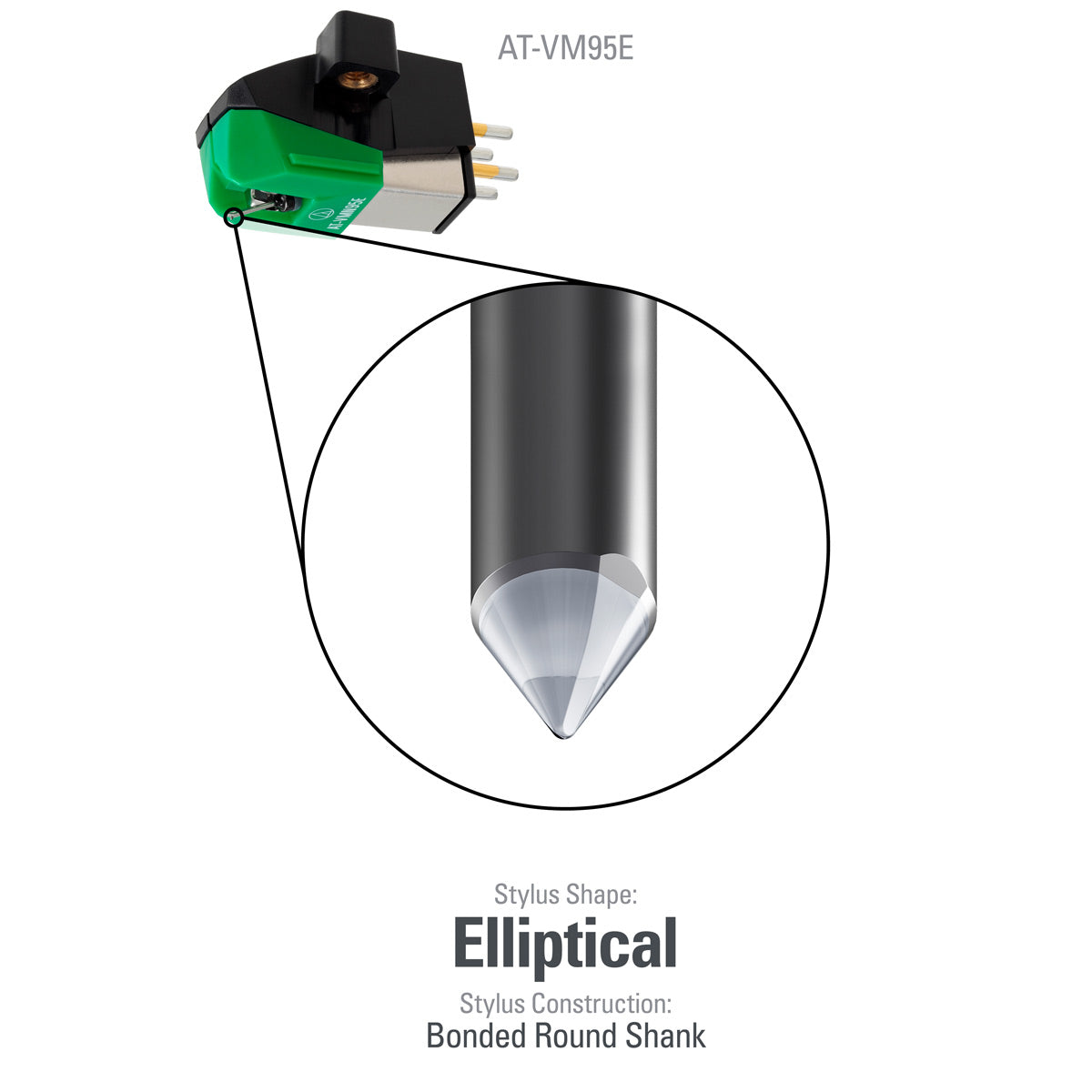

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Features

  • VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
  • Aluminum cantilever
  • Specially wound coils increase output voltage
  • Durable low-resonance polymer housing
  • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
  • Compatible with any AT-VMN95 replacement stylus
Prop 65 Warning

WARNING: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Specifications

Specifications

  • Frequency response: 20 - 22,000Hz
  • Channel separation: 20dB at 1kHz
  • Vertical tracking force: 1.8 - 2.2g (2.0g standard)
  • Stylus construction: Bonded round shank
  • Recommended load impedance: 47,000 ohms
  • Output: 4.0mV (1kHz, 5cm/sec)
  • Channel balance: 2.0dB (1kHz)
  • Stylus shape: 0.3 x 0.7 mil elliptical
  • Cantilever: Aluminum pipe
  • Mount: Half-inch
  • Replacement stylus: AT-VMN95E
  • Coil impedance: 3.3k ohms (1kHz)
  • DC resistance: 485 ohms
  • Load capacitance: 100 to 200pF
  • Coil inductance: 550mH (1kHz)
  • Vertical tracking angle: 23°
  • Dimensions (H x W x D): 0.68" x 0.74" x 1.2"
  • Weight: 0.22 ounces

What's in the Box

What's in the Box:

  • AT-VM95E Dual Moving Magnet Cartridge
  • Two 11mm installation screws
  • Two 8mm installation screws
  • Two washers
