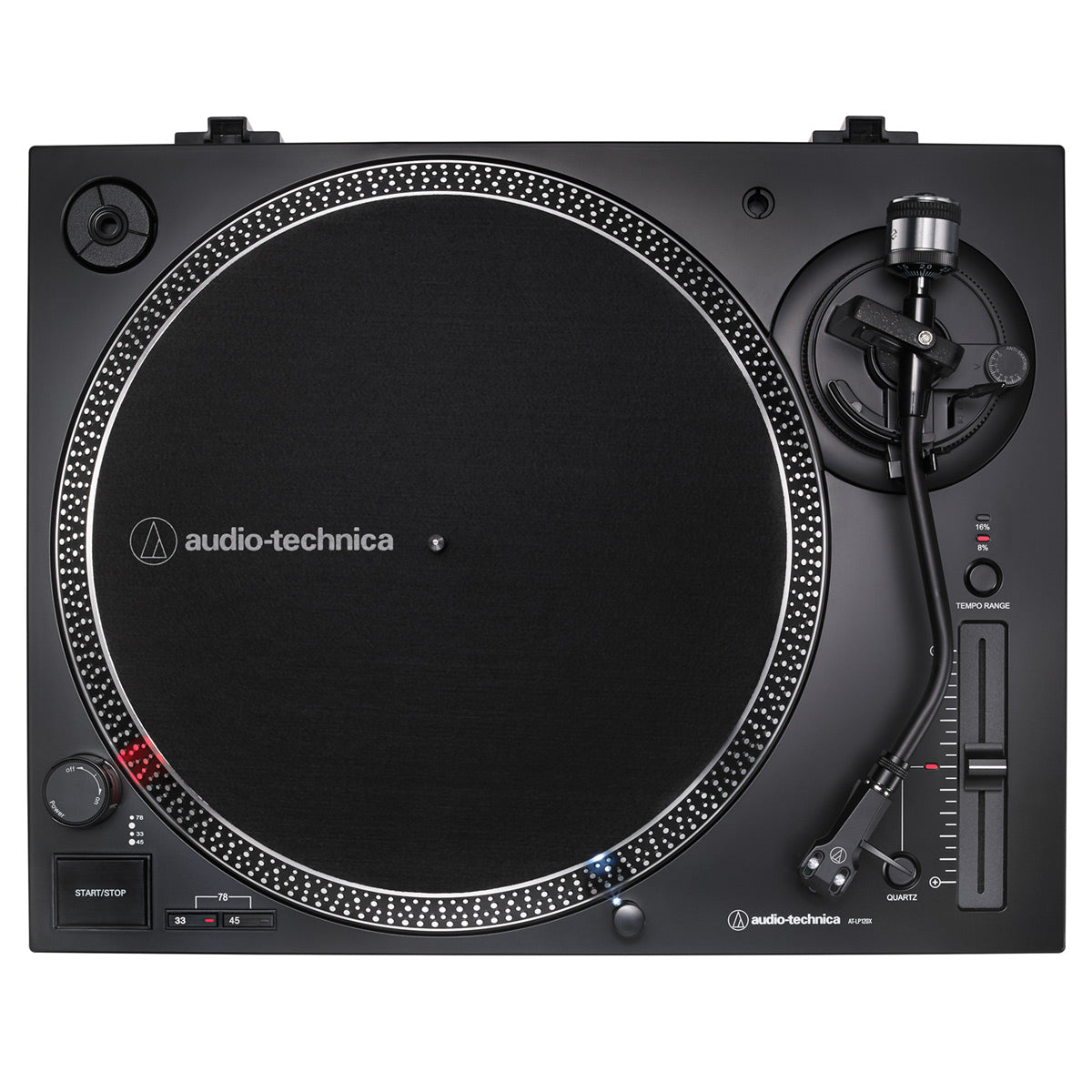

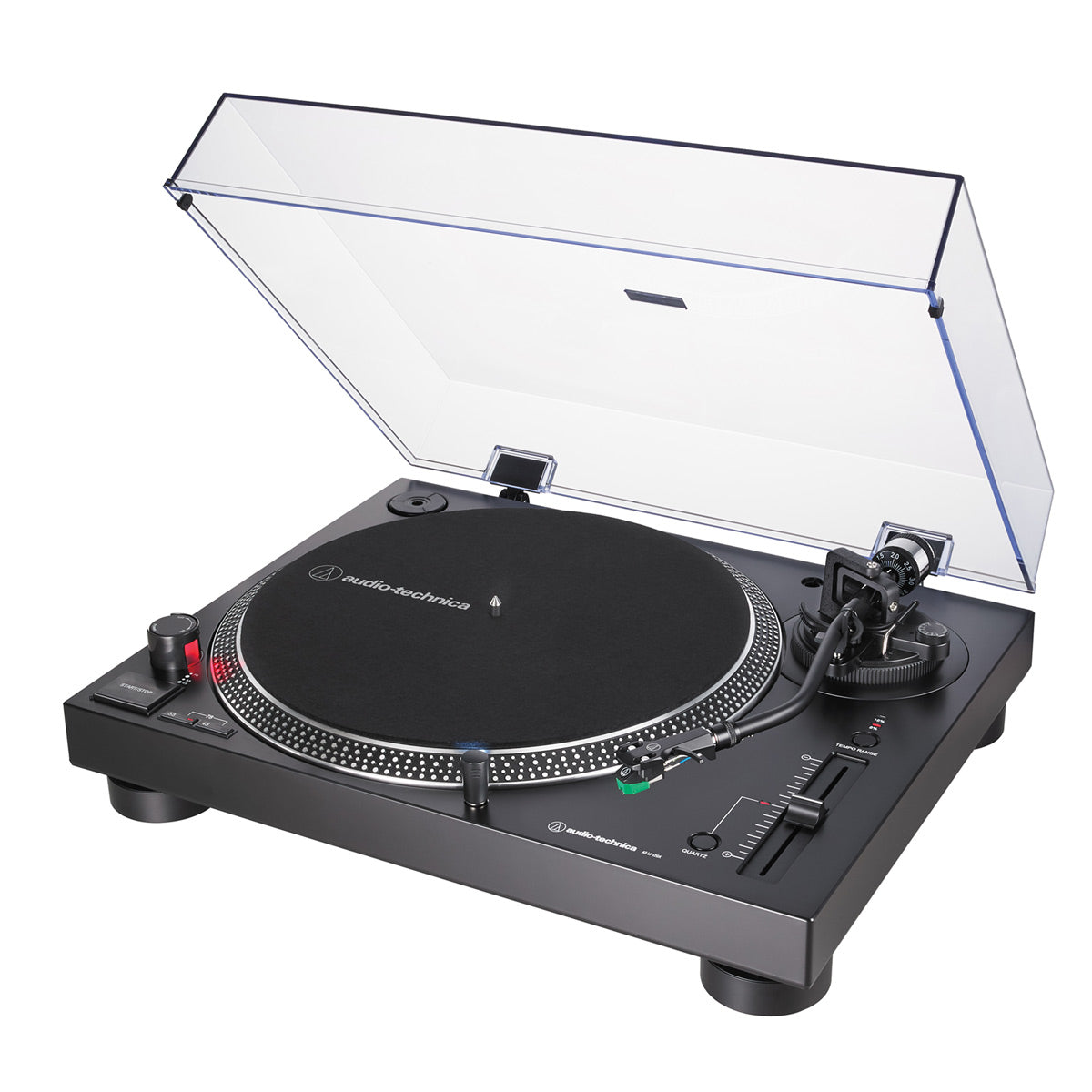

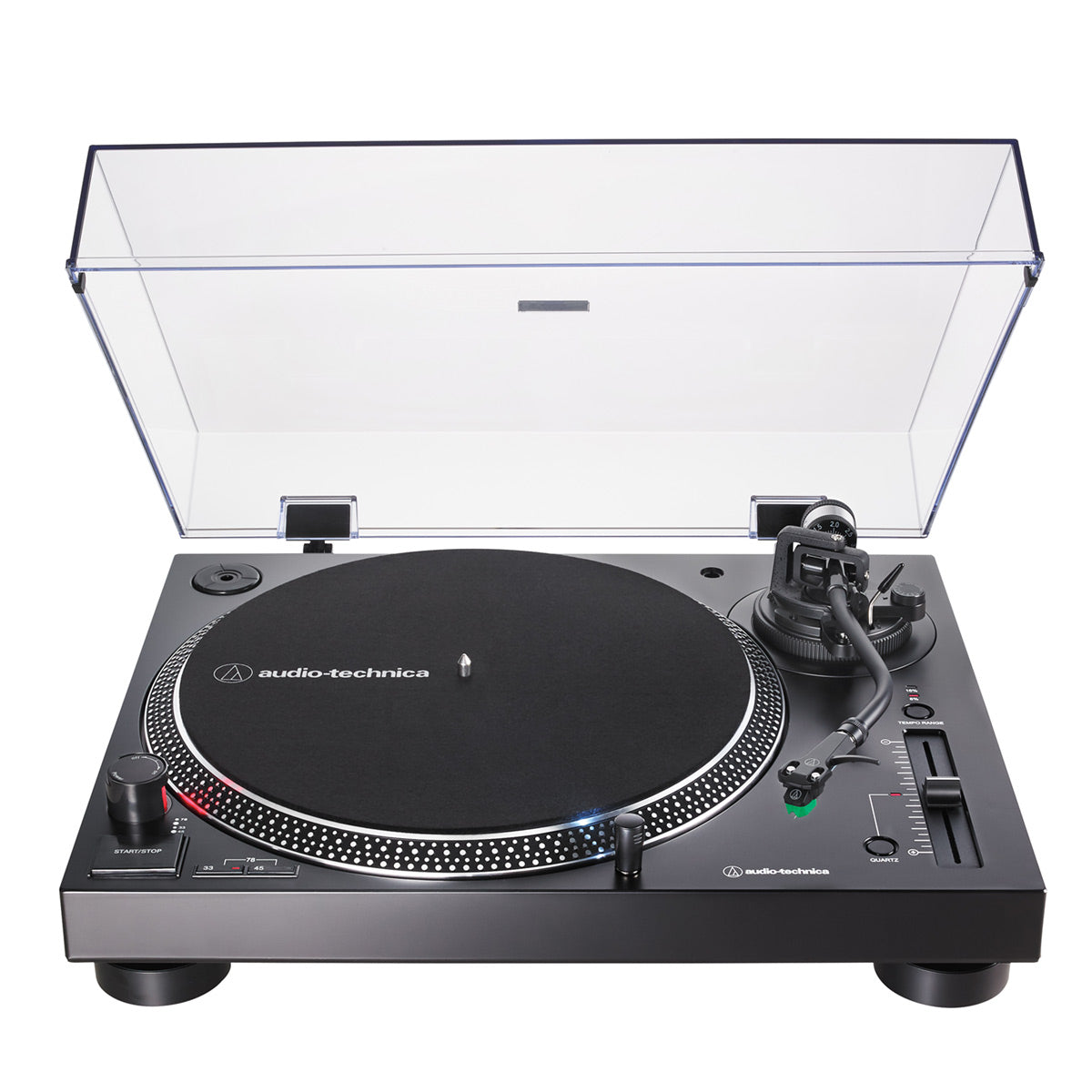

Audio-Technica AT-LP120XUSB-BK Direct-Drive 3-Speed Turntable with USB Output (Black)
Overview
Product Information
Specifications
What's In The Box
Product Information
This update of the AT-LP120-USB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. \\\\
Features
- Experience the high-fidelity audio of vinyl
- Direct-drive, DC servo motor
- Fully manual operation
- Adjustable dynamic anti-skate control
- Selectable 33/45/78 RPM speeds
- Professional-grade anti-resonance, die-cast aluminum platter with felt mat
- AT-HS6 universal ½"-mount headshell and AT-VM95E Dual Magnet™ phono cartridge
- AT-VM95E cartridge is compatible with any VM95 Series replacement stylus
- Balanced S-shaped tonearm with hydraulically damped lift control and lockable rest
- Built-in switchable phono pre-amplifier for phono- or line-level output
- Stroboscopic platter with speed indicator
- Variable pitch control with quartz speed lock
- Removable plug-type target light for easier cueing in low light
- Damped base construction for reduced low-frequency feedback coloration
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Convert your vinyl records to digital audio files (additional software required)
Output
The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. But in addition to the USB output, the turntable also comes with a detachable dual RCA output cable and is equipped with a built-in selectable phono preamp so you can connect directly to your home stereo, whether it has a dedicated phono input or not.
S-Shaped Tone Arm & Phono Cartridge
The turntable features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½"-mount headshell with an AT-VM95E Dual Magnet™ phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
Specifications
- Type: 3-speed, fully manual operation
- Motor: DC servo motor
- Drive method: Direct drive
- Speeds: 33 1/3 RPM, 45 RPM, 78 RPM
- Turntable platter: Die-cast aluminum
- Starting torque: >1.0kgf.cm
- Braking system: Electronic brake
- Wow and flutter: <0.2% (WTD) @ 3kHz (JIS)
- Signal-to-noise ratio: >50dB
- Output level
- Pre-amp PHONO 4mV nominal at 1kHZ, 5cm/sec
- Pre-amp LINE 240mV nominal at 1kHz, 5cm/sec
- Phono pre-amp gain: 36dB nominal, RIAA equalized
- USB function
- A/D, D/A - 16-bit/44.1kHz or 48kHz USB selectable
- Computer interface - USB 1.1 compliant Windows 7 or above, or Mac OS X or above
- Power supply requirements: 120V AC, 60Hz
- Power consumption: 3W
- Dimensions (W x D x H): 17.8" x 13.86" x 5.57"
- Weight: 17.6 lbs.
- Tonearm type: Balanced S-shaped tonearm with detachable headshell
- Effective arm length: 230.5mm
- Overhang: 16mm
- Tracking error angle: Less than 3 degrees
- Applicable cartridge weight: 3.5 - 8.5g
- Anti-skating range: 0 - 4g
What's In The Box
- AT-LP120XUSB Direct-Drive 3-Speed Turntable
- AT-VM95E phono cartridge
- AT-HS6 headshell
- 1.9m USB cable
- Dual RCA (male) to dual RCA (male) cable with ground wire
- Counterweight
- Felt mat
- Dust cover
- 45 RPM adapter
- Plug-type stylus target light
*Please Note: This turntable must be connected to an amplifier/receiver and speakers, or a pair of self-powered speakers, sold separately.
