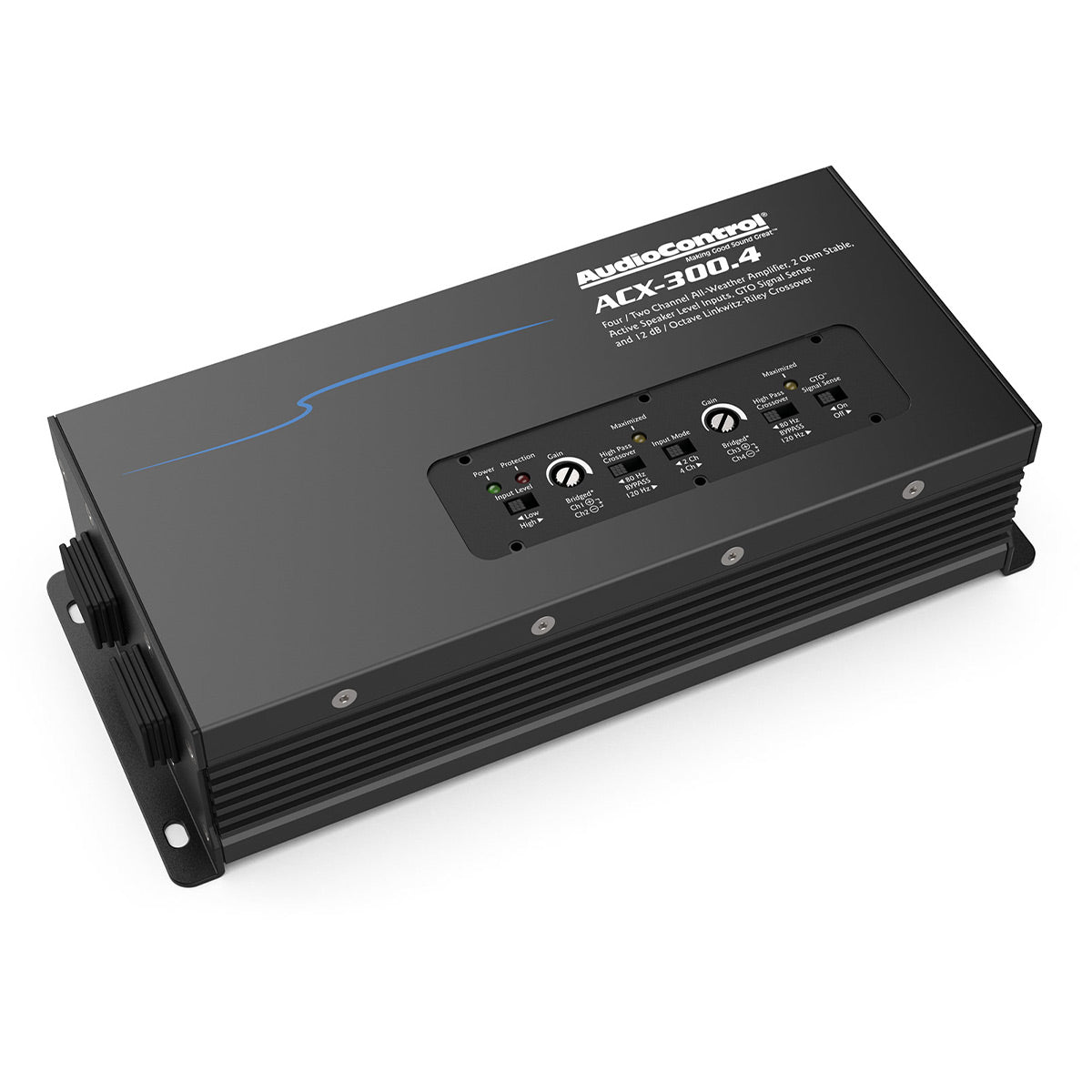

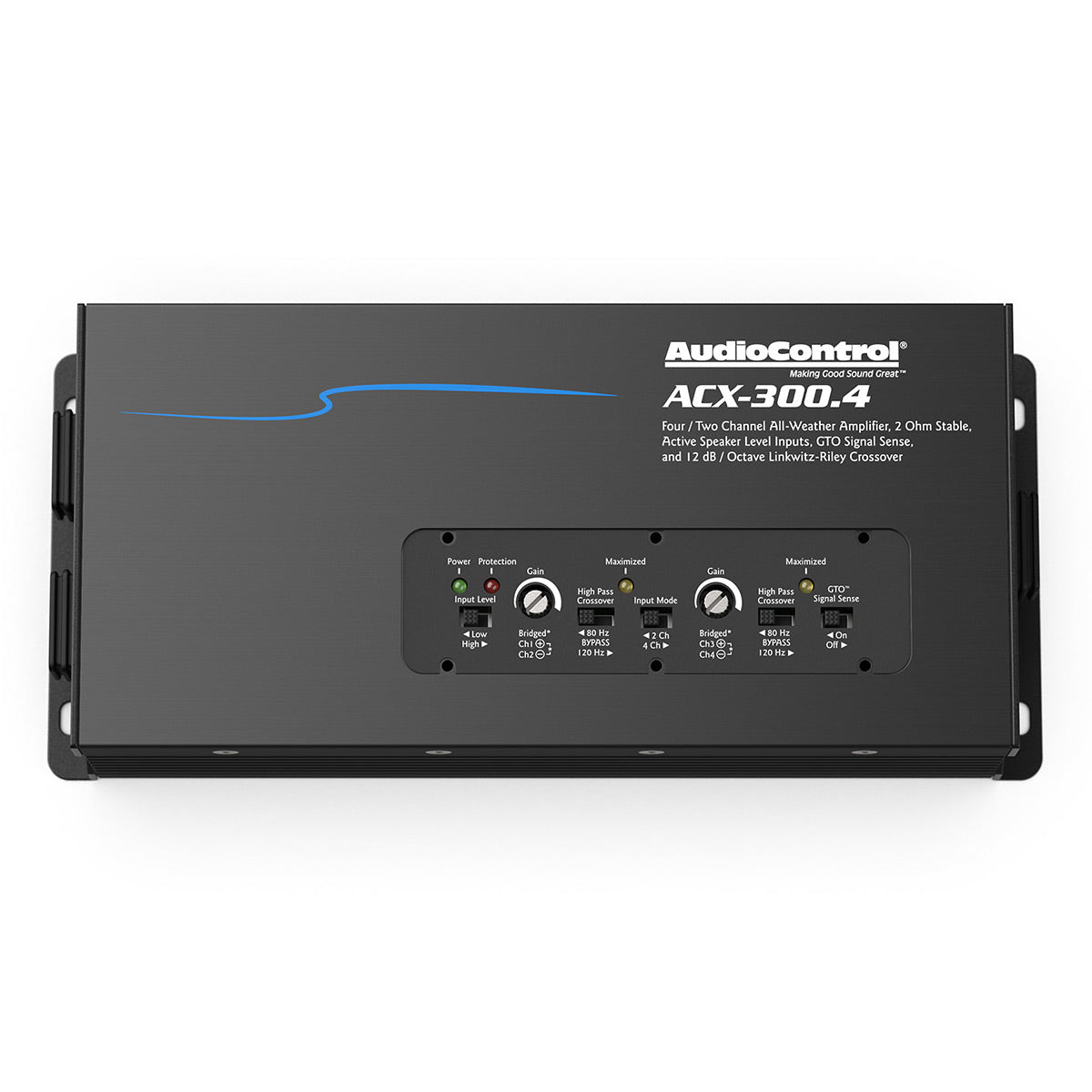

AudioControl ACX-300.4 All-Weather 4-Channel Amplifier

Regular price $379.00
Sale price $379.00 Regular price
Save $-379.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Dec 11 – Wed, Dec 18

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

AudioControl ACX-300.4 Overview

Product Information

Model: 8510340 | UPC: 851523007836

Specifications

What's In The Box

Product Information

Model: 8510340 | UPC: 851523007836

All-Weather Four-Channel Amplifier

AudioControl’s ACX-300.4 all-weather amplifier delivers honest power levels to the sound system in your boat, ATV, motorcycle, and more. for a two or four-channel system, the ACX-300.4 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy-gauge quick-connect wiring makes installation quick and painless, making the ACX-300.4 all-weather amplifier the perfect solution for your next adventure.

Features:

  • 4 x 75 watts @ 2 ohms
  • 4 x 50 watts @ 4 ohms
  • 150 watts @ 4 ohms bridged
  • IPX6 Rated
  • GTO™ Signal Sense
  • High and low input modes
  • 4 and 2 channel input modes
  • Linkwitz-Riley Crossover
  • Bulletproof 5-year warranty (when installed by an authorized AudioControl dealer)

Specifications

  • Inputs
    • Preamp/Speaker Level Inputs: 4
    • Input Voltage Low: 500 mV – 6 Vrms
    • Input Voltage Range High: 1 Vrms – 12 Vrms
  •  Outputs
    • Rated Continuous (RMS) Power at 14.4V:
      • 4Ω – 50 W x 4 RMS
      • 2Ω – 75 W x 4 RMS
      • Bridged 4Ω – 150 W RMS
  •  Performance
    • Frequency Response: 26 Hz – 22 kHz
    • Signal to Noise: 106 dBA, Ref 50 W @ 4 Ohm
    • THD+N: < 0.2%
    • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
    • IP Rating: IPX6
  • Weight & Dimensions
    • Dimensions (W x H x D): 9.0" x 2.25" x 3.875"
    • Weight: 7.2 lbs. (3.3 kg)



What's In The Box

  • ACX-300.4 All-Weather 4-Channel Amplifier
  • 7" Power & Ground Harness
  • (2) 7" Speaker Output Harness
  • Power & Ground Connector
  • (2) Crimp-On Terminals
  • Installation Hardware
  • Manual
  • 5 Year Warranty
