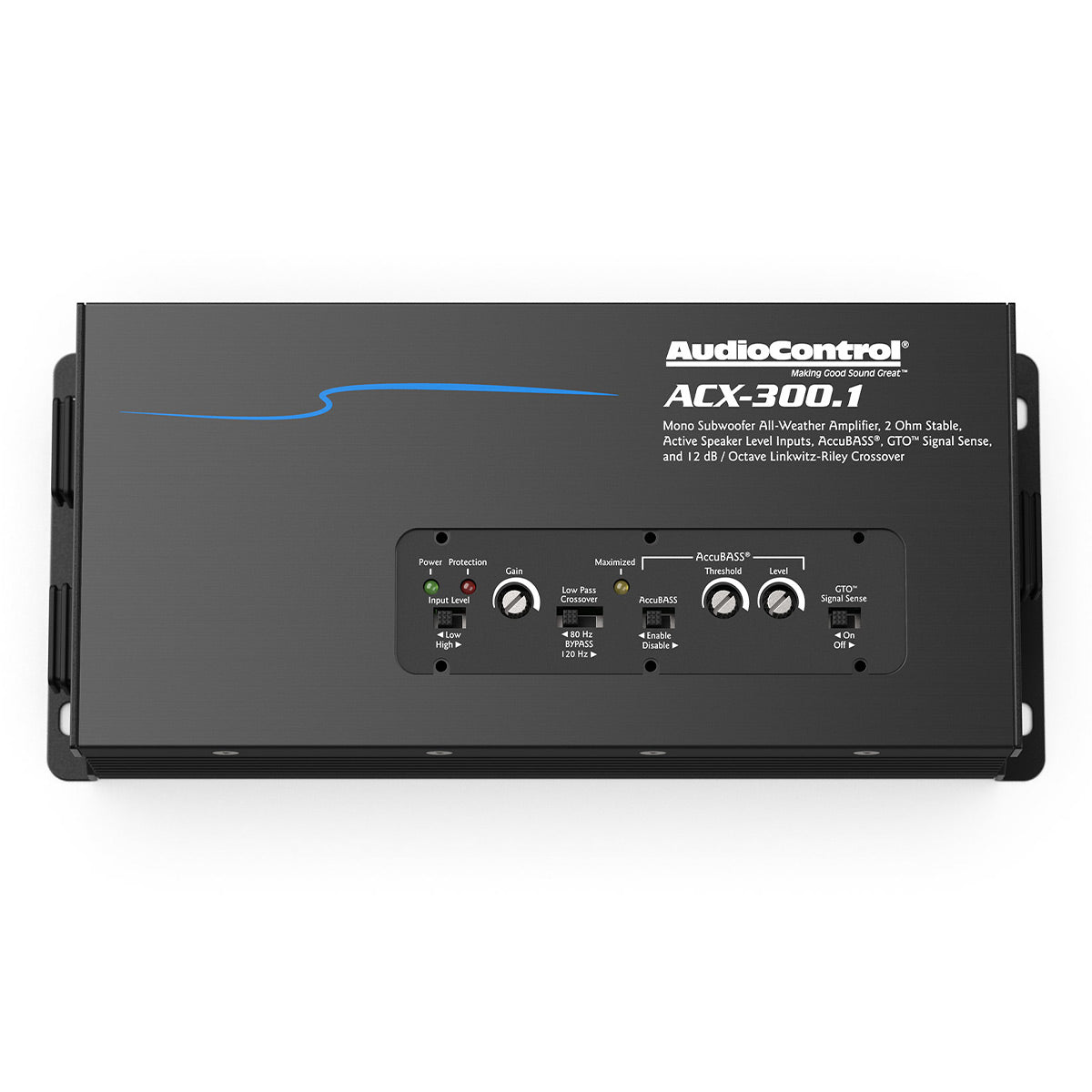

AudioControl ACX-300.1 All-Weather Monoblock Amplifier

Regular price $169.00
Sale price $169.00 Regular price
$329.00 Save $160.00 (49%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Oct 9 – Wed, Oct 16

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 8510330 | UPC: 851523007829

Specifications

What's In The Box

Product Information

Model: 8510330 | UPC: 851523007829

All-Weather Monoblock Amplifier

AudioControl’s ACX-300.1 all-weather monoblock amplifier delivers honest power levels to the sound system in your boat, ATV, motorcycle, and more. The ACX-300.1 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy-gauge quick-connect wiring makes installation quick and painless, making the ACX-300.1 all-weather monoblock amplifier the perfect solution for your next adventure.

Features:

  • 1 x 300 watts @ 2 ohms
  • 1 x 175 watts @ 4 ohms
  • IPX6 Rated
  • AccuBASS® bass management
  • GTO™ Signal Sense
  • High and low input modes
  • Linkwitz-Riley Crossover
  • Bulletproof 5-year warranty (when installed by an authorized AudioControl dealer)

Specifications

  • Inputs
    • Preamp/Speaker Level Inputs: 2
    • Input Voltage Low: 500 mV – 6 Vrms
    • Input Voltage Range High: 1 Vrms – 12 Vrms
  •  Outputs
    • Rated Continuous (RMS) Power at 14.4V:
      • 4Ω – 175 W x 1 RMS
      • 2Ω – 300 W x 1 RMS
  •  Performance
    • Frequency Response: 26 Hz – 22 kHz
    • Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
    • THD+N: < 0.05%
    • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
    • IP Rating: IPX6
  • Weight & Dimensions
    • Dimensions (W x H x D): 9.0" x 2.25" x 3.875"
    • Weight: 7.2 lbs. (3.3 kg)



What's In The Box

  • ACX-300.1 All-Weather Monoblock Amplifier
  • 7" Power & Ground Harness
  • 7" Speaker Output Harness
  • ACR-1 Remote Level Control Cable
  • Power & Ground Connector
  • (2) Crimp-On Terminals
  • Installation Hardware
  • Manual
  • 5 Year Warranty
