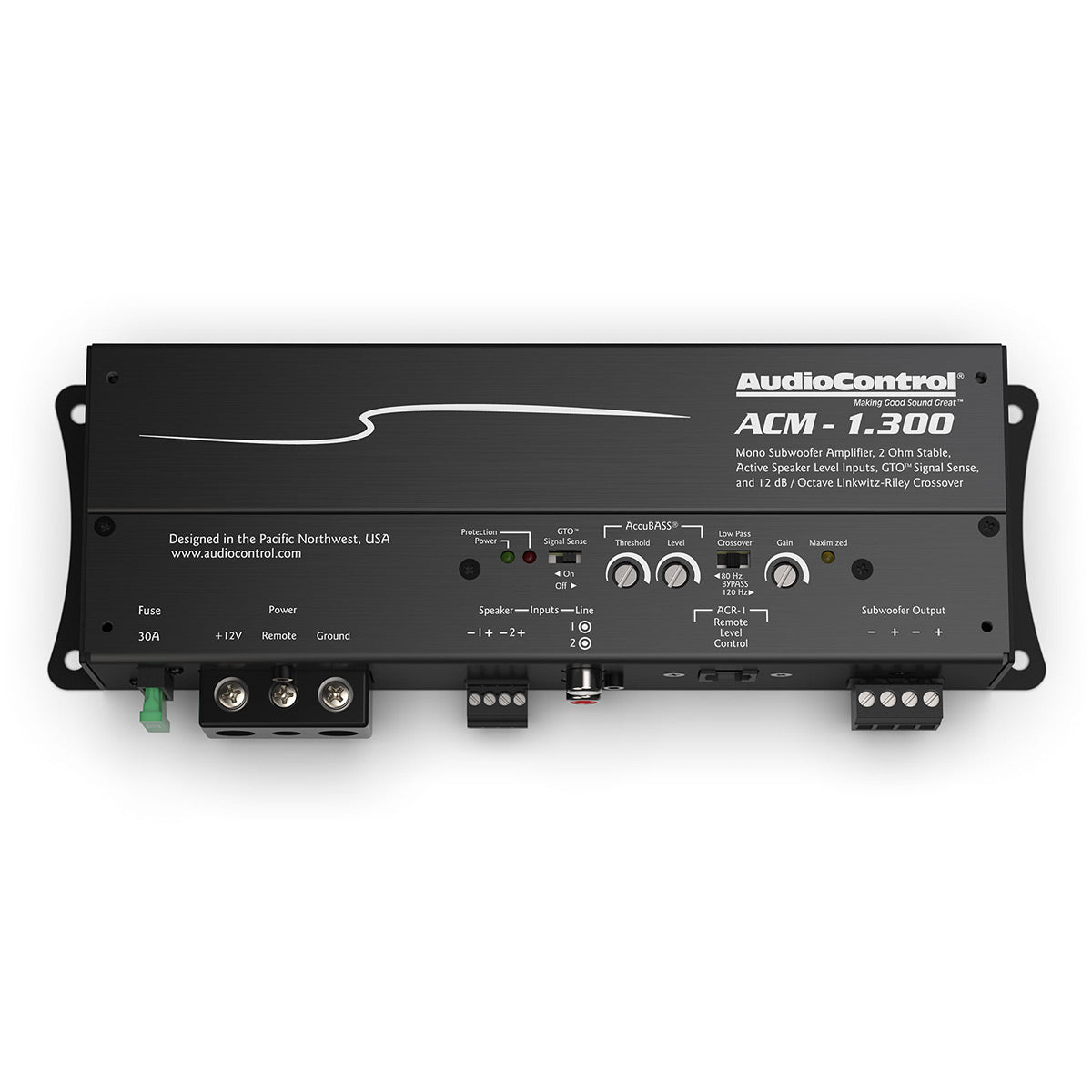

AudioControl ACM-1.300 Monoblock Micro Amplifier with Accubass

Regular price $319.00
Sale price $319.00 Regular price
Save $-319.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Thu, Dec 12 – Thu, Dec 19

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

AudioControl ACM-1.300 Overview

Product Information

Model: 8510230 | UPC: 851523007461

Specifications

What's In The Box

Product Information

Model: 8510230 | UPC: 851523007461

Monoblock Micro Amplifier with Accubass®

ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power, and the ability to help integrate with factory stereo systems are features that assure "Making Good Sound Great" can happen in any installation. Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.

Features:

  • 300 watts @ 2 ohms
  • 175 watts @ 4 ohms
  • AccuBASS® Processing
  • GTO™ Signal Sense
  • Active speaker-level inputs for OEM integration
  • RCA Line Inputs
  • Linkwitz-Riley Crossover
  • Optional ACR-1 remote level control
  • Reversible Cover Plate
  • Bulletproof 5-year warranty (when installed by an authorized AudioControl dealer)

Specifications

  • Inputs
    • Preamp Inputs: 2 Balanced
    • Preamp Input Voltage Range: 500 mV – 6 Vrms
    • Speaker Level Inputs: 2
    • Speaker Level Input Voltage Range: 3 V – 40 Vrms
  • Outputs
    • Rated Continuous (RMS) Power at 14.4V:
      • 4Ω – 175 W RMS
      • 2Ω – 300 W RMS
  • Performance
    • Frequency Response: 10 Hz – 22 kHz
    • Signal to Noise: 102 dBA, Ref 175 W @ 4 Ohm
    • THD+N: < 0.01%
    • Power / Ground Wire Gauge: 10 to 4 AWG wire
    • Fuse Rating: 1 x 30 A
    • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
    • PFM Subsonic Filter: 24 Hz
  • Weight & Dimensions
    • Dimensions (W x H x D): 9.4" x 1.75" x 3.0"
    • Weight: 2.1 lbs. (0.95 kg)


What's In The Box

  • ACM-1.300
  • Speaker connectors
  • Fuse
  • Manual
  • 5 Year Warranty
