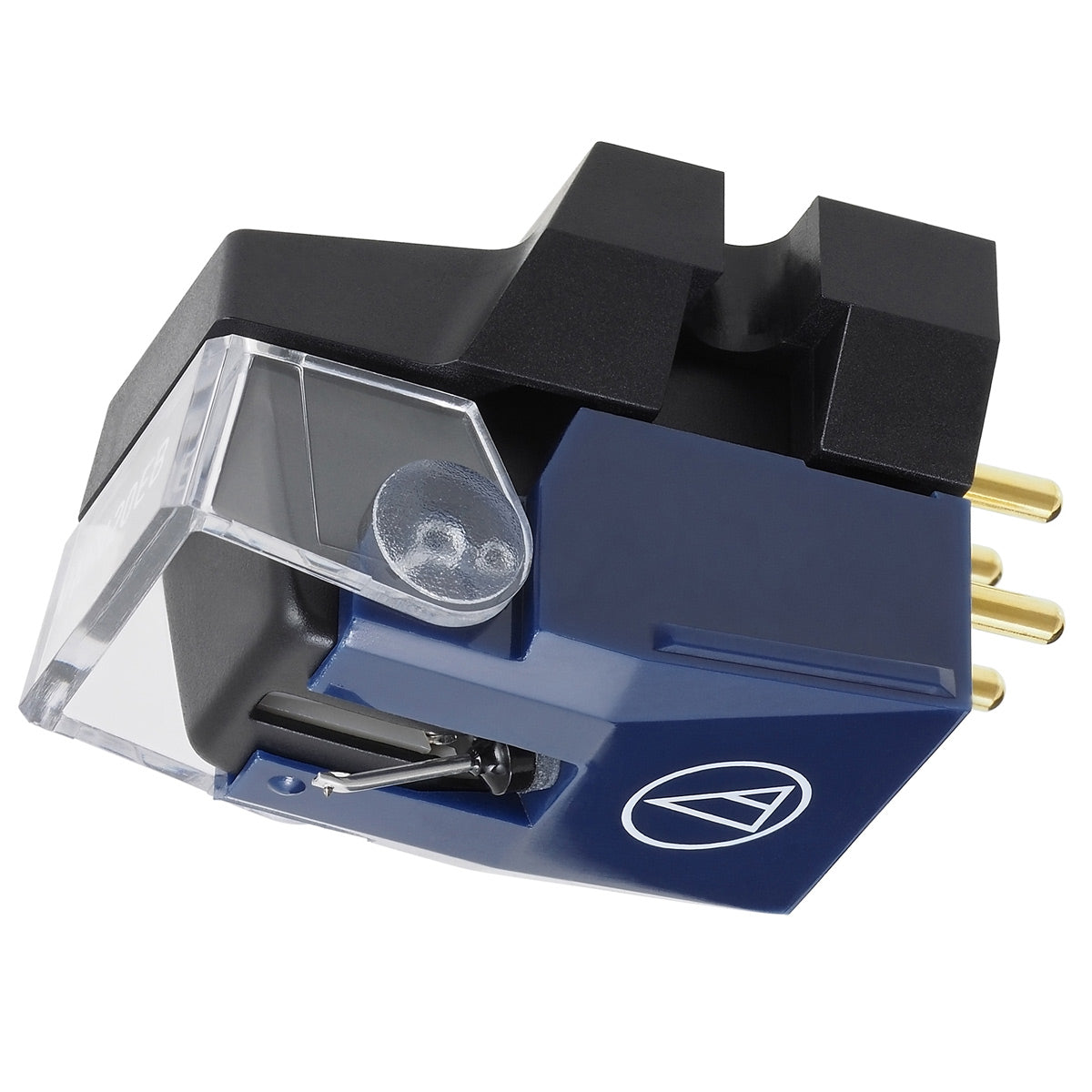

Audio-Technica VM520EB Dual Moving Magnet Cartridge

Regular price $135.00
Sale price $135.00 Regular price
Save $-135.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Mon, Feb 17 – Mon, Feb 24

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: VM520EB | UPC: 4961310137540

Specifications

What's In The Box

WARNING: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Product Information

Model: VM520EB | UPC: 4961310137540

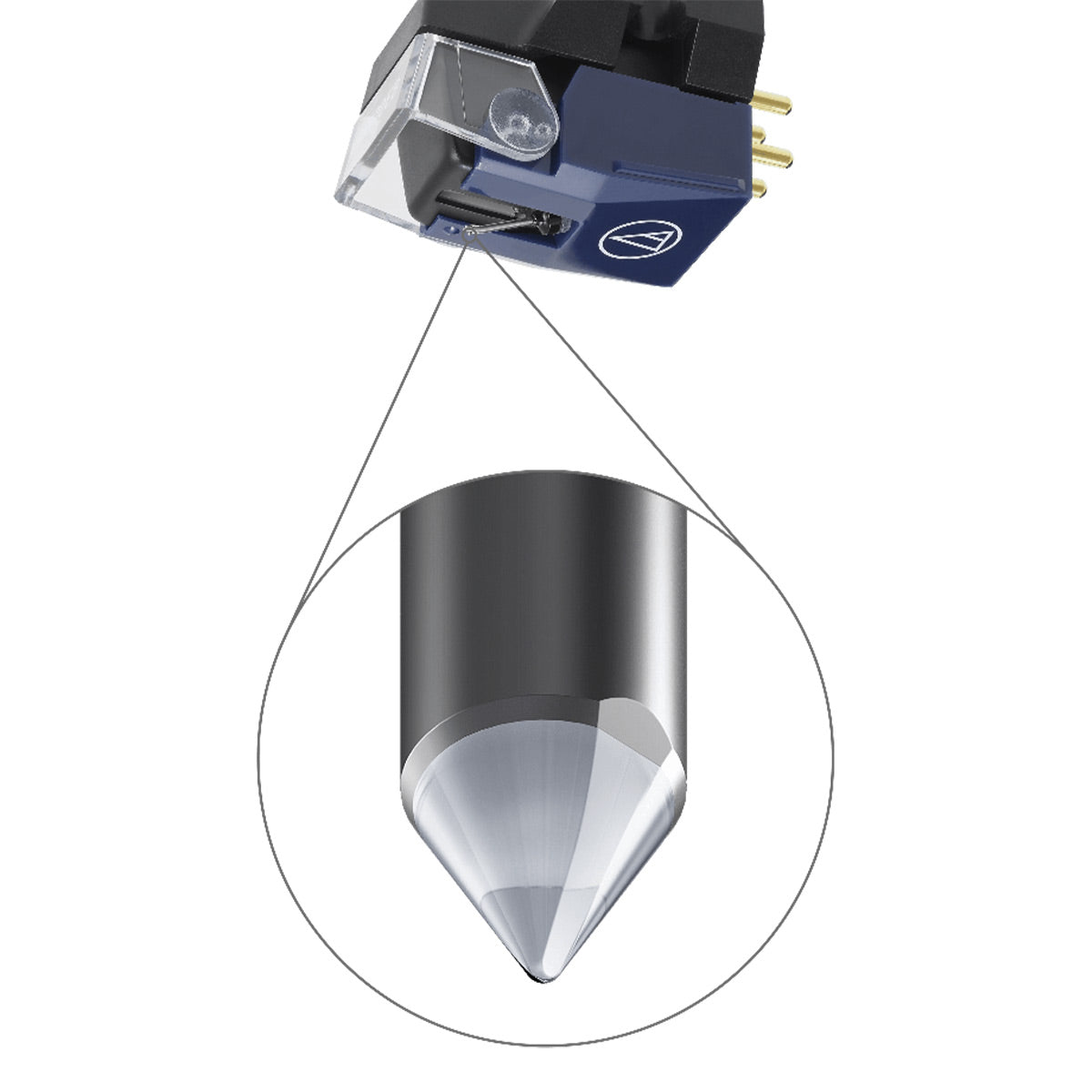

The VM520EB is part of the 500 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Includes mounting hardware.

Features

  • VM dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
  • Aluminum cantilever

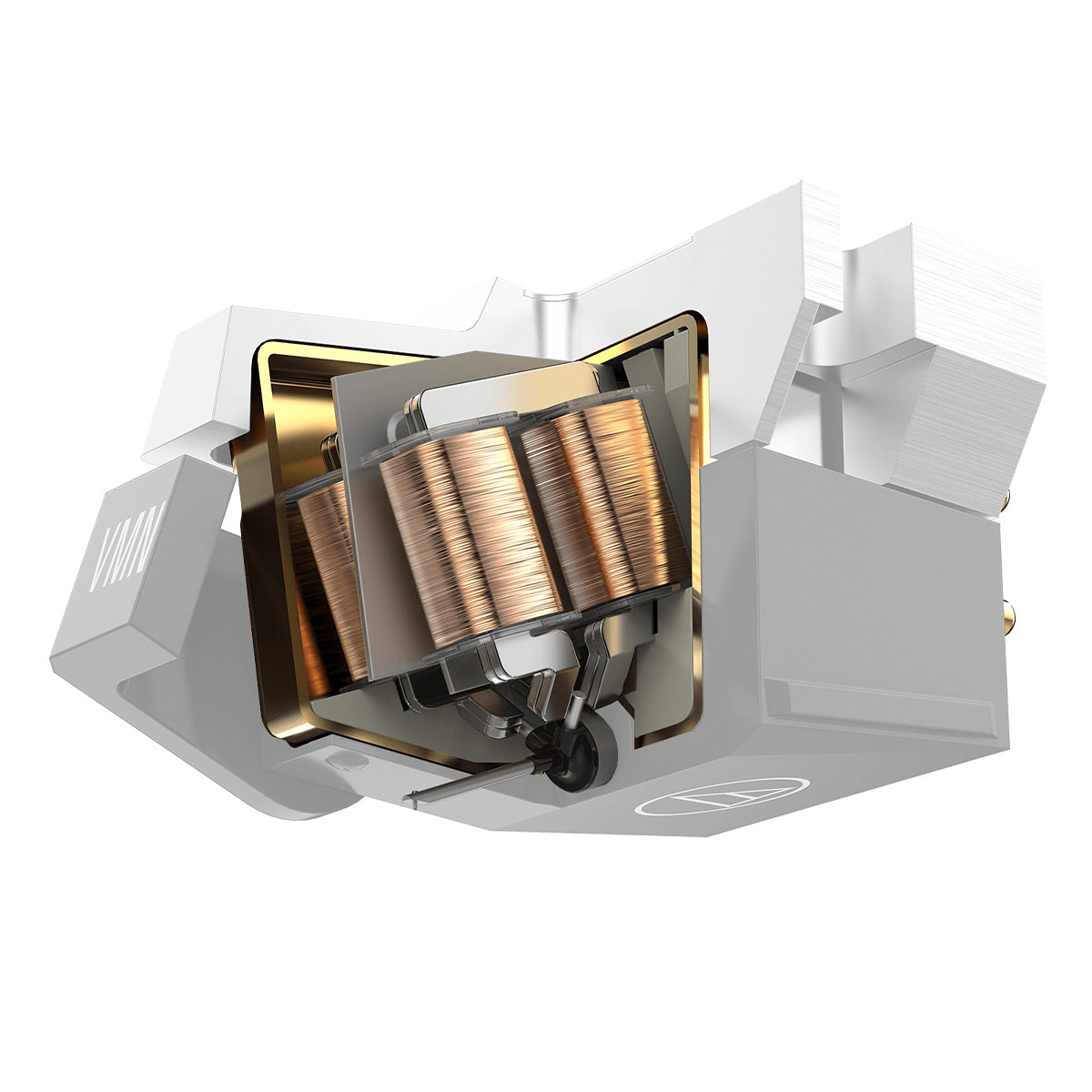

  • Paratoroidal coils improve generating efficiency
  • Center shield plate between the left and right channels reduces crosstalk
  • Durable low-resonance polymer housing

Specifications

  • Frequency response: 20 - 23,000Hz
  • Channel separation: 27dB (1kHz)
  • Vertical tracking force: 1.8 - 2.2g
  • Stylus construction: Bonded round shank
  • Recommended load impedance: 47,000 ohms
  • Output: 4.5mV
  • Channel balance: 1.5dB
  • Stylus shape: 0.3 x 0.7mil MicroLine
  • Mount: 1/2"
  • Coil impedance: 2,700 ohms (1kHz)
  • DC resistance: 800 ohms
  • Load capacitance: 100 - 200pF
  • Coil inductance: 460mH (1kHz)
  • Static compliance: 35 x 10-6cm/dyne
  • Dynamic compliance: 8 x 10 - 6cm/dyne (100Hz)
  • Vertical tracking angle: 23°
  • Dimensions (H x W x D): 0.7" x 0.7" x 1.1"
  • Weight: 0.2 ounces

What's In The Box

  • VM520EB Dual Moving Magnet Cartridge
  • (4) Cartridge Installation Screws
  • (2) Washers
  • (2) Hex Nuts
  • Non-Magnetic Screwdriver
WARNING: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
