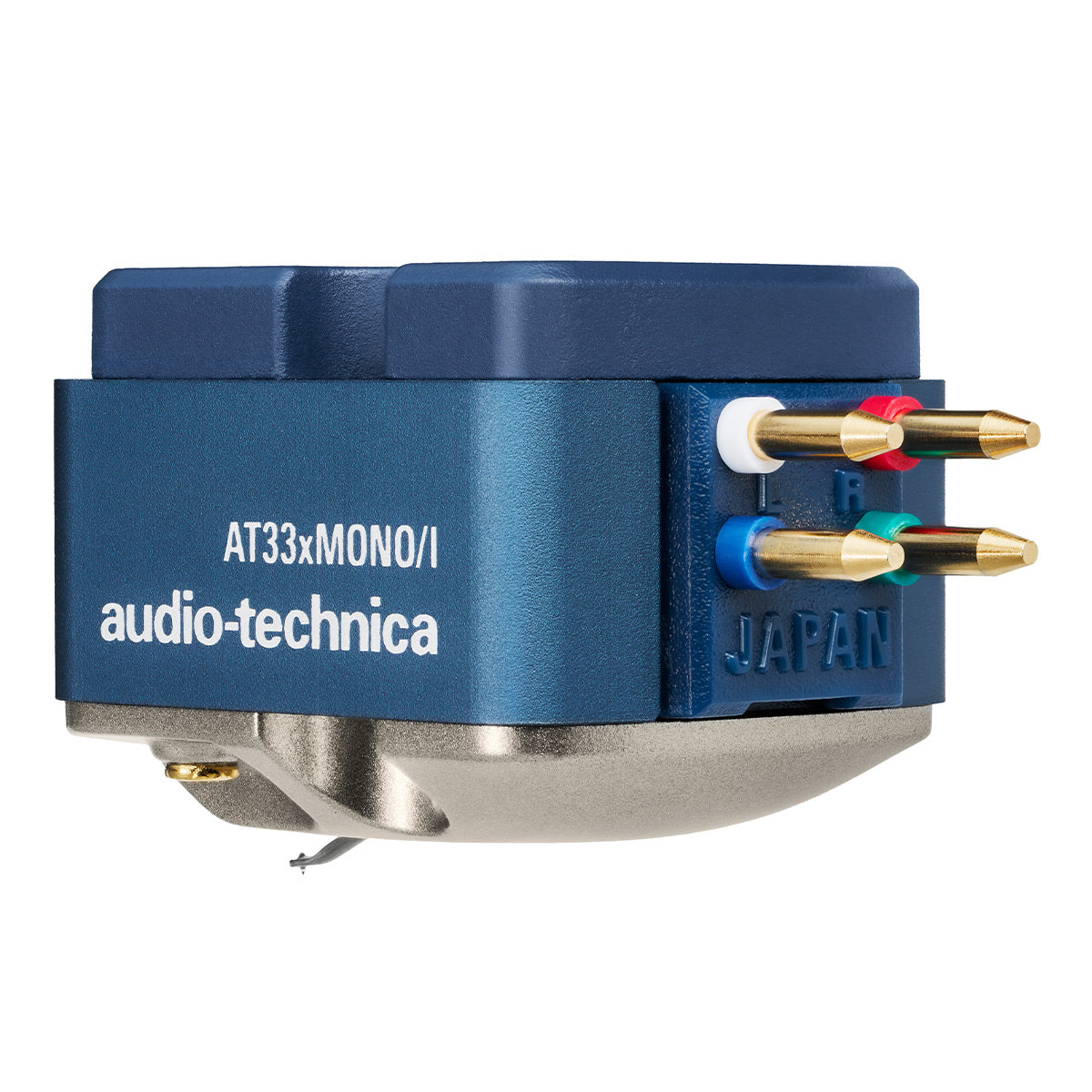

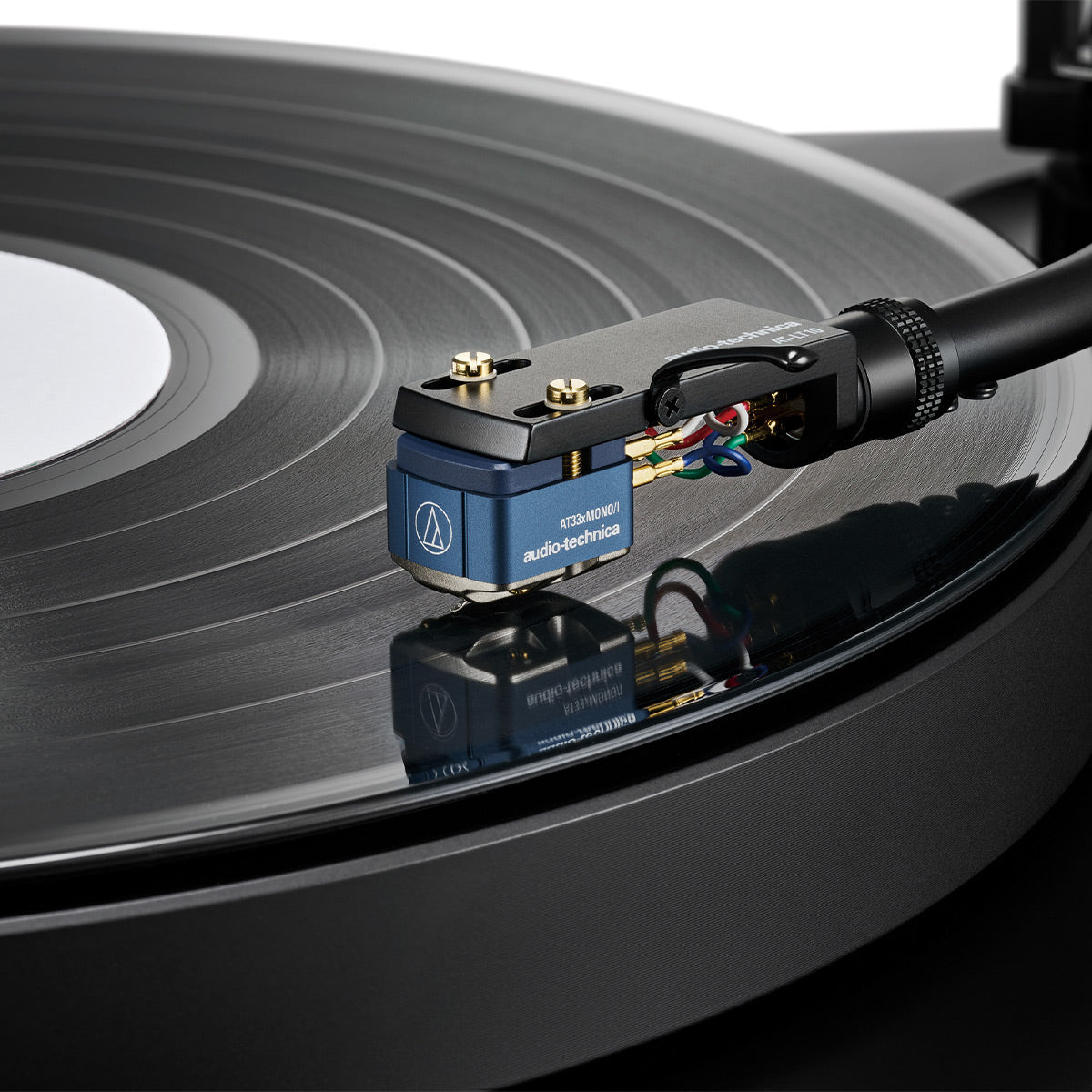

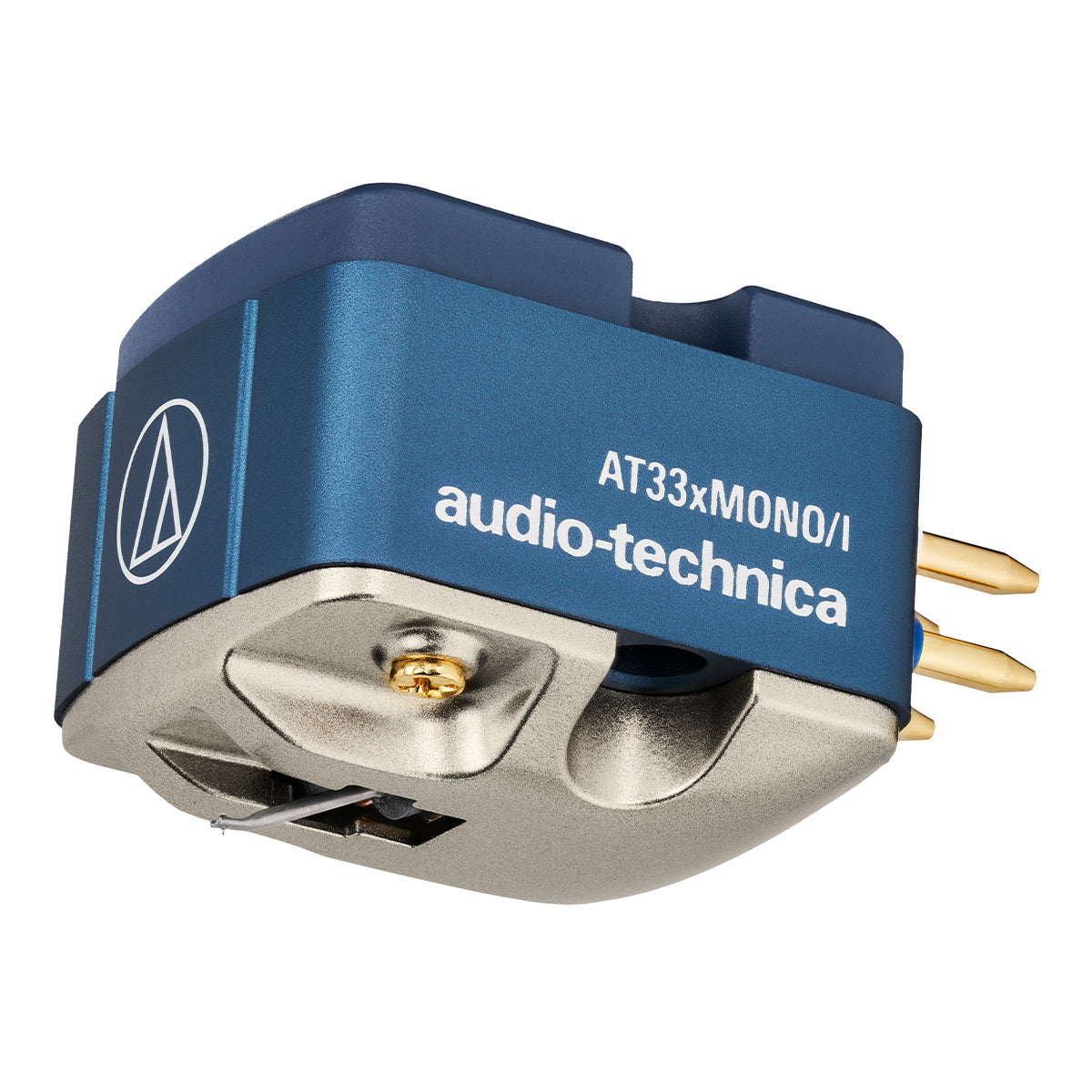

Audio-Technica AT33XMONO/I Dual Moving Coil Mono Cartridge

Regular price $649.00
Sale price $649.00 Regular price
$0.00 Save $-649.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Nov 18 – Tue, Nov 25

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

AT33xMONO/I Overview

Product Information

Model: AT33XMONO/I | UPC: 4961310164058

Specifications

What's In The Box

Product Information

Model: AT33XMONO/I | UPC: 4961310164058

The AT33xMONO/I employs a “True Mono” dual moving coil design that rejects vertical noise, delivering clear mono sound with stronger bass and reduced surface noise—ideal even on stereo systems. Its 0.65 mil conical nude stylus tracks mono grooves with precision, while a piano-wire suspension enhances tracking and mid-low range impact. A composite zinc, aluminum, and polymer body minimizes resonance for balanced playback, and PCOCC coils ensure pure transmission. Paired with a neodymium magnet and permendur yoke optimized for mono, the cartridge achieves efficient, responsive, high-resolution sound.

Features

  • Dual Moving Coil Mono Cartridge with Conical Nude Stylus
  • PCOCC Coils Ensure Smooth Signal Transmission
  • Composite Body Reduces Resonance for Balanced Sound

Material Difference

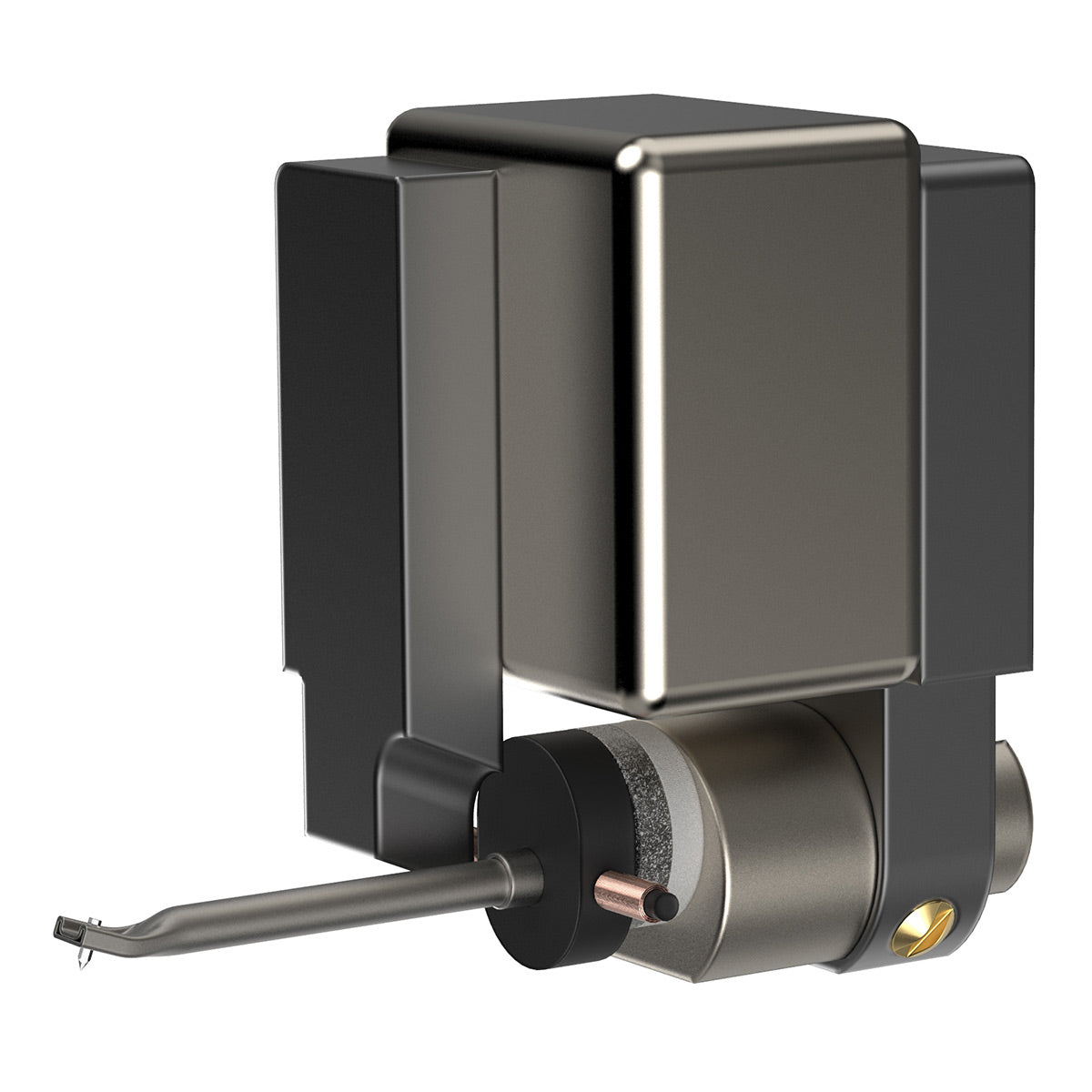

The AT33xMONO/I’s rigid duralumin pipe cantilever, which tapers toward the conical stylus tip for improved response, is linked with a firm suspension mechanism, slightly lowering the dynamic compliance. “True Mono” PCOCC coils are positioned at the cantilever’s fulcrum to ensure pure transmission of horizontal mono signals.

Sound Body

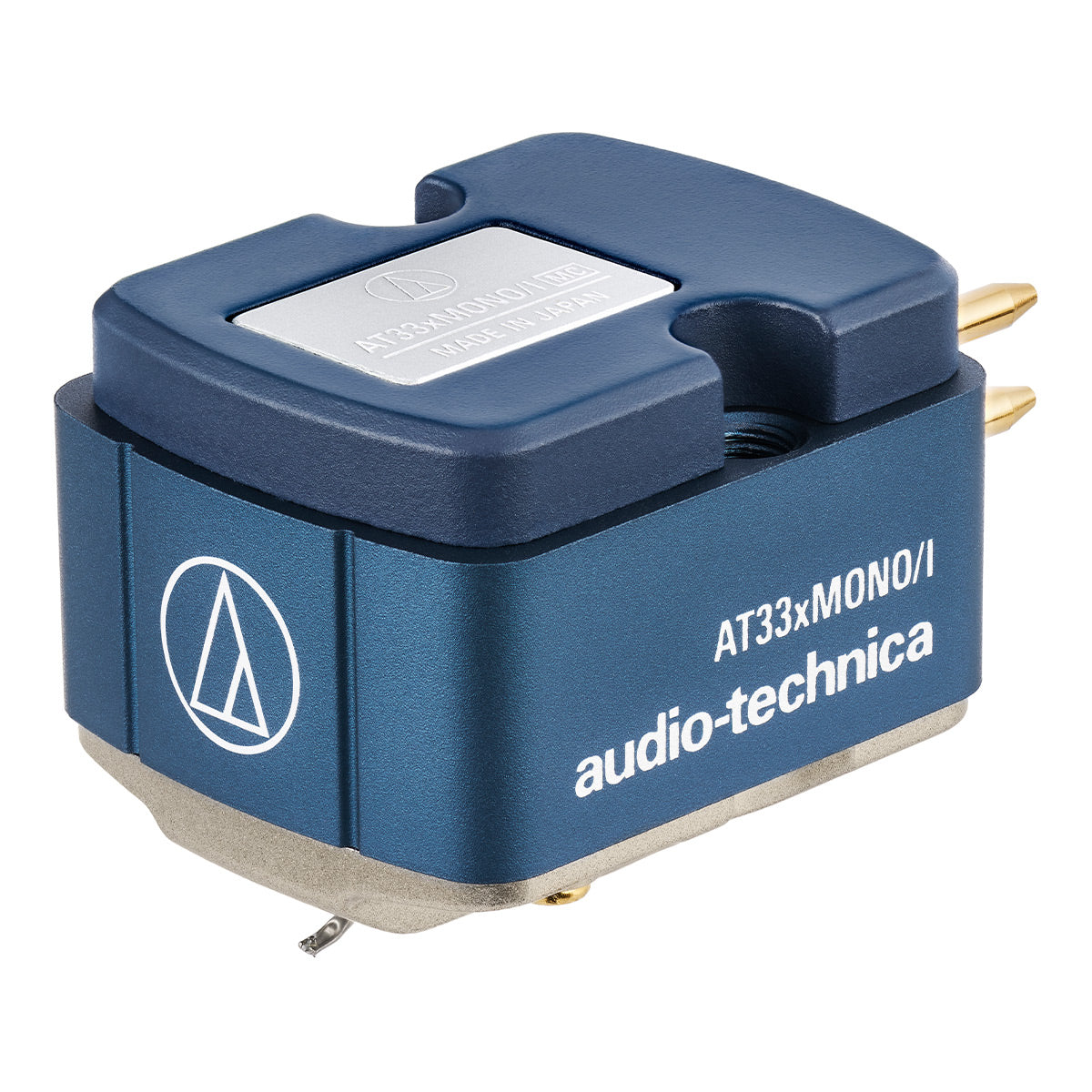

Each AT33x Series cartridge body is constructed of three distinct materials – die-cast zinc, aluminum, and high-rigidity polymer – optimally arranged to reduce and disperse resonance across the cartridge body so that no frequency predominates during playback. Threaded holes are incorporated into the body for easy mounting.

Full, Warm Sound

The redesigned AT33x Series cartridges deliver that classic analog sound, rich in detail across the audio spectrum with lifelike expressiveness in the mid to low frequencies.

Specifications

  • Type: MC
  • Frequency response: 20 to 30,000 Hz
  • Output voltage: 0.42 mV (1 kHz, 5 cm/sec., horizontal signal)
  • Horizontal/vertical output ratio: 25 dB (1 kHz)
  • Output balance: 1.0 dB (1 kHz)
  • Tracking force: 2.0 to 2.4 g (2.2 g standard)
  • Coil impedance: 10 ohms (1 kHz)
  • DC resistance: 10 ohms
  • Recommended load impedance: ≥ 100 ohms (when head amplifier connected)
  • Coil inductance: 27 μH (1 kHz)
  • Static compliance: 14 × 10⁻⁶ cm/dyne
  • Dynamic compliance: 6 × 10⁻⁶ cm/dyne (100 Hz)
  • Stylus: Nude conical
  • Stylus curvature radius: 0.65 mil
  • Cantilever: Duralumin pipe
  • Vertical tracking angle: 20°
  • Dimensions: 16.1 mm (0.63”) × 16.6 mm (0.65”) × 26.1 mm (1.0”) (H × W × D)
  • Threaded hole: M2.6 × 2
  • Weight: 10.1 g (0.36 oz)

What's In The Box

  • AT33XMONO/I Dual Moving Coil Mono Cartridge

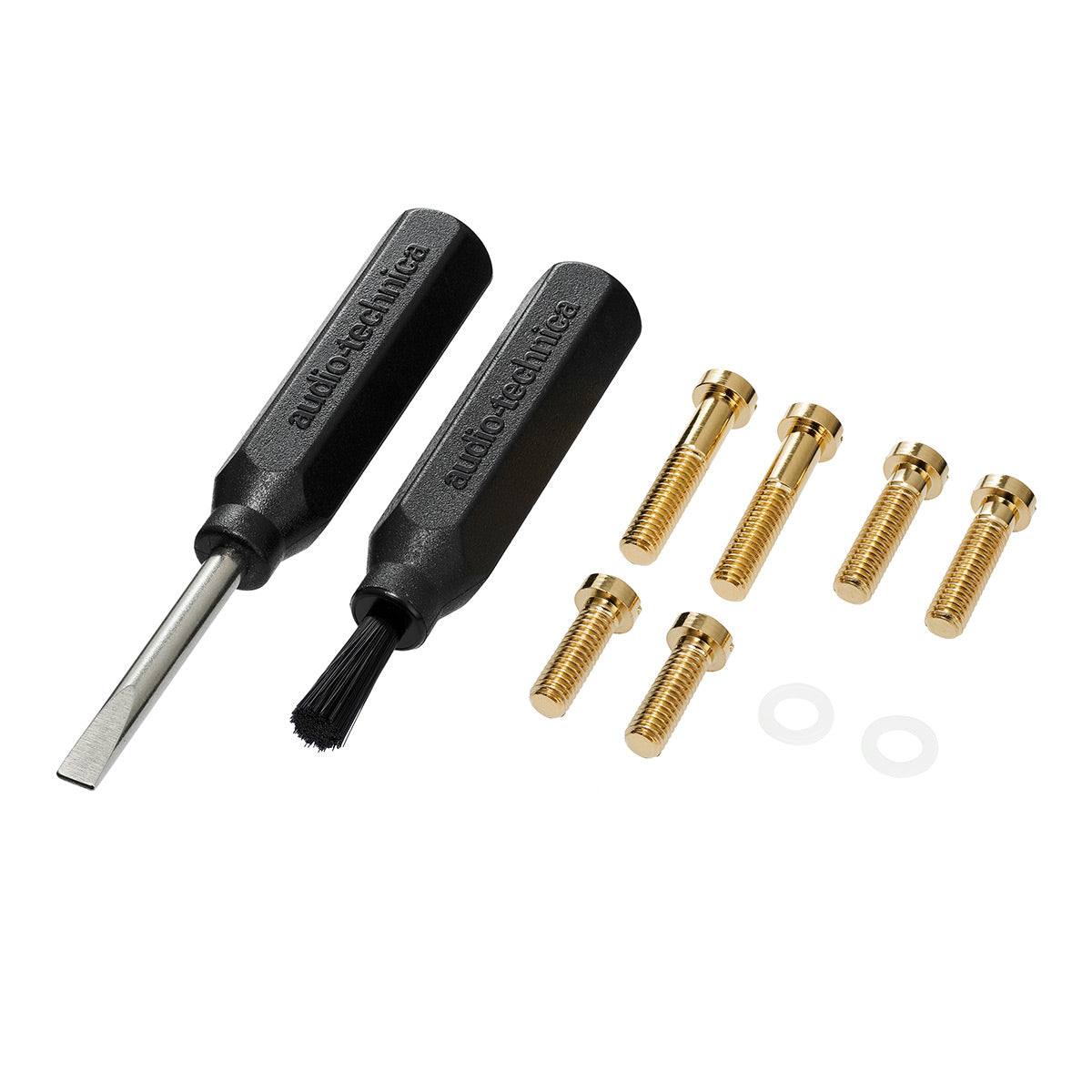

  • Installation Kit
  • Manual
