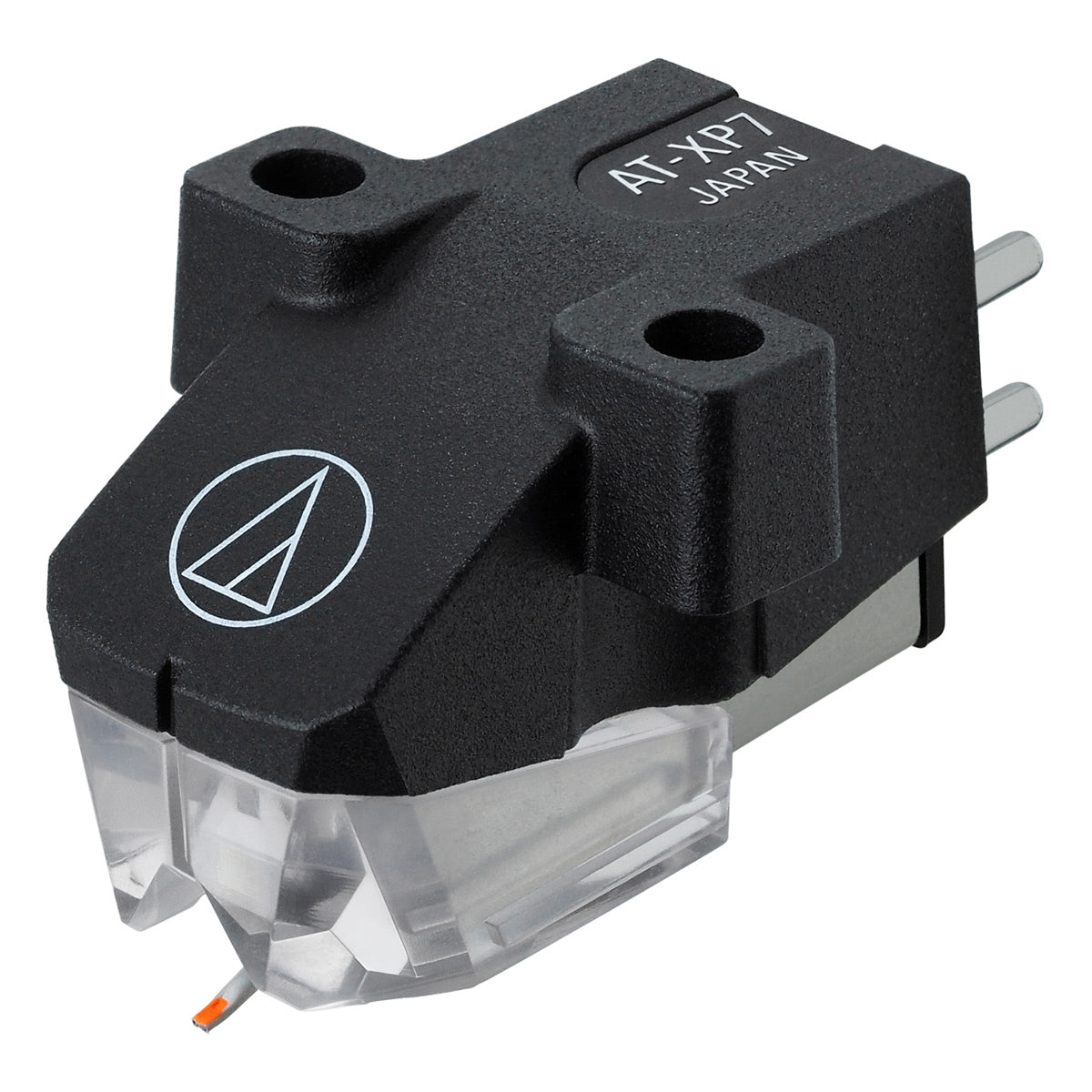

Audio-Technica AT-XP7 MM DJ Cartridge

Regular price $159.00
Sale price $159.00 Regular price
Save $-159.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: AT-XP7 | UPC: 4961310142537

Specifications

What's In The Box

WARNING: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Product Information

Model: AT-XP7 | UPC: 4961310142537

The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

Features

  • 0.3 x 0.7 mil elliptical bonded stylus tip
  • Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
  • 6.0mV high-output level
  • Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
  • Stainless wire suspension, double-layered rubber damper and tapered aluminum cantilever ensure precise tracking
  • Design offers maximum visibility of the stylus tip
  • Great tracking and channel separation for high-fidelity sound

Specifications

  • Frequency response: 20 - 20,000Hz
  • Channel separation: 22dB at 1kHz
  • Vertical tracking force: 2.0 - 4.0g (3.0g standard)
  • Stylus construction: Bonded round shank
  • Recommended load impedance: 47,000 ohms
  • Output: 6.0mV (1kHz, 5cm/sec)
  • Channel balance: 2.0dB (1.kHz)
  • Stylus shape: 0.3 x 0.7 mil elliptical
  • Cantilever: Aluminum tapered pipe
  • Mount: Half-inch
  • Replacement stylus: ATN-XP7
  • Coil impedance: 6.7k ohms (1kHz)
  • DC resistance: 990 ohms
  • Recommended load capacitance: 100 to 200pF
  • Coil inductance: 1.0H (1kHz)
  • Vertical tracking angle: 20°
  • Dimensions (H x W x D): 0.68" x 0.67" x 1.2"
  • Weight: 0.22 ounces

What's In The Box

  • AT-XP7 DJ Cartridge
