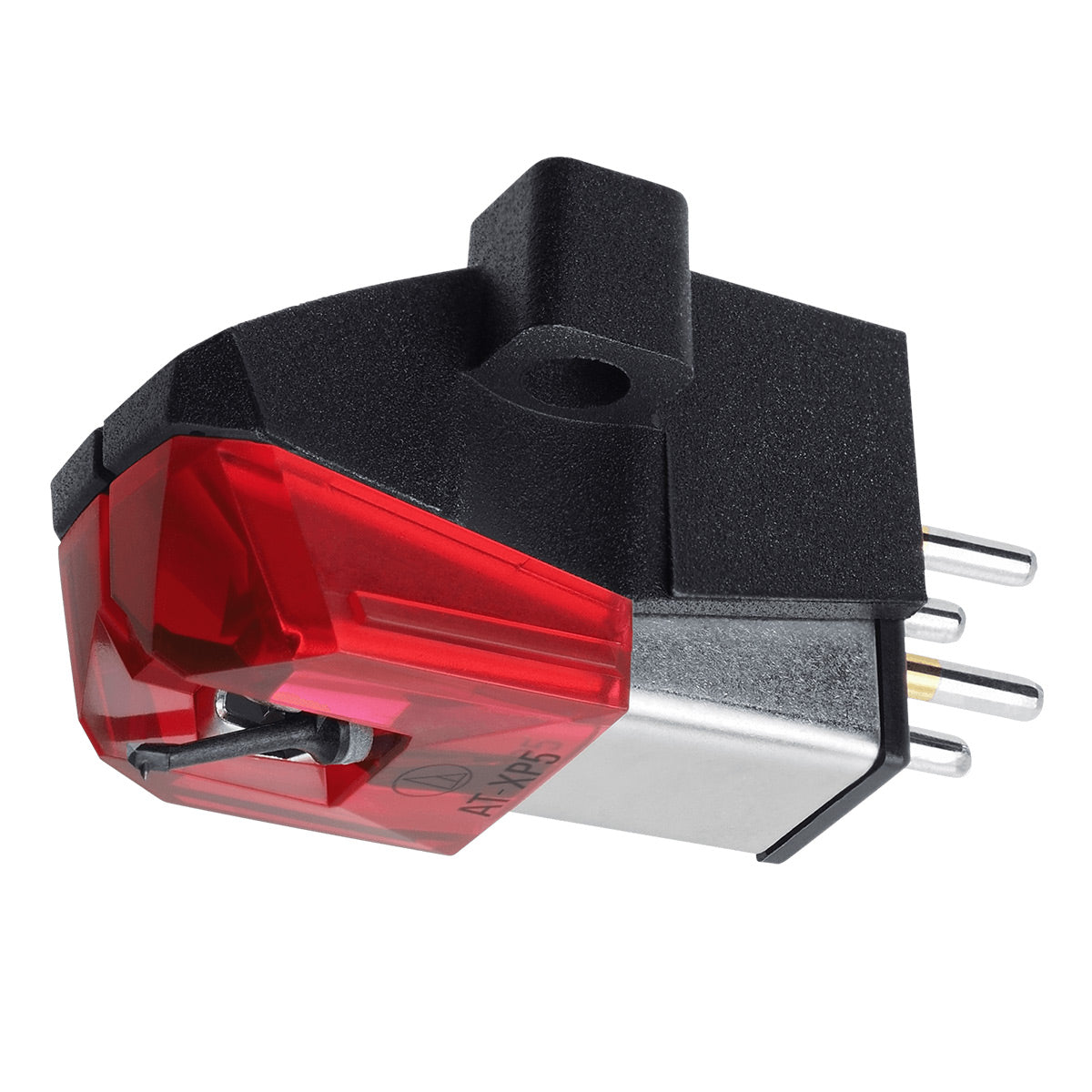

Audio-Technica AT-XP5/H Headshell & MM Cartridge Combo Kit

Regular price $119.00
Sale price $119.00 Regular price
Save $-119.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Feb 11 – Tue, Feb 18

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Audio-Technica AT-XP5/H Overview

Product Information

Model: AT-XP5/H | UPC: 4961310146566

Specifications

What's In The Box

Product Information

Model: AT-XP5/H | UPC: 4961310146566

The Audio-Technica AT-XP5/H is a DJ cartridge and headshell combo kit that includes the AT-XP5 cartridge pre-mounted on the AT-HS6BK headshell. It features a highly rigid polyphenylene sulfide (PPS) and glass fiber body, ensuring durability and precise tracking. The cartridge is equipped with a durable carbon fiber-reinforced ABS cantilever and nylon wire suspension for excellent tracking and channel separation. Additionally, it offers a high output level of 5.5 mV and a tracking force range of 2.0 to 4.0 grams, making it ideal for professional DJ use.

Features

  • Elliptical Bonded Stylus Tip
  • Durable Carbon Fiber-Reinforced ABS Cantilever
  • Nylon Wire Suspension
  • Design Offers Maximum Visibility of The Stylus Tip
  • Compatible with Any XP or VM95 Series Replacement Stylus

Specifications

  • Frequency Response: 20-18,000 Hz
  • Channel Separation: 20 (dB at 1 kHz)
  • Vertical Tracking Angle: 20°
  • Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
  • Stylus Construction: Bonded round shank
  • Recommended Load Impedance: 47,000 ohms
  • Coil Impedance: 6.7 k ohms (1 kHz)
  • Coil Inductance: 1 H (1 kHz)
  • Output Voltage: 5.5 mV (1 kHz, 5 cm/sec.)
  • Output Channel Balance: 2.0 dB (1 kHz)
  • Stylus Shape: 0.3 x 0.7 mil elliptical
  • Cantilever: Carbon fiber-reinforced ABS
  • Static Compliance: 20 x 10 – 6 cm / dyne
  • Dynamic Compliance: 6.0 x 10 – 6 cm / dyne (100 Hz)
  • Mounting: Half-inch
  • Cartridge Weight: 15.6g

What's In The Box

  • AT-XP5/H Headshell & MM Cartridge Combo Kit
  • Non-Magnetic Screwdriver
  • Installation Hardware
