Audio-Technica AT-XP3/H Headshell & MM Cartridge Combo Kit

Regular price $89.00
Sale price $89.00 Regular price
Save $-89.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Mon, Feb 17 – Mon, Feb 24

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Audio-Technica AT-XP3/H Overview

Product Information

Model: AT-XP3/H | UPC: 4961310146573

Specifications

What's In The Box

Product Information

Model: AT-XP3/H | UPC: 4961310146573

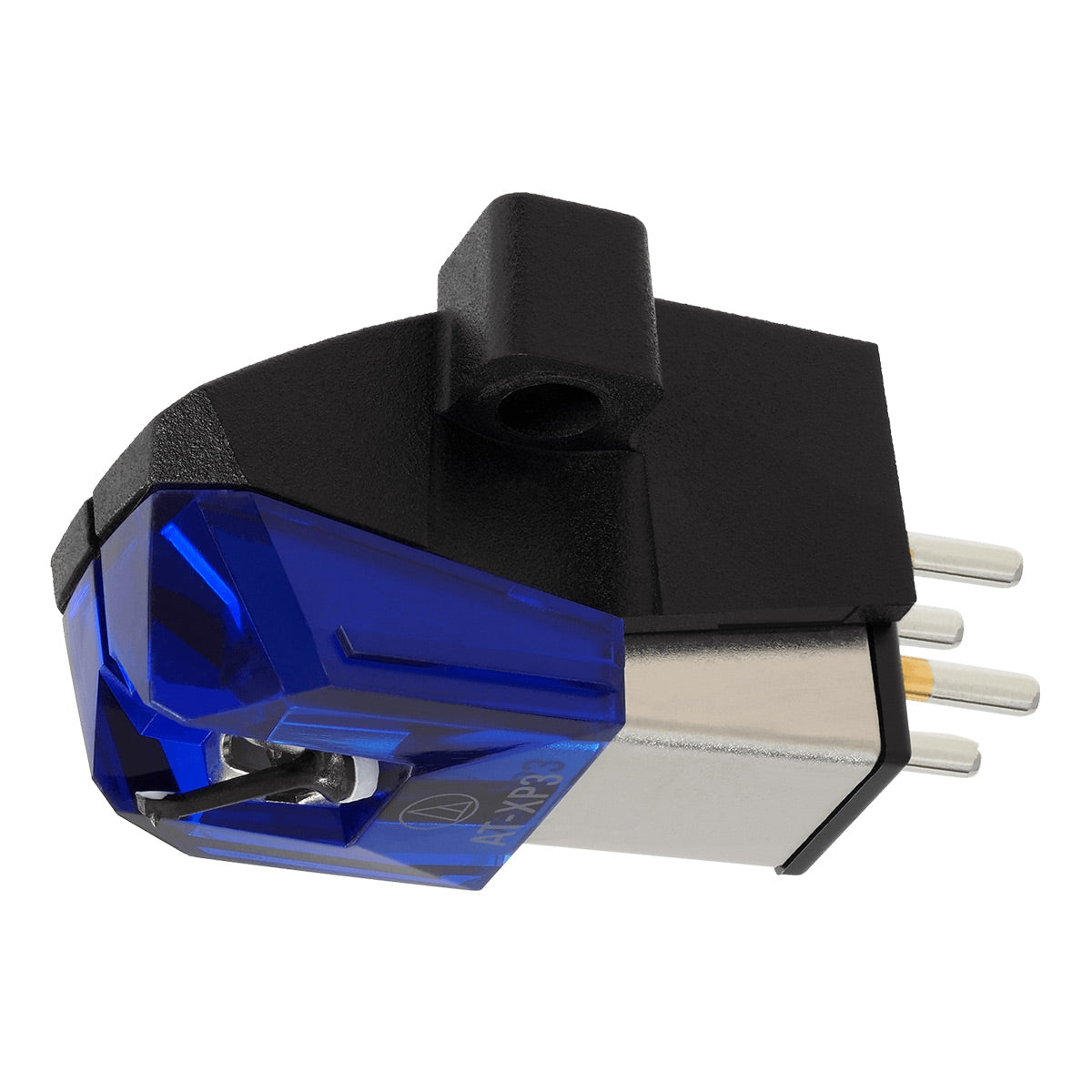

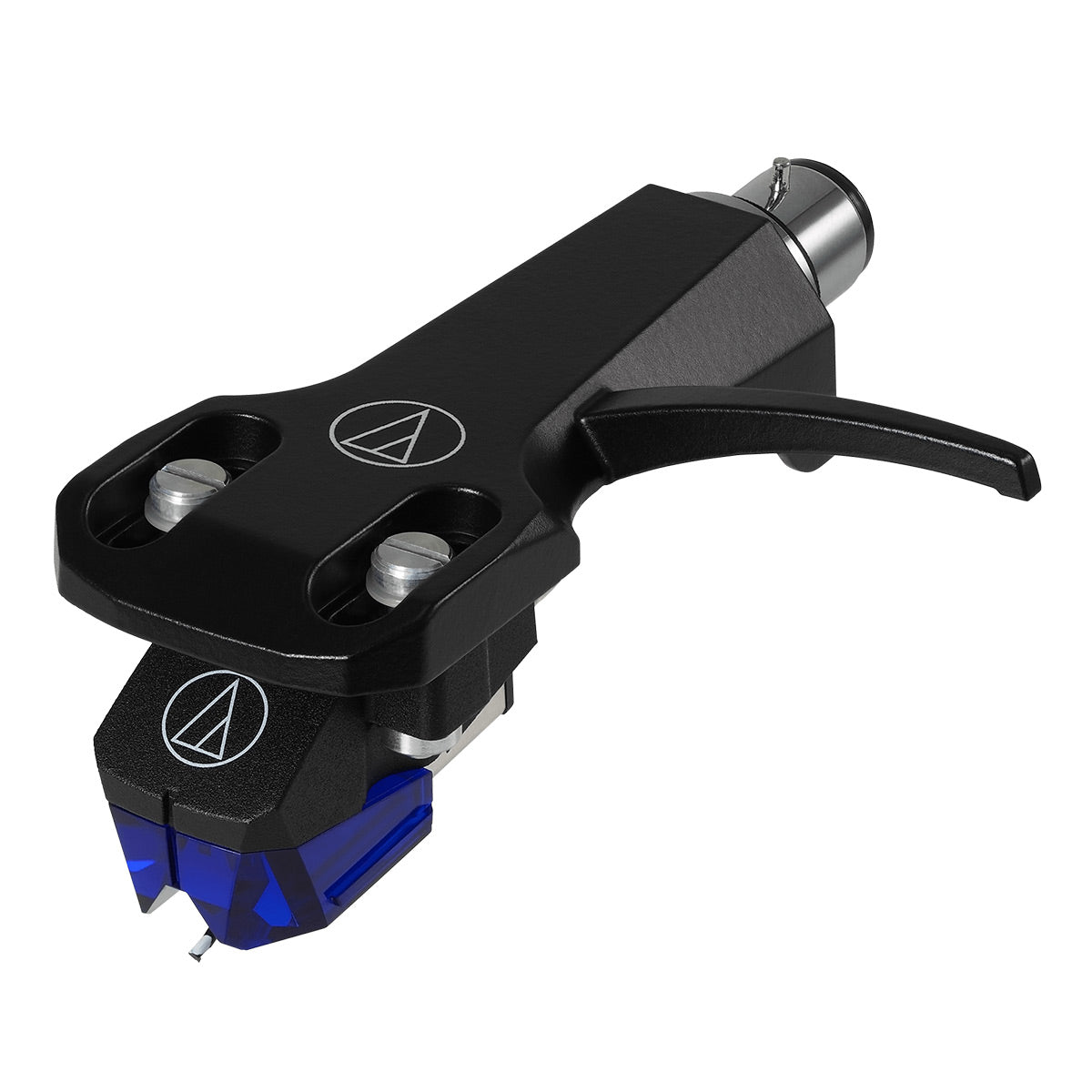

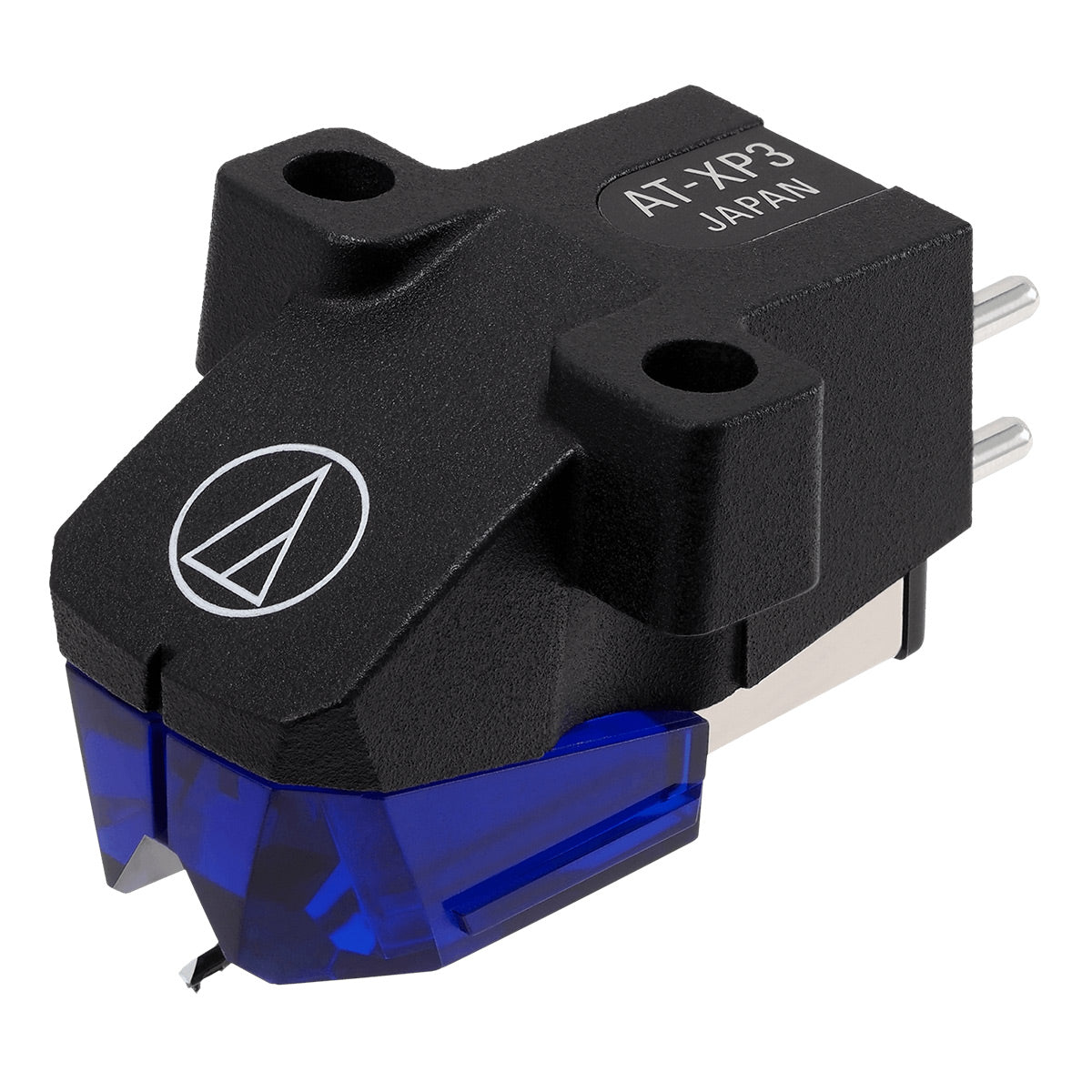

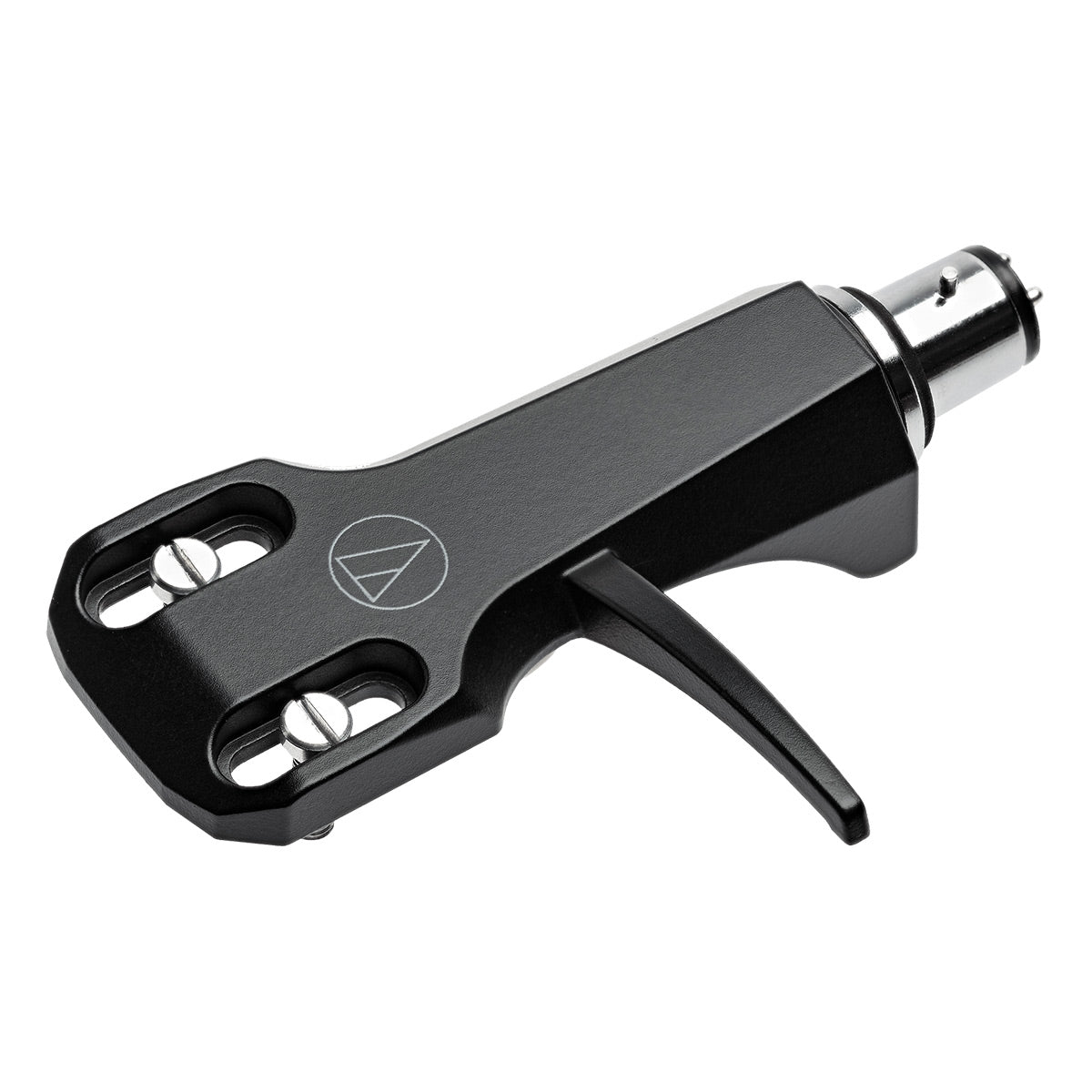

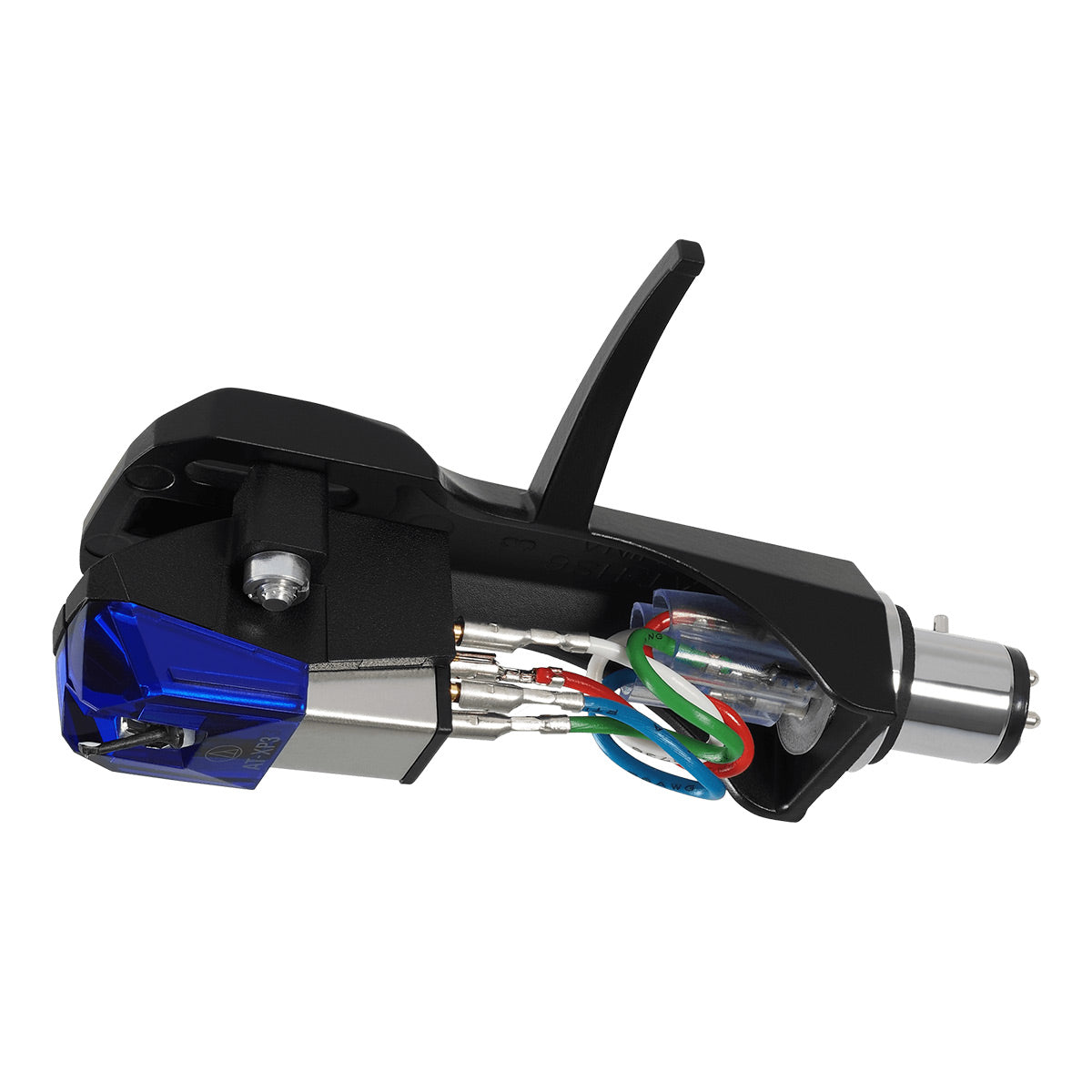

The Audio-Technica AT-XP3/H is a DJ cartridge and headshell combo kit that includes the AT-XP3 cartridge pre-mounted on the AT-HS6BK headshell. It features a highly rigid polyphenylene sulfide (PPS) and glass fiber body, ensuring durability and precise tracking. The cartridge is equipped with a durable carbon fiber-reinforced ABS cantilever and nylon wire suspension for excellent tracking and channel separation. Additionally, it is compatible with any XP or VM95 Series replacement stylus, offering flexibility for various applications and budgets.

Features

  • Conical Bonded Stylus Tip
  • Durable Carbon Fiber-Reinforced ABS Cantilever
  • Nylon Wire Suspension
  • Design Offers Maximum Visibility of The Stylus Tip
  • Compatible with Any XP or VM95 Series Replacement Stylus

Specifications

  • Frequency Response: 20-18,000 Hz
  • Channel Separation: 20 (dB at 1 kHz)
  • Vertical Tracking Angle: 20°
  • Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
  • Stylus Construction: Bonded round shank
  • Recommended Load Impedance: 47,000 ohms
  • Coil Impedance: 6.7 k ohms (1 kHz)
  • Coil Inductance: 1 H (1 kHz)
  • Output Voltage: 5.5 mV (1 kHz, 5 cm/sec.)
  • Output Channel Balance: 2.0 dB (1 kHz)
  • Stylus Shape: 0.6 mil conical
  • Cantilever: Carbon fiber-reinforced ABS
  • Static Compliance: 20 x 10 – 6 cm / dyne
  • Dynamic Compliance: 6.0 x 10 – 6 cm / dyne (100 Hz)
  • Mounting: Half-inch
  • Cartridge Weight: 15.6g

What's In The Box

  • AT-XP3/H Headshell & MM Cartridge Combo Kit
  • Non-Magnetic Screwdriver
  • Installation Hardware
