2.2 x 0.12 mil microlinear replacement stylus for AT-VM95ML dual moving magnet cartridge.
1
/
of
4

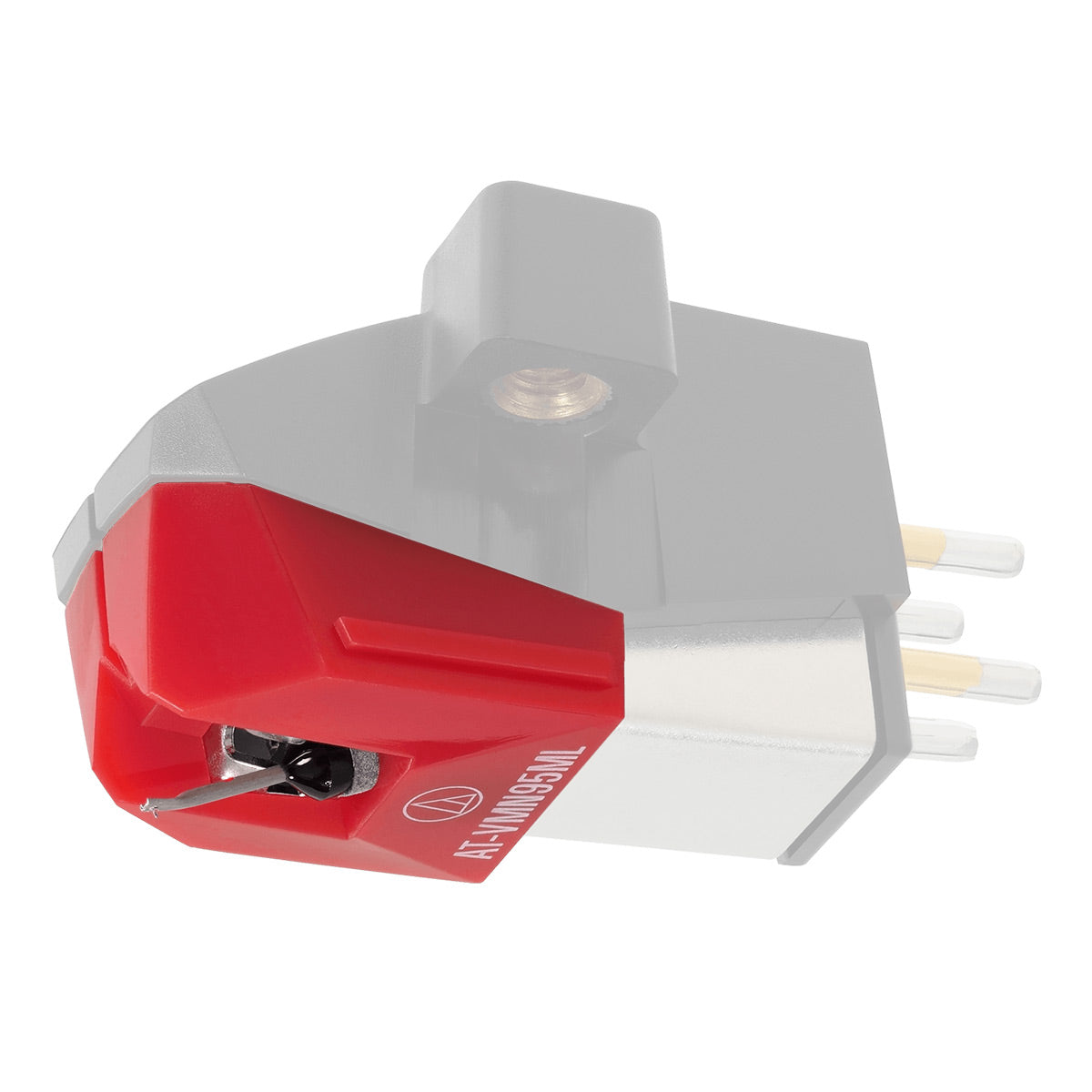

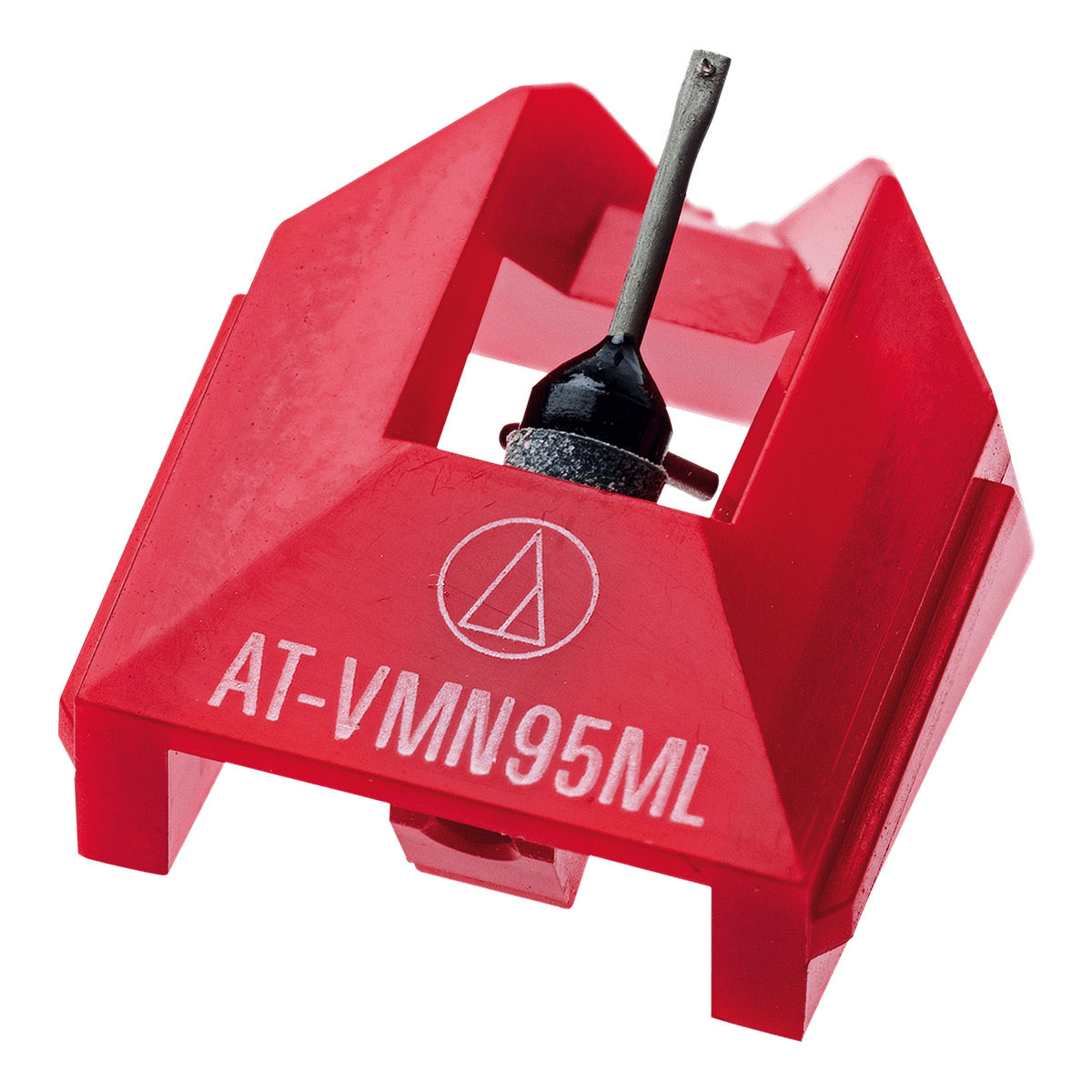

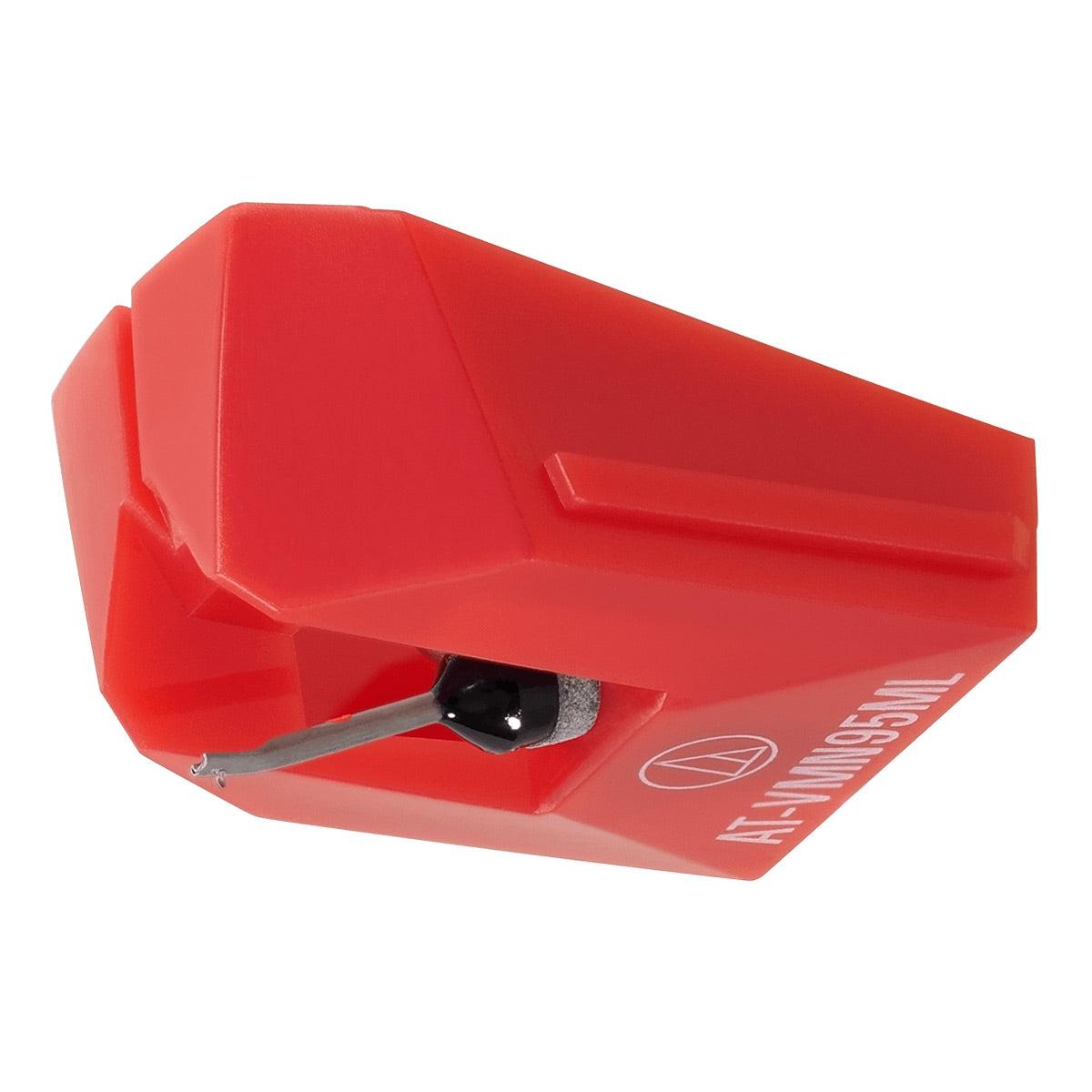

Audio-Technica AT-VMN95ML Replacement Stylus
Regular price
$149.00
Sale price
$149.00
Regular price
Unit price
/
per
Save
$-149.00
(%)
OR





Audio-Technica AT-VMN95ML Overview
Product Information
Model: AT-VMN95ML
|
UPC: 4961310157340
Specifications
What's In The Box
Product Information
Model: AT-VMN95ML
|
UPC: 4961310157340
Specifications
- Frequency Response: 20-25,000 Hz
- Channel Separation: 23 dB at 1 kHz
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Nude square shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 3.3 k ohms (1 kHz)
- DC Resistance: 485 ohms
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 3.5 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 1.5 dB (1 kHz)
- Stylus Shape: 2.2 x 0.12 mil Microlinear
- Cantilever: Aluminum pipe
- Static Compliance: 20 x 10^-6 cm/dyne
- Dynamic Compliance: 10 x 10^-6 cm/dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 6.1 g
- Dimensions (W x H x D): 18.9 mm x 17.2 mm x 28.3 mm
What's In The Box
- AT-VMN95ML Replacement Stylus
