Audio-Technica AT-VM95SH/H Headshell & MM Cartridge Combo Kit

Regular price $229.00
Sale price $229.00 Regular price
Save $-229.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Audio-Technica AT-VM95SH/H Overview

Product Information

Model: AT-VM95SH/H | UPC: 4961310146498

Specifications

What's In The Box

Product Information

Model: AT-VM95SH/H | UPC: 4961310146498

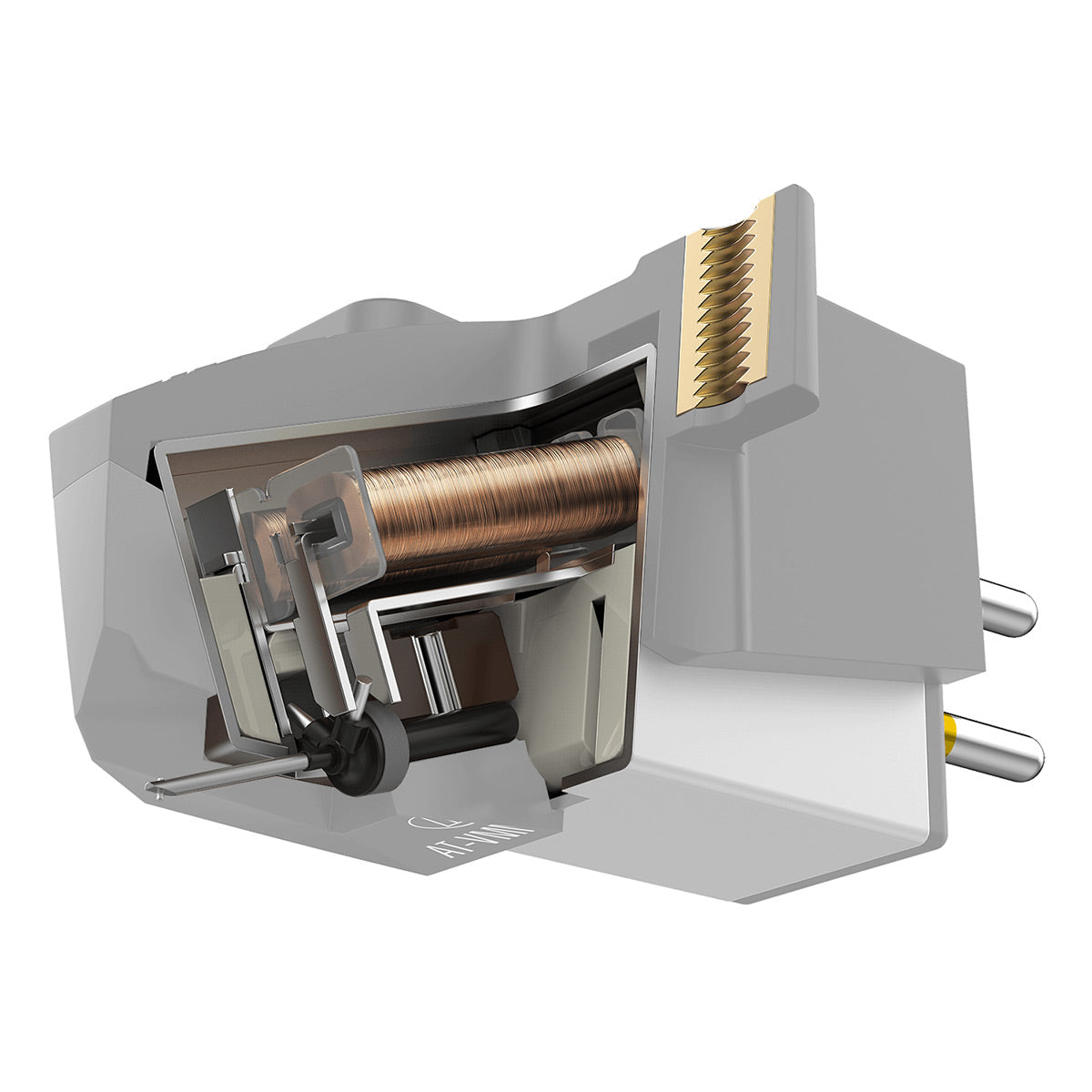

The AT-VM95SH/H combo kit includes the AT-VM95SH dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Features

  • Shibata Stylus & Aluminum Cantilever
  • Dual Moving Magnet Design
  • Durable Low-Resonance Housing
  • Pre-Mounted on AT-HS6BK Headshell

VM95 Series

This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Specifications

  • Frequency Response: 20-25,000 Hz
  • Channel Separation: 23 (dB at 1 kHz)
  • Vertical Tracking Angle: 23°
  • Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
  • Stylus Construction: Nude square shank
  • Recommended Load Impedance: 47,000 ohms
  • Coil Impedance: 3.3 k ohms (1 kHz)
  • DC Resistance: 485 ohms
  • Coil Inductance: 550 mH (1 kHz)
  • Output Voltage: 3.5 mV (1 kHz, 5 cm/sec.)
  • Output Channel Balance: 1.5 dB (1 kHz)
  • Stylus Shape: 2.7 x 0.26 mil Shibata
  • Cantilever: Aluminum pipe
  • Static Compliance: 20 x 10 – 6 cm / dyne
  • Dynamic Compliance: 10 x 10 – 6 cm / dyne (100 Hz)
  • Mounting: Half-inch
  • Dimensions (Cartridge & Headshell): 0.84" x 0.83" × 2.46"
  • Mounting Feature: Half-inch mount
  • Recommended Load Capacitance: 100 to 200 pF
  • Replacement Stylus: AT-VMN95SH
  • Stylus Size: 2.7 x 0.26mil
  • Type: VM Stereo Dual Magnet
  • Weight (Cartridge & Headshell): 15.5 g (0.55 oz)
  • Wire Used for Coil: T.P. Copper

What's In The Box

  • AT-VM95SH/H Headshell & MM Cartridge Combo Kit
  • Installation Hardware
