Audio-Technica AT-VM95E/H Headshell & MM Cartridge Combo Kit

Regular price $99.00
Sale price $99.00 Regular price
Save $-99.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Audio-Technica AT-VM95E/H Overview

Product Information

Model: AT-VM95E/H | UPC: 4961310157333

Specifications

What's In The Box

Product Information

Model: AT-VM95E/H | UPC: 4961310157333

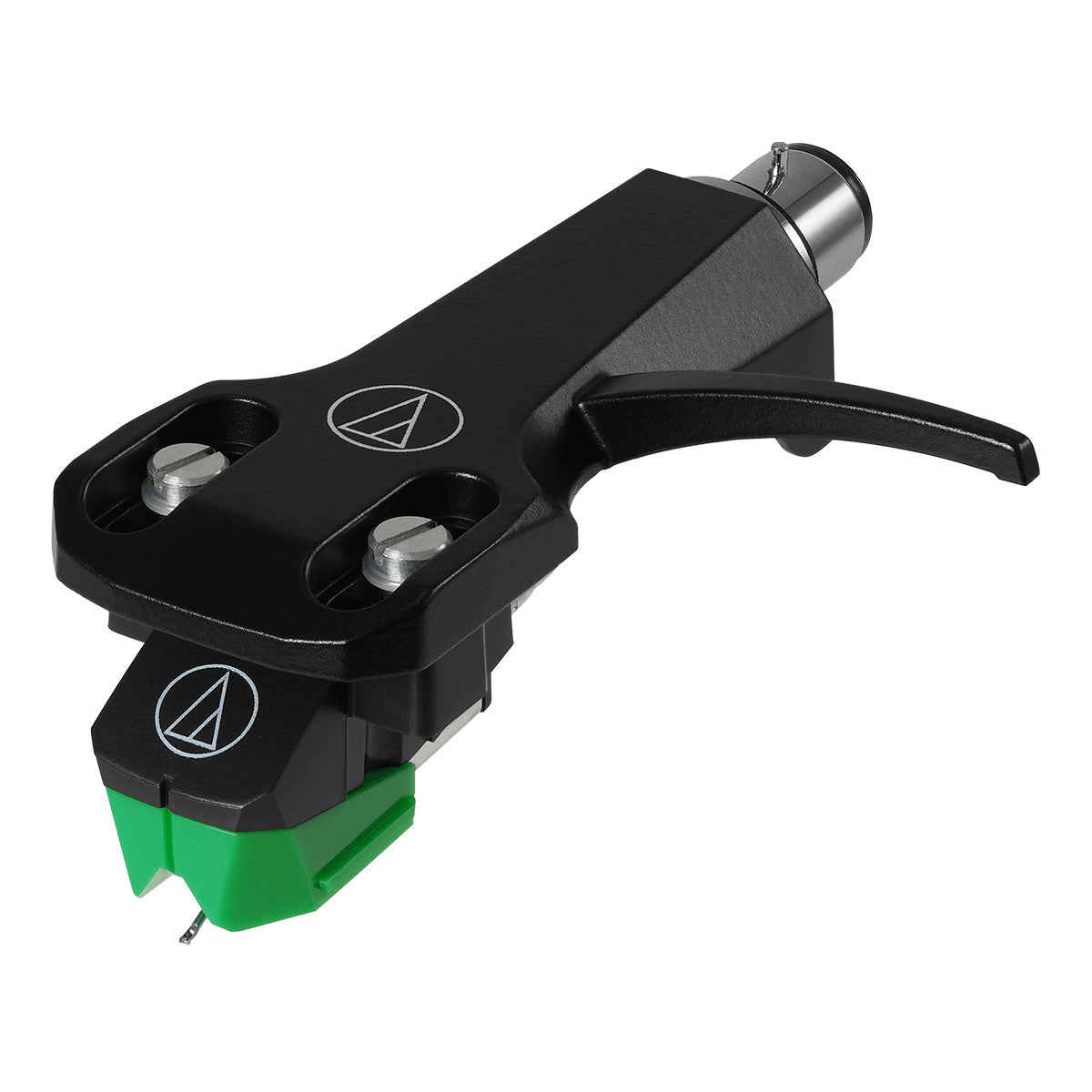

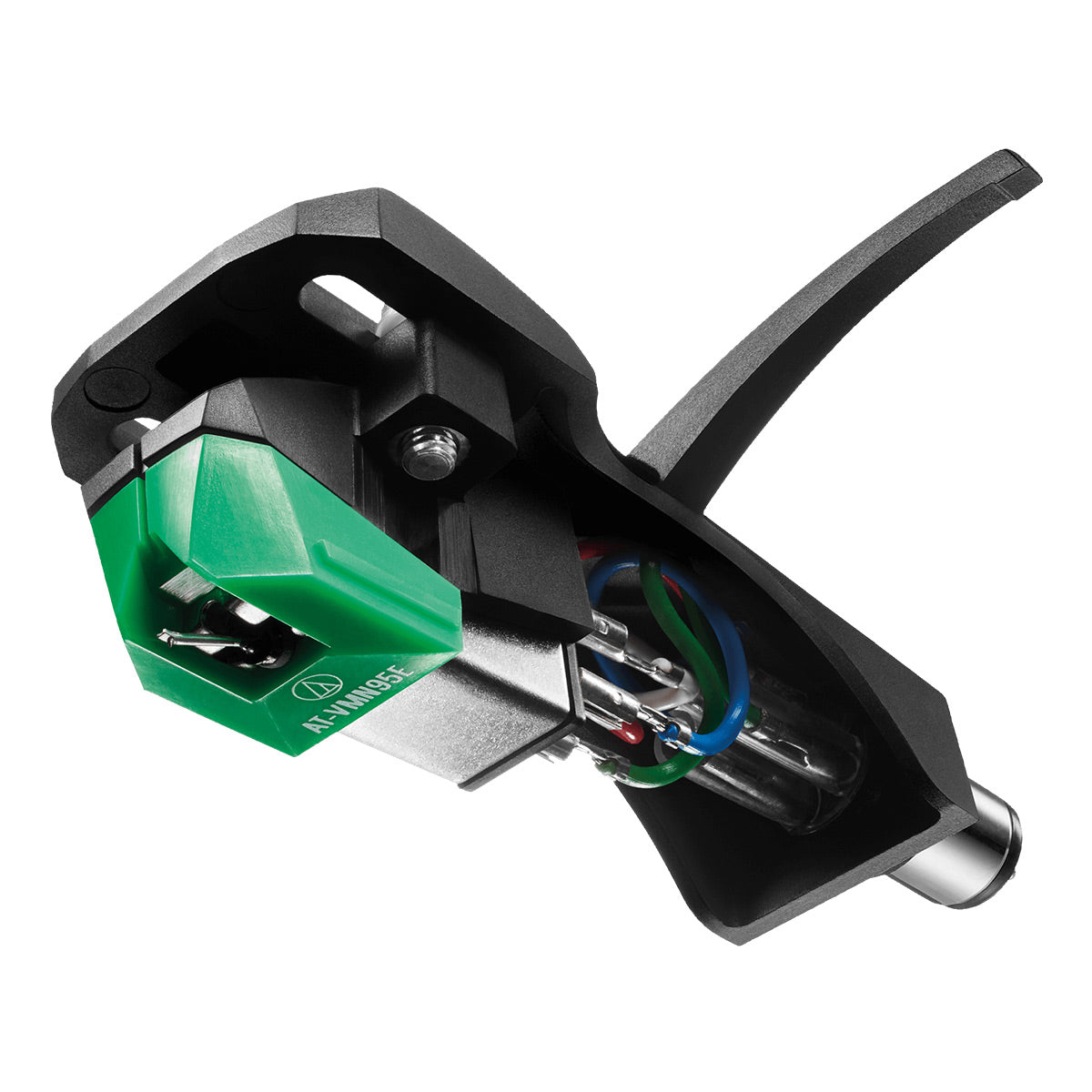

The AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Features

  • Elliptical Bonded Stylus on an Aluminum Cantilever
  • Dual Moving Magnet Design
  • Durable Low-Resonance Hosing
  • High Output Level (4.0mV)

VM95 Series

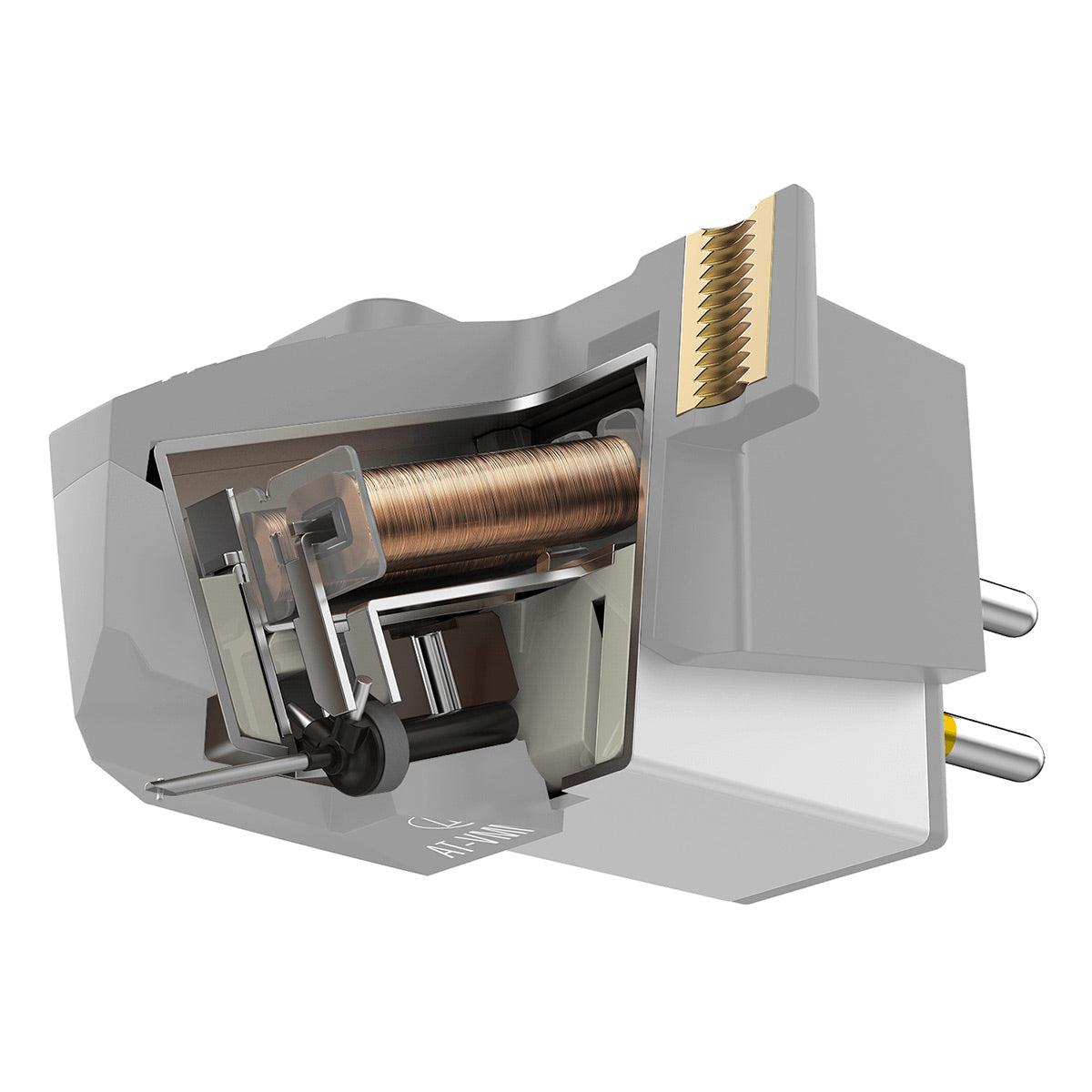

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Specifications

  • Frequency Response: 20-22,000 Hz
  • Channel Separation: 20 (dB at 1 kHz)
  • Vertical Tracking Angle: 23°
  • Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
  • Stylus Construction: Bonded round shank
  • Recommended Load Impedance: 47,000 ohms
  • Coil Impedance: 3.3 k ohms (1 kHz)
  • DC Resistance: 485 ohms
  • Coil Inductance: 550 mH (1 kHz)
  • Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.)
  • Output Channel Balance: 2.0 dB (1 kHz)
  • Stylus Shape: 0.3 x 0.7 mil elliptical
  • Cantilever: Aluminum pipe
  • Static Compliance: 17 x 10 – 6 cm / dyne
  • Dynamic Compliance: 7 x 10 – 6 cm / dyne (100 Hz)
  • Mounting: Half-inch
  • Dimensions (Cartridge & Headshell): 0.84" x 0.83" × 2.46"
  • Model: AT-VM95E/H
  • Mounting Feature: Half-inch mount
  • Recommended Load Capacitance: 100 to 200 pF
  • Replacement Stylus: AT-VMN95E
  • Stylus Size: 0.3 x 0.7 mil
  • Type: VM Stereo Dual Magnet
  • Weight  (Cartridge & Headshell): 15.5 g (0.55 oz)
  • Wire Used for Coil: T.P. Copper

What's In The Box

  • AT-VM95E/H Headshell & MM Cartridge Combo Kit
  • Installation Hardware
