Audio-Technica AT-VM95C/H Headshell & MM Cartridge Combo Kit

Regular price $79.00
Sale price $79.00 Regular price
Save $-79.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Mon, Feb 10 – Mon, Feb 17

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Audio-Technica AT-VM95C/H Overview

Product Information

Model: AT-VM95C/H | UPC: 4961310158101

Specifications

What's In The Box

Product Information

Model: AT-VM95C/H | UPC: 4961310158101

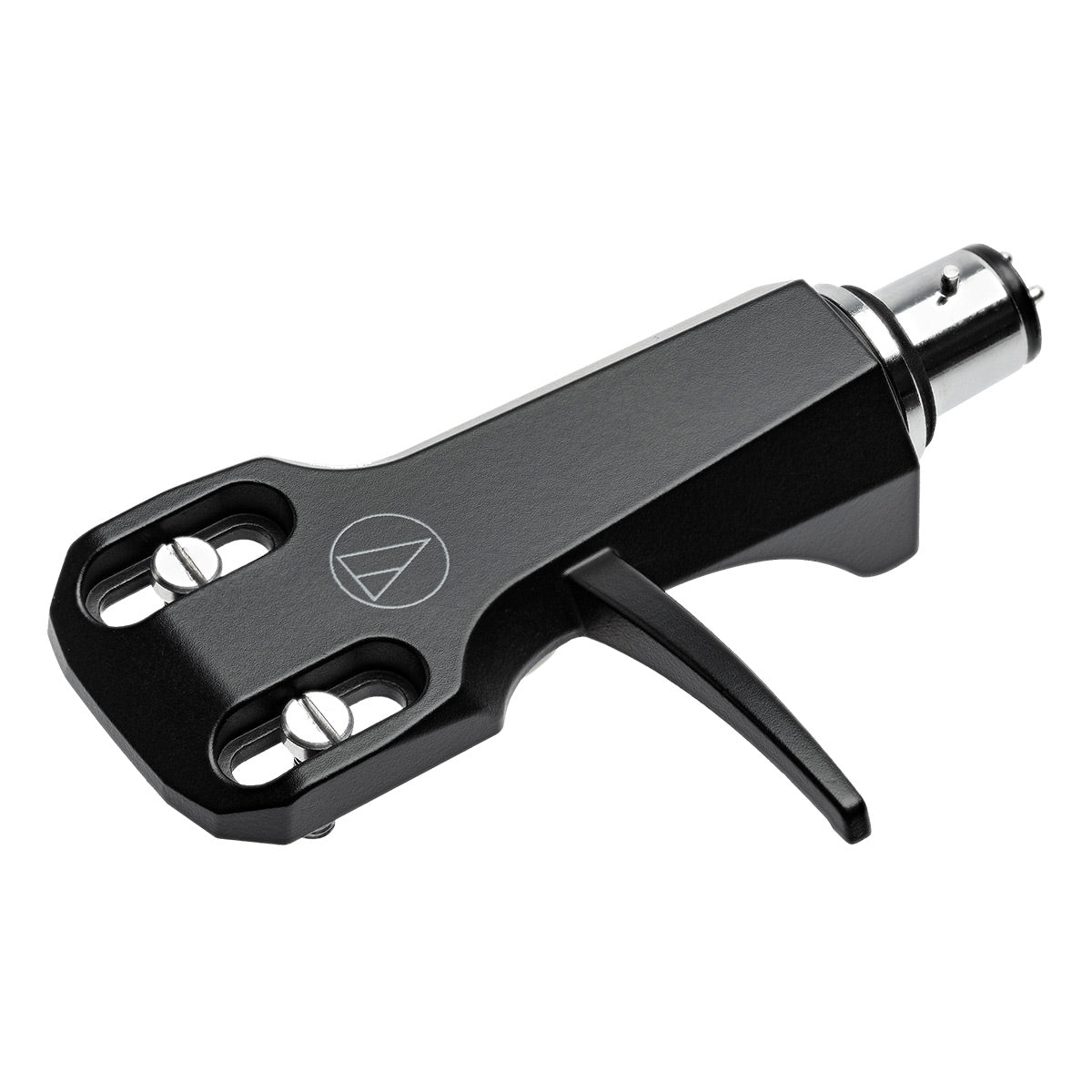

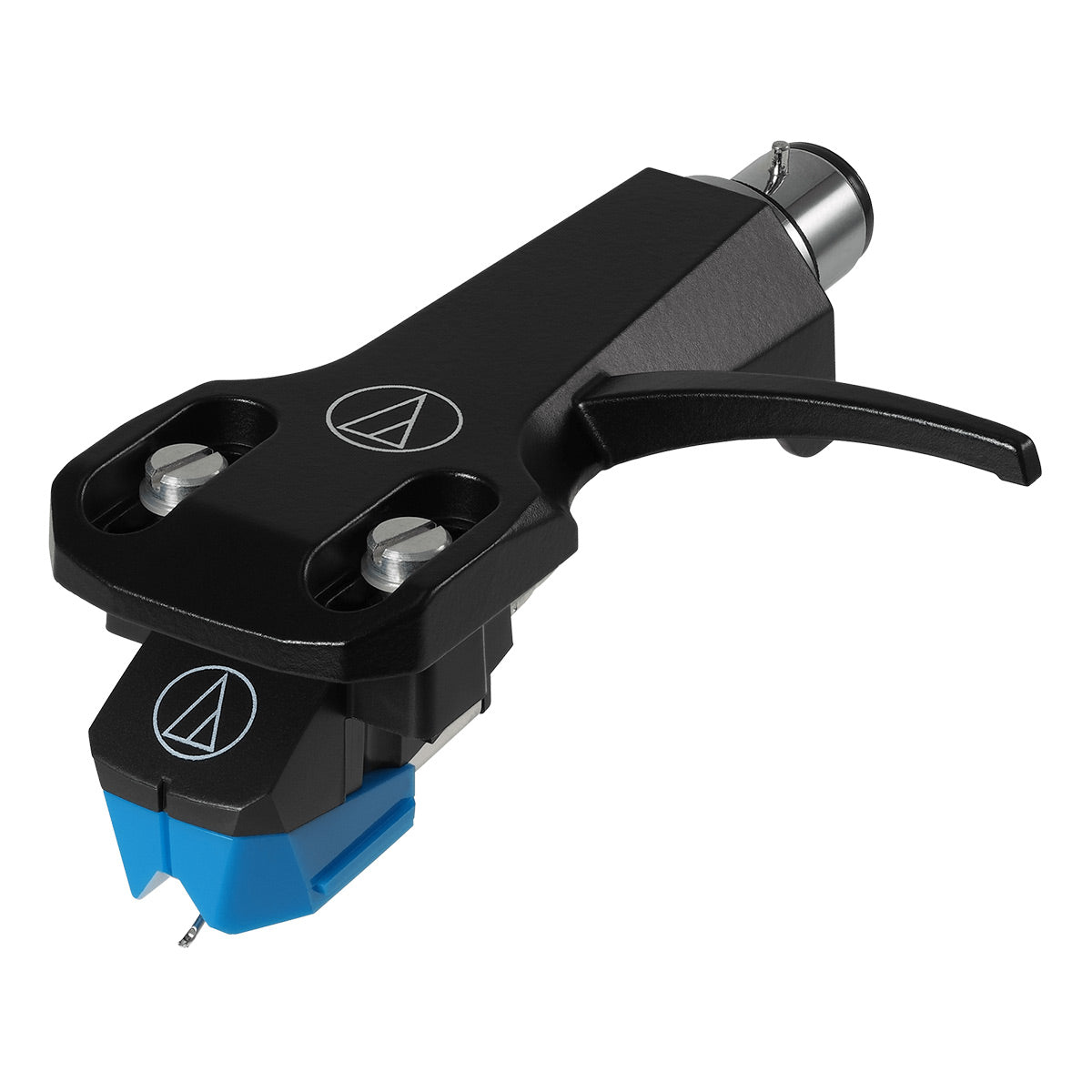

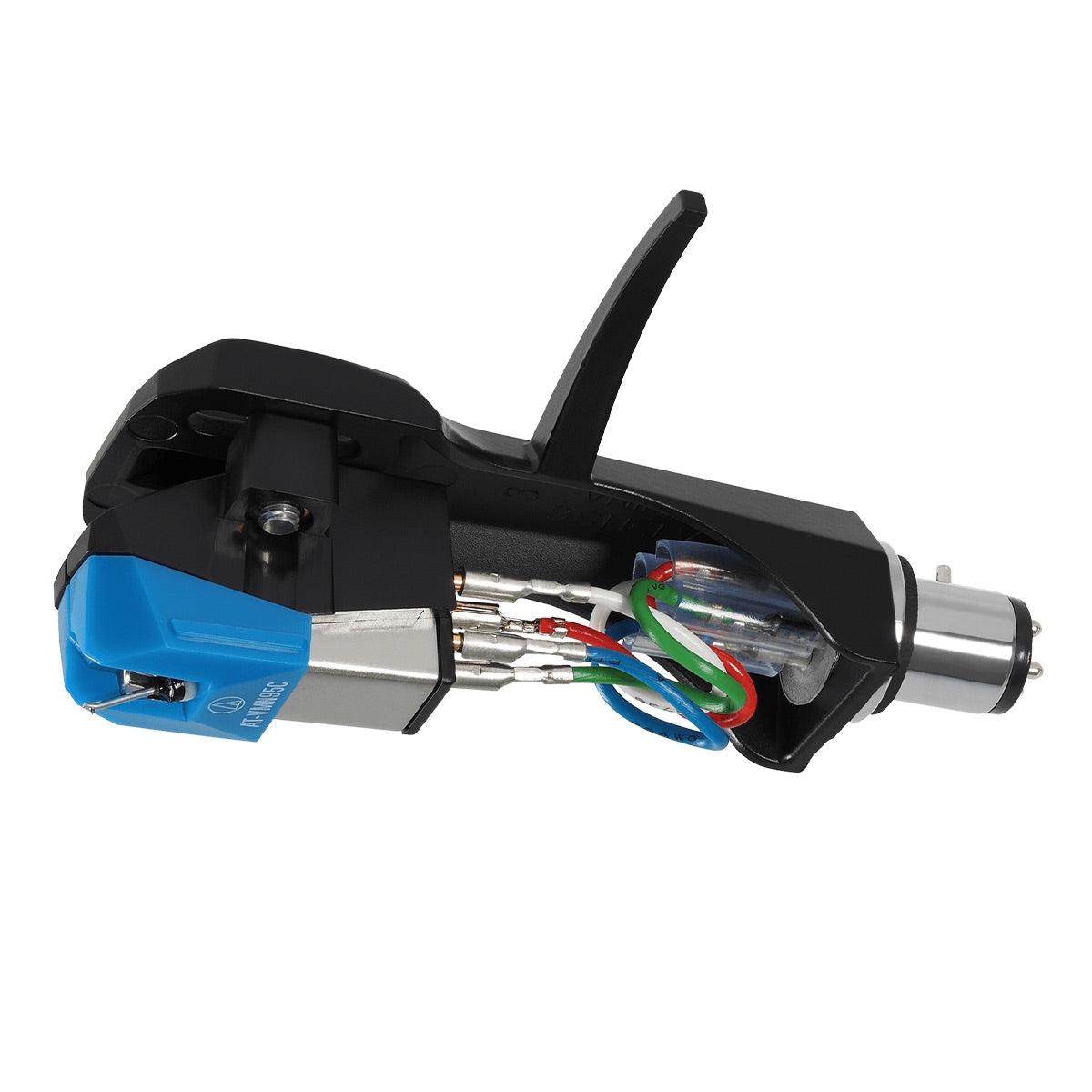

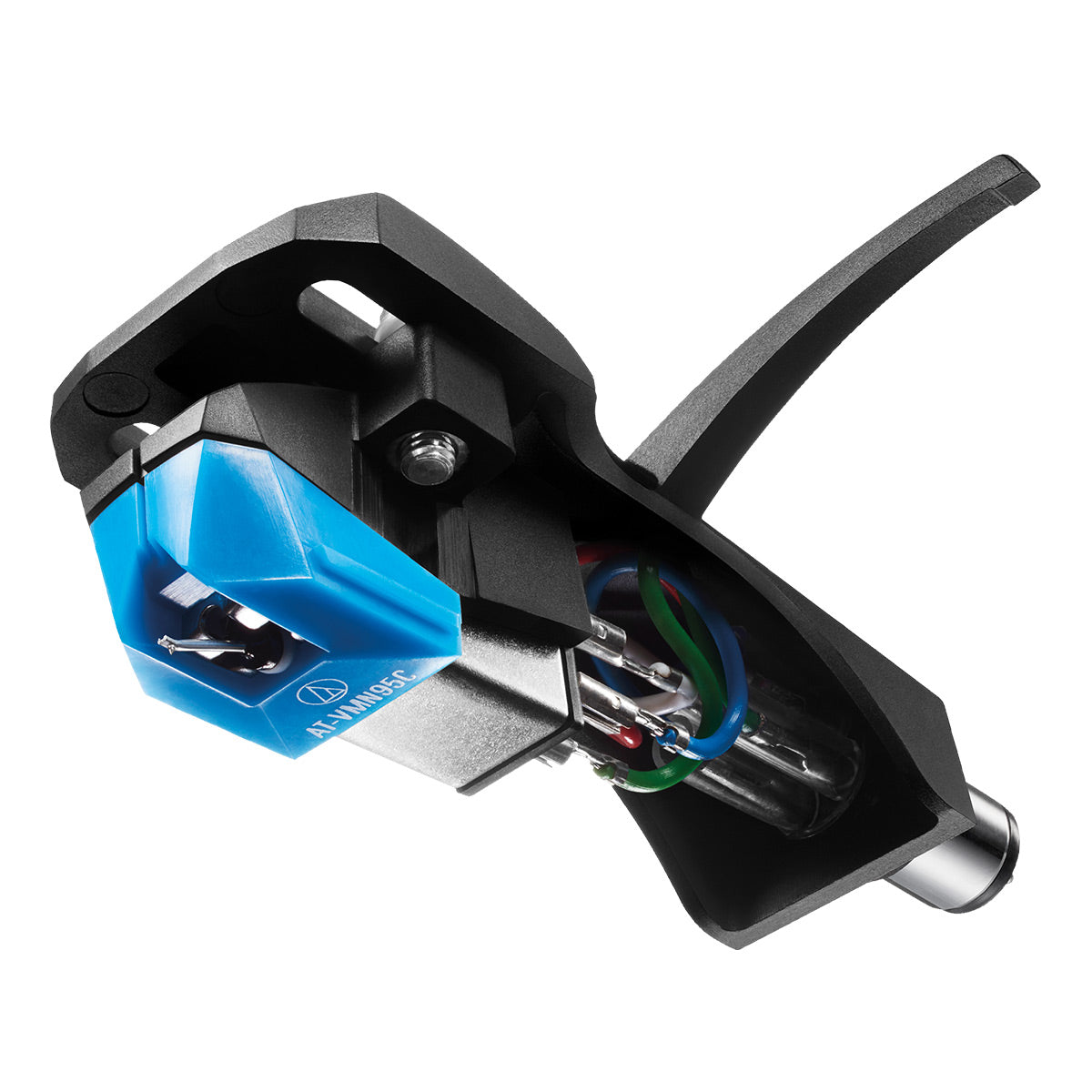

The AT-VM95C/H combo kit includes the AT-VM95C dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Features

  • Conical Bonded Stylus
  • Aluminum Cantilever
  • Dual Moving Magnet Design
  • Durable Low-Resonance Housing

VM95 Series

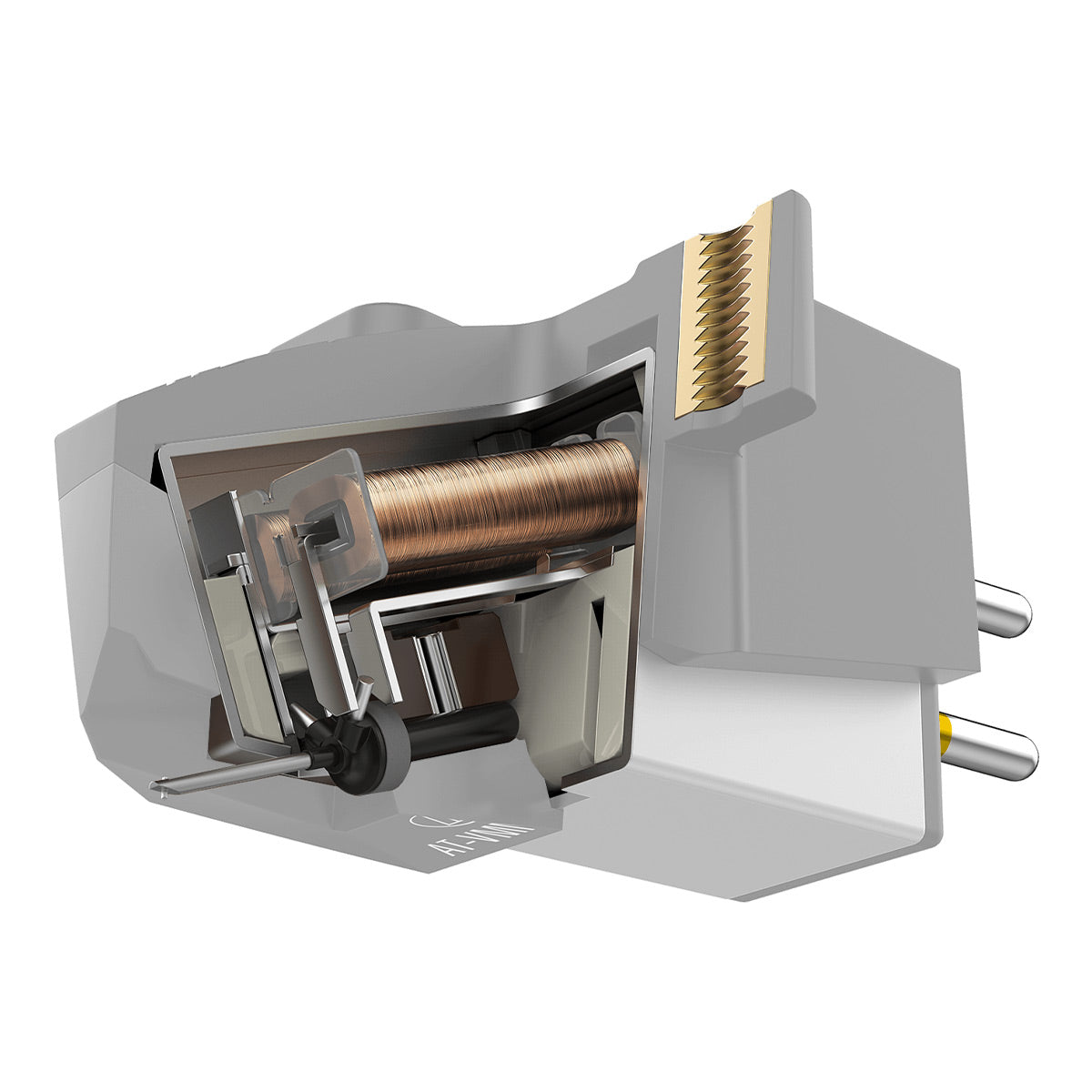

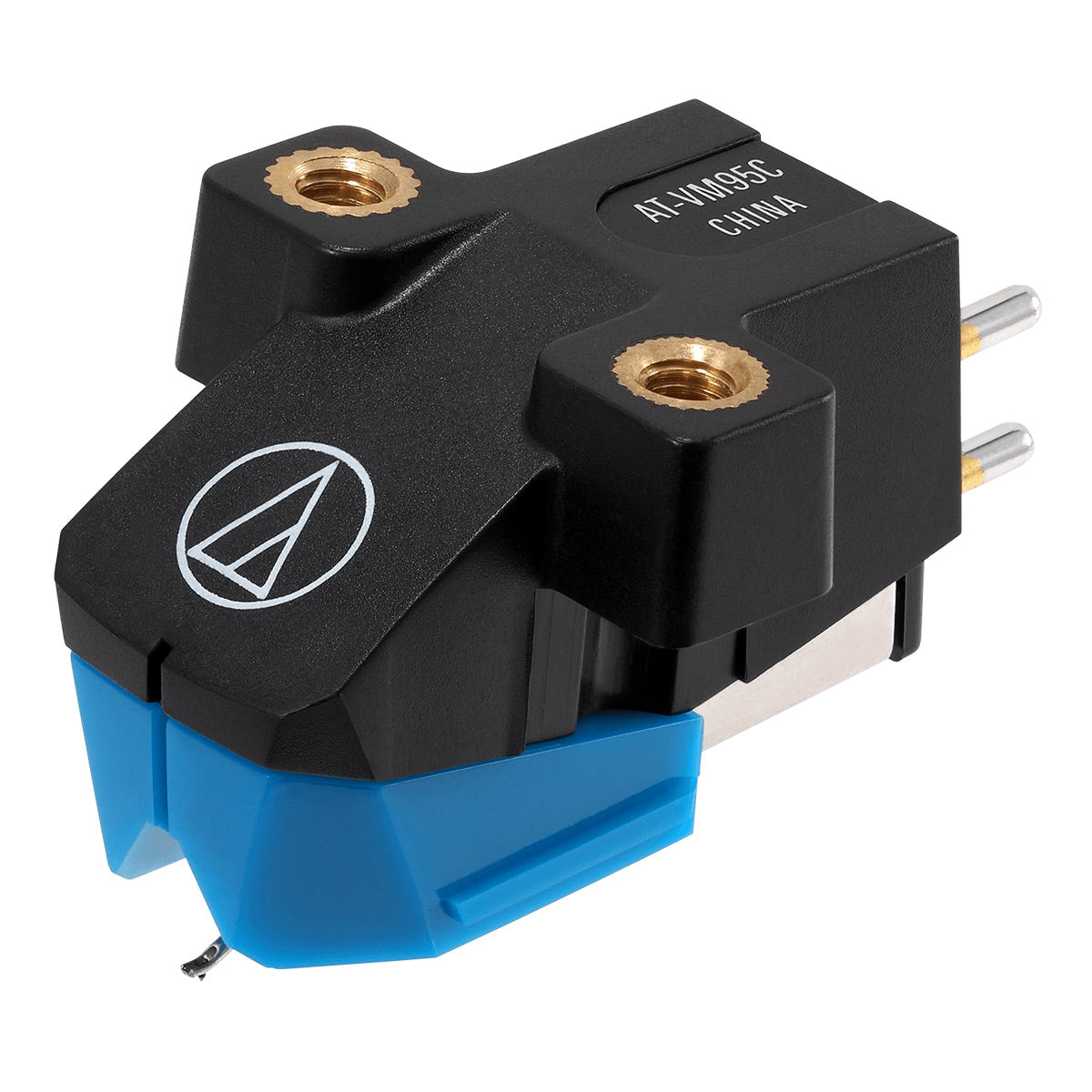

The VM95 Series cartridge with 0.6 mil conical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Specifications

  • Frequency Response: 20-20,000 Hz
  • Channel Separation: 18 (dB at 1 kHz)
  • Vertical Tracking Angle: 23°
  • Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
  • Stylus Construction: Bonded round shank
  • Recommended Load Impedance: 47,000 ohms
  • Coil Impedance: 3.3 k ohms (1 kHz)
  • DC Resistance: 485 ohms
  • Coil Inductance: 550 mH (1 kHz)
  • Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.)
  • Output Channel Balance: 2.5 dB (1 kHz)
  • Stylus Shape: 0.6 mil conical
  • Cantilever: Aluminum pipe
  • Static Compliance: 17 x 10 – 6 cm / dyne
  • Dynamic Compliance: 6.5 x 10 – 6 cm / dyne (100 Hz)
  • Mounting: Half-inch
  • Dimensions (Cartridge & Headshell): 0.84" x 0.83" × 2.46"
  • Model: AT-VM95C/H
  • Mounting Feature: Half-inch mount
  • Recommended Load Capacitance: 100 to 200 pF
  • Replacement Stylus: AT-VMN95C
  • Stylus Size: 0.6 mil
  • Type: VM Stereo Dual Magnet
  • Weight  (Cartridge & Headshell): 15.5 g (0.55 oz)
  • Wire Used for Coil: T.P. Copper

What's In The Box

  • AT-VM95C/H Headshell & MM Cartridge Combo Kit
  • Installation Hardware
