Audio-Technica AT-VM520xEB/H VMx Headshell & Dual MM Cartridge Combo Kit

Now on demo at:

1 of 5

Audio-Technica AT-VM520xEB/H VMx Headshell & Dual MM Cartridge Combo Kit

Regular price $169.00
Sale price $169.00 Regular price
$0.00 Save $-169.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: AT-VM520XEB/H | UPC: 4961310163327

Specifications

What's In The Box

Product Information

Model: AT-VM520XEB/H | UPC: 4961310163327

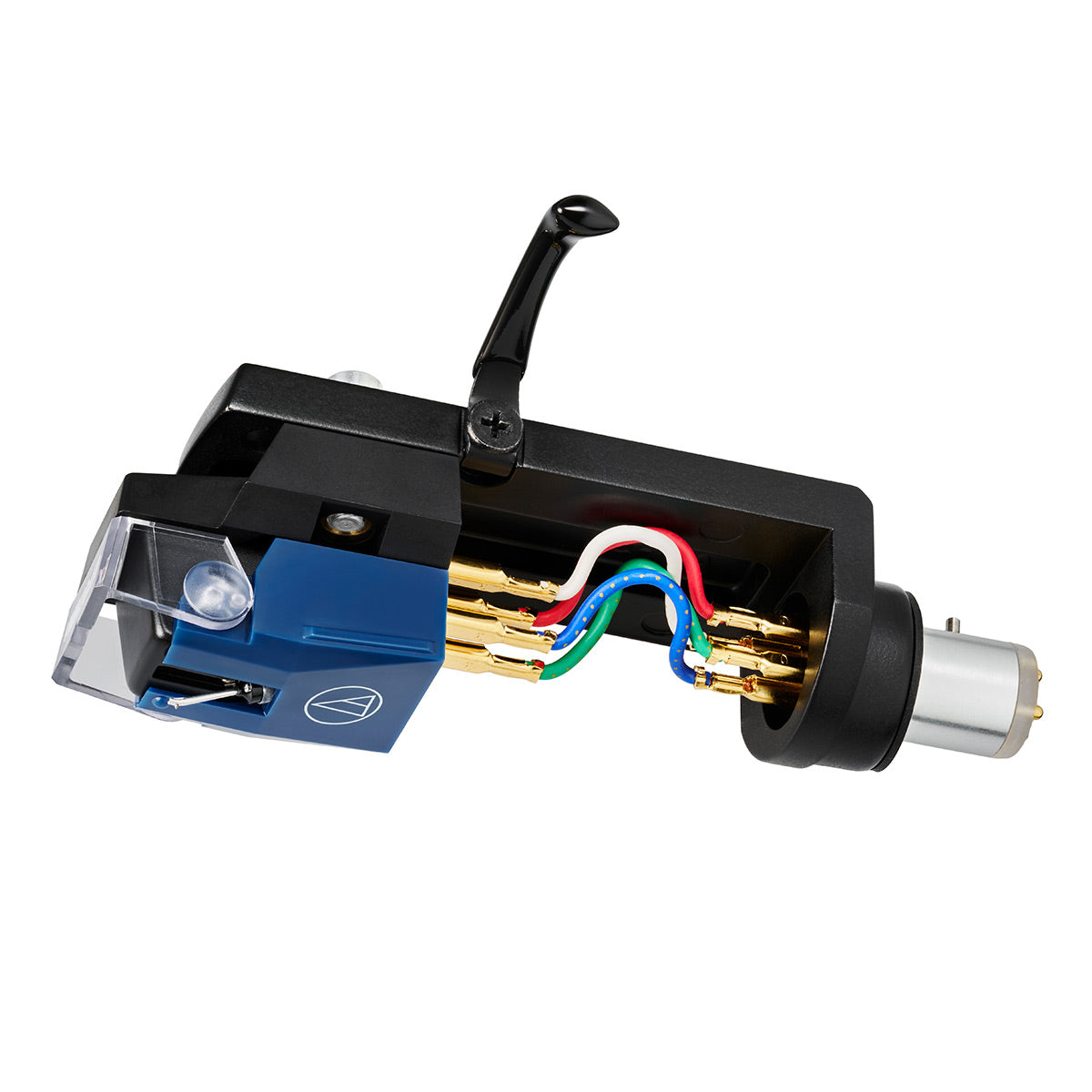

The AT-VM520xEB/H combo kit includes the AT-VM520xEB elliptical bonded dual moving magnet cartridge premounted on the AT-LT10 universal 1/2"-mount headshell. The AT-VM520xEB is part of the updated AT-VMx series, which introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

Features

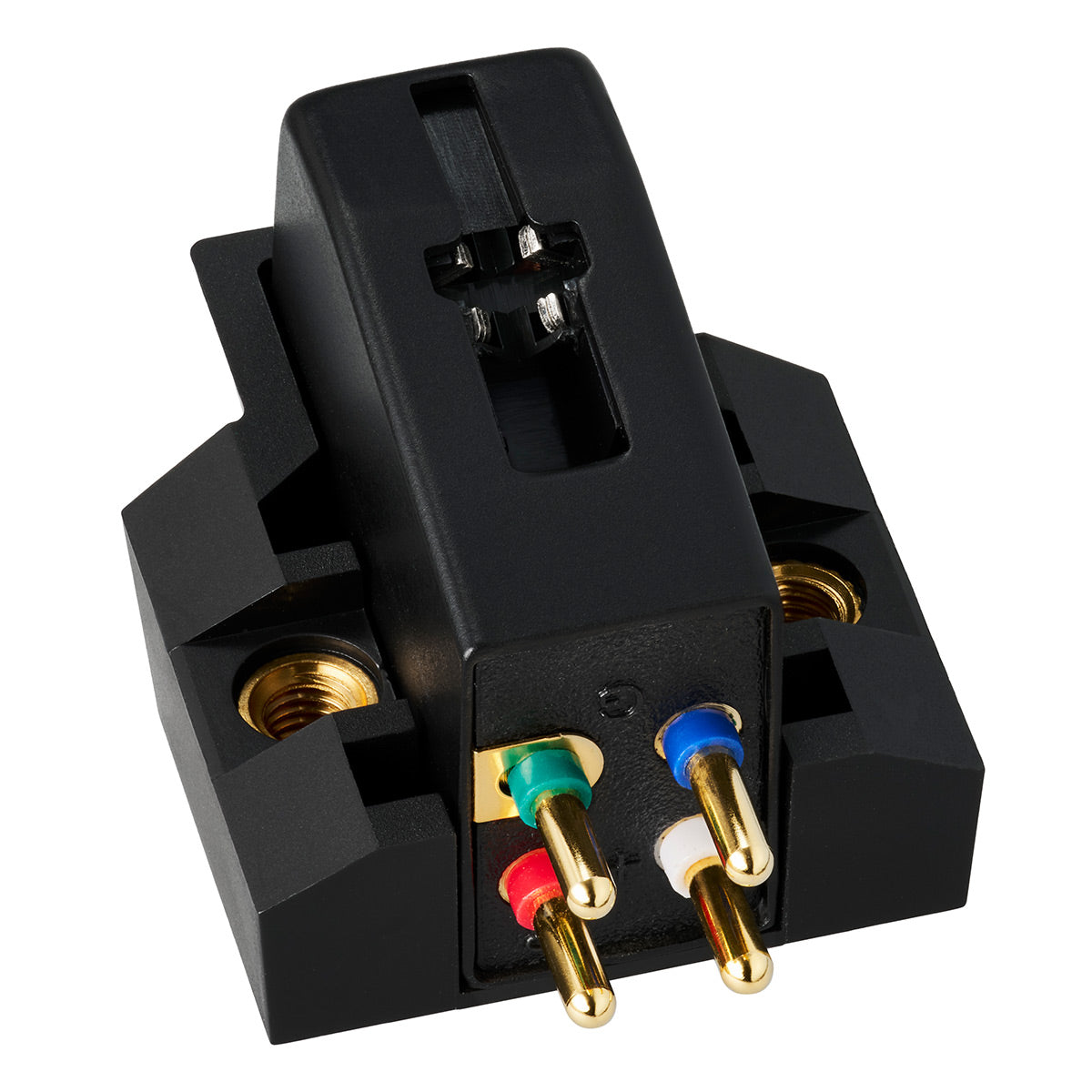

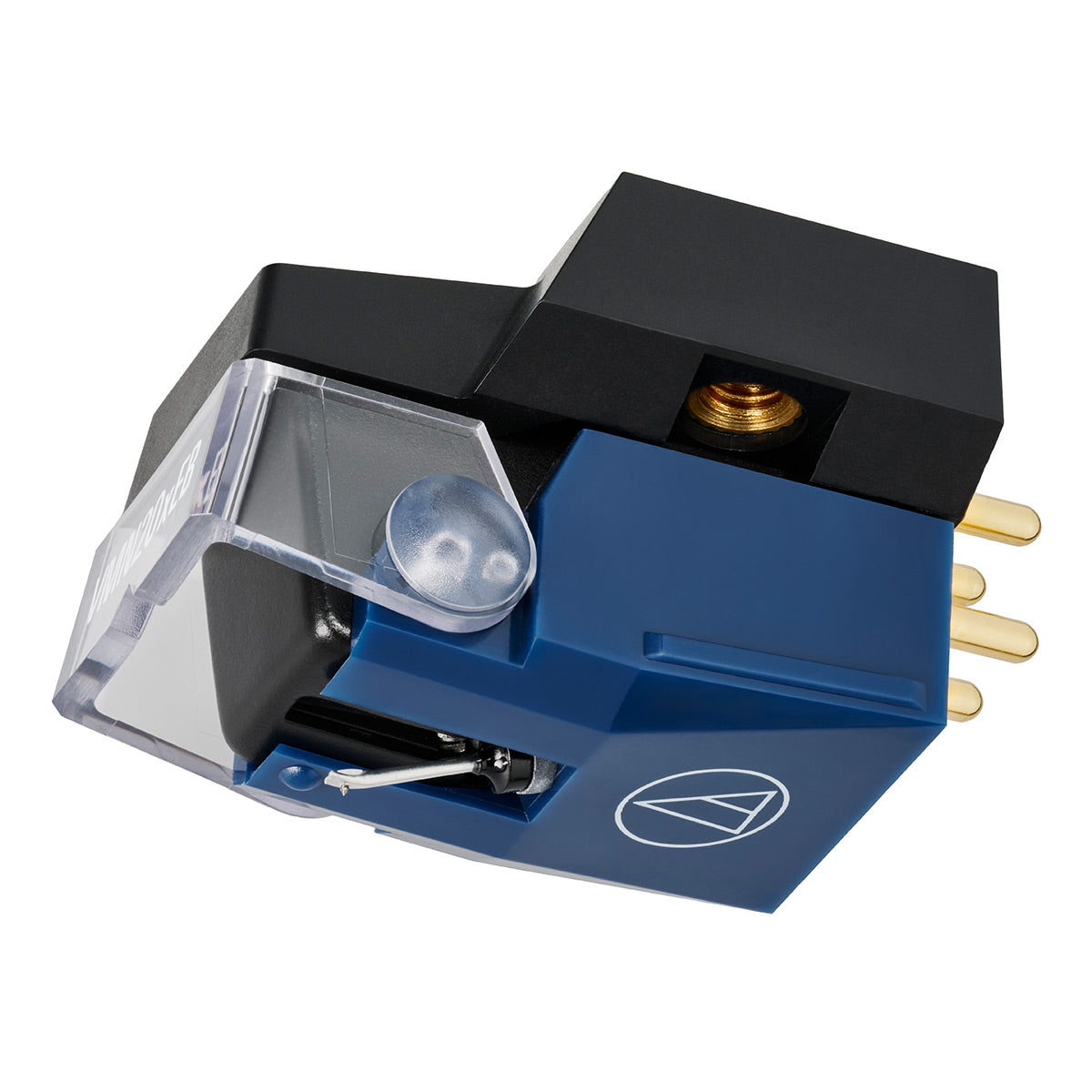

AT-VMx Dual Moving Magnet Cartridge

  • Elliptical Bonded Stylus (0.3 x 0.7 mil)
  • Paratoroidal Coils Improve Channel Separation, Channel Balance, and Transient Response
  • Center Shield Plate Reduces Crosstalk
  • Durable Low-Resonance Polymer Housing
  • Aluminum Cantilever
  • Compatible with Any Turntable Headshell That Accepts 1/2” Cartridges

AT-LT10 Universal ½”-Mount Headshell

  • For 4-Pin Turntable Cartridges with or Without Threaded Inserts
  • Ultra-Lightweight Aluminum Die-Cast Body Keeps Vibration to the Bare Minimum
  • Elongated Through Holes Enable Precise Cartridge Positioning and Overhang Adjustment
  • OFC (Oxygen-Free Copper) Lead Wires for Exceptional Sound Quality
  • Slip-Resistant Finger Lift Allows Stylus to Be Placed Precisely on the Record
  • Includes Mounting Screws

Specifications

  • Type: VM
  • Frequency response: 20 to 20,000 Hz
  • Output voltage: 5.0 mV (1 kHz, 5 cm/sec.)
  • Channel separation: 24 dB (1 kHz)
  • Output balance: 1.5 dB (1 kHz)
  • Tracking force: 1.8 to 2.2 g (2.0 g standard)
  • Coil impedance: 3.2 k ohms (1 kHz)
  • DC resistance: 750 ohms
  • Recommended load impedance: 47 k ohms
  • Recommended load capacitance: 150 to 250 pF
  • Coil inductance: 480 mH (1 kHz)
  • Static compliance: 23 × 10-6 cm/dyne
  • Dynamic compliance: 7 × 10-6 cm/dyne (100 Hz)
  • Stylus: Elliptical bonded
  • Stylus: curvature radius 0.3 × 0.7 mil
  • Cantilever: Aluminum pipe
  • Vertical tracking angle: 20°
  • Dimensions: 2.7” × 0.73” × 0.85”
  • Weight: 18.3 g (0.65 oz)
  • Replacement stylus (sold separately): AT-VMN20xEB

What's In The Box

  • AT-VM520xEB/H VMx Headshell & Dual MM Cartridge Combo Kit
  • Installation Hardware
  • Manual
