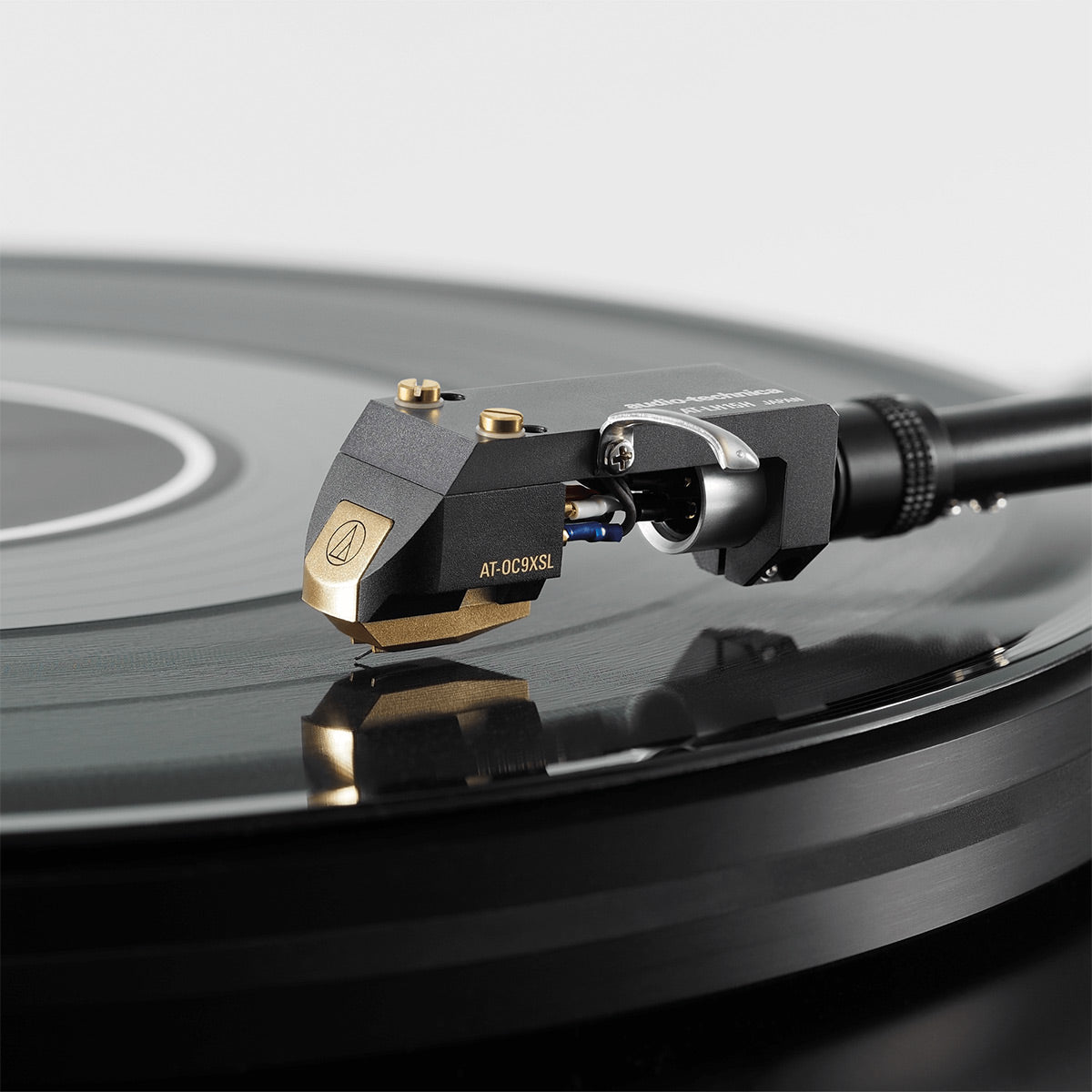

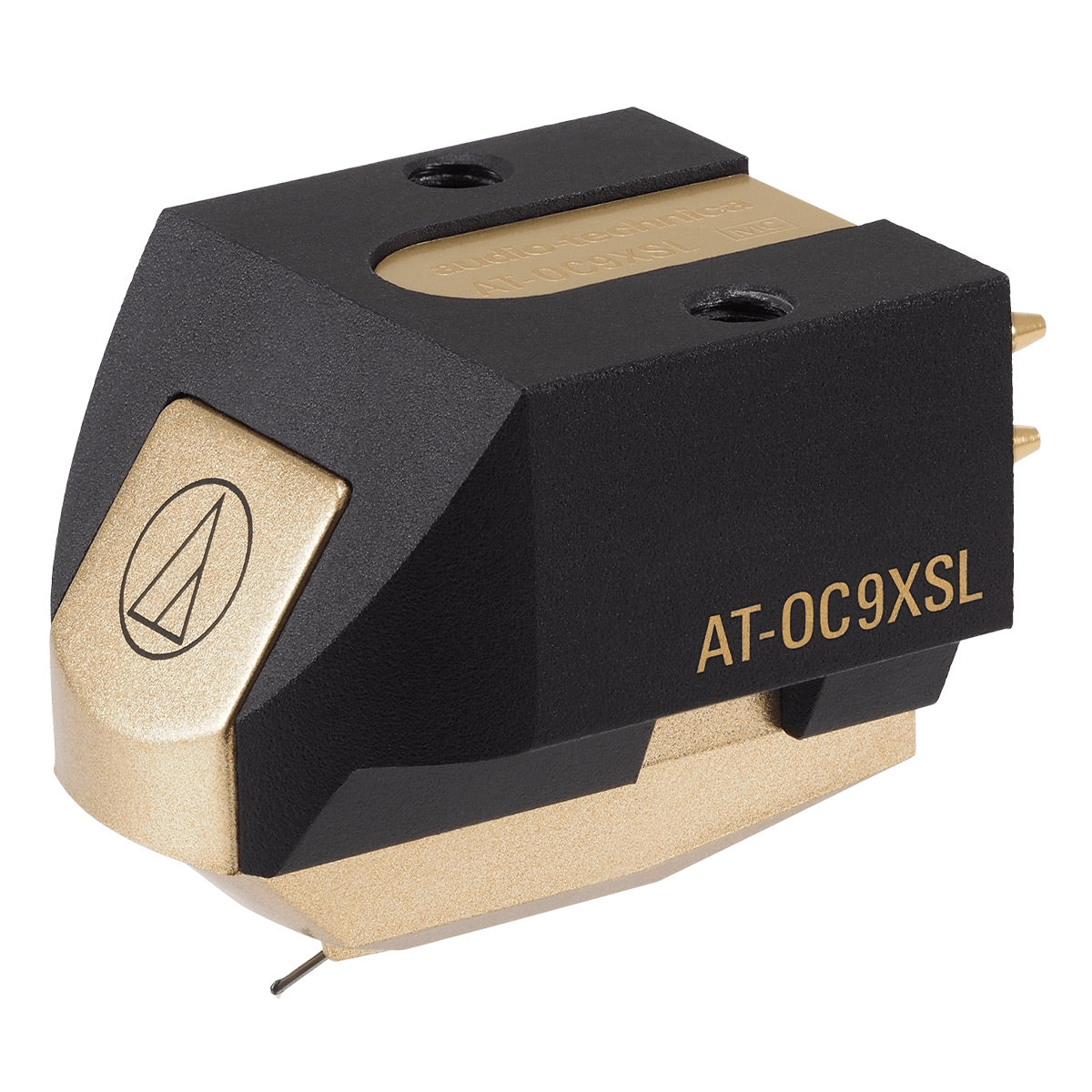

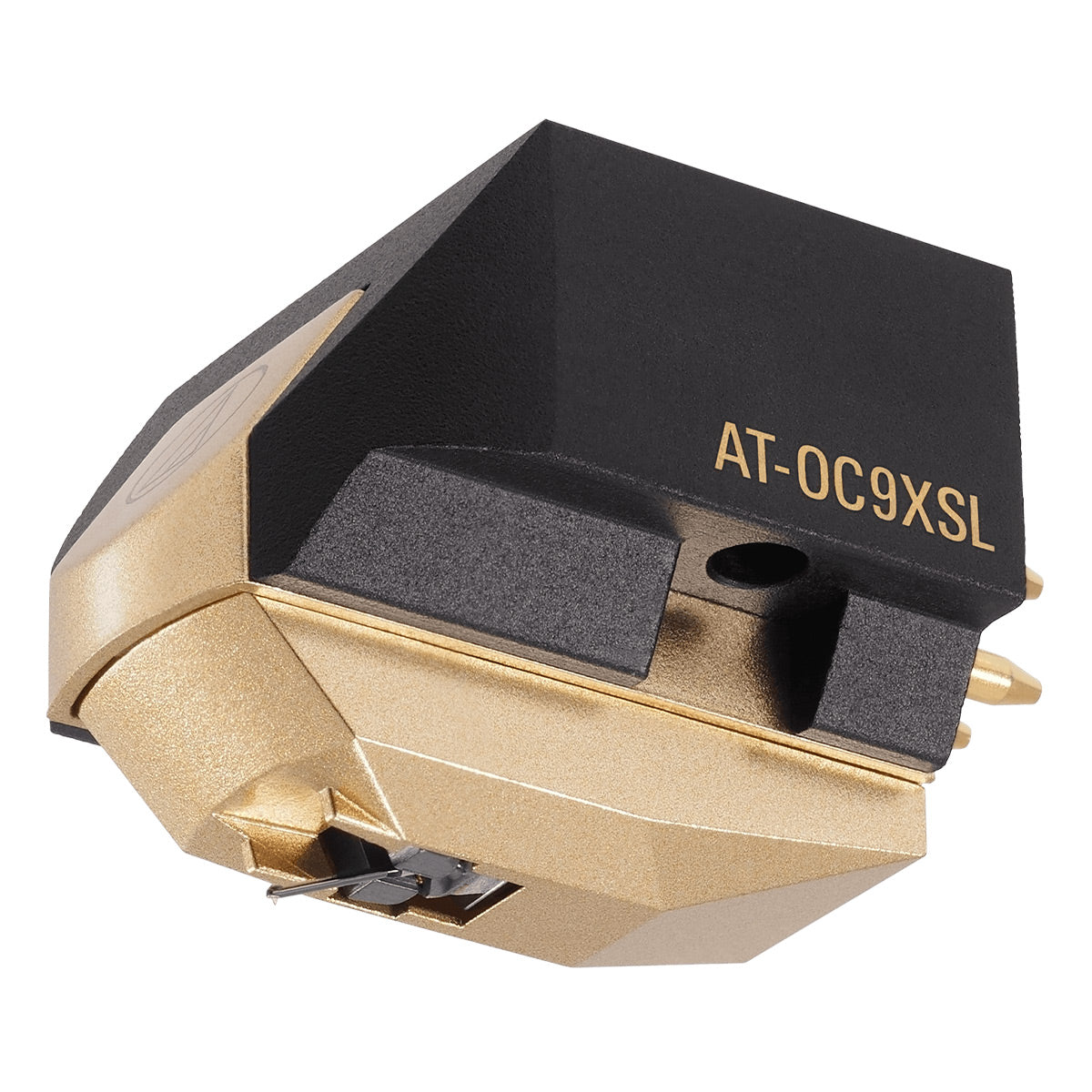

Audio-Technica AT-OC9XSL Dual Moving Coil Cartridge

Regular price $749.00
Sale price $749.00 Regular price
Save $-749.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Audio-Technica AT-OC9XSL Overview

Product Information

Model: AT-OC9XSL | UPC: 4961310150402

Specifications

What's In The Box

Product Information

Model: AT-OC9XSL | UPC: 4961310150402

The AT-OC9XSL Dual Moving Coil cartridge with special line contact stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion.

Features

  • Dual Moving Coil Design
  • Nude Special Line Contact Stylus & Boron Cantilever
  • Pre-Threaded Cartridge Body
  • Aluminum Body Minimizes Unwanted Vibration

Design

Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that dramatically increase the magnetic energy, and the nude special line contact stylus on a boron cantilever that tracks the record groove with ultimate accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Specifications

  • Frequency Response: 20-50,000 Hz
  • Channel Separation: 28 dB (1 kHz)
  • Vertical Tracking Angle: 20°
  • Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
  • Stylus Construction: Nude rectangular shank
  • Recommended Load Impedance : Min. 100 ohms (when head amplifier is connected)
  • Coil Impedance: 12 ohms (1 kHz)
  • DC Resistance: 12 ohms
  • Coil Inductance: 25 mH (1 kHz)
  • Output Voltage: 0.4 mV (at 1 kHz, 5 cm/sec)
  • Output Channel Balance: 0.5 dB (1 kHz)
  • Stylus Shape: Special Line Contact
  • Cantilever: 0.28 mm diameter nude boron
  • Static Compliance: 22 x 10-6 cm/dyne
  • Dynamic Compliance: 18 x 10-6 cm/dyne (100 Hz)
  • Mounting: Half-inch
  • Cartridge Weight: 7.6 g
  • Dimensions (W x H x D): 0.68" × 0.66" × 1.01"
  • Body Material: Aluminum
  • Model: AT-OC9XSL
  • Mounting Feature: Half-inch mount
  • Stylus Curvature Radius: 1.5 x 0.28 mil
  • Stylus Size: Nude rectangular shank
  • Terminal Pins: Brass
  • Type: Dual Moving Coil
  • Weight: 7.6 g (0.3 oz)

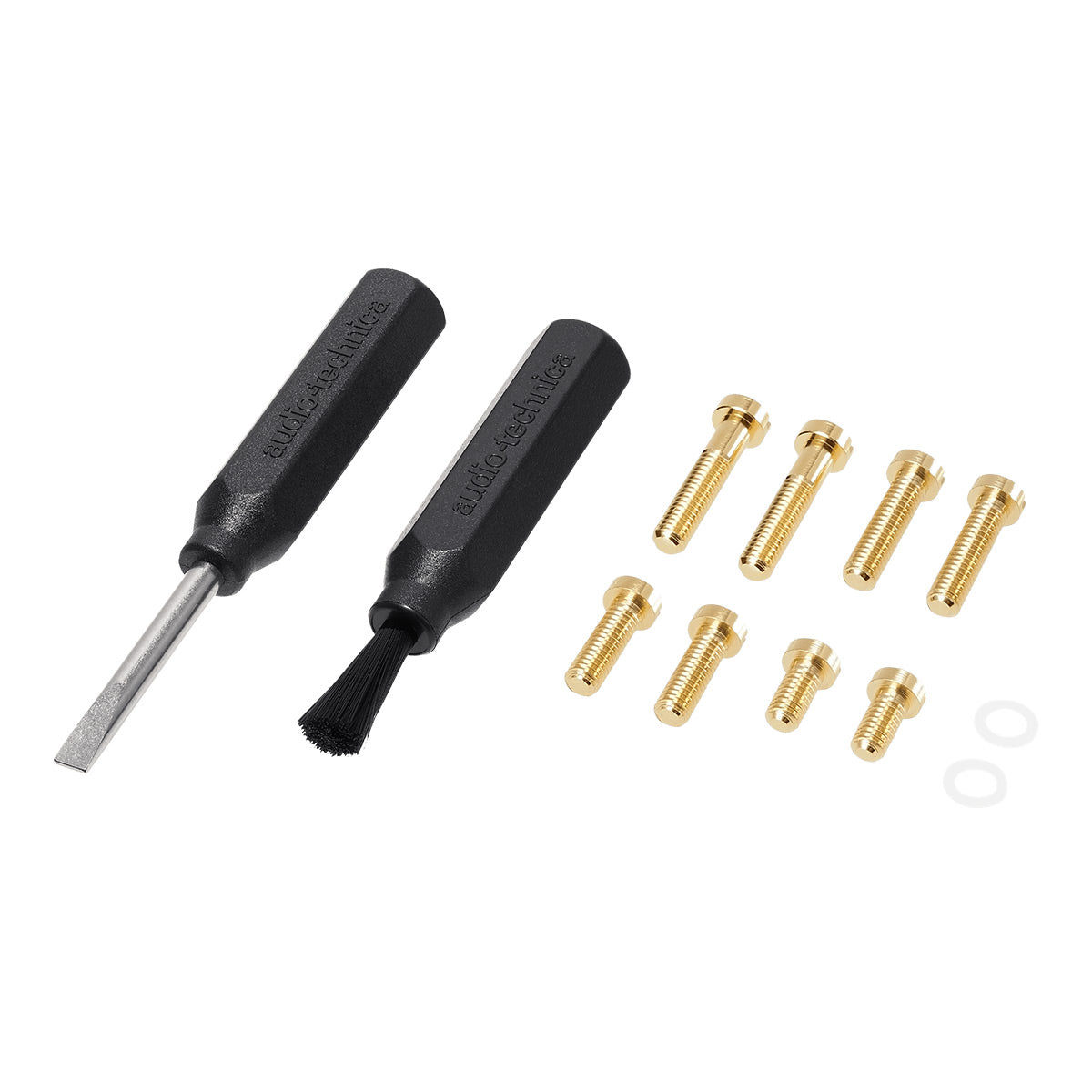

What's In The Box

  • AT-OC9XSL Dual Moving Coil Cartridge
  • Non-Magnetic Screwdriver
  • Installation Hardware
