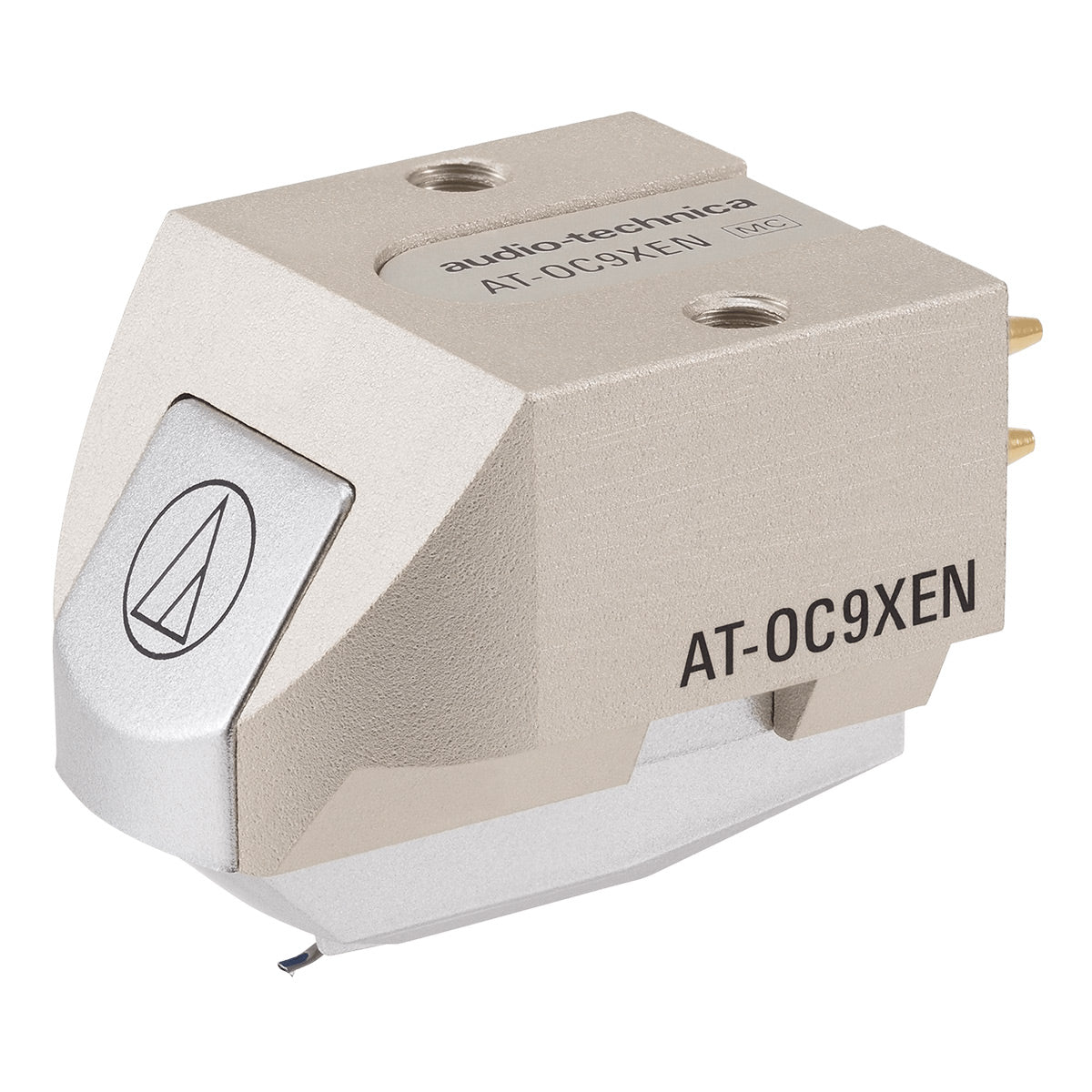

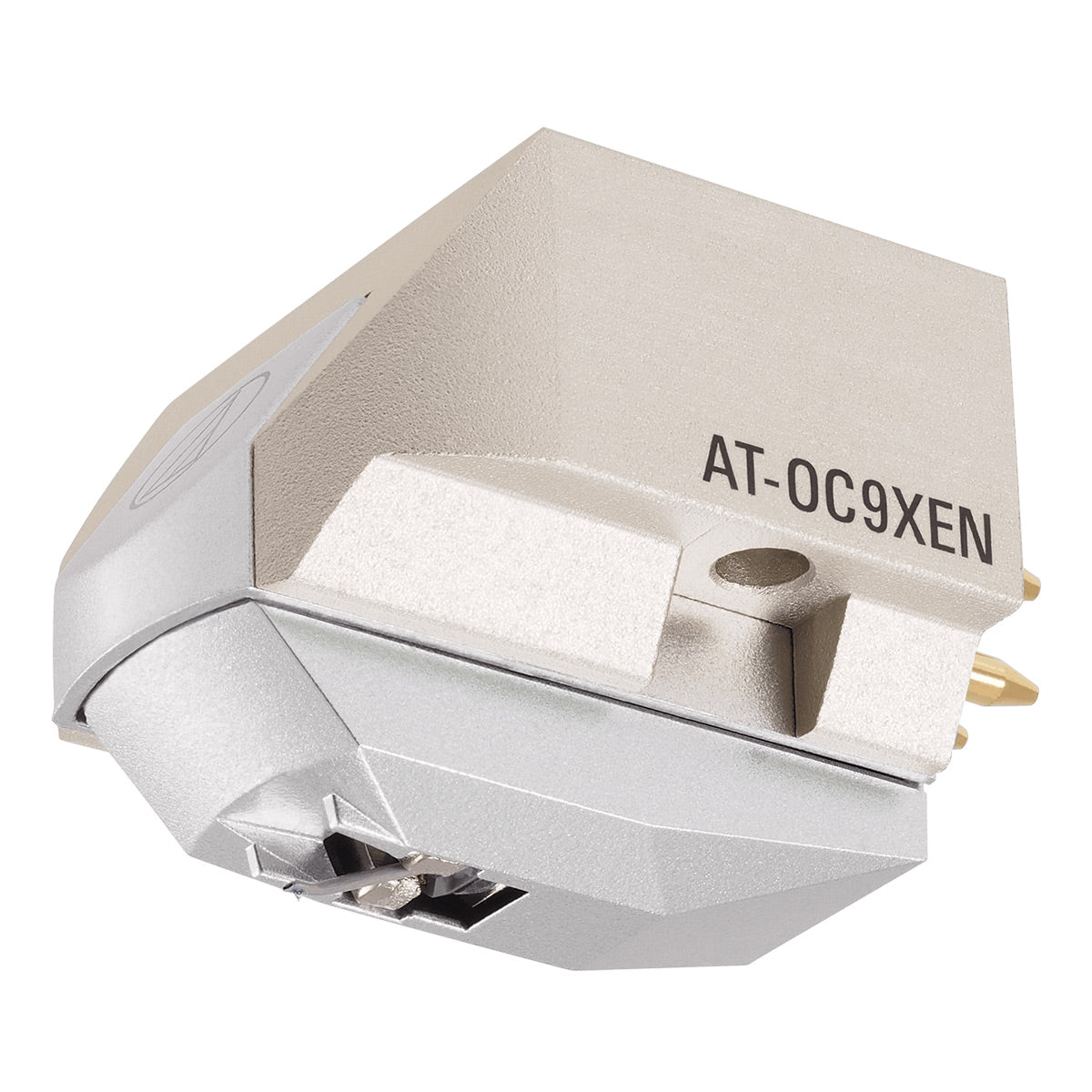

Audio-Technica AT-OC9XEN Dual Moving Coil Cartridge

Regular price $379.00
Sale price $379.00 Regular price
Save $-379.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Audio-Technica AT-OC9XEN Overview

Product Information

Model: AT-OC9XEN | UPC: 4961310150433

Specifications

What's In The Box

Product Information

Model: AT-OC9XEN | UPC: 4961310150433

The AT-OC9XEN Dual Moving Coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion.

Features

  • Dual Moving Coil Design
  • Low Mass Nude Elliptical Stylus & Aluminum Cantilever
  • Pre-Threaded Cartridge Body
  • Aluminum Body Minimizes Unwanted Vibration

Design

Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Specifications

  • Frequency Response: 20-30,000 Hz
  • Channel Separation: 25 dB (1 kHz)
  • Vertical Tracking Angle: 20°
  • Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
  • Stylus Construction: Nude square shank
  • Recommended Load Impedance : Min. 100 ohms (when head amplifier is connected)
  • Coil Impedance: 12 ohms (1 kHz)
  • DC Resistance: 12 ohms
  • Coil Inductance: 25 mH (1 kHz)
  • Output Voltage: 0.35 mV (at 1 kHz, 5 cm/sec)
  • Output Channel Balance: 1.5 dB (1 kHz)
  • Stylus Shape: Elliptical nude
  • Cantilever: Aluminum pipe
  • Static Compliance: 20 x 10-6 cm/dyne
  • Dynamic Compliance: 9 x 10-6 cm/dyne (100 Hz)
  • Mounting: Half-inch
  • Cartridge Weight: 7.6 g
  • Dimensions (W x H x D): 0.66" x 0.68" × 1.01"
  • Body Material: Aluminum
  • Stylus Size: Nude square shank
  • Terminal Pins: Brass
  • Type: Dual Moving Coil
  • Weight: 7.6 g (0.3 oz)

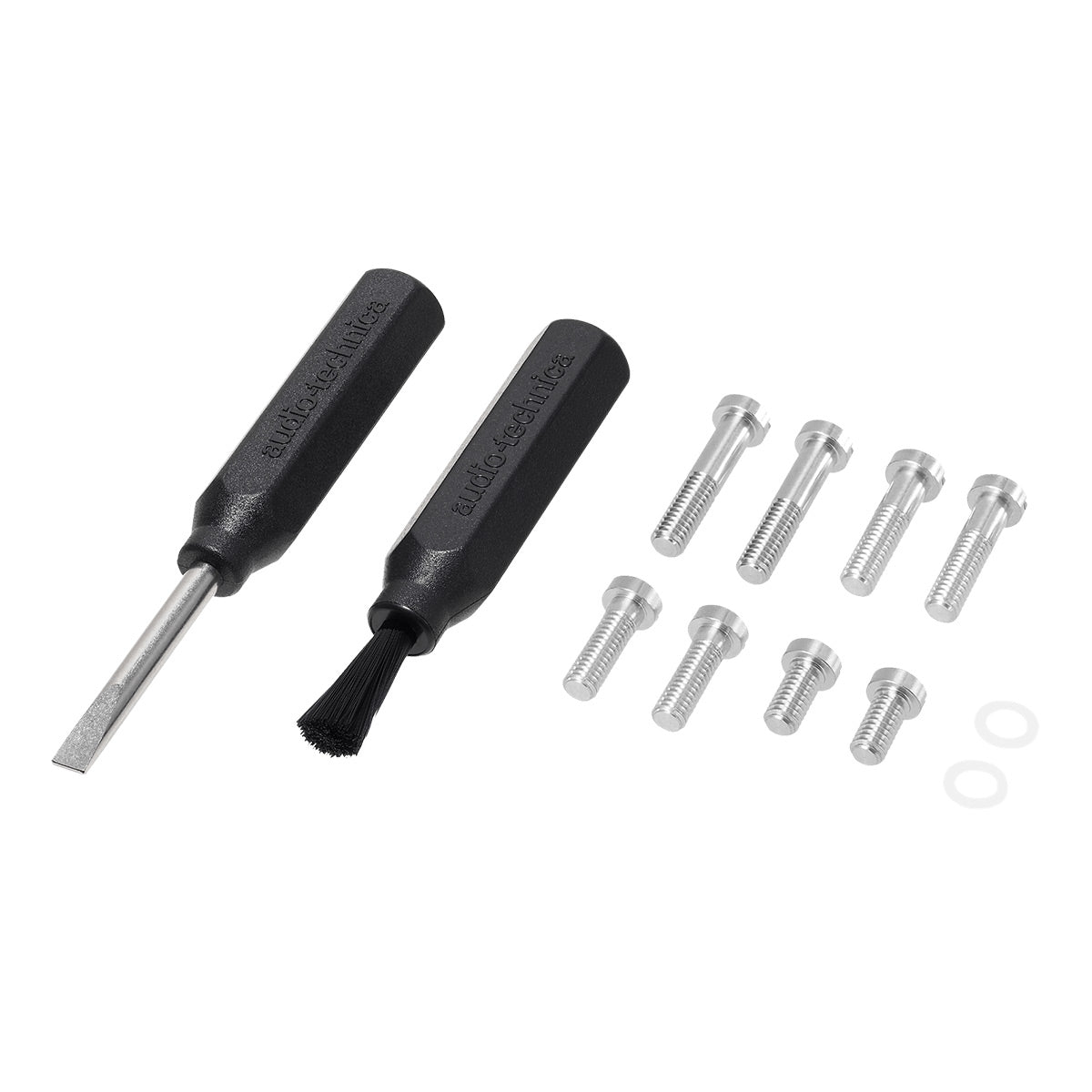

What's In The Box

  • AT-OC9XEN Dual Moving Coil Cartridge
  • Non-Magnetic Screwdriver
  • Installation Hardware
