Audio-Technica AT-LP7X Manual Belt Drive Turntable with AT-VM95E MM Cartridge

Now on demo at:

1 of 4

Audio-Technica AT-LP7X Manual Belt Drive Turntable with AT-VM95E MM Cartridge

Regular price $999.00
Sale price $999.00 Regular price
$0.00 Save $-999.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Fri, Jun 26 – Fri, Jul 3

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Audio-Technica AT-LP7X Overview

Product Information

Model: AT-LP7X | UPC: 4961310164782

Specifications

What's In The Box

Product Information

Model: AT-LP7X | UPC: 4961310164782

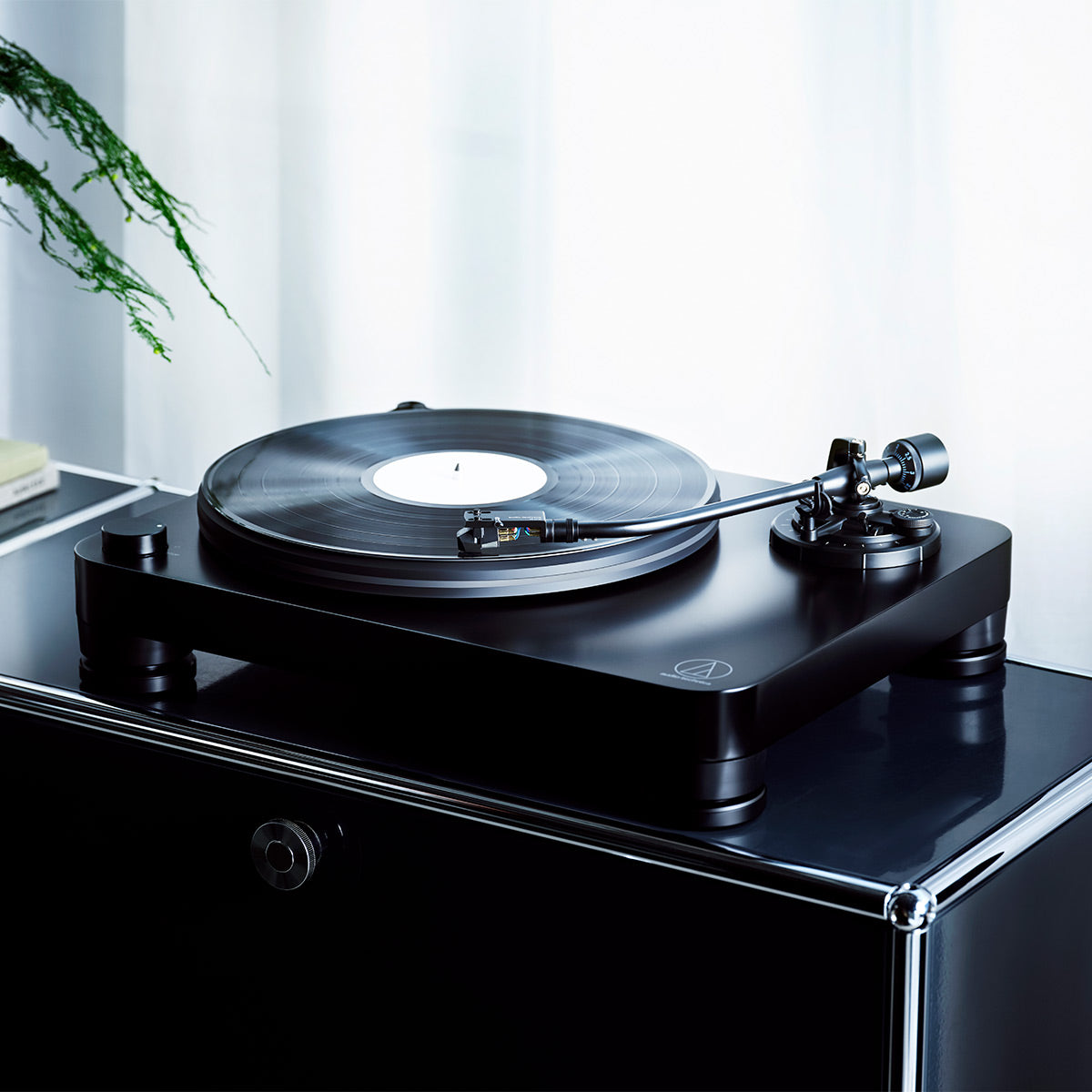

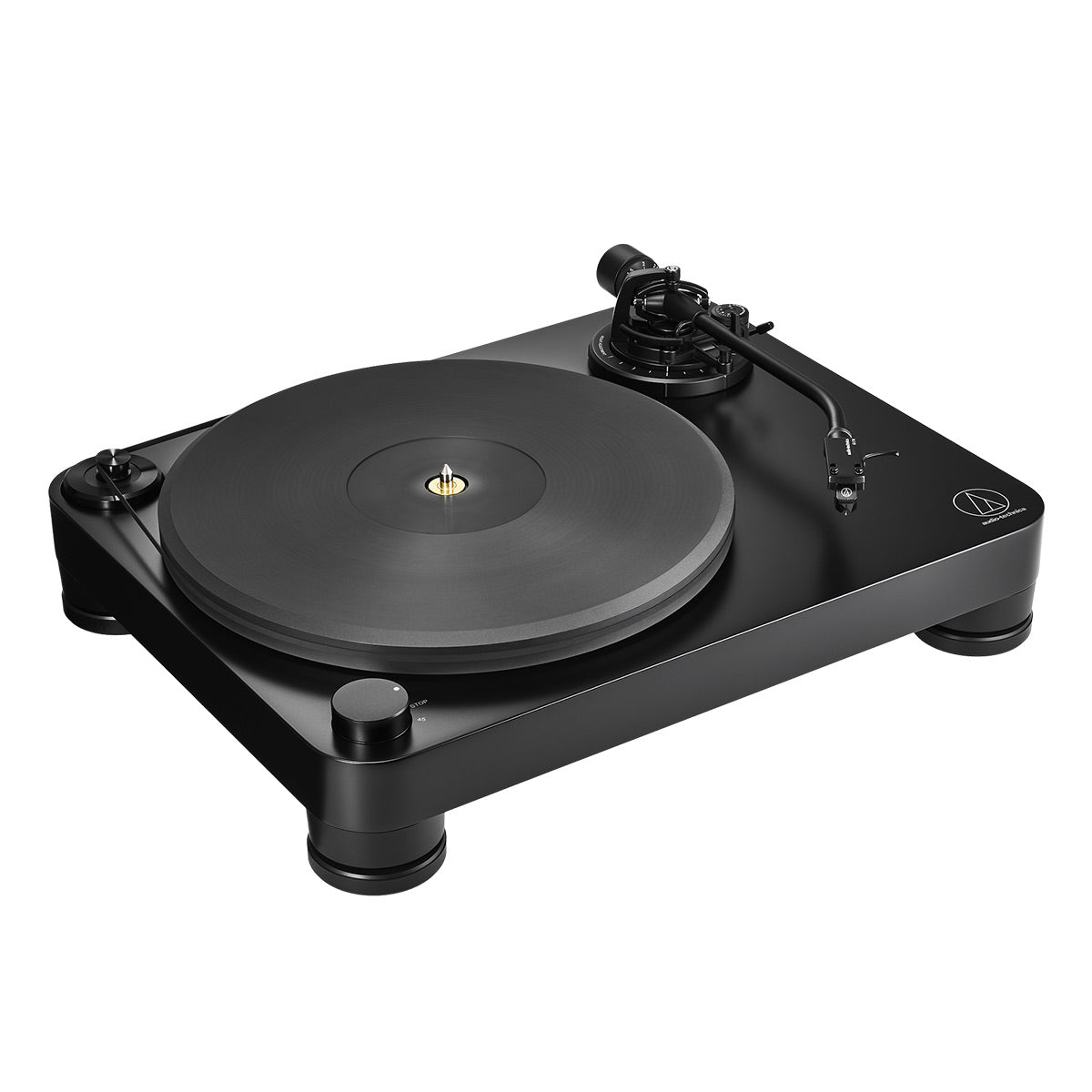

The AT-LP7X fully manual belt-drive turntable blends analog excellence with style and versatility. Featuring a dense MDF plinth and acrylic platter to minimize unwanted resonance and vibration, this elegant, matte-black turntable delivers sound that’s just as clean and refined as its appearance.

Features

  • Fully Manual Belt-Drive With 33-⅓/45 RPM & Speed-Sensor Accuracy
  • 40 mm MDF Cabinet & 20 mm Acrylic Platter Minimize Vibration
  • J-Shaped Tonearm with Adjustable VTA & Anti-Skate
  • Pre-Mounted AT-VM95E Cartridge on AT-LT10 Headshell
  • Built-In MM/MC Phono Preamp

Versatile Cartridge Configuration

Combined, the turntable’s AT-VM95 cartridge, VTA (vertical tracking angle) adjustment, and 16 g subcounterweight expand your configuration options. Upgrade to a more refined VM95 stylus or experiment with different cartridge/headshell combinations (up to 23.5 g total). Add the optional 32 g subcounterweight (available separately) and work with combinations up to 28.5 g.

Acrylic Platter

The high-density acrylic platter dampens vibrations for supremely quiet playback, allowing the brilliance and detail of your vinyl records to shine through.

Smooth, Accurate Rotation

The stainless-steel spindle features a thermal-plastic, sheet-type bearing at its base, ensuring low-friction rotation that’s precisely maintained at 33-1/3 or 45 RPM by the turntable’s speed-sensor system.

Excellent Tracking

The chassis and tonearm geometry of the AT-LP7X have been designed to ensure optimal lateral tracking for distortion-free playback.

Specifications

  • Turntable
    • Motor: DC servo motor
    • Drive Method: Belt drive
    • Speeds: 33-1/3 RPM, 45 RPM
    • Turntable Platter: 20 mm (0.79") thick acrylic platter
    • Wow and Flutter: < 0.1% (WTD) at 3 kHz (JIS)
    • Signal-to-Noise Ratio: > 60 dB
    • Output Levels
      • PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec
      • LINE: 252 mV nominal at 1 kHz, 5 cm/sec
    • Phono Pre-Amp Gain
      • MM: 36 dB nominal, RIAA equalized
      • MC: 56 dB nominal, RIAA equalized
  • Tonearm Specifications
    • Type: Static balanced J-shaped tonearm
    • Effective Length: 247 mm (9.7")
    • Overhang: 15 mm (0.59")
    • Maximum Tracking Error Angle: Less than 2.0°
    • Tracking Force Adjustment Range: 0.0 to 4.0 g
    • Applicable Cartridge Weight Range (including headshell):
    • 14.0 to 19.5 g (without subcounterweight)
    • 17.5 to 23.5 g (with subcounterweight — light)
    • 22.0 to 28.5 g (with subcounterweight — heavy*1)
    • Tonearm Height Adjustment Range: −2 mm to +4 mm (using included cartridge and headshell)
  • Cartridge and Headshell
    • Cartridge Model: AT-VM95E BK
    • Cartridge Type: VM
    • Recommended Load Impedance: 47,000 ohms
    • Output Voltage: 4.0 mV (1 kHz, 5 cm/sec)
    • Stylus: 0.3 × 0.7 mil bonded elliptical stylus
    • Cantilever: Aluminum pipe
    • Tracking Force Range: 1.8 to 2.2 g (standard 2.0 g)
    • Cartridge Weight: 6.1 g (0.22 oz)
    • Headshell Model: AT-LT10
    • Headshell Weight
      • Approx. 10.7 g (0.38 oz) including lead wires
      • Approx. 10.0 g (0.35 oz) excluding lead wires
    • Headshell Overhang Adjustment: −5.5 mm to +2.5 mm (when using AT-VM95E)
  • AC Adapter
    • Rated Input Voltage: 100–240 V AC
    • Rated Input Current: 0.6 A max
    • Rated Frequency: 50 / 60 Hz
    • Rated Output Voltage: 12 V DC
    • Rated Secondary Current: 0.5 A
    • Cable Length: Approx. 1.3 m (4.3')
    • Adapter type may vary by region; check the included unit for details.
  • General Specifications
    • Dimensions (W × D × H): 18" × 14" × 6.2"
    • Weight: Approx. 17 lbs.
    • Power Consumption: 5.5 W
    • Operating Temperature: 5°C to 35°C (41°F to 95°F)

What's In The Box

  • AT-LP7X Manual Belt-Drive Turntable with AT-VM95E MM Cartridge
  • Platter
  • Drive Belt
  • Counterweight
  • RCA Male to Dual RCA Male with Ground Cable
  • 45 RPM Adapter
  • Removable Hinged Dust Cover
  • Manual
