Audio-Technica AT-ART9XI Dual Moving Coil Cartridge

Now on demo at:

1 of 8

Audio-Technica AT-ART9XI Dual Moving Coil Cartridge

Regular price $1,699.00
Sale price $1,699.00 Regular price
$0.00 Save $-1,699.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Fri, Jun 26 – Fri, Jul 3

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: AT-ART9XI | UPC: 4961310153991

Specifications

What's In The Box

Product Information

Model: AT-ART9XI | UPC: 4961310153991

Featuring a special line contact stylus on a 0.28 mm diameter solid boron cantilever, the AT-ART9XI replaces the AT-ART9 as Audio-Technica’s flagship magnetic core MC cartridge.

Features

  • Flagship Magnetic Core Moving Coil Cartridge
  • Specially Designed Magnetic Circuit
  • PCOCC Coils Ensure High-Fidelity Transmission
  • Dual Moving Coils Provide High Separation & Wide Response
  • Machined Aluminum Base

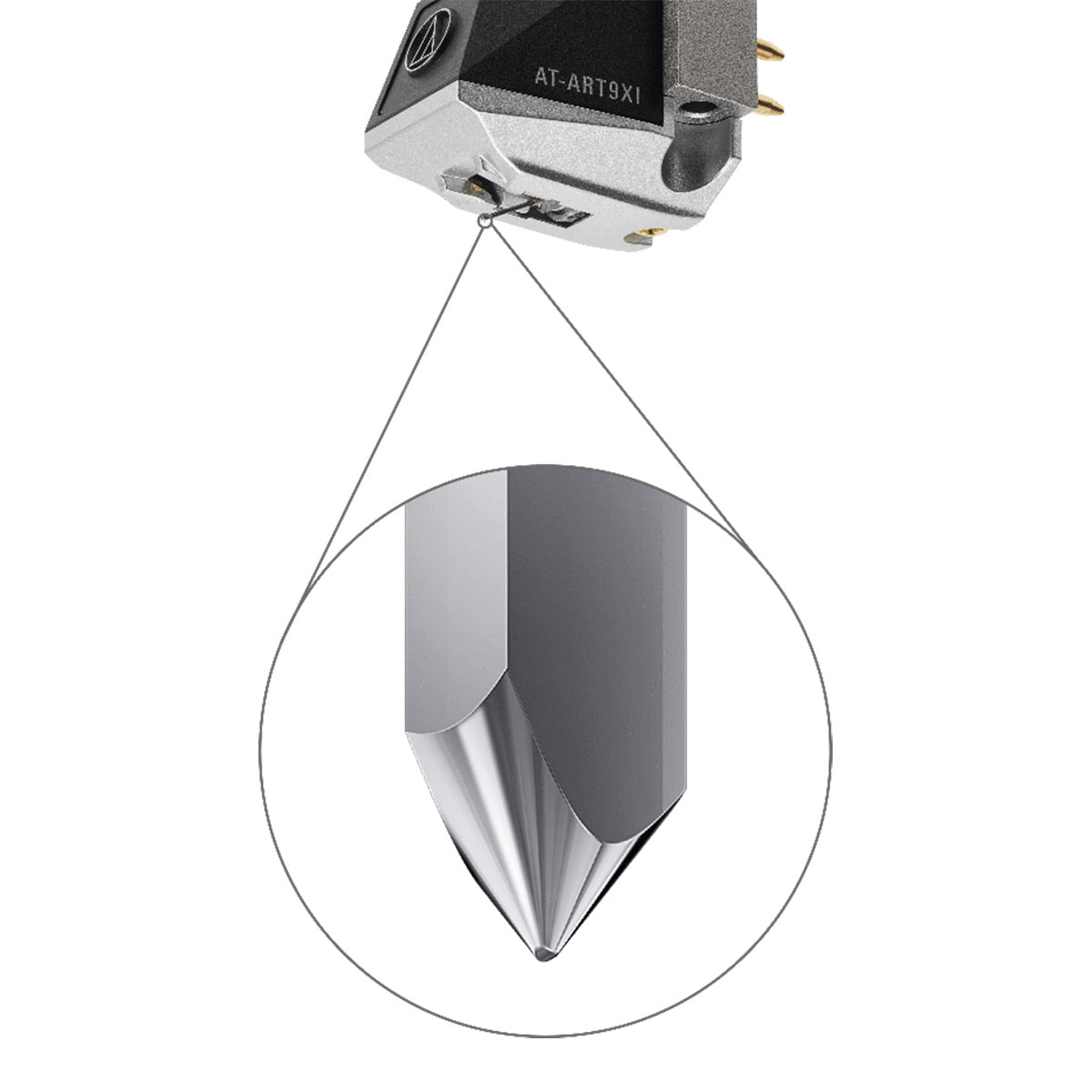

  • Special Line Contact Stylus
  • Easy Installation to a Headshell or Integrated Tonearm

ART

The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that they give only to their flagship phono cartridges. The specially designed magnetic circuit boasts an output voltage of 0.5 mV (1 kHz, 5 cm/sec), making the cartridge easy to use and capable of reproducing even the most delicate expressions, while also ensuring dynamic playback. The AT-ART9XI has also been designated an Audio-Technica Excellence Product, a recognition that identifies products that meet their highest standards of high-fidelity performance.

Specifications

  • Frequency Response: 20-50,000 Hz
  • Channel Separation: 30 (dB at 1 kHz)
  • Vertical Tracking Angle: 20°
  • Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)
  • Stylus Construction: Nude
  • Recommended Load Impedance: Min. 100 ohms (when head amplifier connected)
  • Coil Impedance: 12 ohms (1 kHz)
  • DC Resistance: 12 ohms
  • Coil Inductance: 25 µH (1 kHz)
  • Output Voltage: 0.5 mV (1 kHz, 5 cm/sec.)
  • Output Channel Balance: 0.5 dB (1 kHz)
  • Stylus Shape: Special line contact
  • Cantilever: 0.28 mm diameter solid boron
  • Static Compliance: 25 x 10-6 cm/dyne
  • Dynamic Compliance: 15 x 10-6 cm/dyne (100 Hz)
  • Mounting: Half-inch
  • Cartridge Weight: 8.5 g (0.30 oz)
  • Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
  • Threaded Hole: M2.6 x 2

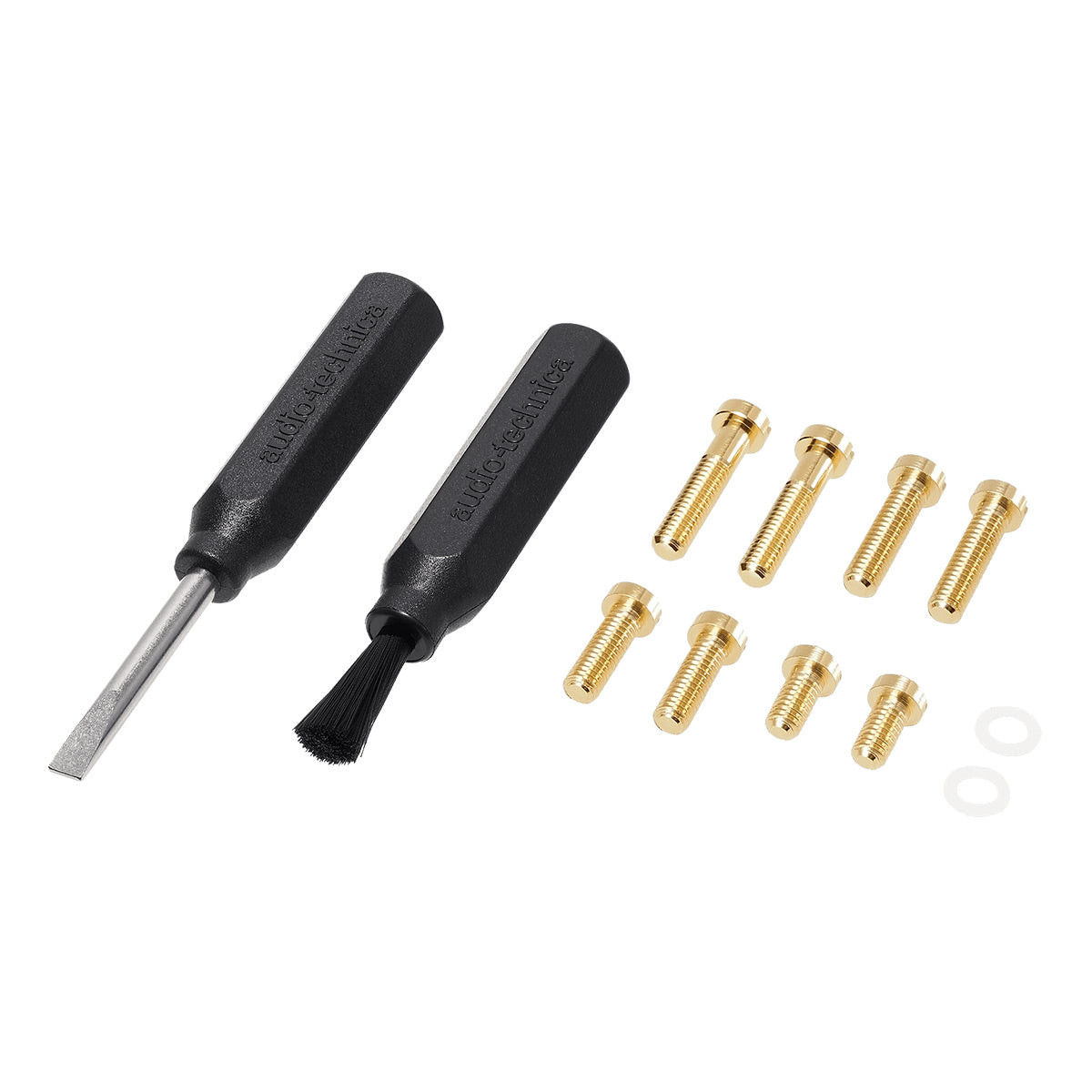

What's In The Box

  • AT-ART9XI Dual Moving Coil Cartridge
  • Non-Magnetic Screwdriver
  • (2) Washers
  • Cartridge Installation Screws
