Audio-Technica AT-ART9XA Dual Moving Coil Cartridge with Non-Magnetic Core

Now on demo at:

1 of 8

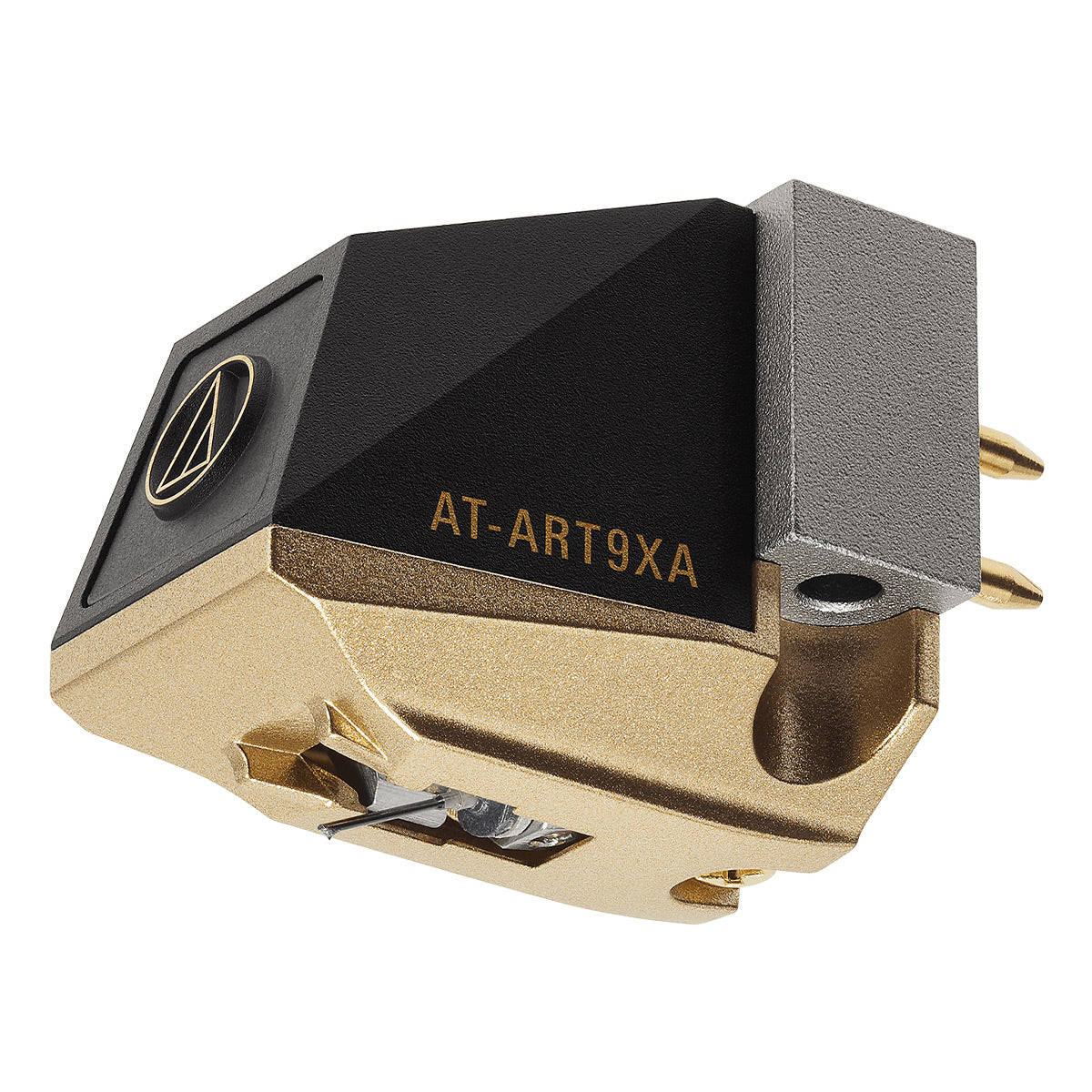

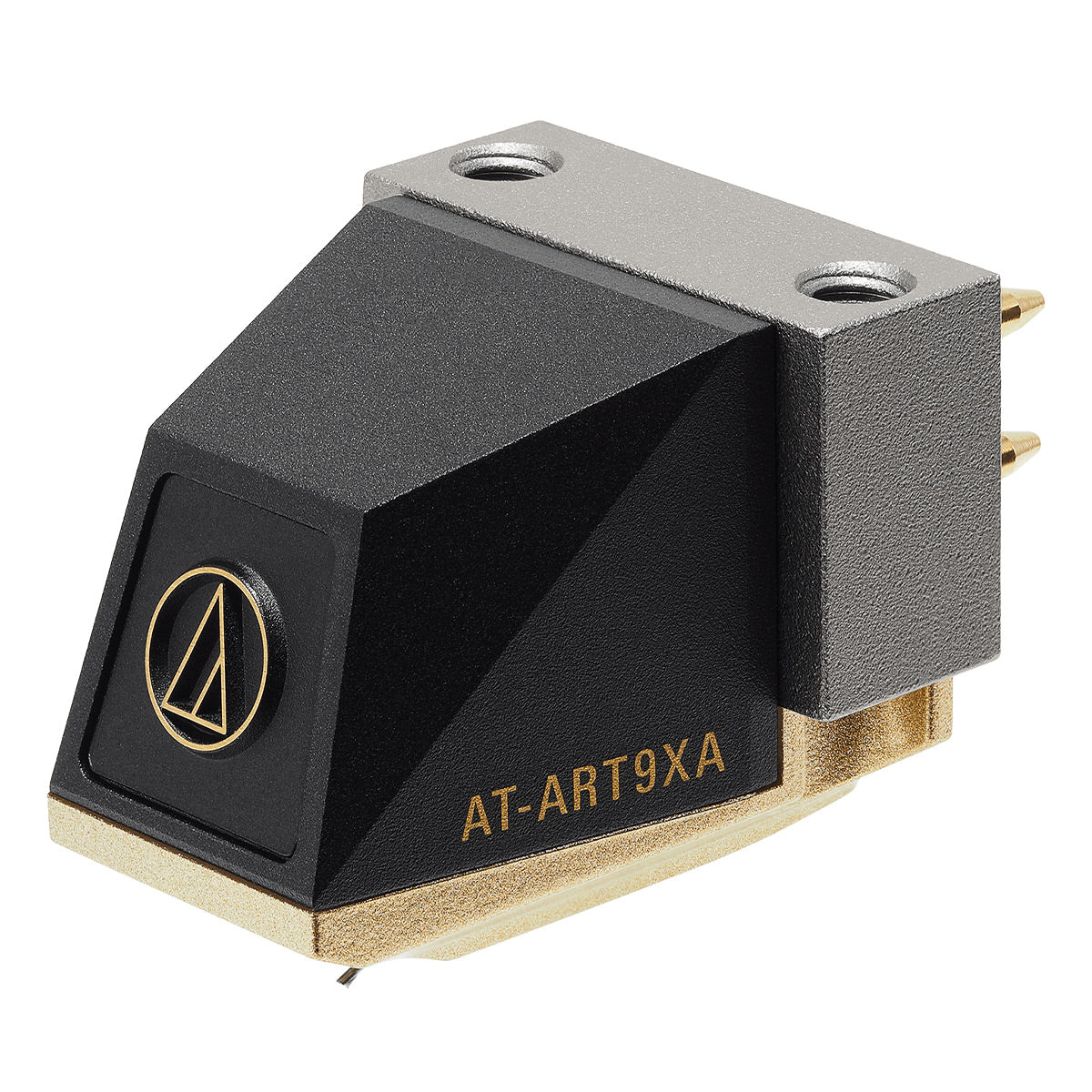

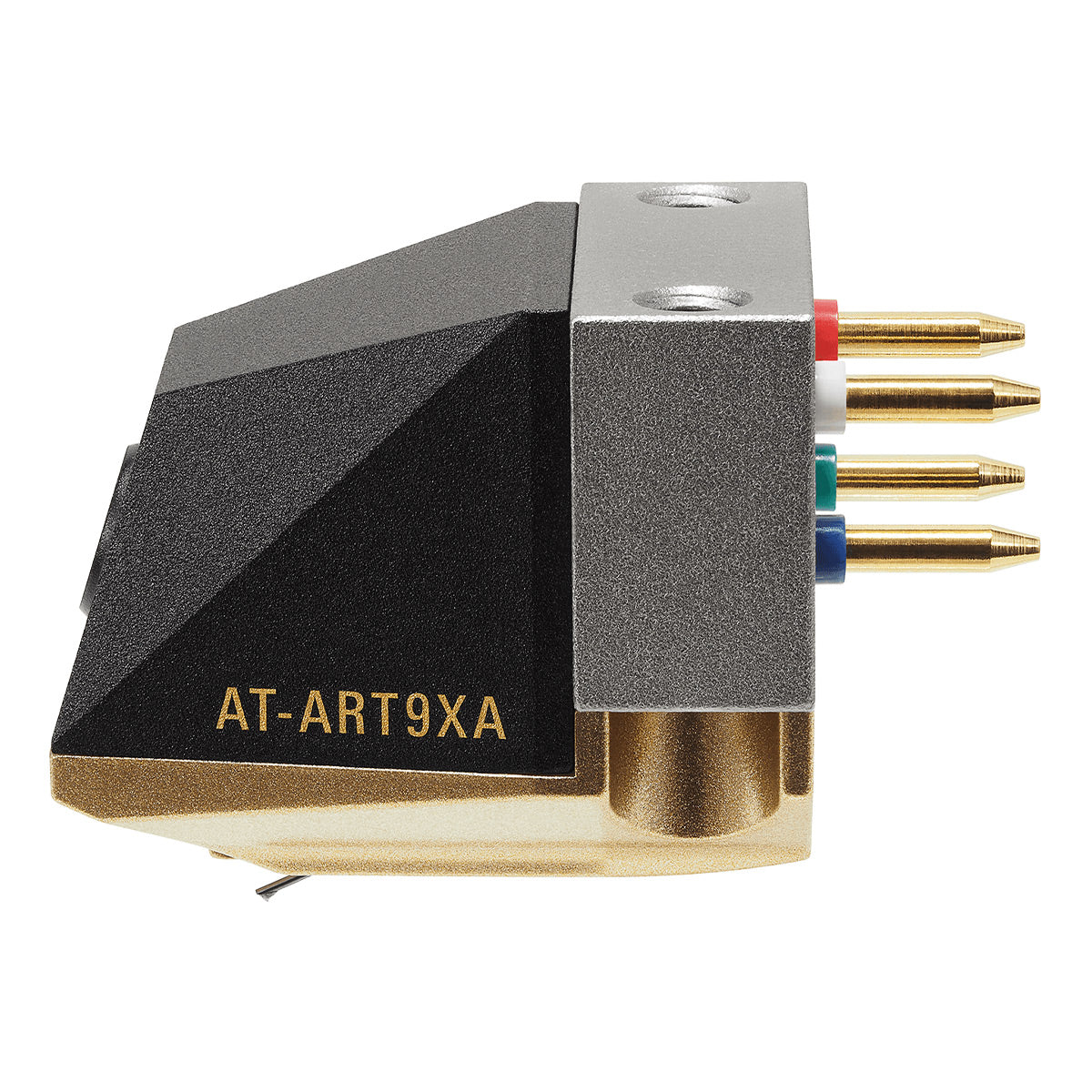

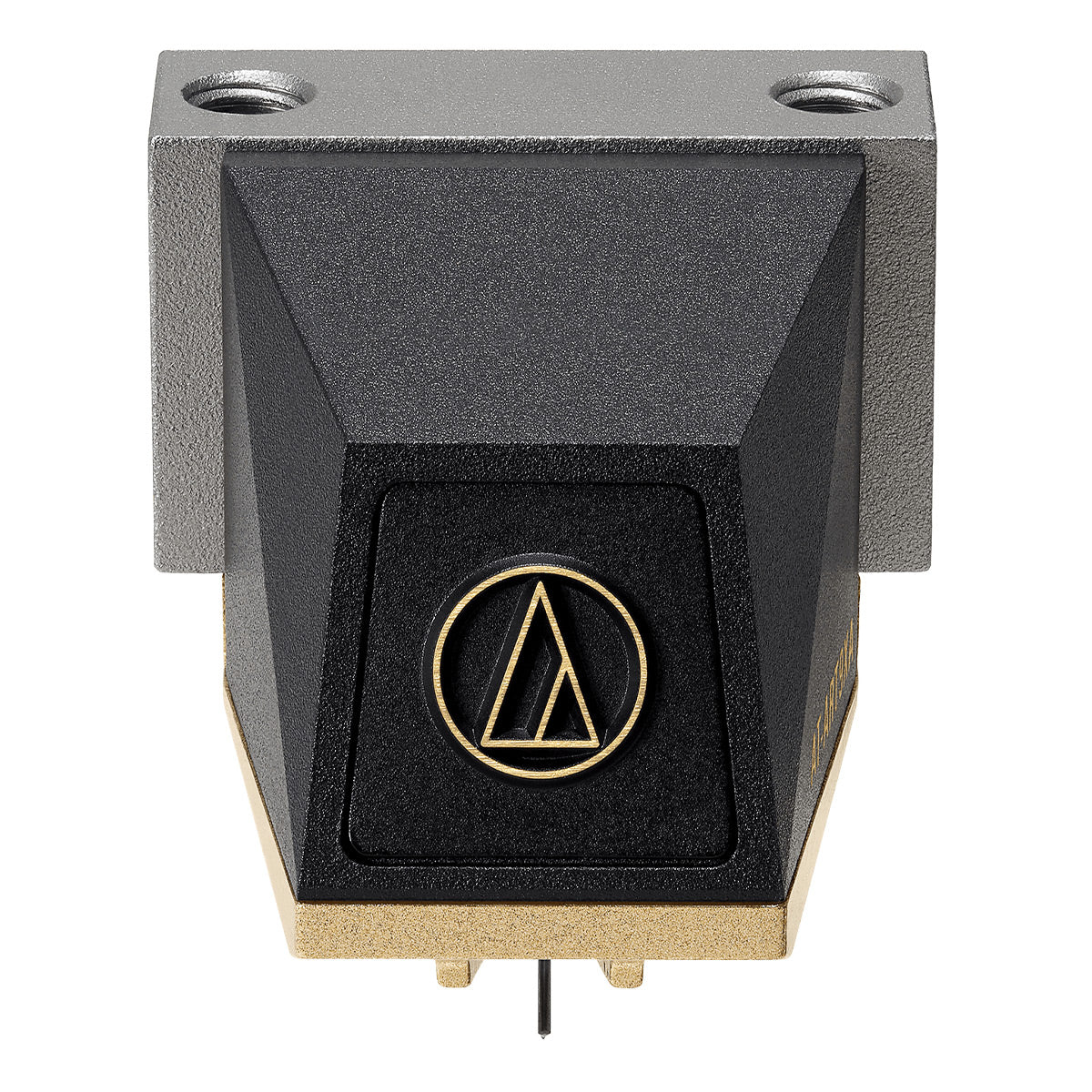

Audio-Technica AT-ART9XA Dual Moving Coil Cartridge with Non-Magnetic Core

Regular price $1,699.00
Sale price $1,699.00 Regular price
$0.00 Save $-1,699.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Fri, Jun 26 – Fri, Jul 3

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: AT-ART9XA | UPC: 4961310153984

Specifications

What's In The Box

Product Information

Model: AT-ART9XA | UPC: 4961310153984

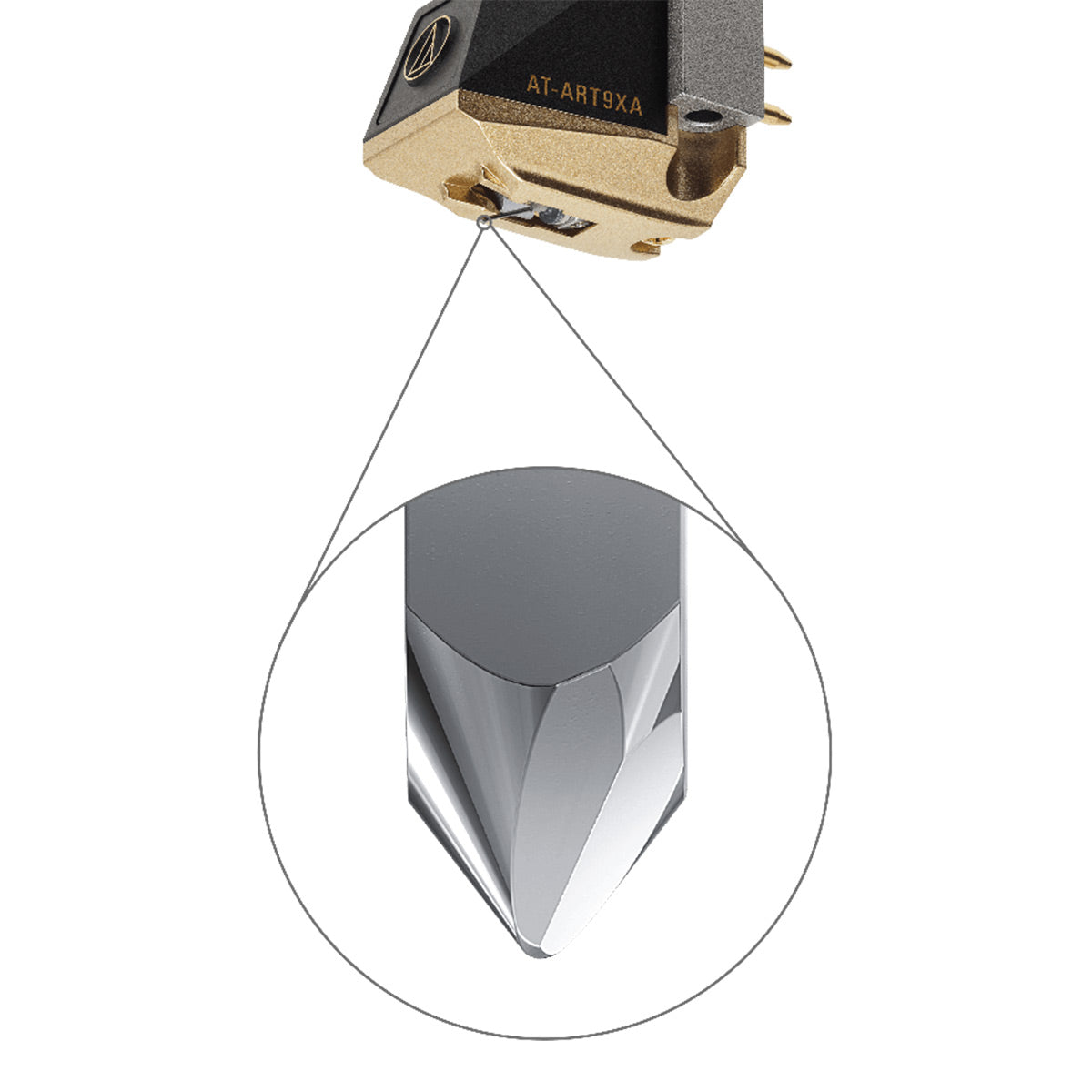

An update of the AT-ART7, the AT-ART9XA non-magnetic core MC cartridge features a Shibata stylus on a 0.28 mm diameter solid boron cantilever.

Features

  • Shibata stylus
  • Neodymium magnet
  • Superior Spatial Representation
  • Dual Moving Provide High Separation and Wide Response
  • Clear Sound Localization and Minimal Distortion
  • PCOCC coils ensure high-fidelity transmission
  • Machined aluminum base provides excellent playback stability
  • Easy installation to a headshell or integrated tonearm

ART

The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that they give only to their flagship phono cartridges. Compared with the magnetic core used in most MC cartridges, non-magnetic core cartridges are free from magnetic distortion, allowing for natural timbre and a precise sound field.

Specifications

  • Frequency Response: 20-50,000 Hz
  • Channel Separation: 30 (dB at 1 kHz)
  • Vertical Tracking Angle: 20°
  • Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)
  • Stylus Construction: Nude
  • Recommended Load Impedance: Min. 100 ohms (when head amplifier connected)
  • Coil Impedance: 12 ohms (1 kHz)
  • DC Resistance: 12 ohms
  • Coil Inductance: 2.5 µH (1 kHz)
  • Output Voltage: 0.2 mV (1 kHz, 5 cm/sec.)
  • Output Channel Balance: 0.5 dB (1 kHz)
  • Stylus Shape: Shibata
  • Cantilever: 0.28 mm diameter solid boron
  • Static Compliance: 20 x 10-6 cm/dyne
  • Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
  • Mounting: Half-inch
  • Cartridge Weight: 8.5 g (0.30 oz)
  • Dimensions (W x H x D): 16.8 mm (0.66") x 17.3 mm (0.68") × 25.0 mm (0.98")
  • Threaded Hole   M2.6 x 2

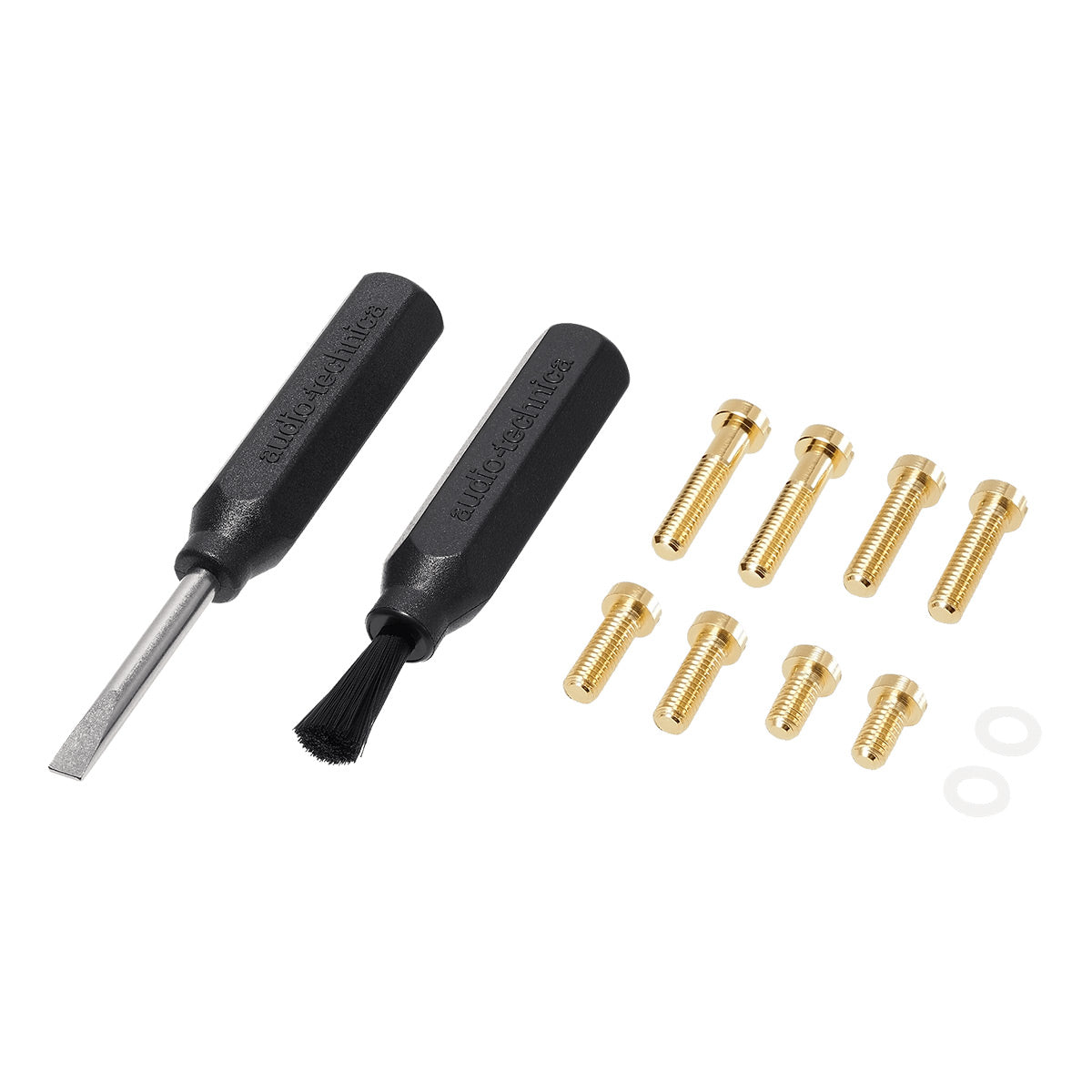

What's In The Box

  • AT-ART9XA Dual Moving Coil Cartridge with Non-Magnetic Core
  • Non-Magnetic Screwdriver
  • (2) Washers
  • Cartridge Installation Screws
